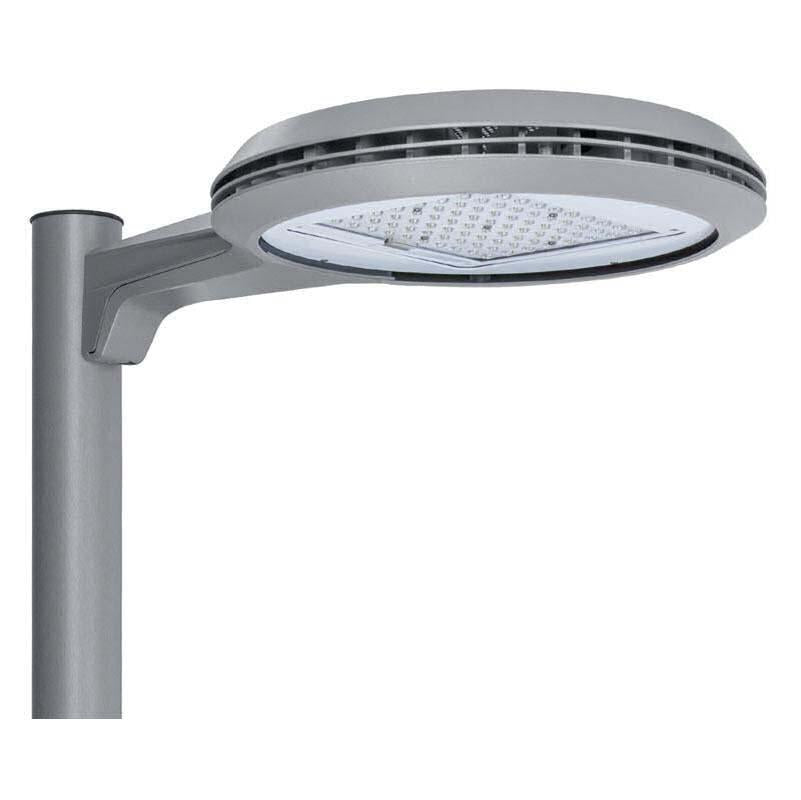

Gardco Lighting SFRA SlenderForm Round Arm Mount
Roll over image to zoom in Click on image to zoom
Gardco Lighting SFRA SlenderForm Round Arm Mount

Gardco Lighting SFRA SlenderForm Round Arm Mount - DISCONTINUED

Gardco LightingSKU: SFRA
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Gardco Lighting finishes

Description

Information For: Gardco Lighting SFRA SlenderForm Round Arm Mount

Product Family Details

  • Source: LED
  • Voltage(s): 120, 208, 240, 277, 347, 480, UNIV
  • Lumens: 10000, 10200, 10300, 10400, 10600, 11000, 11100, 11200, 11300, 11600, 12200, 12400, 12500, 12900, 13200, 13300, 13600, 13700, 13800, 14400, 14600, 14700, 15900, 16200, 16400, 16600, 16700, 17100, 17800, 17900, 18000, 18100, 18300, 18400, 2000, 2100, 3000, 3100, 3300, 3400, 3600, 4400, 5900, 6400, 6900, 7100, 7200, 7500, 7600, 7700, 8000, 8500, 9100, 9200, 9500, 9700
  • Input watts: 105, 107, 128, 130, 140, 25, 53, 69, 80, 84, 90
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • CRI: 70
  • Shape: Round
  • Distribution Type: Type II, Type III, Type IV, Type V
  • Mounting type(s): Pole Arm

Features

  • Complete site and area lighting solutions package
  • Aluminum heat sink fins built into top of luminaire
  • Weatherproof gasketing
  • Carries a 3G vibration rating
  • IP66 rated

Benefits

  • Provides architectural cohesion throughout entire exterior site
  • Provides precise illumination patterns
  • Assures long component life
  • Protects from moisture, dust and insects
  • Withstands even the harshest environmental conditions

Product Family Information

Gardco SlenderForm luminaires combine LED performance excellence and advanced LED thermal management technology with a distinct styling to provide outdoor area lighting that is both energy efficient and aesthetically pleasing. SlenderForm is defined by its high performance, sleek low profile design and rugged construction. The advanced LED optical systems provide IES Types II, III, IV and V distributions. Surge protection included with all SlenderForm luminaires.

Products List
Catalog Number Lumens Input watts Distribution Type
SFRA-2-105LA-6453-NW 13700 105 Type II
SFRA-2-110LA-4870-NW 12900 107 Type II
SFRA-2-130LA-8053-NW 16700 128 Type II
SFRA-2-140LA-6470-NW 17100 140 Type II
SFRA-2-25LA-4815-NW 3400 25 Type II
SFRA-2-55LA-4835-NW 7100 53 Type II
SFRA-2-70LA-6435-NW 9500 69 Type II
SFRA-2-80LA-4853-NW 10300 80 Type II
SFRA-2-90LA-8035-NW 11600 84 Type II
SFRA-2BL-105LA-6453-NW 14600 105 Type II
SFRA-2BL-110LA-4870-NW 13800 107 Type II
SFRA-2BL-130LA-8053-NW 17900 128 Type II
SFRA-2BL-140LA-6470-NW 18300 140 Type II
SFRA-2BL-25LA-4815-NW 3600 25 Type II
SFRA-2BL-55LA-4835-NW 7600 53 Type II
SFRA-2BL-70LA-6435-NW 10200 69 Type II
SFRA-2BL-80LA-4853-NW 11000 80 Type II
SFRA-2BL-90LA-8035-NW 12400 84 Type II
SFRA-3-105LA-6453-NW 13300 105 Type III
SFRA-3-110LA-4870-NW 12500 107 Type III
SFRA-3-130LA-8053-NW 16200 128 Type III
SFRA-3-140LA-6470-NW 16600 140 Type III
SFRA-3-25LA-4815-NW 3300 25 Type III
SFRA-3-55LA-4835-NW 6900 53 Type III
SFRA-3-70LA-6435-NW 9200 69 Type III
California Residents: Prop 65 regulations
Product Files

Click for Spec Sheet

Click for Instruction
