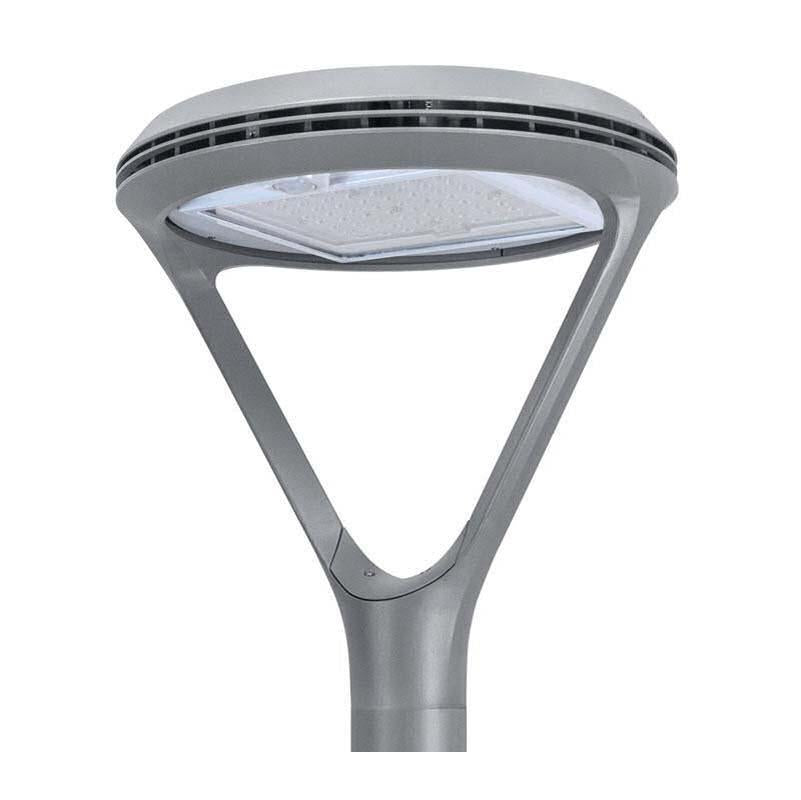

Gardco Lighting SFRP SlenderForm Round Post Top LED
Roll over image to zoom in Click on image to zoom
Gardco Lighting SFRP SlenderForm Round Post Top LED

Gardco Lighting SFRP SlenderForm Round Post Top LED - DISCONTINUED

Gardco LightingSKU: SFRP
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Gardco Lighting finishes

Description

Information For: Gardco Lighting SFRP SlenderForm Round Post Top LED

Product Family Details

  • Source: LED
  • Voltage(s): 120, 208, 240, 277, 347, 480, UNIV
  • Lumens: 10000, 10200, 10300, 10400, 10600, 11000, 11100, 11200, 11300, 11600, 12200, 12400, 12500, 12900, 13200, 13300, 13600, 13700, 13800, 14400, 14600, 14700, 15900, 16200, 16400, 16600, 16700, 17100, 17800, 17900, 18000, 18100, 18300, 18400, 2000, 2100, 3000, 3100, 3300, 3400, 3600, 4400, 5900, 6400, 6900, 7100, 7200, 7500, 7600, 7700, 8000, 8500, 9100, 9200, 9500, 9700
  • Input watts: 105, 107, 128, 130, 140, 25, 53, 69, 80, 84, 90
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • CRI: 70
  • Shape: Round
  • Distribution Type: Type II, Type III, Type IV, Type V
  • Mounting type(s): Pole Top

Features

  • Complete site and area lighting solutions package
  • Aluminum heat sink fins built into top of luminaire
  • Weatherproof gasketing
  • Carries a 3G vibration rating
  • IP66 rated

Benefits

  • Provides architectural cohesion throughout entire exterior site
  • Provides precise illumination patterns
  • Assures long component life
  • Protects from moisture, dust and insects
  • Withstands even the harshest environmental conditions

Product Family Information

Gardco SlenderForm luminaires combine LED performance excellence and advanced LED thermal management technology with a distinct styling to provide outdoor area lighting that is both energy efficient and aesthetically pleasing. SlenderForm is defined by its high performance, sleek low profile design and rugged construction. The advanced LED optical systems provide IES Types II, III, IV and V distributions. Surge protection included with all SlenderForm luminaires.

Products List
Catalog Number Lumens Input watts Distribution Type
SFRP-2-105LA-6453-NW 13700 105 Type II
SFRP-2-110LA-4870-NW 12900 107 Type II
SFRP-2-130LA-8053-NW 16700 128 Type II
SFRP-2-140LA-6470-NW 17100 140 Type II
SFRP-2-25LA-4815-NW 3400 25 Type II
SFRP-2-55LA-4835-NW 7100 53 Type II
SFRP-2-70LA-6435-NW 9500 69 Type II
SFRP-2-80LA-4853-NW 10300 80 Type II
SFRP-2-90LA-8035-NW 11600 84 Type II
SFRP-2BL-105LA-6453-NW 14600 105 Type II
SFRP-2BL-110LA-4870-NW 13800 107 Type II
SFRP-2BL-130LA-8053-NW 17900 128 Type II
SFRP-2BL-140LA-6470-NW 18300 140 Type II
SFRP-2BL-25LA-4815-NW 3600 25 Type II
SFRP-2BL-55LA-4835-NW 7600 53 Type II
SFRP-2BL-70LA-6435-NW 10200 69 Type II
SFRP-2BL-80LA-4853-NW 11000 80 Type II
SFRP-2BL-90LA-8035-NW 12400 84 Type II
SFRP-3-105LA-6453-NW 13300 105 Type III
SFRP-3-110LA-4870-NW 12500 107 Type III
SFRP-3-130LA-8053-NW 16200 128 Type III
SFRP-3-140LA-6470-NW 16600 140 Type III
SFRP-3-25LA-4815-NW 3300 25 Type III
SFRP-3-55LA-4835-NW 6900 53 Type III
SFRP-3-70LA-6435-NW 9200 69 Type III
California Residents: Prop 65 regulations
Product Files

Click for Spec Sheet

Click for Instruction
