Description
Gardco Lighting SolarForm Gen3 Hybrid
Dual-source All in One solar street and area light: solar primary with AC/grid backup
Product family information

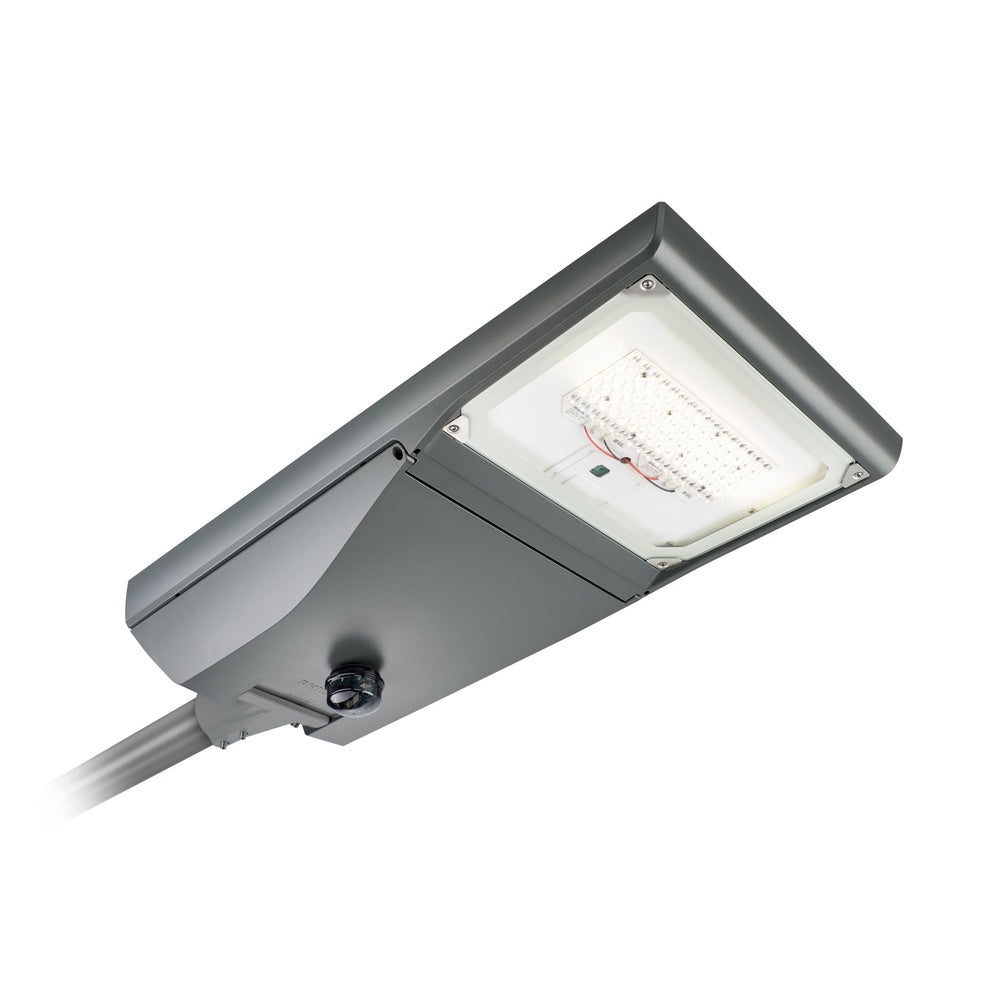

SolarForm Gen 3 Hybrid is an integrated solar lighting solution designed to provide high-quality illumination and reliable performance. It features an LED light integrated with a solar photovoltaic panel, a battery, and a smart controller, simplifying specification, sales, installation, configuration, and maintenance processes. Equipped with field-configurable operating profiles tailored to night activities and expected solar energy available. This solution offers a reliable lighting option for areas where electricity is not reliable or costly. The system operates primarily on solar power and battery, seamlessly switching to the grid when solar irradiance or battery capacity is insufficient, ensuring uninterrupted illumination throughout the night.
Benefits
- Cost and energy-efficient
- Always-ON feature for street security
- Sturdy construction for long life
- Environmentally friendly
- Programmable dimming profiles for maximum flexibility
- Easy installation and cost saving
Features
- Up to 9,000 lumens output
- MPPT and charge controller for maximum efficiency

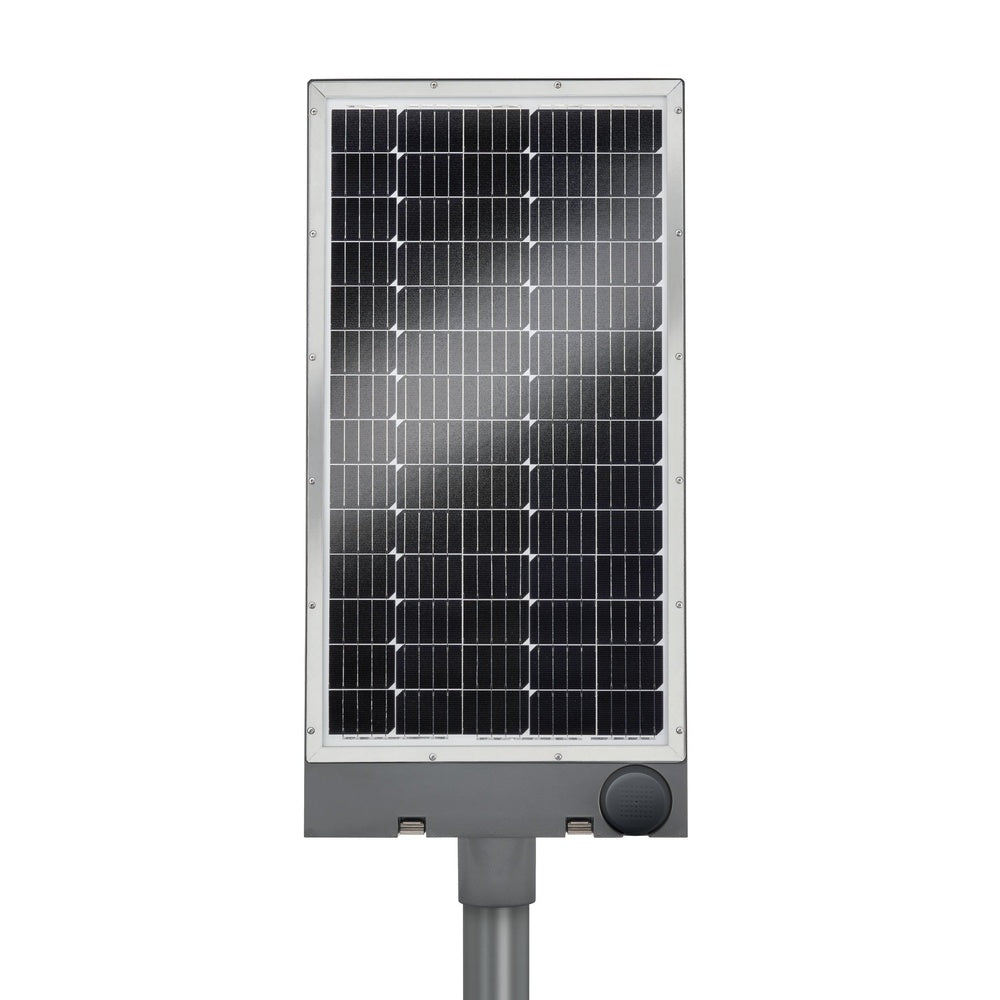

- High efficiency, integrated mono-crystalline PV panel
- Bluetooth module for easy monitoring and configuration from bottom of pole via Service Tag app
- Replaceable spare parts for maintenance via Service Tag app

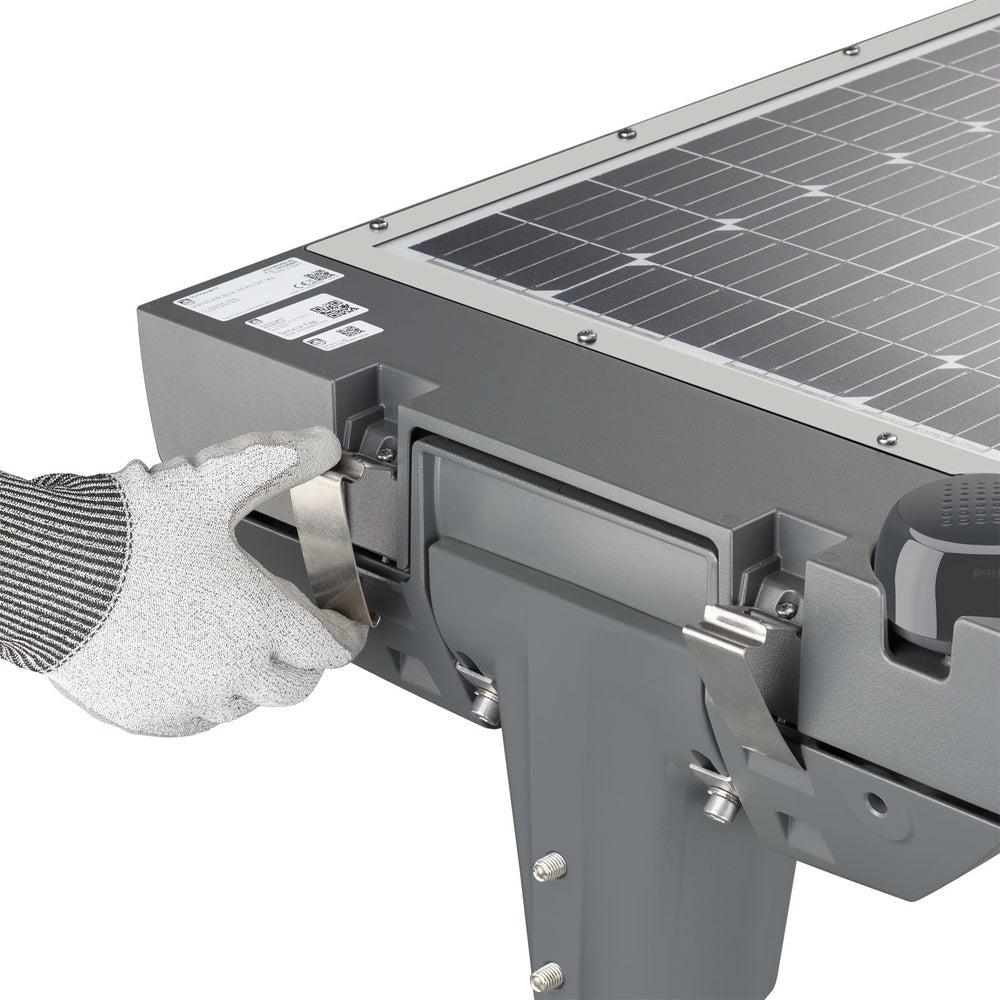

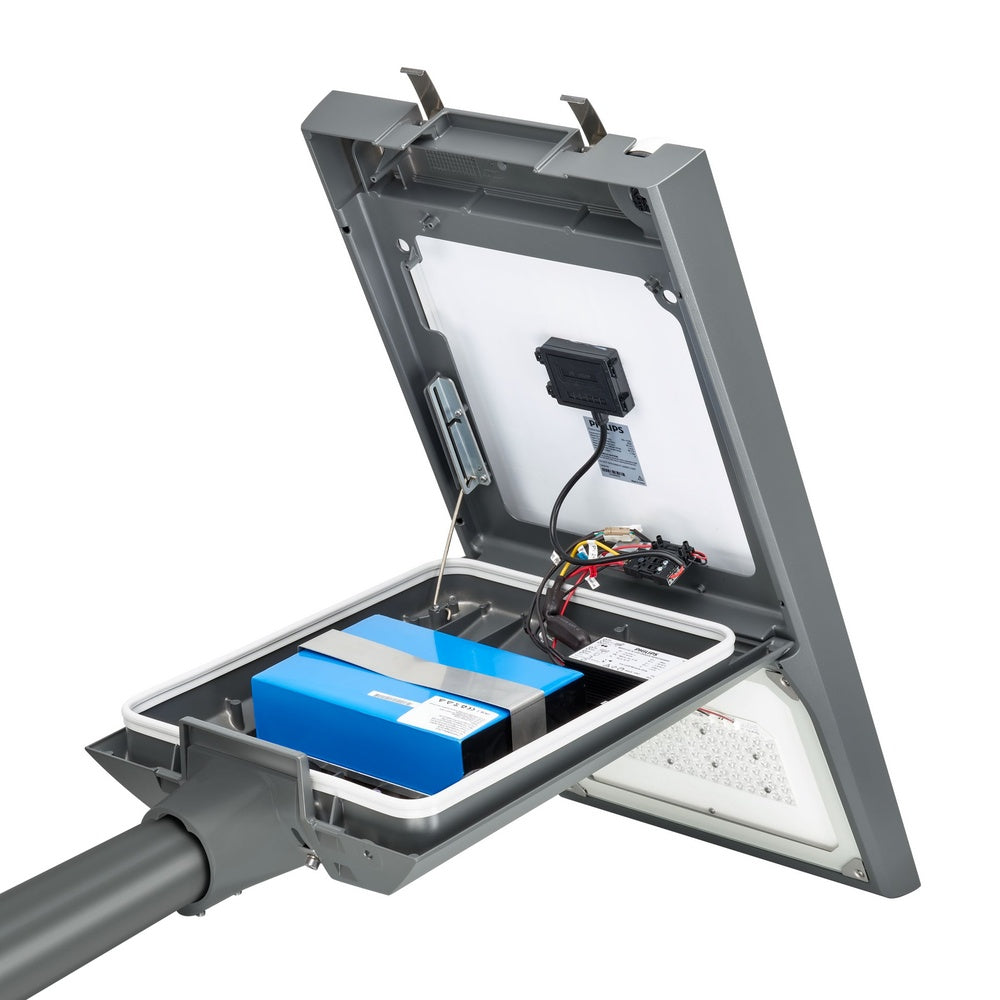

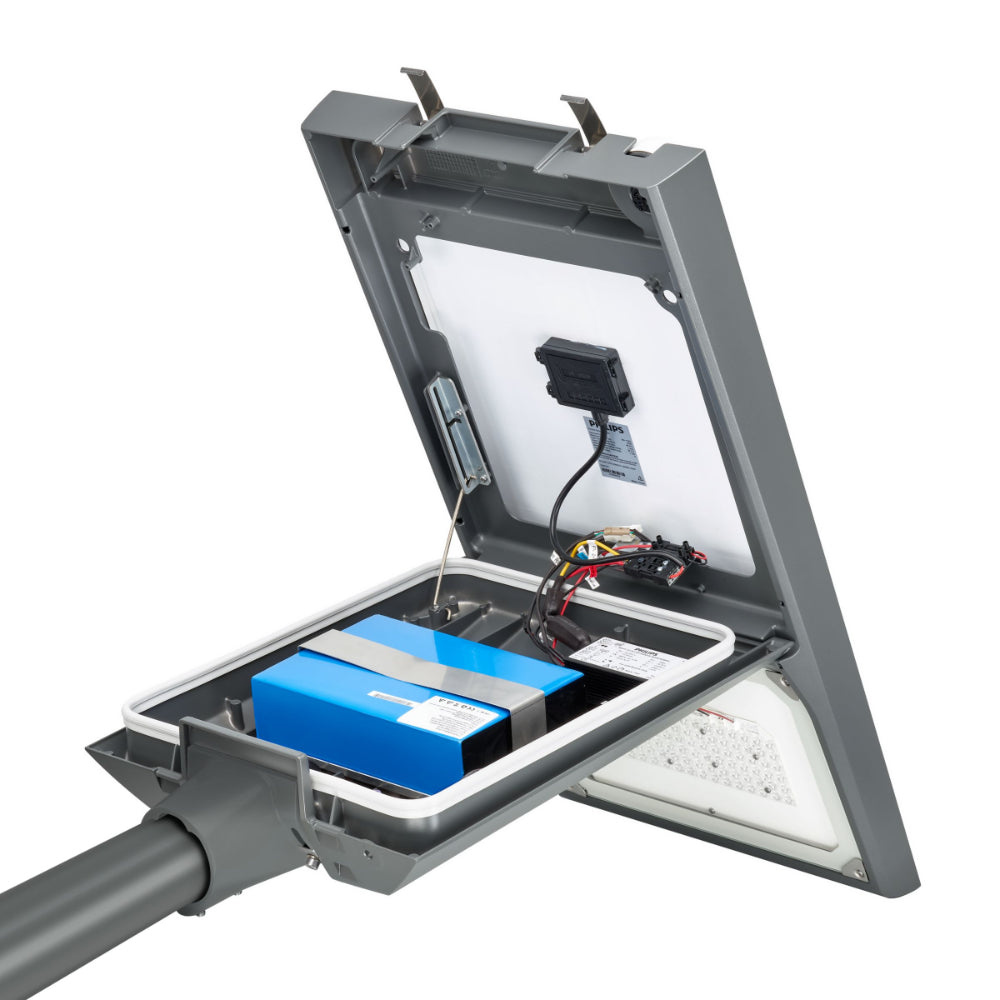

- Tool-less opening of top housing via clips for easy access to components
- Two mounting options, post-top and side entry via same spigot

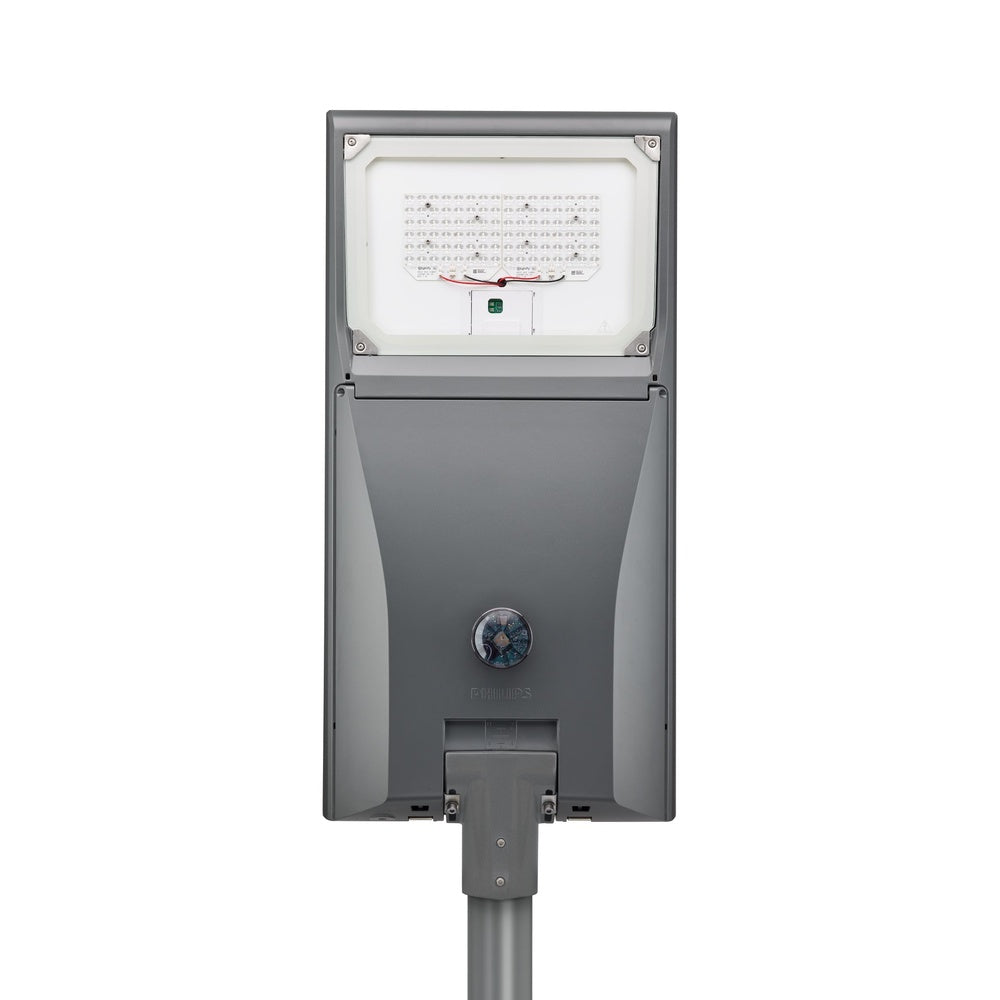

- Optional multi-sensor for light on demand and forward triggering

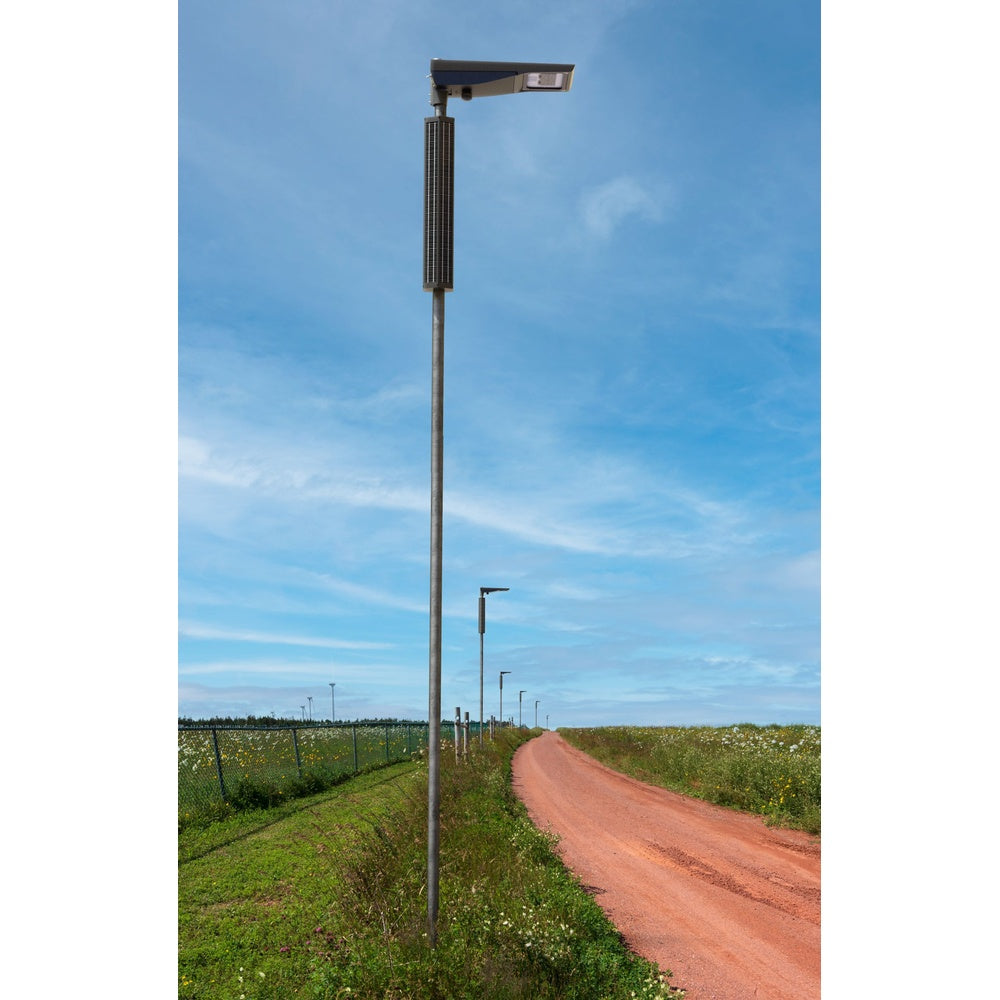

- Optional Top-up vertical PV panel to increase the power generation without replacing the whole unit
- Replaceable Lithium Iron Phosphate battery for long life and hassle free operations
- Specially designed pole mounting bracket with adjustable tilt angles of 0 to 15 degrees, which can also be used in post top & lateral mounting positions
- Grid-assisted for reliable lighting in all conditions
Applications

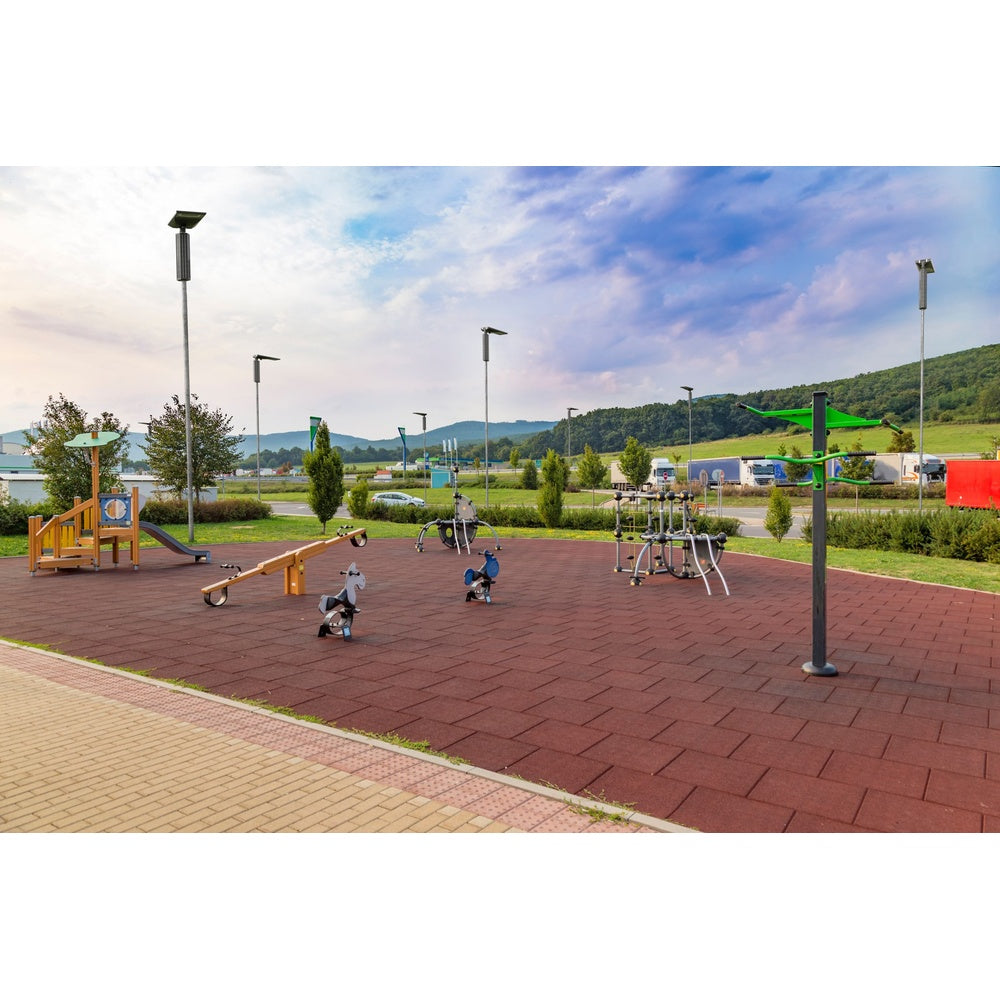

- Parks, pedestrian path lighting

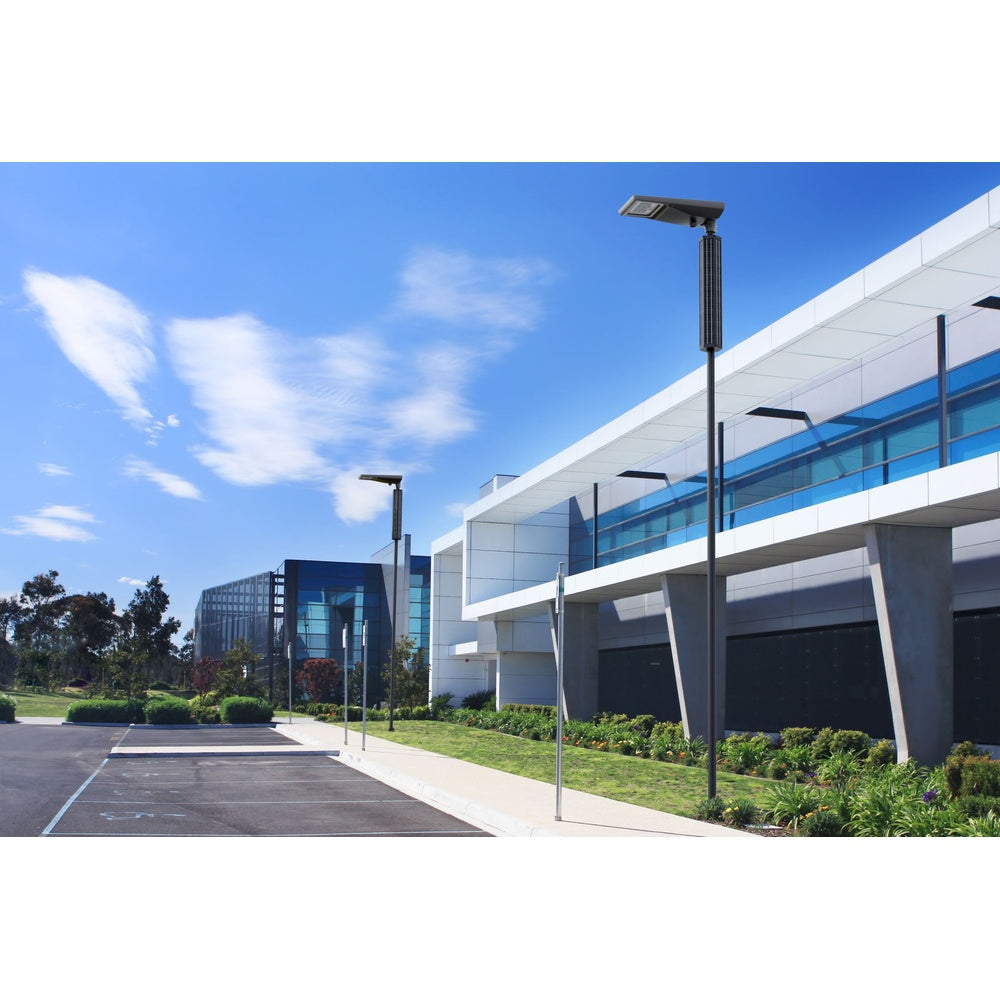

- Shopping centers, campuses, plazas

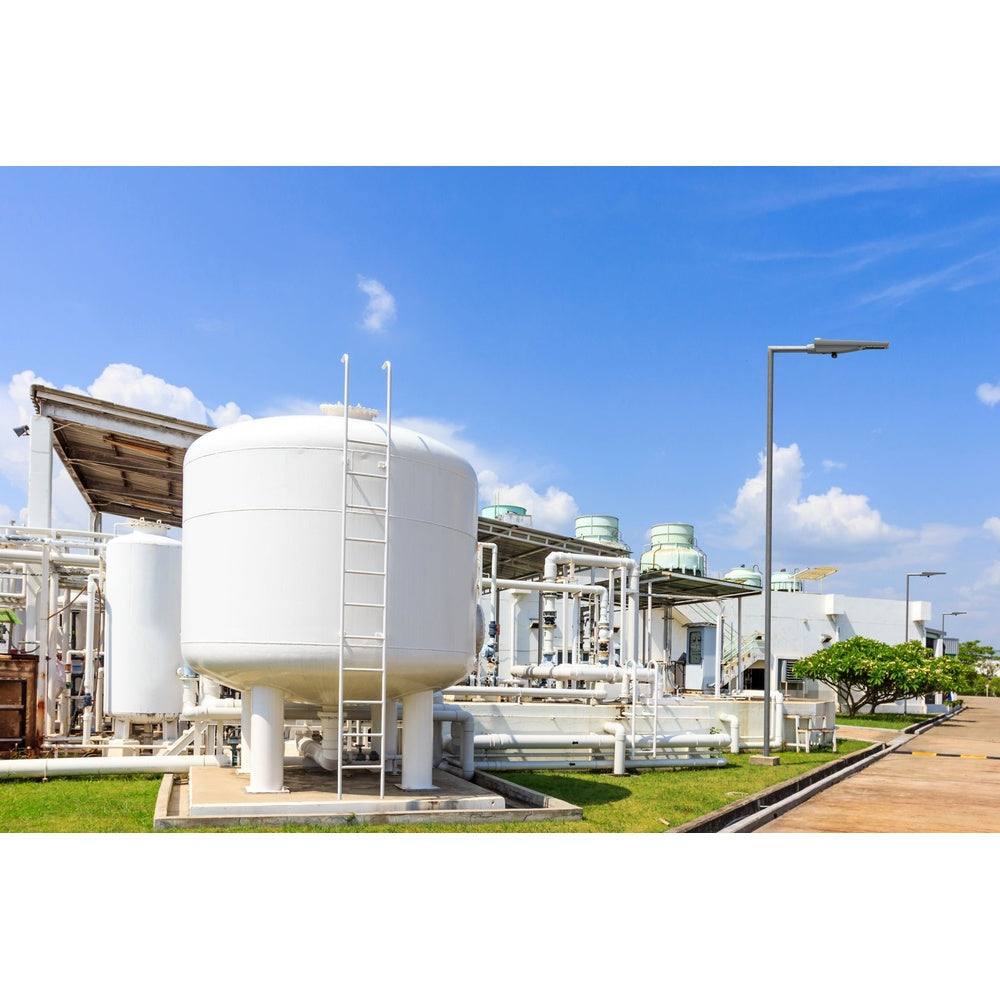

- Industries, office, schools

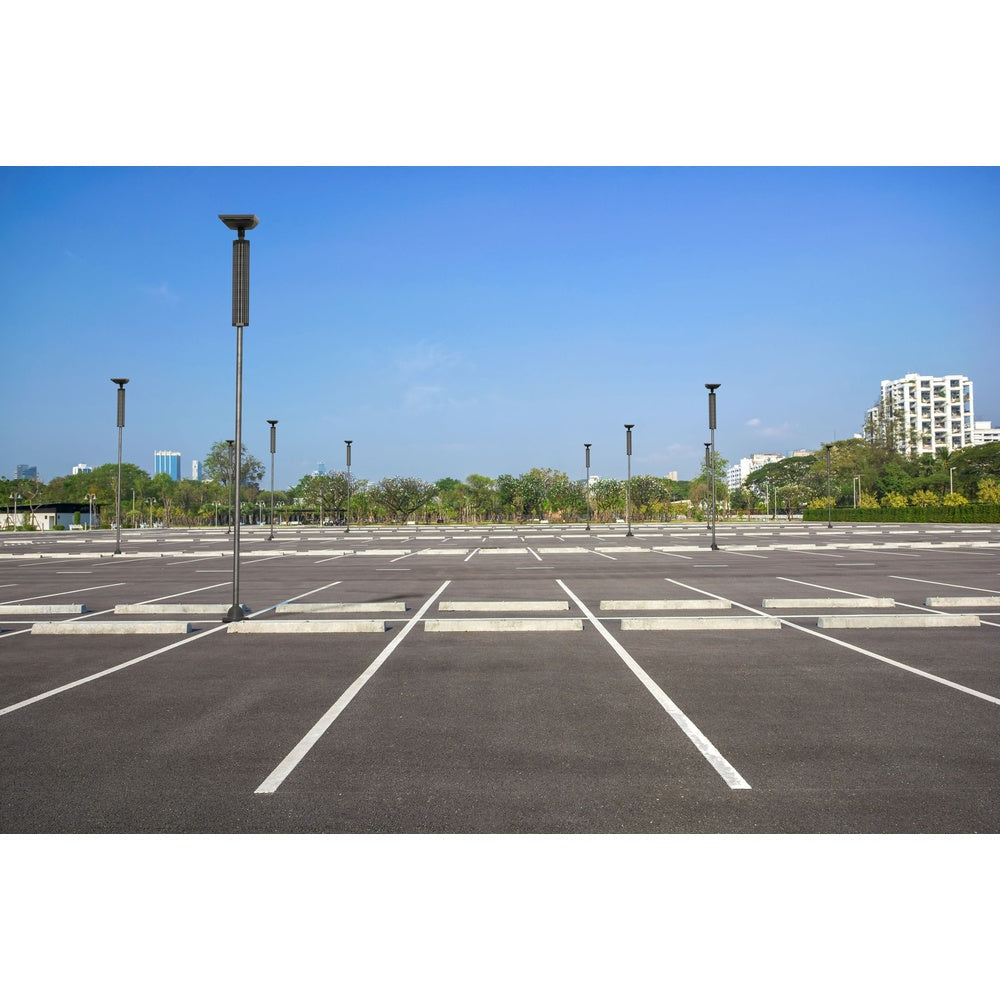

- Parking lots

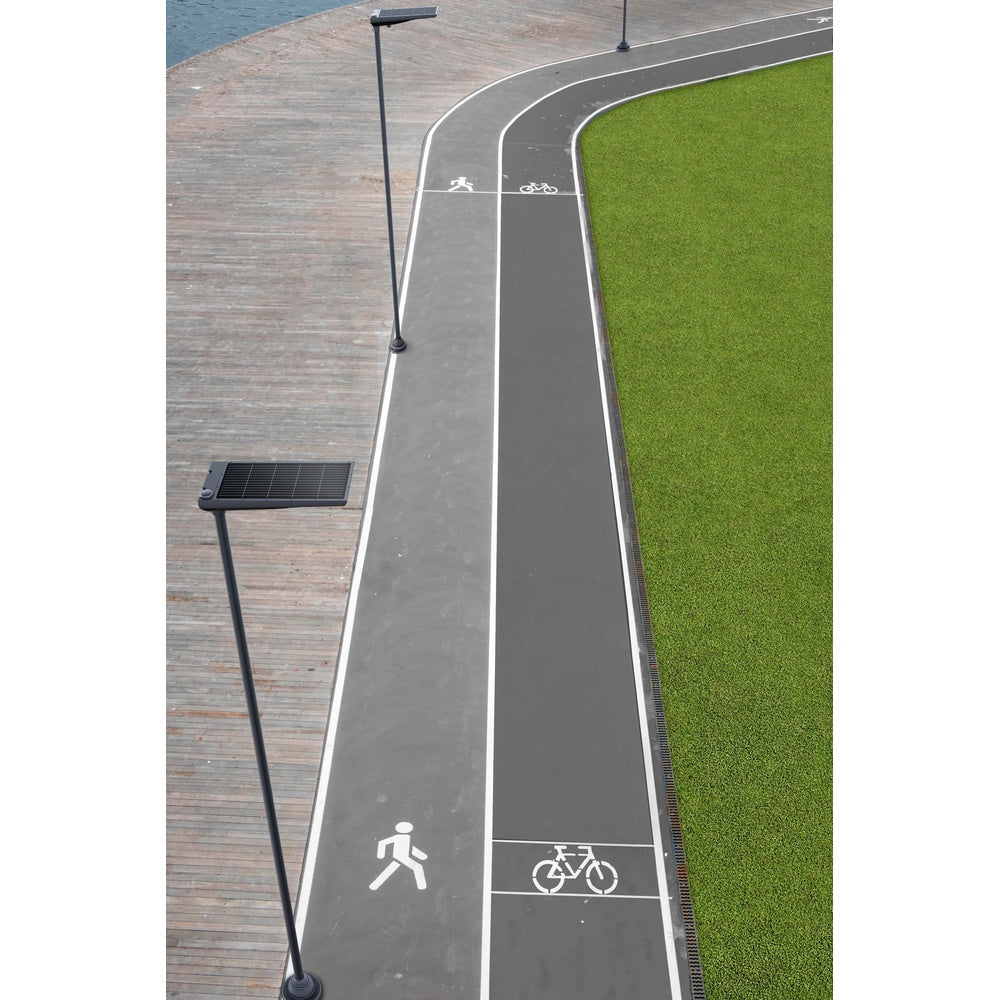

- Cycle paths

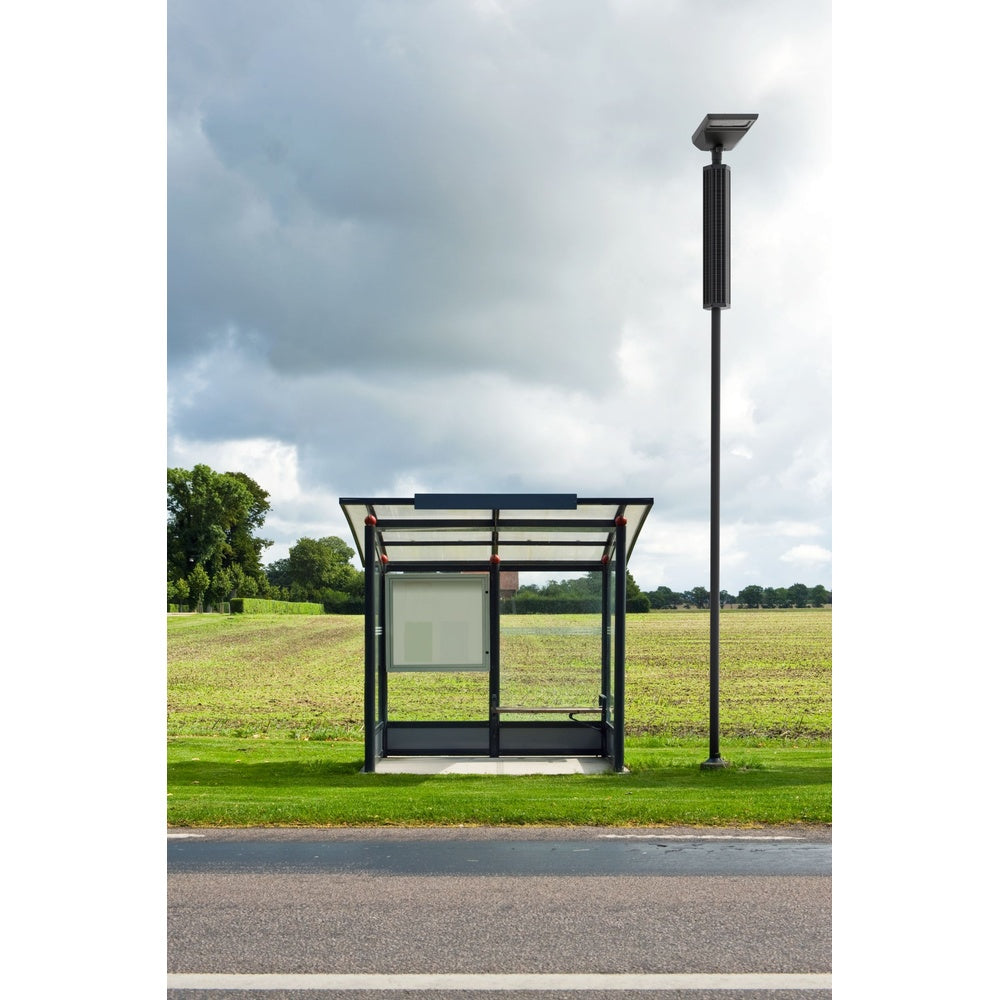

- Bus stops

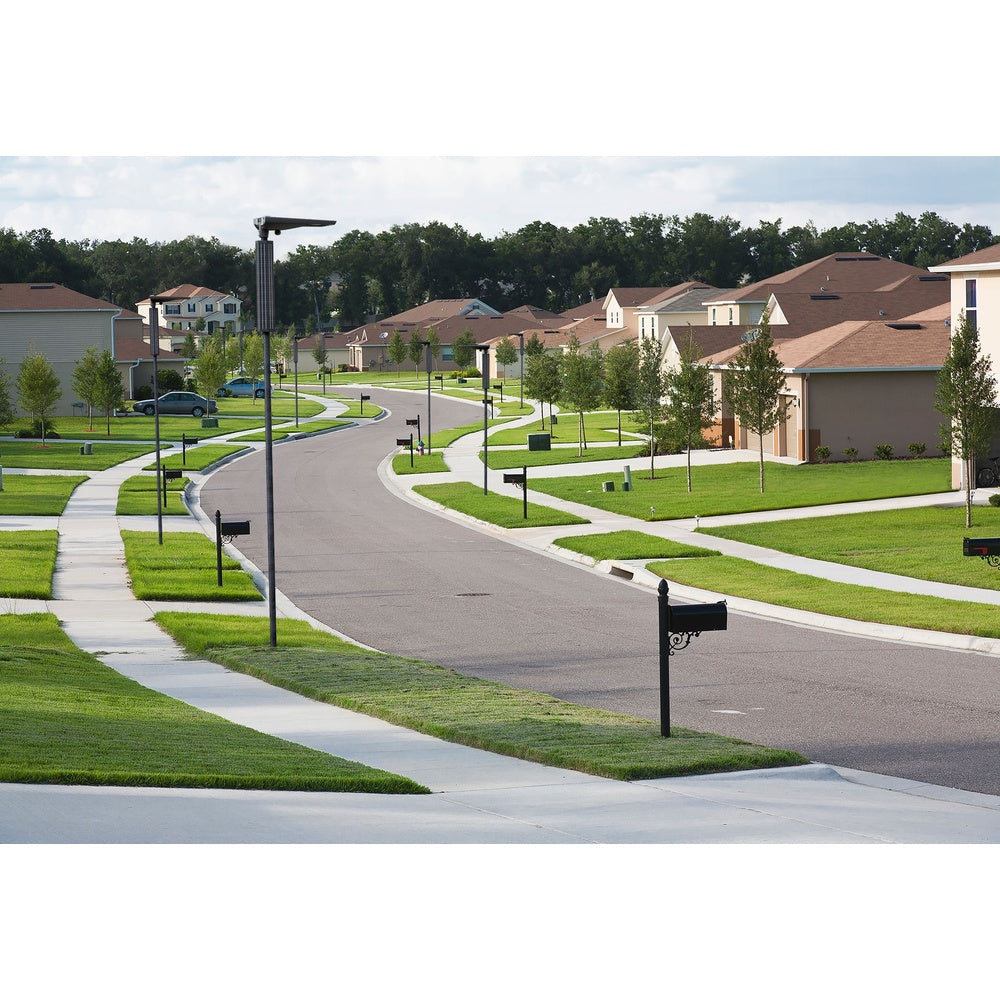

- Residential
Product Variations
| Image | Title | SKU |
|---|---|---|
 | SolarForm G3, Hybrid, 3219 lm, 4000K, type 2 short | VGP726 LED40 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 2029 lm, 4000K, type 2 short | VGP726 LED30 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 5910 lm, 4000K, type 2 short | VGP726 LED70 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 8966 lm, 4000K, type 2 short | VGP726 LED100 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 7230 lm, 4000K, type 2 short | VGP726 LED80 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 8101 lm, 4000K, type 2 short | VGP726 LED90 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 5021 lm, 4000K, type 2 short | VGP726 LED60 740 HY-BLE DM32 |
| SolarForm G3, Hybrid, 4120 lm, 4000K, type 2 short | VGP726 LED50 740 HY-BLE DM32 |
Product Files
Click for Gardco SolarForm G3 Hybrid Spec Sheet
Click for Gardco SolarForm G3 Hybrid Installation Instructions
