Description

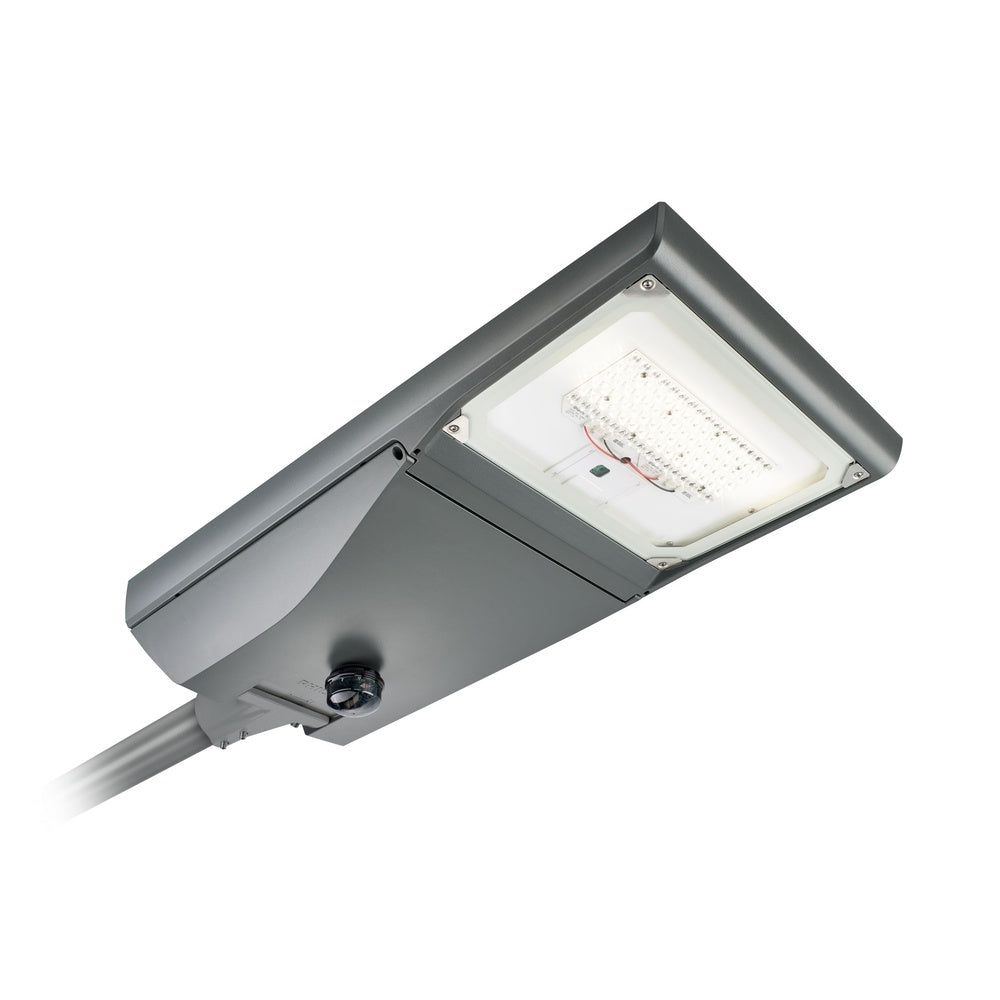

Gardco Lighting SolarForm Gen3 Off-Grid
All In One solar street and area light for off-grid applications
Product family information
Gardco SolarForm Gen 3 Off-Grid is an integrated solar lighting solution designed to provide high-quality illumination and reliable performance in remote or power-scarce environments or when trenching is not possible. It features an LED light integrated with a solar photovoltaic panel and a robust battery storage system, managed by a smart controller to maximize efficiency. This system is engineered to ensure continuous illumination solely based on solar power, tailored to local solar conditions and night-time activities. It includes enhanced battery capacity to maintain consistent lighting throughout the night, eliminating any dependency on grid connectivity. This makes it ideal for areas where grid electricity is unavailable, unreliable, or costly.
Benefits
- Brings light to areas without access to electric grid
- Preserves landscape as no trenching for cabling required
- Sturdy construction for long life
- Saves energy
- Environmentally friendly
- Programmable dimming profiles for maximum flexibility
- Easy installation and cost saving
Features
- Up to 9,000 lumens output
- MPPT and charge controller for maximum efficiency

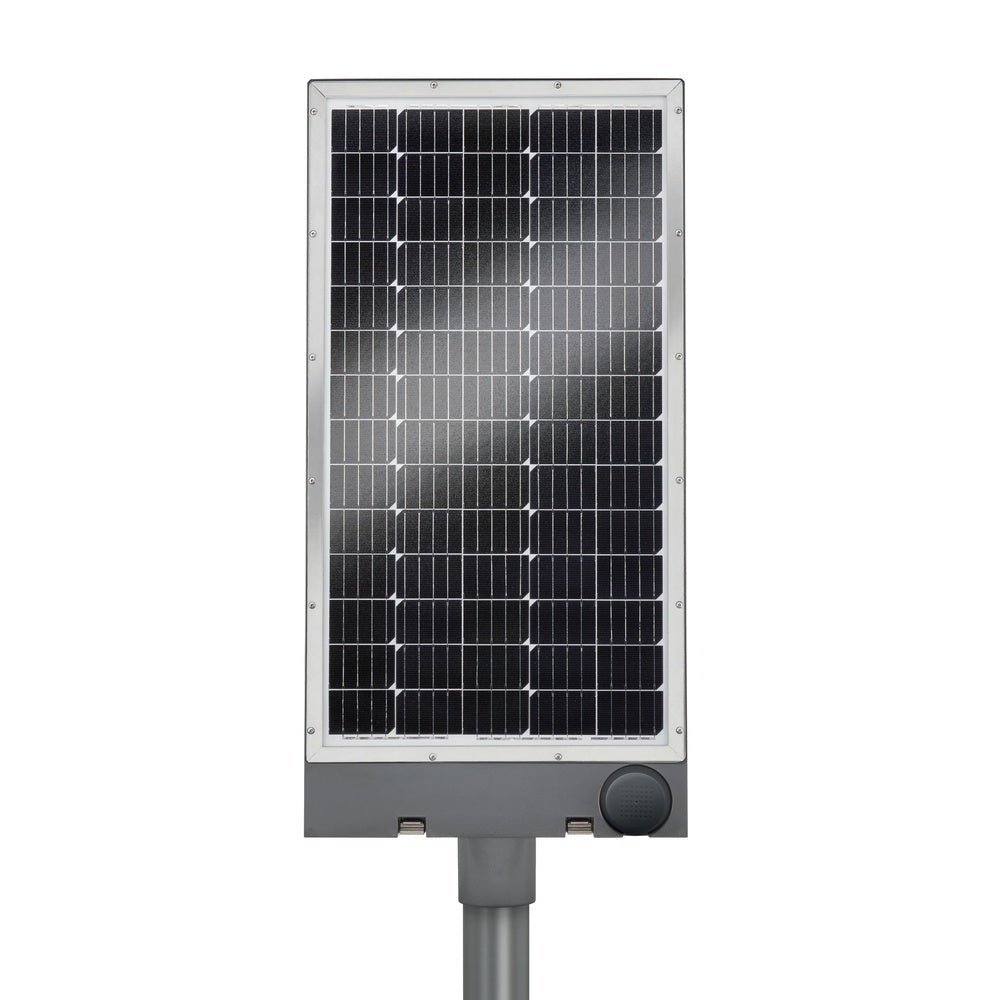

- High efficiency, integrated mono-crystalline PV panel
- Bluetooth module for easy monitoring and configuration from bottom of pole via Service Tag app
- Replaceable spare parts for maintenance via Service Tag app

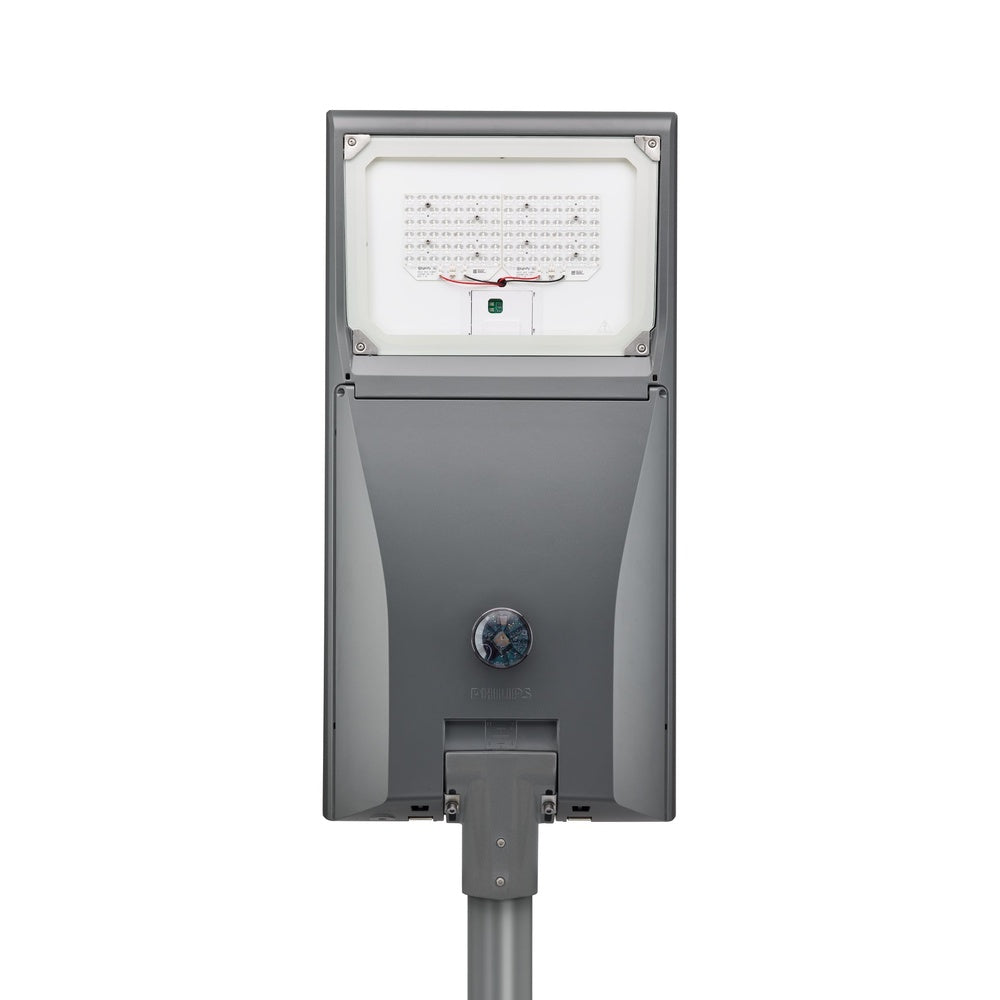

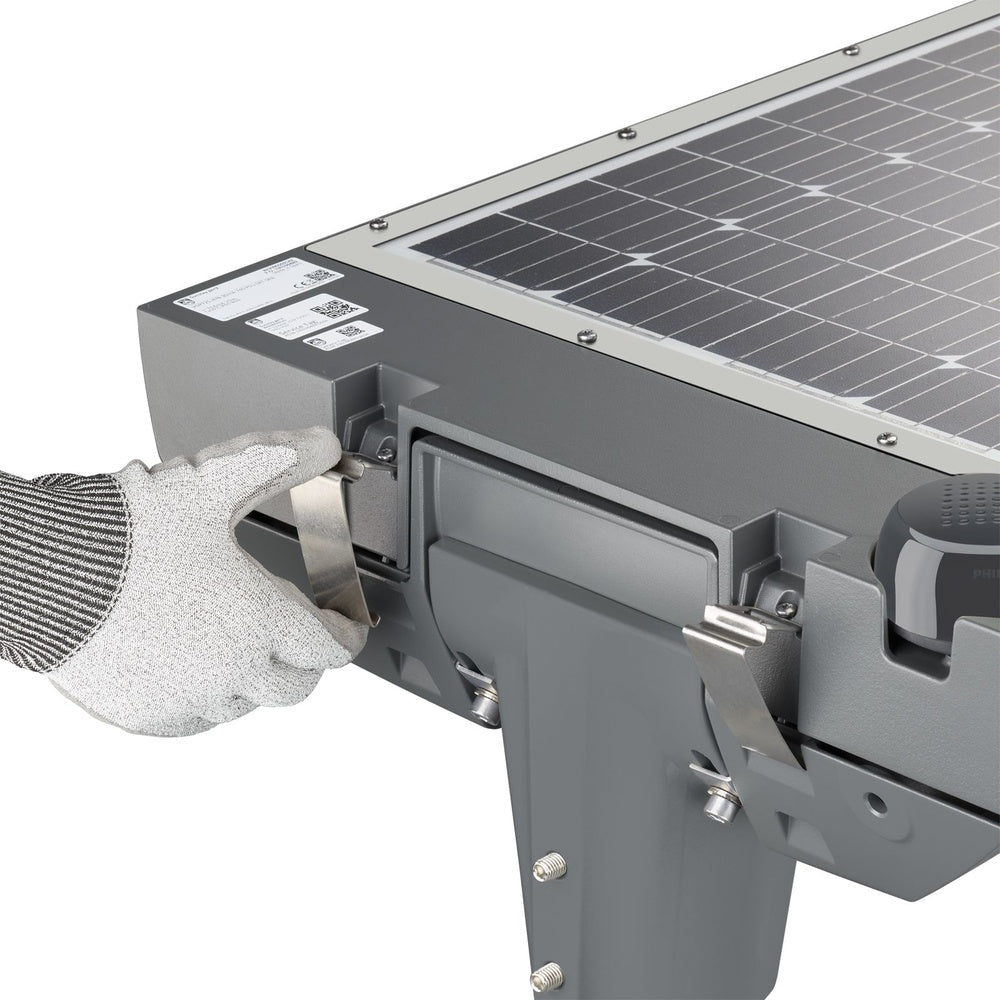

- Tool-less opening of top housing via clips for easy access to components
- Two mounting options, post-top and side entry via same spigot
- Optional multi-sensor for light on demand and forward triggering

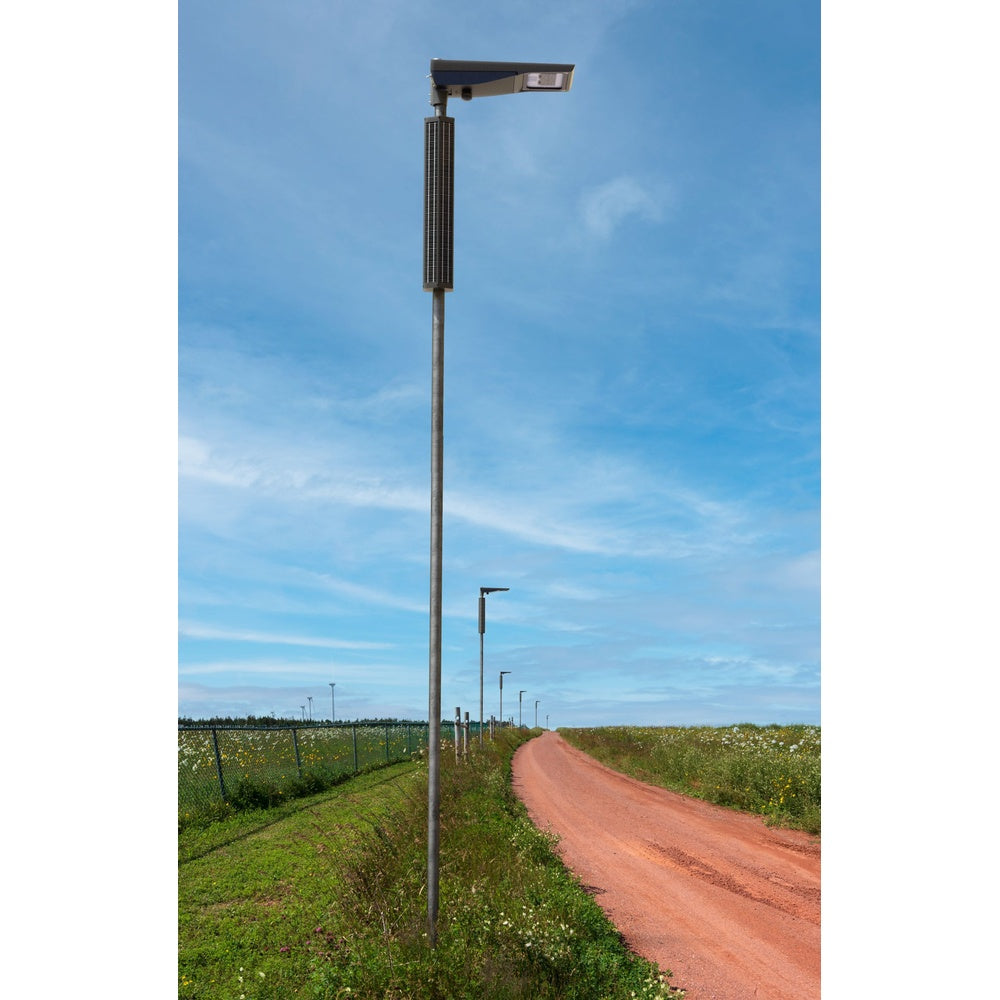

- Optional Top-up vertical PV panel to increase the power generation without replacing the whole unit

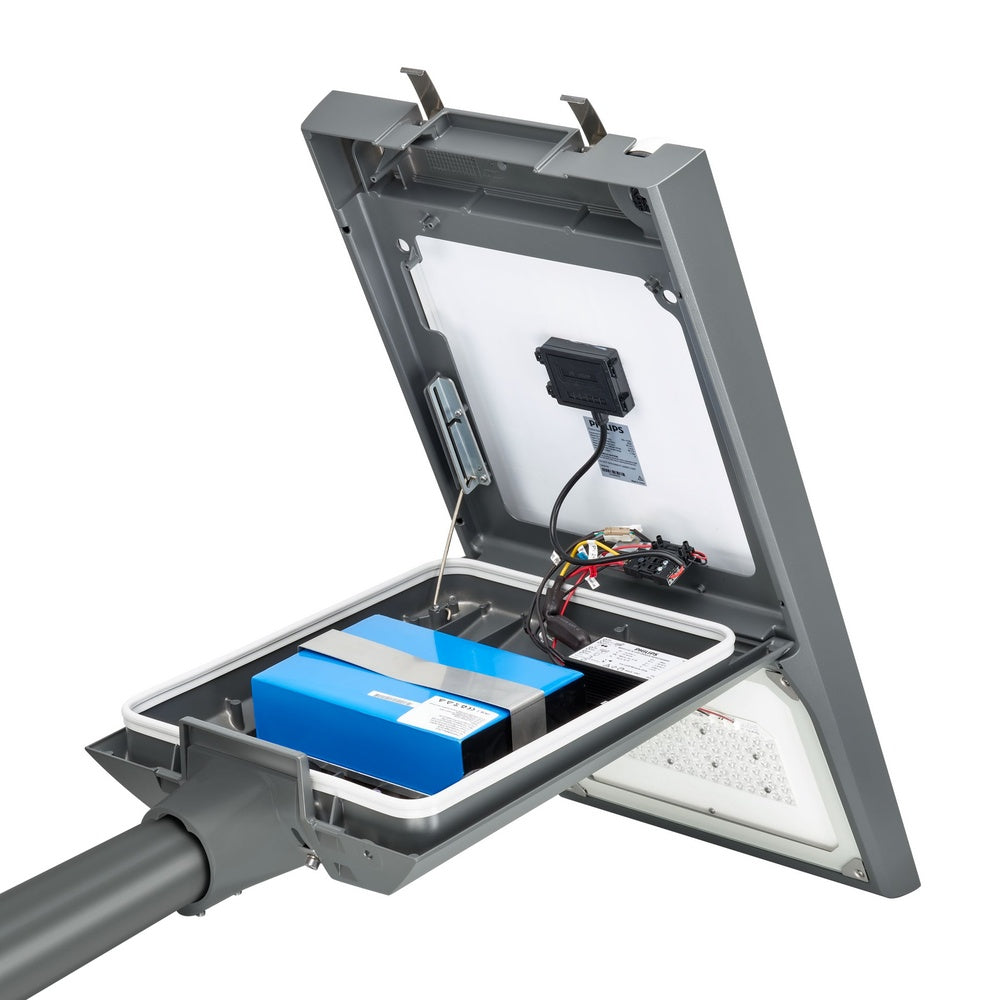

- Replaceable Lithium Iron Phosphate battery for long life and hassle free operations
- Specially designed pole mounting bracket with adjustable tilt angles of 0 to 15 degrees, which can also be used in post top & lateral mounting positions
- Advanced RTE (run time extension) technology for run time maximization
Applications

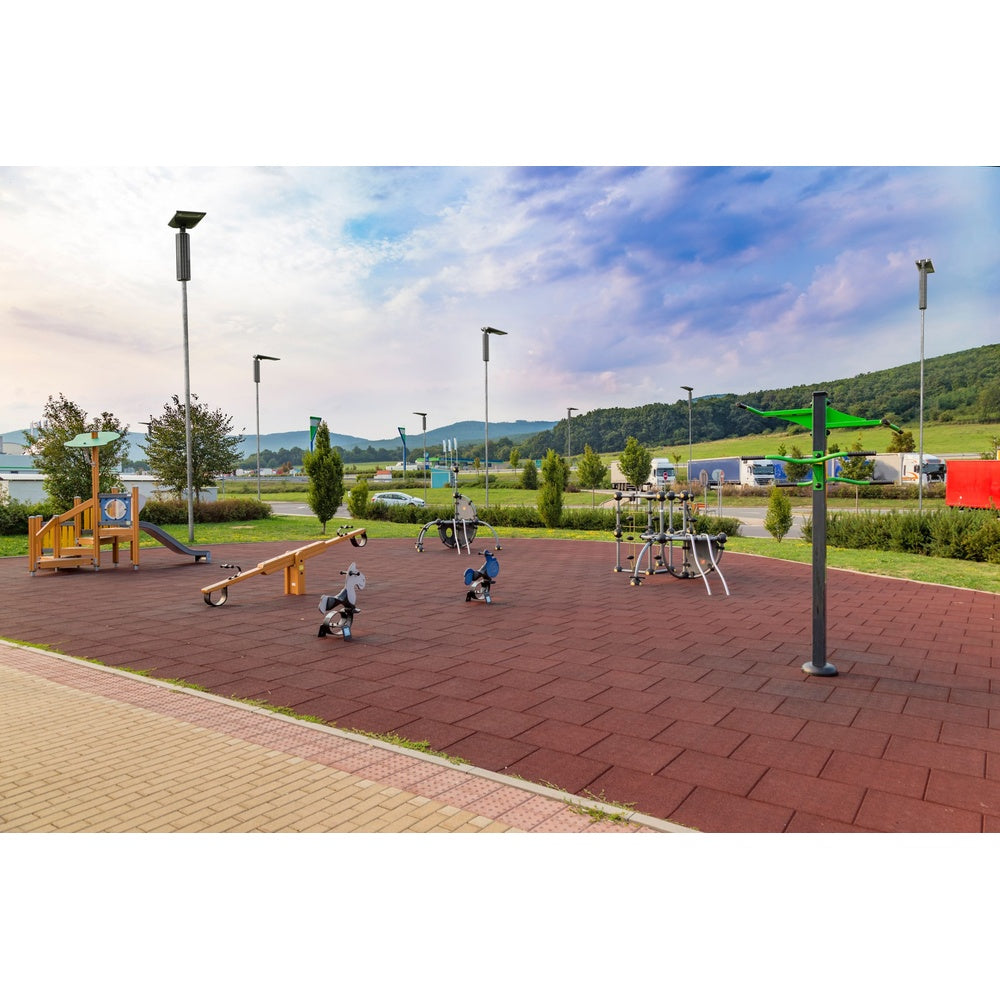

- Parks, pedestrian path lighting

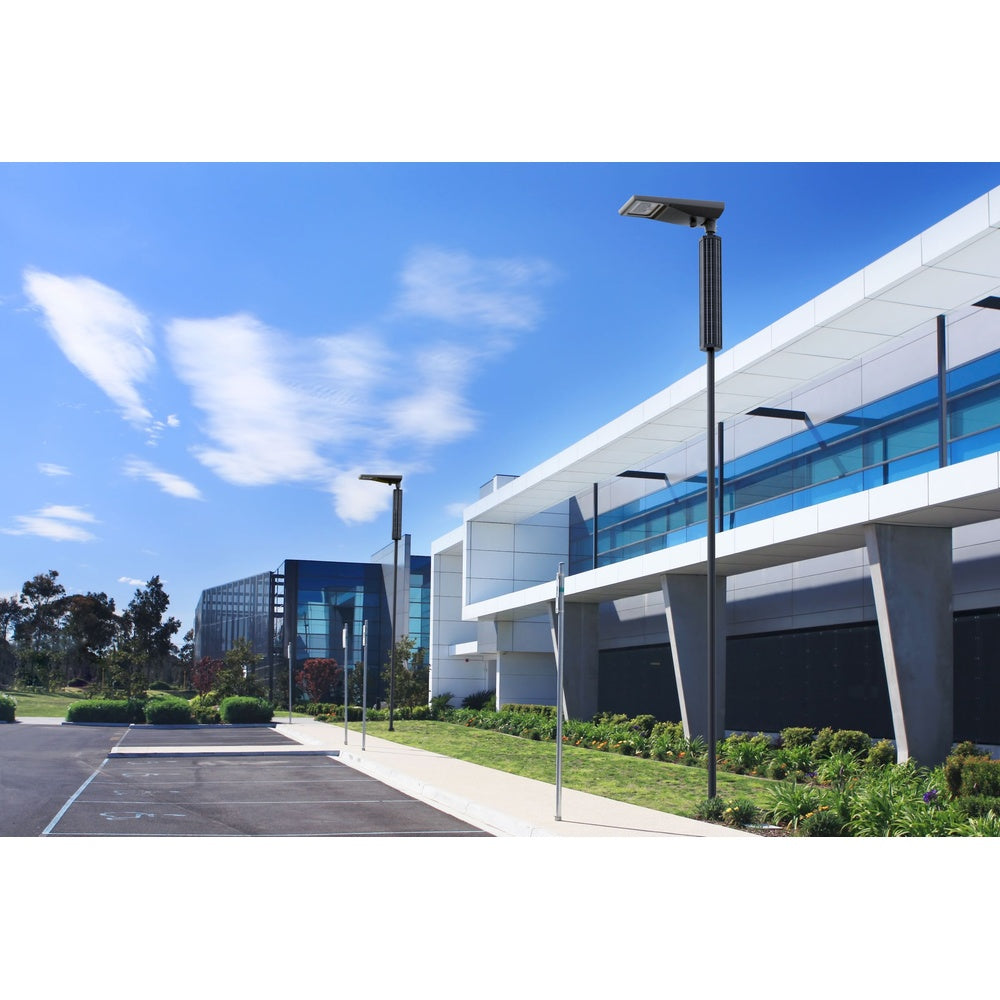

- Shopping centers, campuses, plazas
- Rural areas

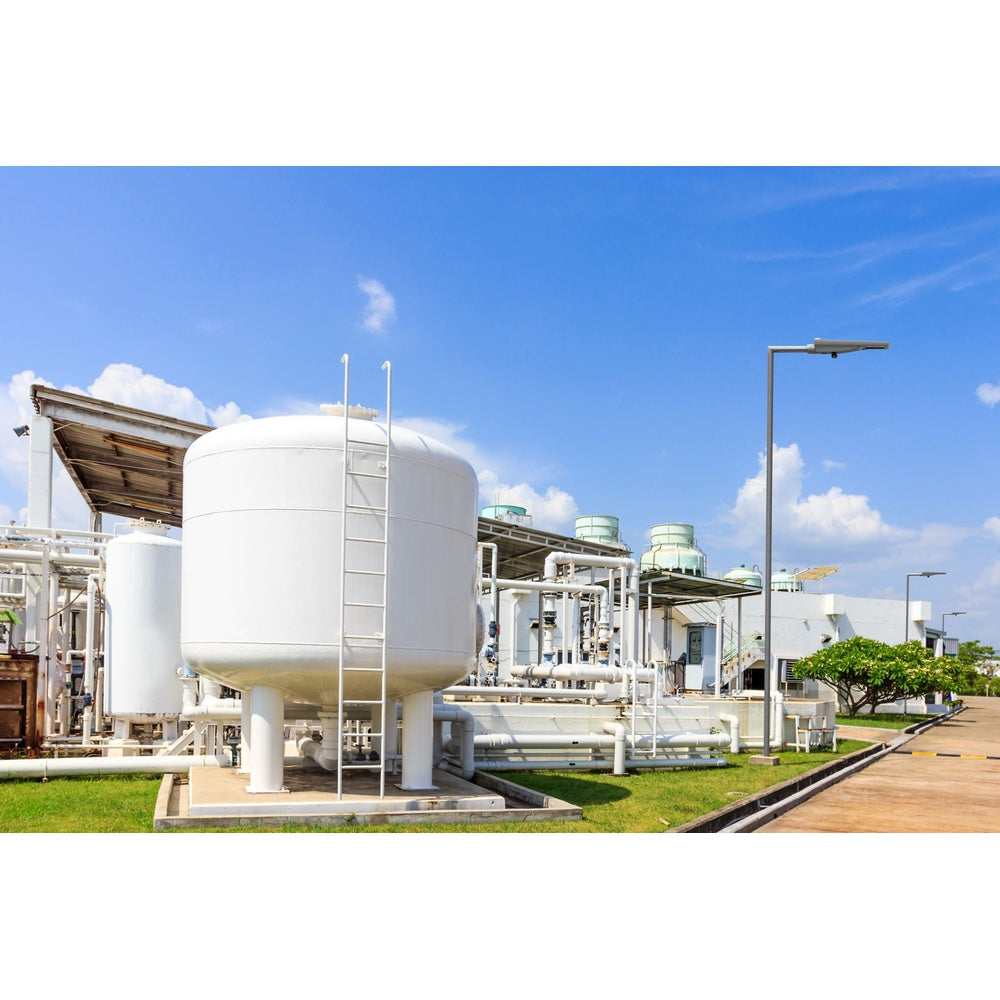

- Industries, office, schools

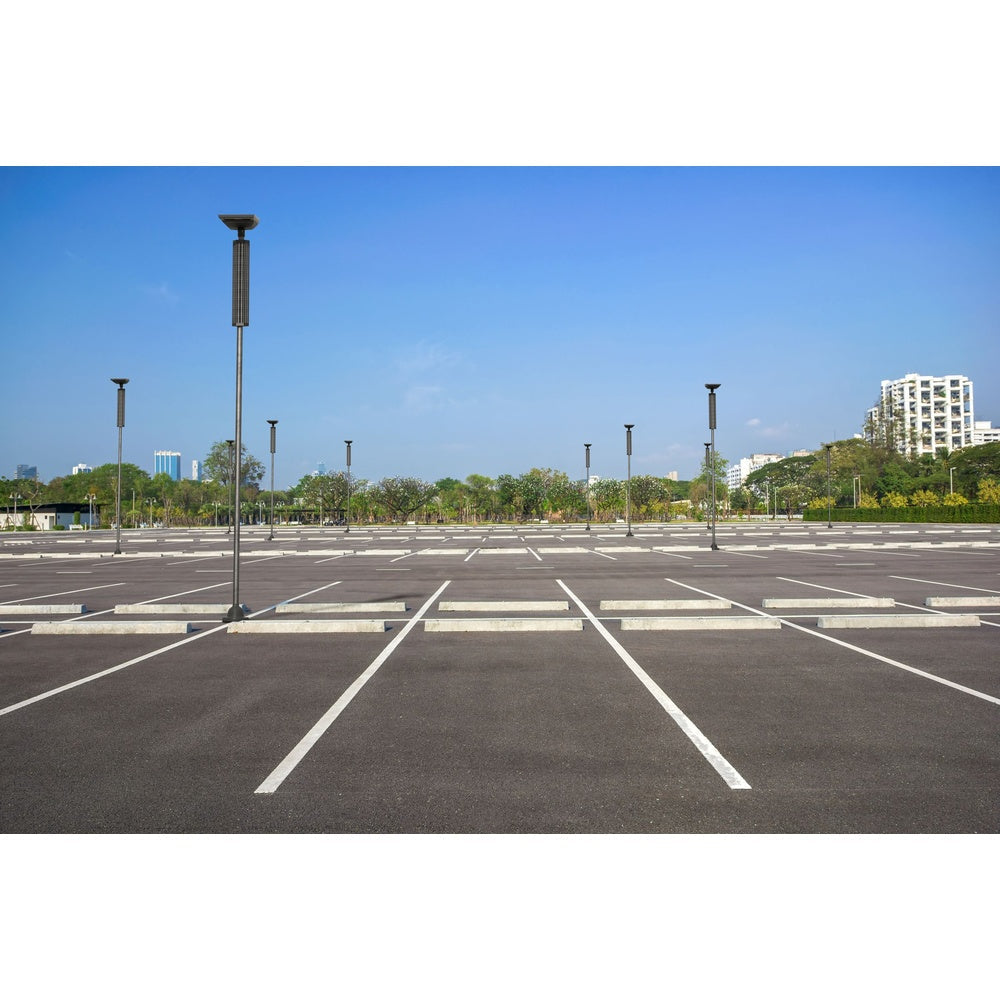

- Parking lots

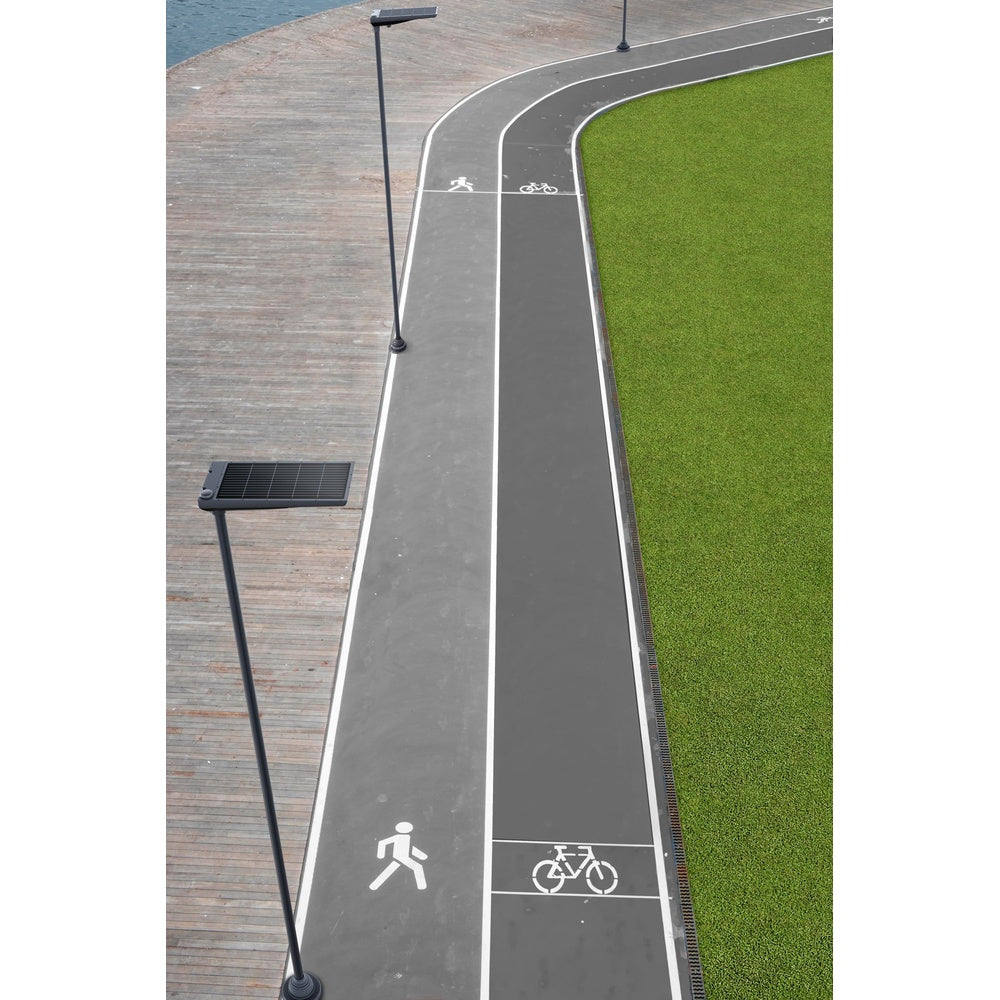

- Cycle paths

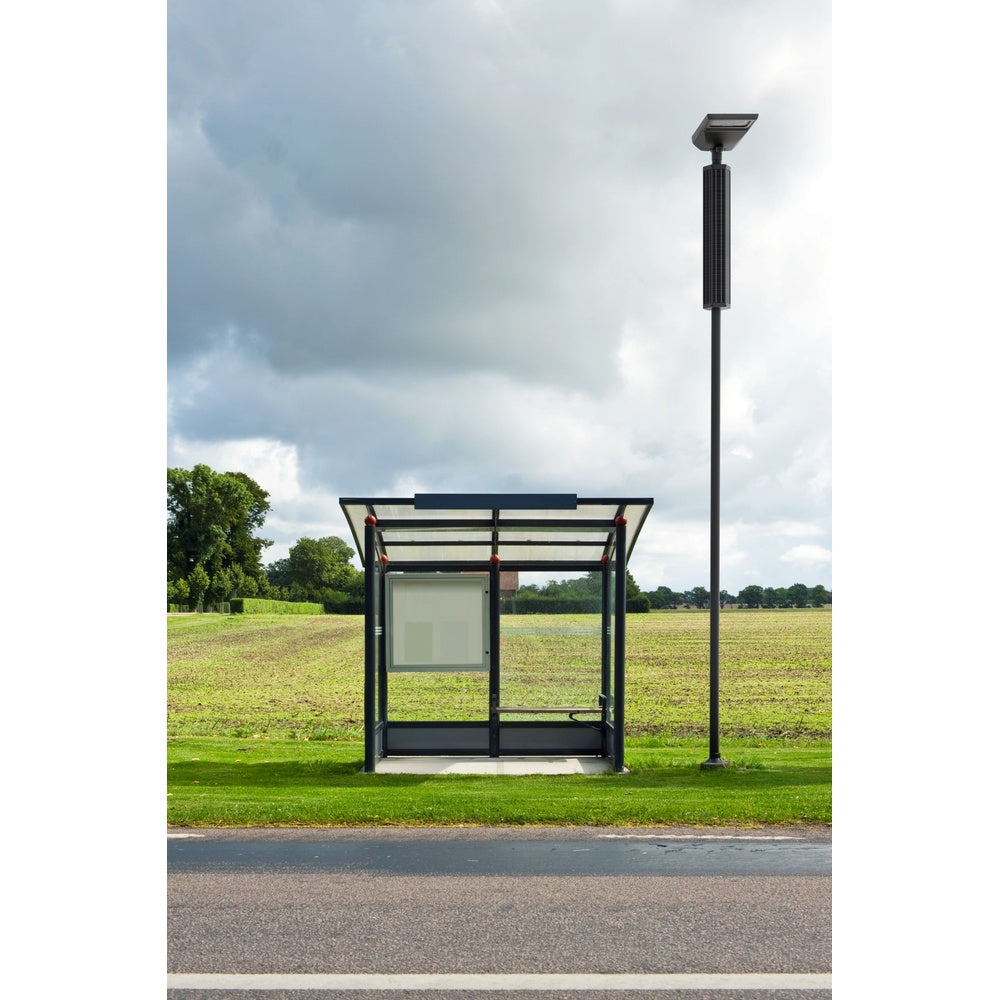

- Bus stops

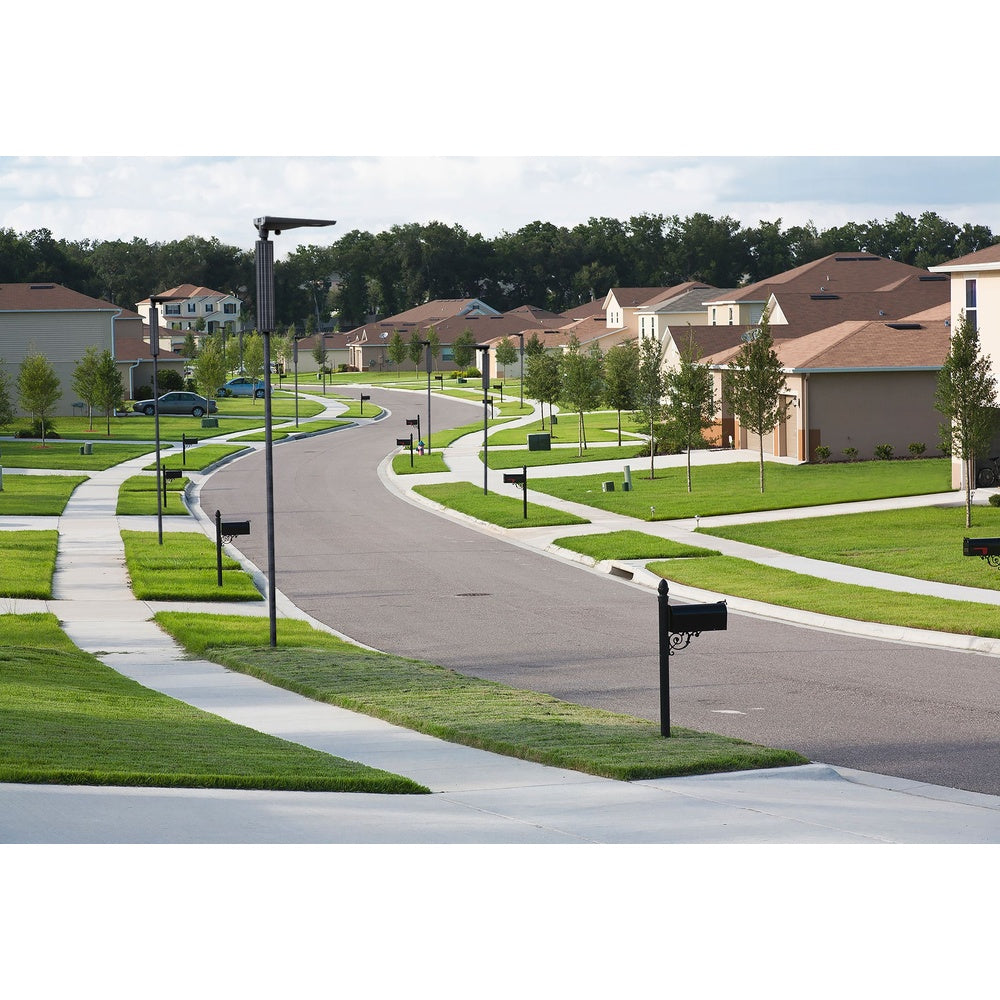

- Residential
Product Variations
| Image | Title | SKU |
|---|---|---|
 | SolarForm G3, Off-Grid, 8649 lumens, CRI70, 4000K, Type 5 Optic, Gray Finish | VGP726 LED100/740 OG-BLE DS50 III GR |
| SolarForm G3, Off-Grid, 4806 lumens, CRI70, 4000K, Type 3 Medium Optic, Gray Finish | VGP726 LED60/740 OG-BLE DW50 III GR |
| SolarForm G3, Off-Grid, 6974 lumens, CRI70, 4000K, Type 5 Optic, Gray Finish | VGP726 LED80/740 OG-BLE DS50 III GR |
| SolarForm G3, Off-Grid, 1927 lumens, CRI70, 3000K, Type 2 Short Optic, Gray Finish | VGP726 LED30/730 OG-BLE DM32 III GR |
| SolarForm G3, Off-Grid, 7527 lumens, CRI70, 3000K, Type 4 Optic, Gray Finish | VGP726 LED90/730 OG-BLE DX52 III GR |
| SolarForm G3, Off-Grid, 3161 lumens, CRI70, 4000K, Type 2 Medium Optic, Gray Finish | VGP726 LED40/740 OG-BLE DN11 III GR |
| SolarForm G3, Off-Grid, 3901 lumens, CRI70, 3000K, Type 3 Short Optic, Gray Finish | VGP726 LED50/730 OG-BLE DW10 III GR |
| SolarForm G3, Off-Grid, 5491 lumens, CRI70, 3000K, Type 4 Optic, Gray Finish | VGP726 LED70/730 OG-BLE DX52 III GR |
