Gardco Lighting SSA4 Straight Square Aluminum Pole
Roll over image to zoom in Click on image to zoom
Gardco Lighting SSA4 Straight Square Aluminum Pole

Gardco Lighting SSA - Straight Square Aluminum Pole

Gardco LightingSKU: SSA4
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Gardco Lighting finishes

Description

Gardco Lighting SSA - Straight Square Aluminum Pole

Superior quality and flexibility

Product Family Information

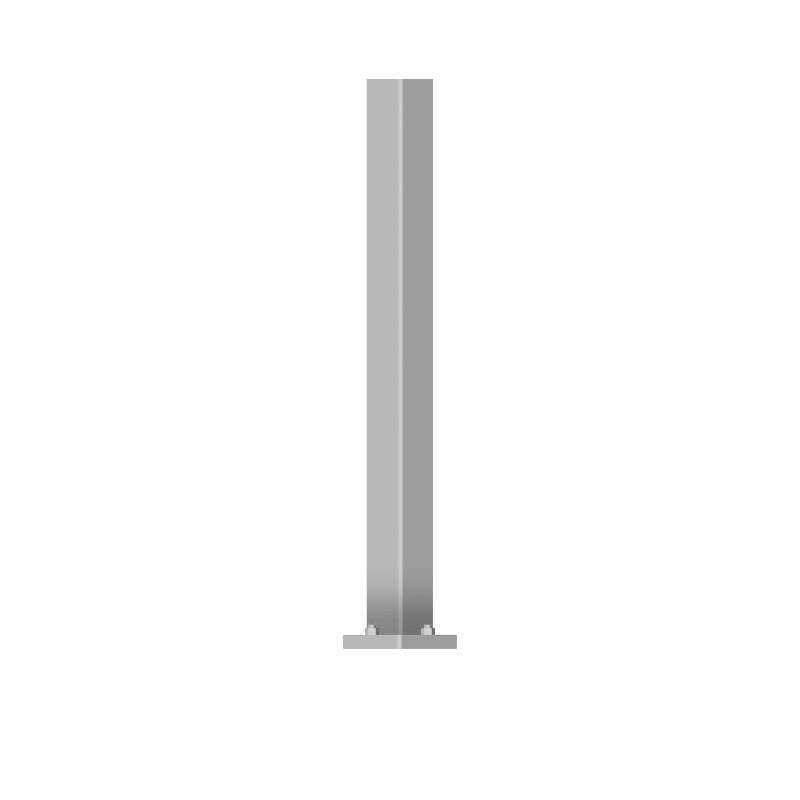

The Gardco SSA Straight Square Aluminum pole consists of a one-piece extruded aluminum 6000 series shaft mounted to a cast aluminum, hinged, or steel tenon base. The poles are finished with an electrostatically applied, thermally cured polyester powder coat. All poles include base cover, hand hole, ground lug and top cap. Anchor bolts are ordered as a separate accessory.

Benefits

  • Proven compatibility with Gardco luminaires with simple specification
  • Multi-stage immersion process cleans, rinses, and prepares the metal surface for painting to protect against corrosion and promote paint adhesion
  • Stainless steel hardware is covered with a chemical bonded Ceramic coating to reduce corrosion between dissimilar metals and improve maintenance
  • Built to withstand harsh environmental conditions
  • Optimal strength and durability
  • Covered by a 5-year structural and finish warranty
  • The optional Steel Tenon Base provides the strength of steel poles with the flexibility and benefit of Aluminum poles.

Features

  • 4x4", 5x5" or 6x6" square poles

Applications

  • Road and Street
  • Retail
  • General Purpose
  • Parking
  • Office
Product Variations
Image Title SKU
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.125" wall, 10 ft. height SSA-CA-4-125-10
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.125" wall, 12 ft. height SSA-CA-4-125-12
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.125" wall, 15 ft. height SSA-CA-4-125-15
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.125" wall, 16 ft. height SSA-CA-4-125-16
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.125" wall, 18 ft. height SSA-CA-4-125-18
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.125" wall, 20 ft. height SSA-CA-4-125-20
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.188" wall, 18 ft. height SSA-CA-4-188-18
Straight Square Aluminum, cast aluminum base, 4" shaft, 0.188" wall, 20 ft. height SSA-CA-4-188-20
Straight Square Aluminum, cast aluminum base, 5" shaft, 0.125" wall, 15 ft. height SSA-CA-5-125-15
Straight Square Aluminum, cast aluminum base, 5" shaft, 0.125" wall, 16 ft. height SSA-CA-5-125-16
Straight Square Aluminum, cast aluminum base, 5" shaft, 0.125" wall, 18 ft. height SSA-CA-5-125-18
Straight Square Aluminum, cast aluminum base, 5" shaft, 0.125" wall, 20 ft. height SSA-CA-5-125-20
Straight Square Aluminum, cast aluminum base, 5" shaft, 0.188" wall, 25 ft. height SSA-CA-5-188-25
Straight Square Aluminum, cast aluminum base, 5" shaft, 0.188" wall, 30 ft. height SSA-CA-5-188-30
Straight Square Aluminum, cast aluminum base, 6" shaft, 0.188" wall, 25 ft. height SSA-CA-6-188-25
Straight Square Aluminum, cast aluminum base, 6" shaft, 0.188" wall, 28 ft. height SSA-CA-6-188-28
Straight Square Aluminum, cast aluminum base, 6" shaft, 0.188" wall, 30 ft. height SSA-CA-6-188-30
Straight Square Aluminum, cast aluminum base, 6" shaft, 0.250" wall, 25 ft. height SSA-CA-6-250-25
Straight Square Aluminum, cast aluminum base, 6" shaft, 0.250" wall, 28 ft. height SSA-CA-6-250-28
Straight Square Aluminum, cast aluminum base, 6" shaft, 0.250" wall, 30 ft. height SSA-CA-6-250-30
Straight Square Aluminum, hinged base, 4" shaft, 0.125" wall, 10 ft. height SSA-HB-4-125-10
Straight Square Aluminum, hinged base, 4" shaft, 0.125" wall, 12 ft. height SSA-HB-4-125-12
Straight Square Aluminum, hinged base, 4" shaft, 0.125" wall, 15 ft. height SSA-HB-4-125-15
Straight Square Aluminum, hinged base, 4" shaft, 0.125" wall, 16 ft. height SSA-HB-4-125-16
Straight Square Aluminum, hinged base, 5" shaft, 0.125" wall, 15 ft. height SSA-HB-5-125-15
Straight Square Aluminum, hinged base, 5" shaft, 0.125" wall, 16 ft. height SSA-HB-5-125-16
Straight Square Aluminum, steel tenon base, 4" shaft, 0.125" wall, 10 ft. height SSA-STB-4-125-10
Straight Square Aluminum, steel tenon base, 4" shaft, 0.125" wall, 12 ft. height SSA-STB-4-125-12
Straight Square Aluminum, steel tenon base, 4" shaft, 0.125" wall, 15 ft. height SSA-STB-4-125-15
Straight Square Aluminum, steel tenon base, 4" shaft, 0.125" wall, 16 ft. height SSA-STB-4-125-16
Straight Square Aluminum, steel tenon base, 4" shaft, 0.125" wall, 18 ft. height SSA-STB-4-125-18
Straight Square Aluminum, steel tenon base, 4" shaft, 0.125" wall, 20 ft. height SSA-STB-4-125-20
Straight Square Aluminum, steel tenon base, 4" shaft, 0.188" wall, 18 ft. height SSA-STB-4-188-18
Straight Square Aluminum, steel tenon base, 4" shaft, 0.188" wall, 20 ft. height SSA-STB-4-188-20
Straight Square Aluminum, steel tenon base, 5" shaft, 0.125" wall, 15 ft. height SSA-STB-5-125-15
Straight Square Aluminum, steel tenon base, 5" shaft, 0.125" wall, 16 ft. height SSA-STB-5-125-16
Straight Square Aluminum, steel tenon base, 5" shaft, 0.125" wall, 18 ft. height SSA-STB-5-125-18
Straight Square Aluminum, steel tenon base, 5" shaft, 0.125" wall, 20 ft. height SSA-STB-5-125-20
Straight Square Aluminum, steel tenon base, 5" shaft, 0.125" wall, 25 ft. height SSA-STB-5-125-25
Straight Square Aluminum, steel tenon base, 5" shaft, 0.125" wall, 30 ft. height SSA-STB-5-125-30
Straight Square Aluminum, steel tenon base, 5" shaft, 0.188" wall, 25 ft. height SSA-STB-5-188-25
Straight Square Aluminum, steel tenon base, 5" shaft, 0.188" wall, 30 ft. height SSA-STB-5-188-30
Straight Square Aluminum, steel tenon base, 6" shaft, 0.188" wall, 25 ft. height SSA-STB-6-188-25
Straight Square Aluminum, steel tenon base, 6" shaft, 0.188" wall, 28 ft. height SSA-STB-6-188-28
Straight Square Aluminum, steel tenon base, 6" shaft, 0.188" wall, 30 ft. height SSA-STB-6-188-30
Straight Square Aluminum, steel tenon base, 6" shaft, 0.250" wall, 25 ft. height SSA-STB-6-250-25
Straight Square Aluminum, steel tenon base, 6" shaft, 0.250" wall, 28 ft. height SSA-STB-6-250-28
Straight Square Aluminum, steel tenon base, 6" shaft, 0.250" wall, 30 ft. height SSA-STB-6-250-30
Product Files

Click for Gardco-SSA - Straight Square Aluminum Pole - Spec Sheet

Click for Gardco Poles Product Selection Guide
