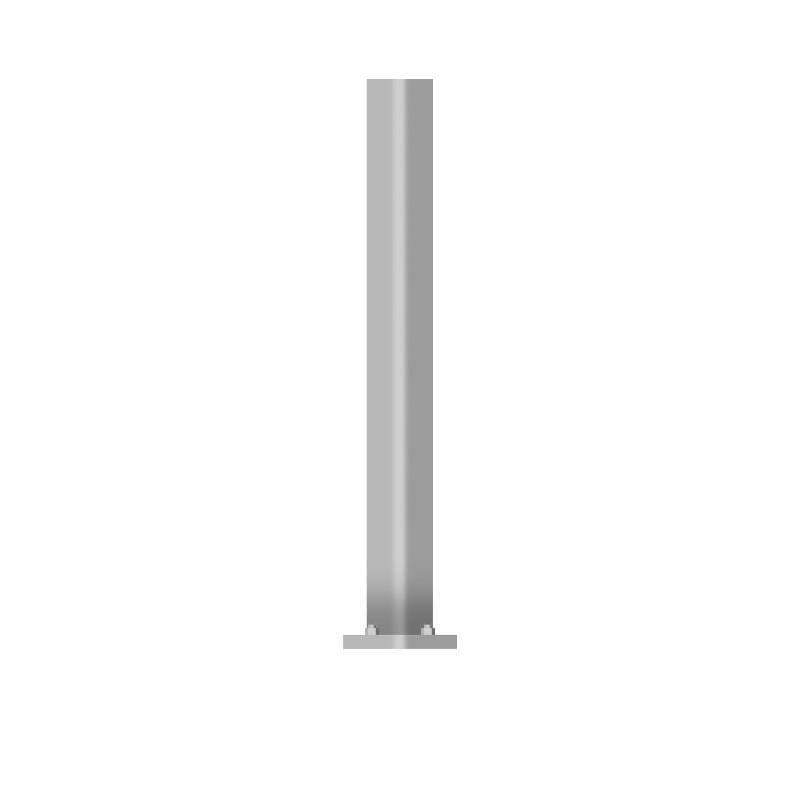

Gardco Lighting SSS Straight Square Steel Pole
Superior quality and flexibility
Product Family Information
The Gardco SSS Straight Square Steel pole consists of a one-piece high tensile carbon steel tube welded and secured to the carbon steel base plate providing excellent strength and integrity. The poles are finished with an electrostatically applied, thermally cured polyester powdercoat. All poles include base cover, hand hole, ground lug and top cap. Anchor bolts are ordered as a separate accessory.
Benefits
- Proven compatibility with Gardco luminaires with simple specification
- Built to withstand harsh environmental conditions
- Multi-stage immersion process cleans, rinses, and prepares the metal surface for painting to protect against corrosion and promote paint adhesion
- Optimal strength and durability
- Stainless steel hardware is covered with a chemical bonded Ceramic coating to reduce corrosion between dissimilar metals and improve maintenance
- Covered by a 3-year structural and finish warranty
Features
- 4", 5" or 6" poles
- Available in various heights ranging from 10' to 40'
- Made to CSA-S6-14 and AASHTO 2001 standards
- Produced by qualified welders certified by the Canadian Welding Bureau (CWB)
- Produced to ISO 9001 and ISO 14-001 quality standards
Applications
- Road and Street
- Parking
- Retail
- Office
- General Purpose
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 10 ft. height | SSS-CB-4-11-10 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 12 ft. height | SSS-CB-4-11-12 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 14 ft. height | SSS-CB-4-11-14 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 15 ft. height | SSS-CB-4-11-15 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 16 ft. height | SSS-CB-4-11-16 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 18 ft. height | SSS-CB-4-11-18 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 20 ft. height | SSS-CB-4-11-20 |
|
Straight Square Steel, 4" shaft, 11 ga./0.12" wall, 25 ft. height | SSS-CB-4-11-25 |
|
Straight Square Steel, 4" shaft, 7 ga./0.18" wall, 20 ft. height | SSS-CB-4-7-20 |
|
Straight Square Steel, 4" shaft, 7 ga./0.18" wall, 25 ft. height | SSS-CB-4-7-25 |
|
Straight Square Steel, 4" shaft, 7 ga./0.18" wall, 30 ft. height | SSS-CB-4-7-30 |
|
Straight Square Steel, 5" shaft, 11 ga./0.12" wall, 20 ft. height | SSS-CB-5-11-20 |
|
Straight Square Steel, 5" shaft, 11 ga./0.12" wall, 25 ft. height | SSS-CB-5-11-25 |
|
Straight Square Steel, 5" shaft, 11 ga./0.12" wall, 30 ft. height | SSS-CB-5-11-30 |
|
Straight Square Steel, 5" shaft, 7 ga./0.18" wall, 20 ft. height | SSS-CB-5-7-20 |
|
Straight Square Steel, 5" shaft, 7 ga./0.18" wall, 25 ft. height | SSS-CB-5-7-25 |
|
Straight Square Steel, 5" shaft, 7 ga./0.18" wall, 30 ft. height | SSS-CB-5-7-30 |
|
Straight Square Steel, 5" shaft, 7 ga./0.18" wall, 35 ft. height | SSS-CB-5-7-35 |
|
Straight Square Steel, 6" shaft, 7 ga./0.18" wall, 30 ft. height | SSS-CB-6-7-30 |
|
Straight Square Steel, 6" shaft, 7 ga./0.18" wall, 35 ft. height | SSS-CB-6-7-35 |
|
Straight Square Steel, 6" shaft, 7 ga./0.18" wall, 40 ft. height | SSS-CB-6-7-40 |
