Fast & Easy Quote Request
Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.
Description
- Description
- Products List
- Product Files
- Gardco Finishes
Product Family Details
- Source: LED
- Voltage(s): 120, 208, 240, 277, 347, 480, UNIV
- Lumens: 10097, 10168, 10371, 10634, 10702, 11860, 12126, 12330, 13530, 13729, 14366, 15994, 16064, 17932, 1956, 2026, 2119, 2285, 2313, 2366, 2395, 2436, 2474, 2505, 2522, 2638, 3392, 3513, 3674, 3962, 4010, 4103, 4153, 4223, 4291, 4343, 4374, 4574, 4896, 5071, 5303, 5718, 5788, 5808, 5921, 5994, 6095, 6193, 6269, 6312, 6588, 6602, 6823, 7038, 7135, 7475, 7657, 7693, 7788, 7887, 7967, 8065, 8168, 8202, 8332, 8434, 8494, 8542, 8883, 8967, 8971, 9210, 9323, 9538, 9655, 9818, 9876, 9975
- Input watts: 108, 134, 151, 22, 37, 52, 54, 72, 76, 91, 95
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 3000K, 4000K, 5000K
- CRI: 70
- Shape: Round
- Distribution Type: Downlight, Type I, Type III, Type V
- Mounting type(s): Surface, Suspended
Features
- Comfort optics featuring edge lit technology, uplight available
- IP66, IK10, vibration rated, cULus Listed outdoor luminaire in an attractive low-profile design
- High lumen output with high LPW
- Wide range of lumen packages, distributions, color temperatures and mounting choices
- Integral individual dimming or motion response to networked wireless controls
Benefits
- Comfortable uniform illumination with minimal glare enhances visual acuity
- Heightened sense of security inside parking garages
- Meets numerous enclosed and open parking garage lighting needs
Product Family Information

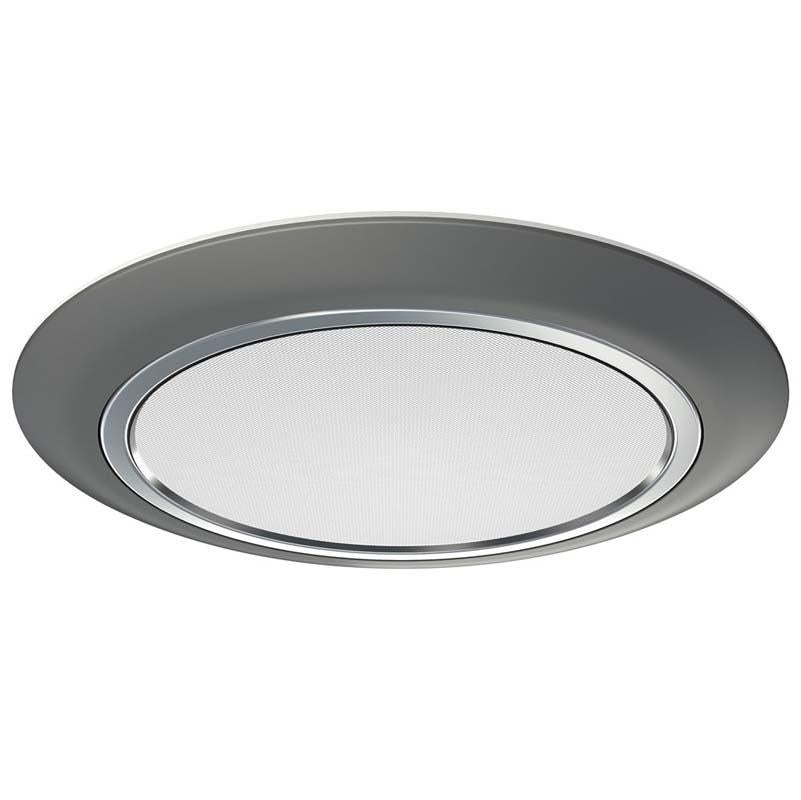

Gardco SoftView LED parking garage luminaires feature edge lit technology, providing visual comfort with minimal glare to enhance the user experience. An added uplight feature reduces the cave effect for an increased sense of security. SoftView features multiple optical distributions, lumen packages and mounting options providing you with the ideal solution for your garage lighting needs. Optional emergency battery backup available for path of egress lighting and is integral to the luminaire.
| Catalog Number | Lumens | Input watts | Distribution Type |
| SVPG-140L-1200-CW-G2-1R | 5303 | 5000K | 54 |
| SVPG-140L-1200-CW-G2-3 | 6193 | 5000K | 54 |
| SVPG-140L-1200-CW-G2-5 | 6269 | 5000K | 54 |
| SVPG-140L-1200-CW-G2-CD | 6602 | 5000K | 54 |
| SVPG-140L-1200-NW-G2-1R | 5071 | 4000K | 54 |
| SVPG-140L-1200-NW-G2-3 | 5921 | 4000K | 54 |
| SVPG-140L-1200-NW-G2-5 | 5994 | 4000K | 54 |
| SVPG-140L-1200-NW-G2-CD | 6312 | 4000K | 54 |
| SVPG-140L-1200-WW-G2-1R | 4896 | 3000K | 54 |
| SVPG-140L-1200-WW-G2-3 | 5718 | 3000K | 54 |
| SVPG-140L-1200-WW-G2-5 | 5788 | 3000K | 54 |
| SVPG-140L-1200-WW-G2-CD | 6095 | 3000K | 54 |
| SVPG-140L-1675-CW-G2-1R | 7135 | 5000K | 76 |
| SVPG-140L-1675-CW-G2-3 | 8332 | 5000K | 76 |
| SVPG-140L-1675-CW-G2-5 | 8434 | 5000K | 76 |
| SVPG-140L-1675-CW-G2-CD | 8883 | 5000K | 76 |
| SVPG-140L-1675-NW-G2-1R | 6823 | 4000K | 76 |
| SVPG-140L-1675-NW-G2-3 | 7967 | 4000K | 76 |
| SVPG-140L-1675-NW-G2-5 | 8065 | 4000K | 76 |
| SVPG-140L-1675-NW-G2-CD | 8494 | 4000K | 76 |
| SVPG-140L-1675-WW-G2-1R | 6588 | 3000K | 76 |
| SVPG-140L-1675-WW-G2-3 | 7693 | 3000K | 76 |
| SVPG-140L-1675-WW-G2-5 | 7788 | 3000K | 76 |
| SVPG-140L-1675-WW-G2-CD | 8202 | 3000K | 76 |
| SVPG-140L-2100-CW-G2-1R | 8542 | 5000K | 95 |
