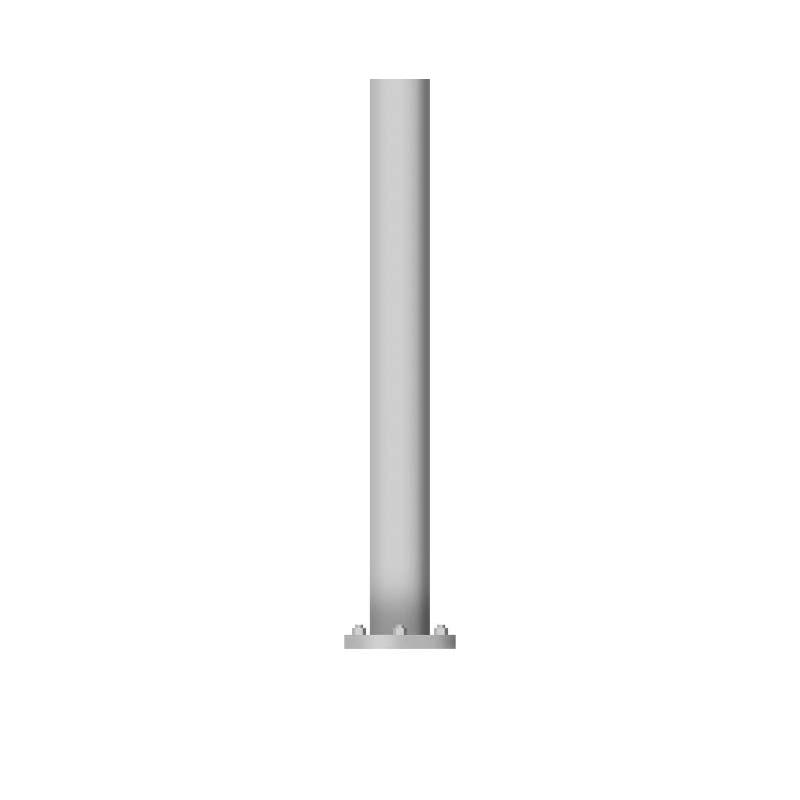

Gardco Lighting TRA Tapered Round Aluminum Pole
Roll over image to zoom in Click on image to zoom
Gardco Lighting TRA Tapered Round Aluminum Pole

Gardco Lighting TRA Tapered Round Aluminum Pole

Gardco LightingSKU: TRA
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Description

Gardco Lighting TRA Tapered Round Aluminum Pole

Superior quality and flexibility

Product Family Information

The Gardco TRA Tapered Round Aluminum pole consists of a one-piece extruded aluminum 6000 series shaft mounted to a cast aluminum or hinged base. The poles are finished with an electrostatically applied, thermally cured polyester powder coat. All poles include a base cover or nut covers, hand hole, ground lug and top cap. Anchor bolts are ordered as a separate accessory.

Benefits

  • Proven compatibility with Gardco luminaires with simple specification
  • Multi-stage immersion process cleans, rinses, and prepares the metal surface for painting to protect against corrosion and promote paint adhesion
  • Built to withstand harsh environmental conditions
  • Covered by a 5-year structural and finish warranty
  • Optimal strength and durability

Features

  • Pole bases from 5" to 10"

Applications

  • Road and Street
  • General Purpose
  • Office
  • Retail
  • Parking
Product Variations
Image Title SKU
Tapered Round Aluminum, Cast Base, 5-3", 0.125", 14ft. TRA-CA-5/3-125-14
Tapered Round Aluminum, Cast Base, 5-3", 0.125", 15ft. TRA-CA-5/3-125-15
Tapered Round Aluminum, Cast Base, 5-3", 0.125", 16ft. TRA-CA-5/3-125-16
Tapered Round Aluminum, Cast Base, 5-3", 0.125", 18ft. TRA-CA-5/3-125-18
Tapered Round Aluminum, Cast Base, 5-3", 0.125", 20ft. TRA-CA-5/3-125-20
Tapered Round Aluminum, Cast Base, 5-3", 0.188", 14ft. TRA-CA-5/3-188-14
Tapered Round Aluminum, Cast Base, 5-3", 0.188", 15ft. TRA-CA-5/3-188-15
Tapered Round Aluminum, Cast Base, 5-3", 0.188", 16ft. TRA-CA-5/3-188-16
Tapered Round Aluminum, Cast Base, 5-3", 0.188", 18ft. TRA-CA-5/3-188-18
Tapered Round Aluminum, Cast Base, 5-3", 0.188", 20ft. TRA-CA-5/3-188-20
Tapered Round Aluminum, Cast Base, 6-4", 0.125", 20ft. TRA-CA-6/4-125-20
Tapered Round Aluminum, Cast Base, 6-4", 0.125", 25ft. TRA-CA-6/4-125-25
Tapered Round Aluminum, Cast Base, 6-4", 0.188", 20ft. TRA-CA-6/4-188-20
Tapered Round Aluminum, Cast Base, 6-4", 0.188", 25ft. TRA-CA-6/4-188-25
Tapered Round Aluminum, Cast Base, 7-4", 0.156", 25ft. TRA-CA-7/4-156-25
Tapered Round Aluminum, Cast Base, 7-4", 0.156", 30ft. TRA-CA-7/4-156-30
Tapered Round Aluminum, Cast Base, 7-4", 0.188", 25ft. TRA-CA-7/4-188-25
Tapered Round Aluminum, Cast Base, 7-4", 0.188", 30ft. TRA-CA-7/4-188-30
Tapered Round Aluminum, Cast Base, 8-5", 0.188", 25ft. TRA-CA-8/5-188-25
Tapered Round Aluminum, Cast Base, 8-5", 0.188", 30ft. TRA-CA-8/5-188-30
Tapered Round Aluminum, Cast Base, 8-5", 0.188", 35ft. TRA-CA-8/5-188-35
Tapered Round Aluminum, Cast Base, 8-5", 0.250", 25ft. TRA-CA-8/5-250-25
Tapered Round Aluminum, Cast Base, 8-5", 0.250", 30ft. TRA-CA-8/5-250-30
Tapered Round Aluminum, Cast Base, 8-5", 0.250", 35ft. TRA-CA-8/5-250-35
Tapered Round Aluminum, Cast Base, 10-6", 0.188", 35ft. TRA-CA-10/6-188-35
Tapered Round Aluminum, Cast Base, 10-6", 0.188", 40ft. TRA-CA-10/6-188-40
Tapered Round Aluminum, Cast Base, 10-6", 0.250", 35ft. TRA-CA-10/6-250-35
Tapered Round Aluminum, Cast Base, 10-6", 0.250", 40ft. TRA-CA-10/6-250-40
Tapered Round Aluminum, Hinged Base, 5-3", 0.125", 14ft. TRA-HB-5/3-125-14
Tapered Round Aluminum, Hinged Base, 5-3", 0.125", 15ft. TRA-HB-5/3-125-15
Tapered Round Aluminum, Hinged Base, 5-3", 0.125", 16ft. TRA-HB-5/3-125-16
Product Files

Click for Gardco-TRA - Tapered Round Aluminum Pole - Spec Sheet

Click for Gardco Poles Product Selection Guide
