Description

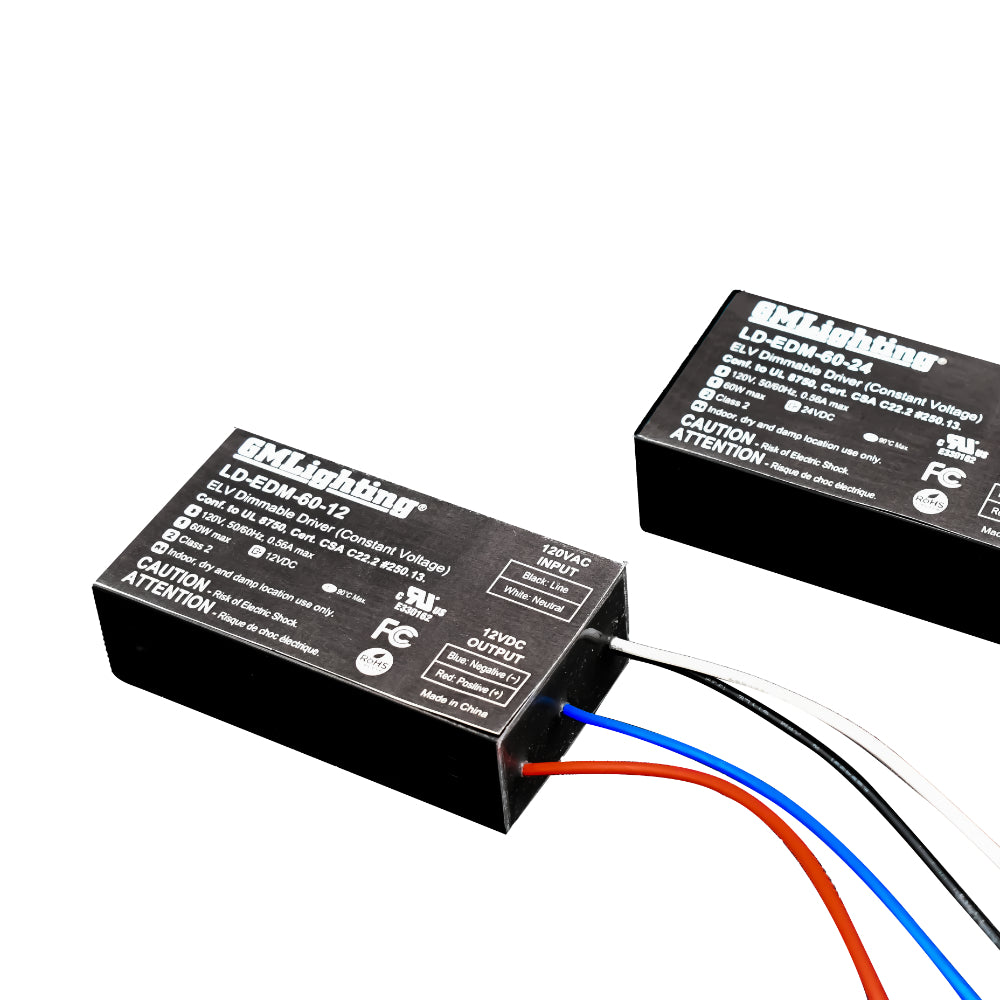

GM Lighting LineDRIVE 12VDC / 24VDC Mini Electronic LED Dimmable Power Supplies
LineDRIVE 12V and 24V MINI Series Electronic LED Power Supplies are Class 2 rated and designed to work with standard ELV dimmer switches. Encased in a low profile lightweight aluminum enclosure. Easy to install and hardwire into many lighting applications.
- 12VDC or 24VDC constant voltage output
- 60W max.
- 120VAC input
- 10% to 100% dimming range (varies by dimmer and load)
- Dimmable with ELV dimmers
- Class 2 low voltage output
- IP20 design for dry and damp locations
- Short circuit protection
- FCC compliant
- 5-year warranty
