Description

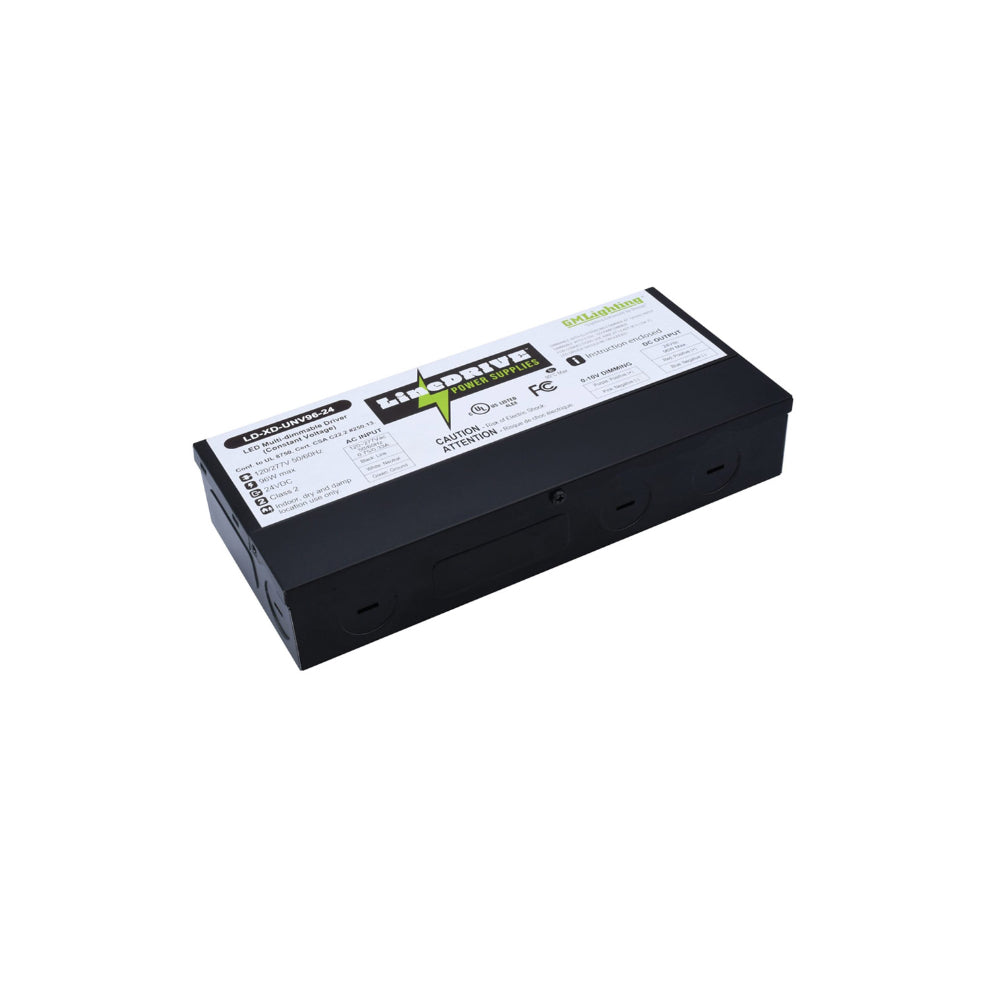

GM Lighting LineDRIVE XD 12VDC / 24VDC ElectronicLED MULTI Dimmable Power Supplies
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
- Output: Class 2, 12V/24VDC, constant voltage
- Input: 120V / 277V
- Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
- Minimum dimming: 1%
- Stable operation, flicker-free dimming
- Compatible with typical phase dimmers and 0-10V controls
- Integrated wiring compartments with separate line voltage and low voltage sectionst
- Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
- Over-current, over-voltage and over-temperature protection
Product Files
Click for LineDRIVE XD 12V Spec Sheet
Click for LineDRIVE XD 24V 20W-96W Spec Sheet
Click for LineDRIVE XD 24V 200W-300W Spec Sheet
Click for Dimmer Compatibility
