Description
Stake Included

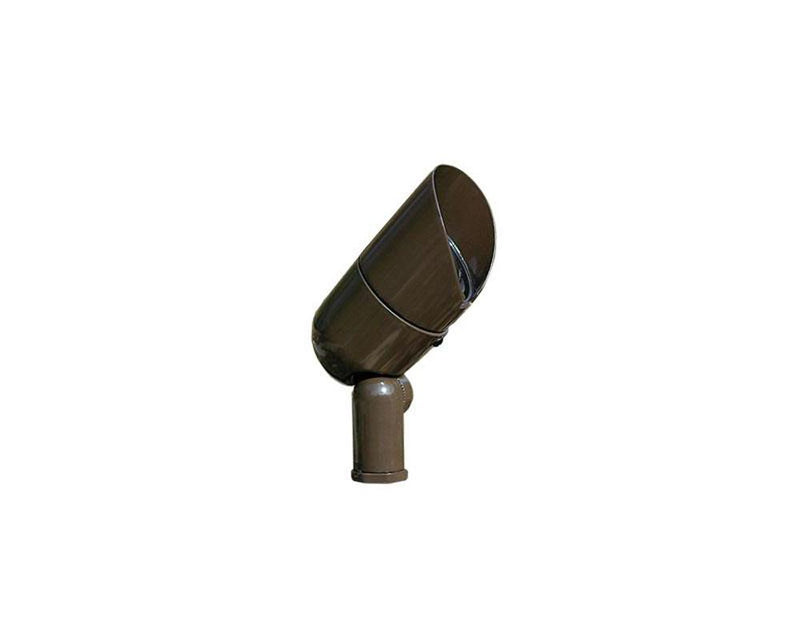

The housing is constructed of double gasketed, die cast marine-grade alloy aluminum for long life. With vibration-proof serrated teeth along with the base of the housing, it provides a positive lock. A 360 degree fully adjustable swivel arm allows for precise lighting along with an angled lens for self-cleaning. The socket features a retention clip to secure the lamp in place.
Features
- Fully-adjustable swivel arm with vibration-proof locking teeth
- Available with warm or cool LEDs
- Thermoset powdercoat finish
- Pre-wired
- Ensures long-lasting durability
- Able to direct light with ultimate precision
- Provides added corrosion resistance
- Quick and easy installation
Specifications
- Optical Assembly: Clear tempered glass affixed at 10aa° angle for natural cleaning.
- Length: 5.81 Inch
- Width: 2.81 Inch
- Max Weight (Text Format): 1.48 lb
- Mounting: S7 Mounting Stake
- Electrical Assembly: Bi-pin socket type (GU5.3) with 250aa° C high temperature Teflon coated wire leads. Stainless steel retention clip affixed to socket to securely hold lamp in place. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105aa° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
- Warranty: Three-year limited warranty.
