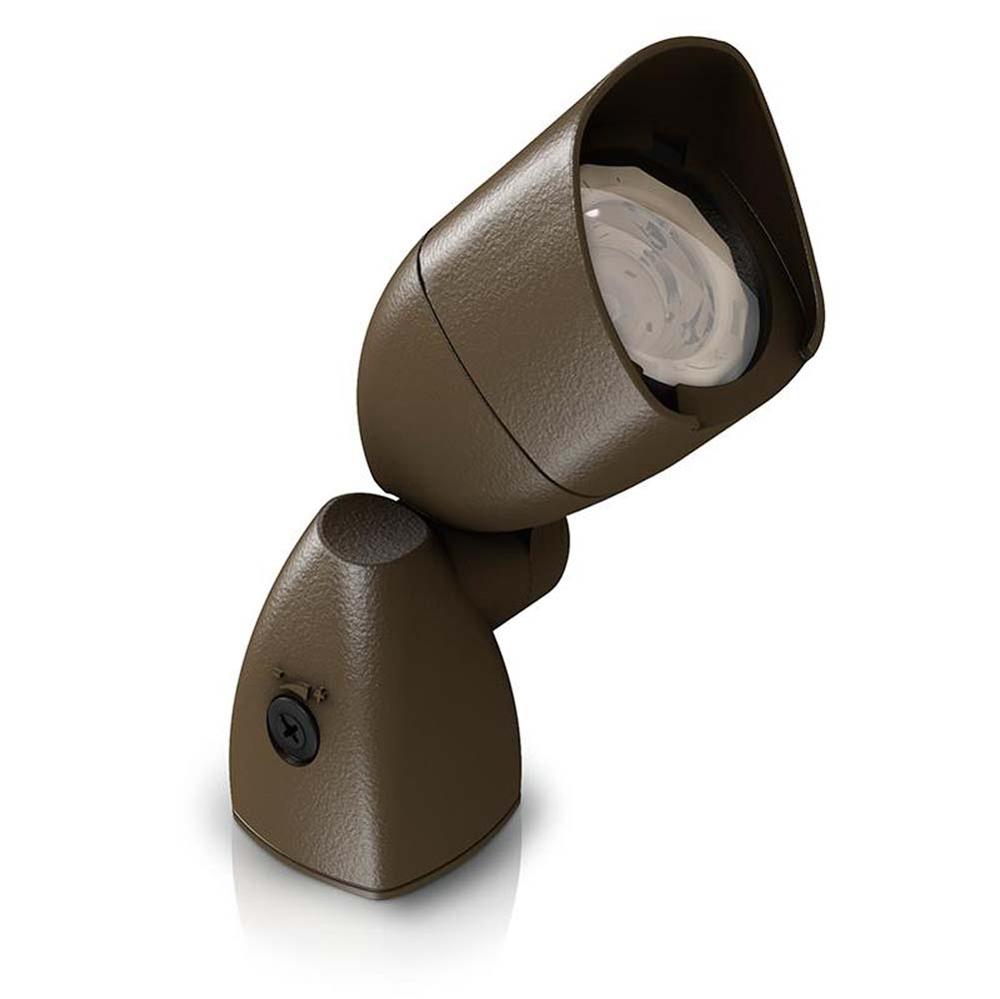

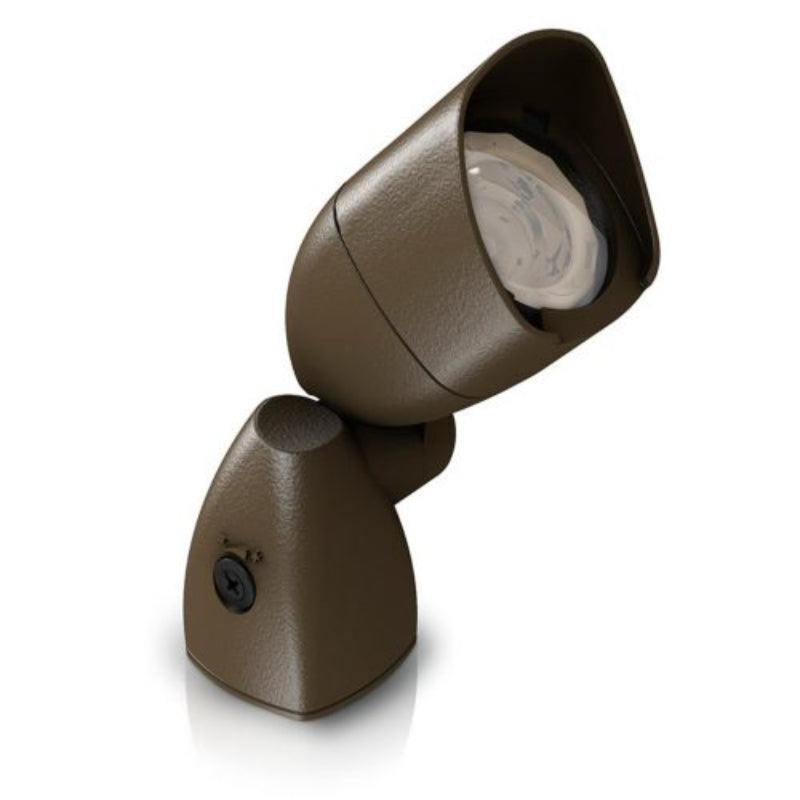

Hadco BL9 - LED 12V FlexScape Bullet

Hadco BL9 - LED 12V FlexScape Bullet

Hadco Lighting

Mfg ID #: BL9DW-AS7

  • $190.22
  • Save $214

Normally ships within 2-10 business days

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • LED & Stake Included

    Philips Hadco FlexScape LED accent luminaire BL9 brings landscape lighting to the next level. Designed for optimal LED performance, it provides the lighting professional with countless low-voltage options. The luminaire's rugged die-cast aluminum housing features low-energy outdoor lighting. A360a° die-cast aluminum, tool-less twist off/on shroud. Teeth to lock aim the knuckle arm for accurate aiming secured by black oxide Phillips-head stainless steel screw and metal locking nut to provide durable mounting of the accent. Convenient beam adjustability makes for easy on-site lighting effect changes. The lockable aiming is well- suited for accenting objects, textures, walls, trees, etc. This all-weather luminaire comes with 100% molded silicone gaskets.

    Features

    • Ultimate design flexibility
    • Ability to change light outputs in the field as needs change
    • Ensures lasting durability
    • 50,000 hour lifetime
    • Timeless modern look complements any landscape
    • Zoomable LED optics
    • Adjustable light output
    • Rugged Construction
    • Effective thermal management
    • Sleek design

    Details

    Electrical 10W (on high setting) Input voltage range (VAC): 10-14. Pre-wired with a 3-ft. pigtail for easy hookup to the low voltage supply cable. Driver housed in injected molded case with electronics encapsulated. 12V class 2 driver with integral switch for 4 preset light levels.
    Optical Systems Flat glass, low iron tempered clear glass, c-channel gasket slips onto lens without tools or RTV. Zoomable optic / Injection molded acrylic (PMMA) clear, highly polished molded with select surfaces textured. Zoomable lens provides Narrow 15a° to Medium 35a° beam pattern depending on the position, Inter-changeable lens provides Wide 60 flood output.
    Lamping Integral LED module

    Specifications

    • Housing: A360a° die-cast aluminum, tool-less twist off/on shroud. Teeth to lock aim the knuckle arm for accurate aiming secured by black oxide Phillips-head stainless steel screw and metal locking nut to provide durable mounting of the accent. A 360a° die-cast aluminum housing for driver with thermal management creates continuity with housing by repeating similar shape. All gaskets are 100% molded silicone
    • IP-Rating: IP68 Rating:Dust tight and sealed against direct jets of water
    • LED Boards: Single Luxeon M LED
    • Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards
    Product Files

    Click for product spec sheet

    ...Read More


    LED & Stake Included

    Philips Hadco FlexScape LED accent luminaire BL9 brings landscape lighting to the next level. Designed for optimal LED performance, it provides the lighting professional with countless low-voltage options. The luminaire's rugged die-cast aluminum housing features low-energy outdoor lighting. A360a° die-cast aluminum, tool-less twist off/on shroud. Teeth to lock aim the knuckle arm for accurate aiming secured by black oxide Phillips-head stainless steel screw and metal locking nut to provide durable mounting of the accent. Convenient beam adjustability makes for easy on-site lighting effect changes. The lockable aiming is well- suited for accenting objects, textures, walls, trees, etc. This all-weather luminaire comes with 100% molded silicone gaskets.

    Features

    • Ultimate design flexibility
    • Ability to change light outputs in the field as needs change
    • Ensures lasting durability
    • 50,000 hour lifetime
    • Timeless modern look complements any landscape
    • Zoomable LED optics
    • Adjustable light output
    • Rugged Construction
    • Effective thermal management
    • Sleek design

    Details

    Electrical 10W (on high setting) Input voltage range (VAC): 10-14. Pre-wired with a 3-ft. pigtail for easy hookup to the low voltage supply cable. Driver housed in injected molded case with electronics encapsulated. 12V class 2 driver with integral switch for 4 preset light levels.
    Optical Systems Flat glass, low iron tempered clear glass, c-channel gasket slips onto lens without tools or RTV. Zoomable optic / Injection molded acrylic (PMMA) clear, highly polished molded with select surfaces textured. Zoomable lens provides Narrow 15a° to Medium 35a° beam pattern depending on the position, Inter-changeable lens provides Wide 60 flood output.
    Lamping Integral LED module

    Specifications

    • Housing: A360a° die-cast aluminum, tool-less twist off/on shroud. Teeth to lock aim the knuckle arm for accurate aiming secured by black oxide Phillips-head stainless steel screw and metal locking nut to provide durable mounting of the accent. A 360a° die-cast aluminum housing for driver with thermal management creates continuity with housing by repeating similar shape. All gaskets are 100% molded silicone
    • IP-Rating: IP68 Rating:Dust tight and sealed against direct jets of water
    • LED Boards: Single Luxeon M LED
    • Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
