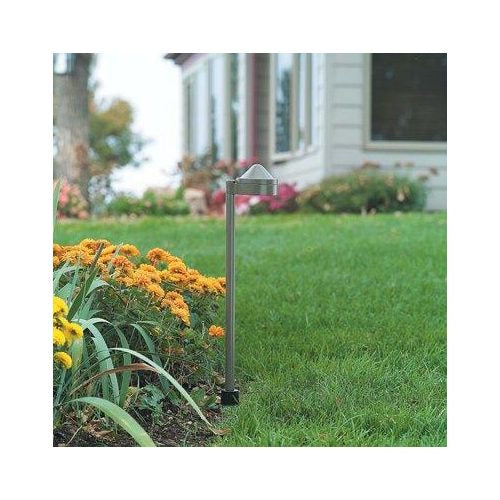

Hadco CPL12 12V Aluminum Path Light with Round Roof

Description
Product Files
Hadco Warranty
Hadco Return Terms

Description

Lamp & Stake Included

The Hadco CPL series is a simply-crafted low voltage path light available in two distinctive lighting heads. It includes a die-cast aluminum with twist-lock top for tool-less relamping and Single-piece molded silicone gasket to prevent water, dust, and insect filtration.

Features

Toolless relamping
Protected against moisture, dust and insects
Superior efficiency
Quick and easy installation
Twist-lock top
Multi-faceted aluminum reflector
Optional mounting stake
Silicone gasketing
Low voltage quick connector included

Specifications

Housing: Die-cast aluminum with twist-lock top for tool-less relamping. Stem is extruded aluminum. Single-piece molded silicone gasket to prevent water, dust, and insect filtration. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lamp is included with fixture. Lower wattage lamps are acceptable.
Lamping for Non LED: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
Optical Assembly: Clear tempered glass lens. Reflector is made of stamped, multi-faceted aluminum.
Warranty for LED: Five-year limited warranty
Warranty For Non LED: Three-year limited warranty

Product Files

Click for Non LED spec sheet

Click for LED spec sheet

Hadco Warranty

Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”).
Product Line
Product Line	LED	Non-LED	Special Conditions
Hadco Landscape and Residential	5 Years	3 Years	Landscape Products: Warranty Period for all grade mounted composite luminaires, copper luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast bronze and stainless steel housing. Residential Products: Lifetime warranty offered on the finish to all original Purchasers on residential lighting fixtures and posts.

Hadco Return Terms

Hadco Lighting Returns And Cancellations:

There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.

Returnable Hadco Items

BL5016-HS7

B9DW-H

BL9DW-HS7

IL9DW-A

TSS354-15

Please click here to go to the Returns & Cancellations page for the complete terms.
