Description

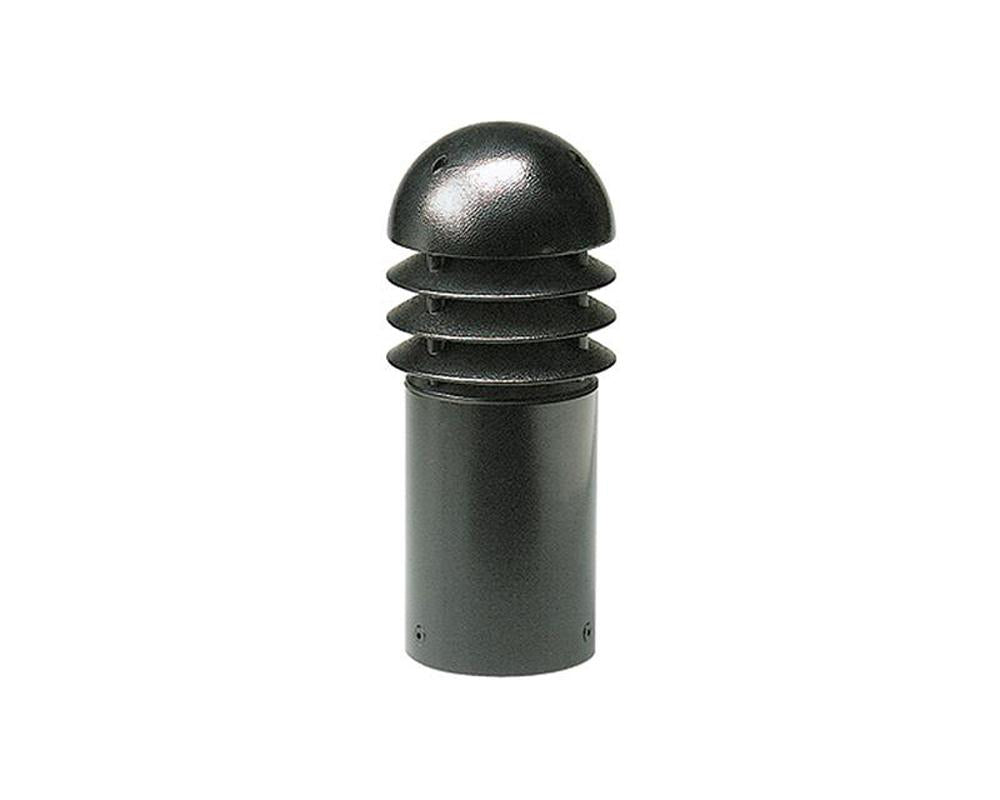

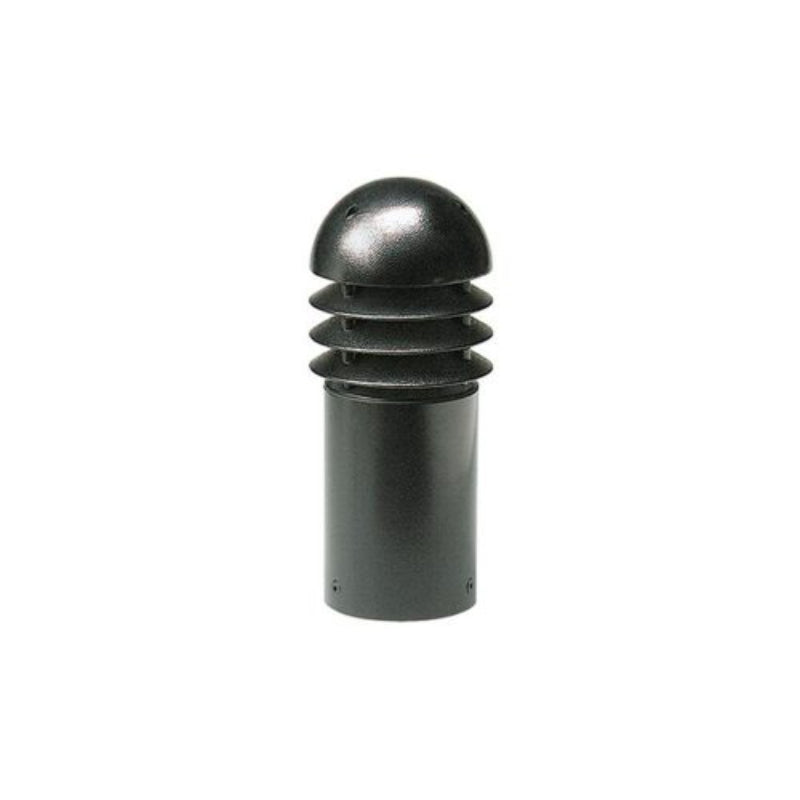

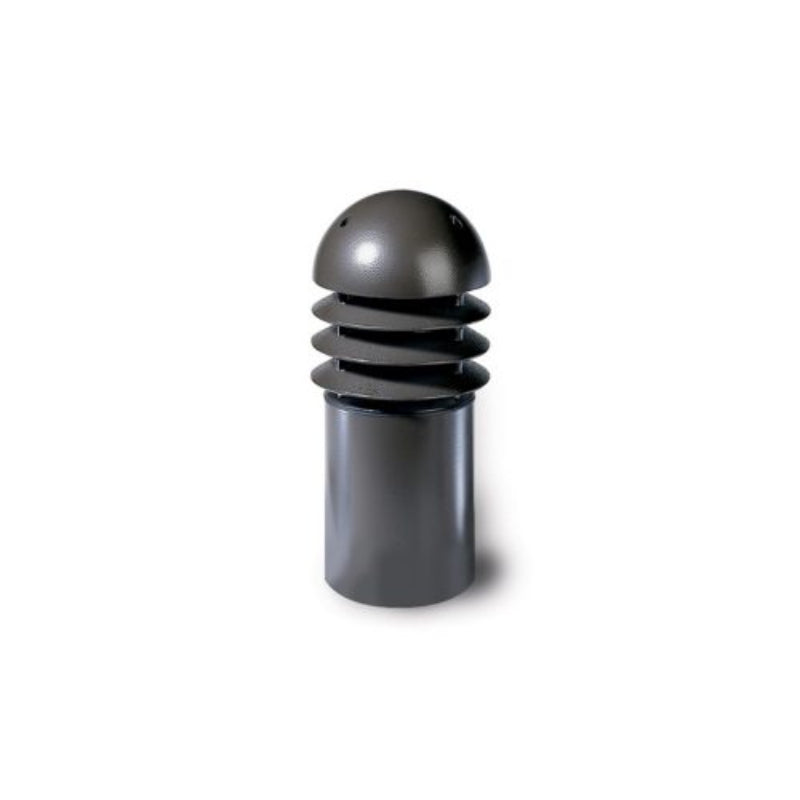

The DB Series is a line voltage Bollard available in incandescent. This versatile luminaire features a dome roof with die-cast aluminum louvers, and in a variety of heights. Optics include a symmetric, die-cast aluminum louvers with underside painted with highly reflective white powdercoat and a tempered glass globe.
Details
| Housing | 356 HM high-strength, low-copper, proprietary cast aluminum alloy . Dome roof with die-cast aluminum louvers. Easy access to lamp. 5" dia. extruded aluminum with a wall thickness of 0.125". All non-ferrous fasteners prevent corrosion and ensure longer life |
| Certifications | ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards. |
Specifications
- Optics: A0 Symmetric
- Height: 14 Inch
- Width: 6 Inch
- Bolt Circle: 3 Inch
- Base Diameter: 5 Inch
- Anchor Rods (Text Format): Internal (3).38 Inch dia. x 8 Inch long (1 cm x 20cm)
- Max Weight (Text Format): Powdercoat: 10 lbs
- Electrical Assembly: Ballast assembly is mounted to an aluminum plate, which is mounted inside the base. Quick disconnects for easy installation and removal.
- Optical Assembly: Symmetric. Die-cast aluminum louvers with underside painted with highly reflective white powdercoat. Tempered glass globe.
- Warranty: Three-year limited warranty
