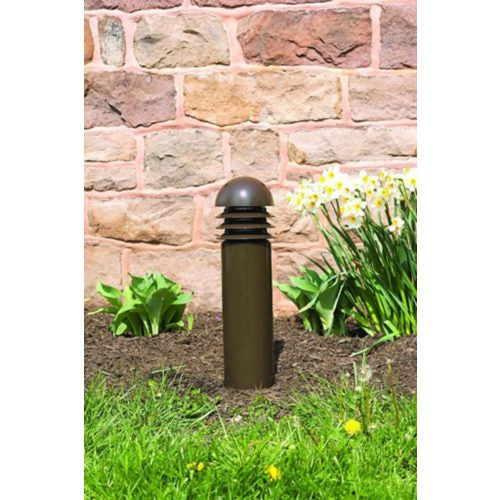

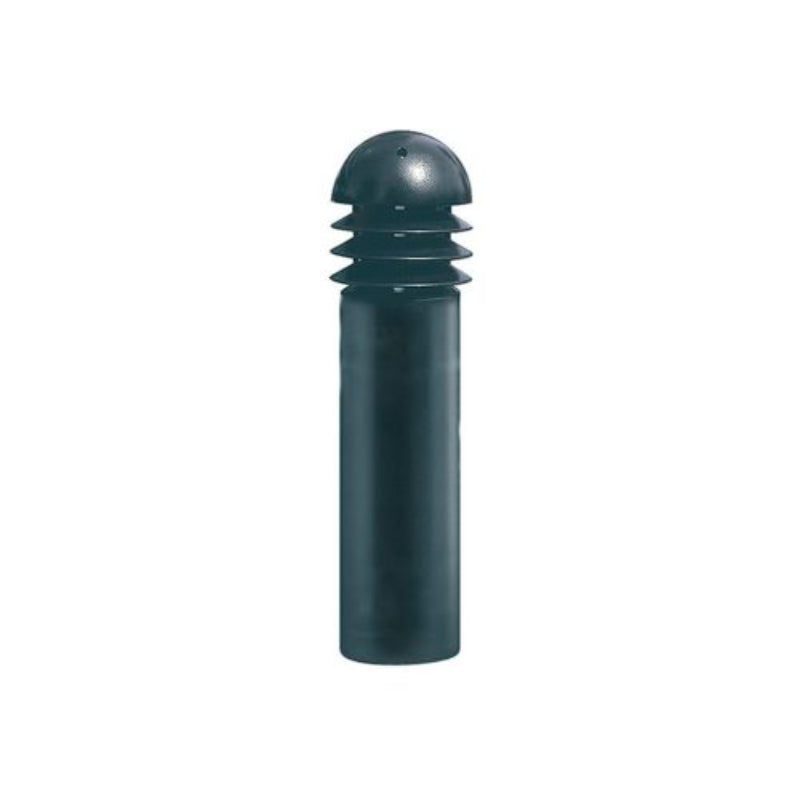

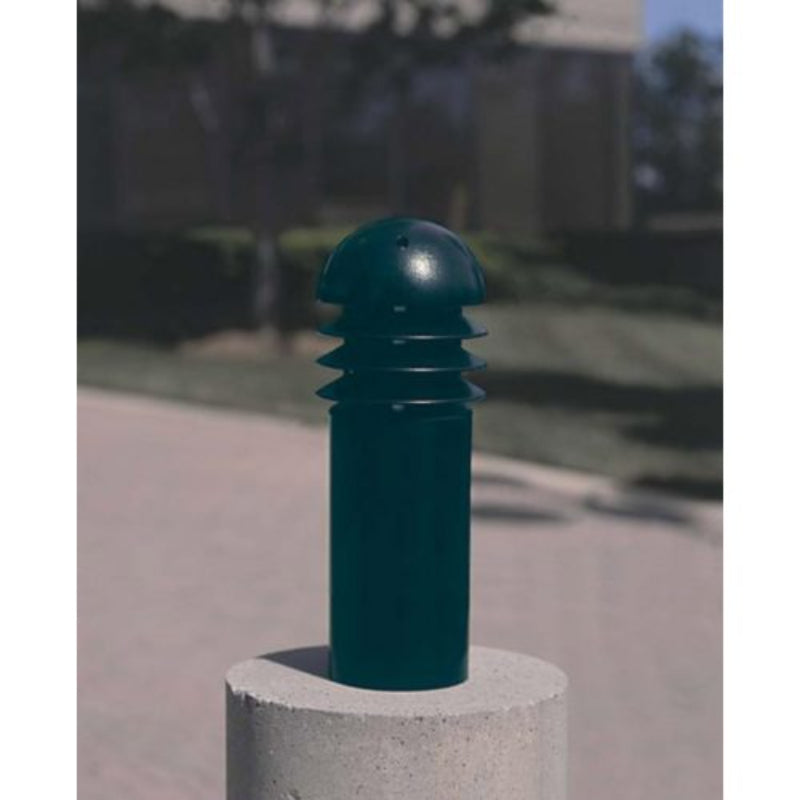

The DB Series is a line voltage Bollard available in incandescent and fluorescent (Lamp not included)
. This versatile luminaire features a dome roof with die-cast aluminum louvers, and in a variety of heights. Optics include a symmetric, die-cast aluminum louvers with underside painted with highly reflective white powdercoat and a tempered glass globe.
Features
- Lamp not included
- Ensures long-lasting durability
- Tightly sealed protection
- Highly weather-resistant
Details
| Lamping | Incandescent Medium Base A19.26W CFL (GX24Q-3). |
| Ballast | All HID ballasts are core and coil and regulated with power factors better than 90% (HPF). Ballast provides +/- 5% lamp power regulation with +/- 10% input voltage regulation. |
Specifications
- Housing: 356 HM high-strength, low-copper, proprietary cast aluminum alloy . Dome roof with die-cast aluminum louvers. Easy access to lamp.5" dia. extruded aluminum with a wall thickness of 0.125". All non-ferrous fasteners prevent corrosion and ensure longer life.
- Height: 21 Inch
- Width: 6 Inch
- Bolt Circle: 3 Inch
- Base Diameter: 5 Inch
- Anchor Rods (Text Format): Internal (3).38 Inch dia. x 8 Inch long (1 cm x 20cm)
- Electrical Assembly: Key-slotted Ballast Assembly is mounted to an aluminum plate, which is mounted inside the base.Nickel-plated screw shell with center contact.
- Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
- Warranty: Three-year limited warranty
