Hadco DUL1 12V Round Ultem Composite Step Light

Hadco DUL1 12V Round Ultem Composite Step Light

Hadco Lighting

Mfg ID #: DUL1-A

  • $83.40
  • Save $92

Normally ships within 2-4 weeks

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • Lamp Included

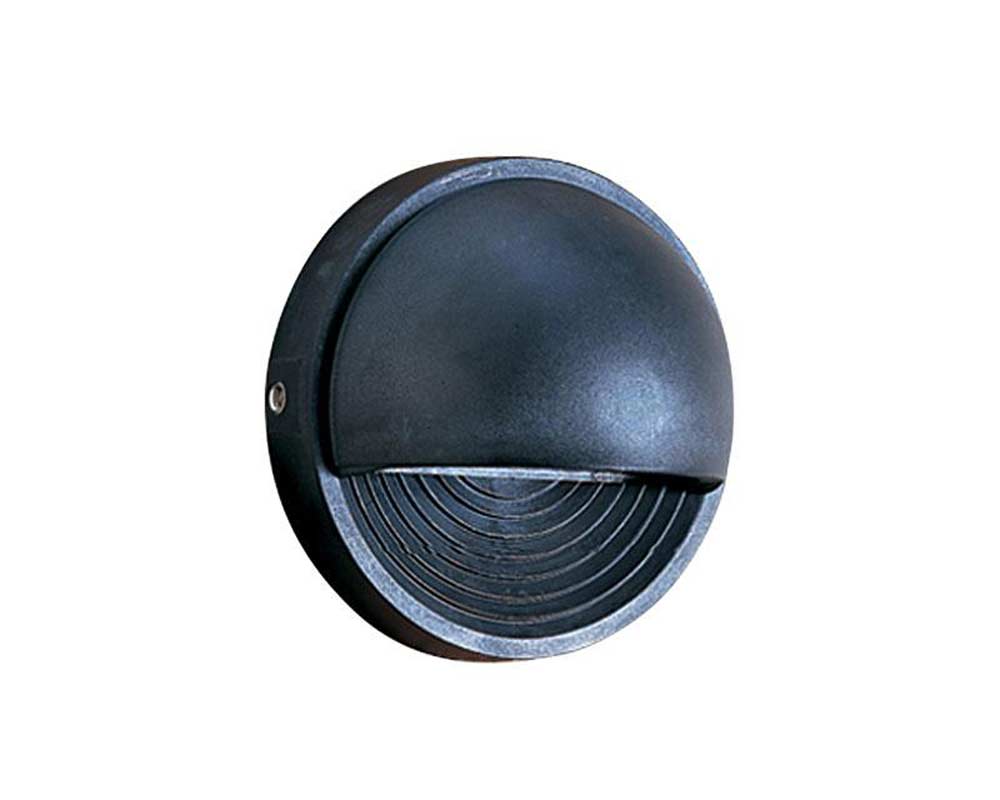

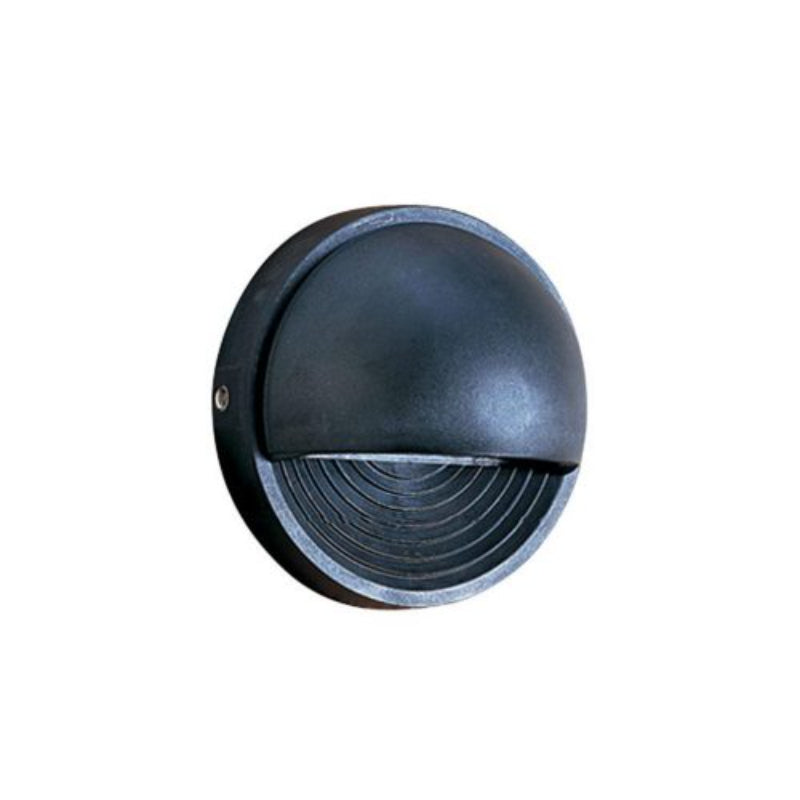

    The DUL1 deck light is a low voltage composite LED luminaire ideal for surface mounting on deck surfaces. Ita™s a one-piece injection molded from ULTEMa® High Performance Polymer composite with molded-in colors and stainless steel fasteners. The unit is IP67 rated, and energy saving LED is available to ensure even light distribution and long life.

    Features

    • Ensures long-lasting durability
    • Offers up to 50,000 hour life with LED
    • Provides added corrosion resistance
    • Completely dust-tight and sealed against direct jets of water
    • Quick and easy installation
    • ULTEM composite housing
    • Available with warm or cool LEDs
    • Color impregnated material finish
    • IP67 rated
    • Pre wired

    Specifications

    • Housing: One-piece injection molded ULTEMa® High Performance Polymer composite. Fasteners are 300 series stainless steel.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
    • Optical Assembly: Frosted, annealed glass lens Reflector is Stamped Hammertone Aluminum.
    • Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lower wattage lamps are acceptable.
    • Lamping for Non LED: 10W maximum T3 bi-pin lamp. 10W T3 lamp is included with fixture. Lower wattage lamps are acceptable
    • Height: 3.5 Inch
    • Width: 3.5 Inch
    • Max Weight (Text Format): 0.20 lb
    • Warranty for LED: Five-year limited warranty
    • Warranty for Non LED: Ten-year limited warranty
    Product Files

    Click for LED spec sheet

    Click for Non LED spec sheet

    ...Read More


    Lamp Included

    The DUL1 deck light is a low voltage composite LED luminaire ideal for surface mounting on deck surfaces. Ita™s a one-piece injection molded from ULTEMa® High Performance Polymer composite with molded-in colors and stainless steel fasteners. The unit is IP67 rated, and energy saving LED is available to ensure even light distribution and long life.

    Features

    • Ensures long-lasting durability
    • Offers up to 50,000 hour life with LED
    • Provides added corrosion resistance
    • Completely dust-tight and sealed against direct jets of water
    • Quick and easy installation
    • ULTEM composite housing
    • Available with warm or cool LEDs
    • Color impregnated material finish
    • IP67 rated
    • Pre wired

    Specifications

    • Housing: One-piece injection molded ULTEMa® High Performance Polymer composite. Fasteners are 300 series stainless steel.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
    • Optical Assembly: Frosted, annealed glass lens Reflector is Stamped Hammertone Aluminum.
    • Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lower wattage lamps are acceptable.
    • Lamping for Non LED: 10W maximum T3 bi-pin lamp. 10W T3 lamp is included with fixture. Lower wattage lamps are acceptable
    • Height: 3.5 Inch
    • Width: 3.5 Inch
    • Max Weight (Text Format): 0.20 lb
    • Warranty for LED: Five-year limited warranty
    • Warranty for Non LED: Ten-year limited warranty
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
