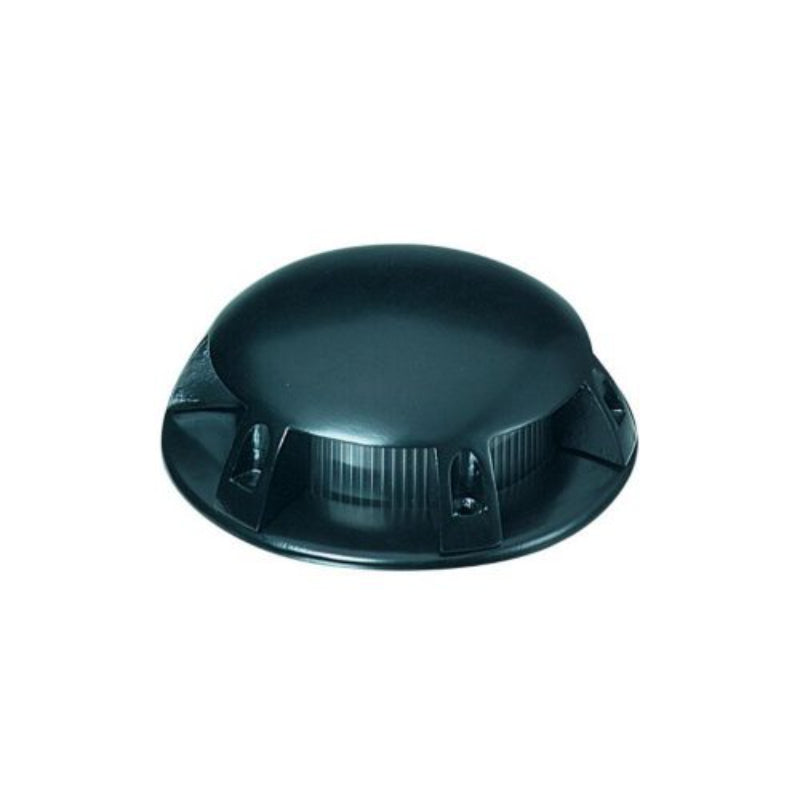

Hadco DWC2 Composite 120V 20W T3 Semi-Recessed Mini Beacon

Hadco DWC2 Composite 120V 20W T3 Semi-Recessed Mini Beacon

Hadco Lighting

Mfg ID #: DWC2-A

  • $289.78
  • Save $362

Ships within 4-6 weeks

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • Lamp Included

    The DWC series is a low voltage beacon constructed of a single-piece compression molded fiberglass reinforced polyester composite, factory pressure tested to ensure water will not wick or leak through. It is available in two distinctive heights. Composite is pressure formed, molded-in color. Gasketing is silicone.Fasteners are 300 series stainless steel. Two (2) 1/2" conduit inlets at bottom.

    Note: Watertight connectors and potting compound (by others) must be used to maintain awatertight seal at conduit entry points.

    Features

    • Superior durability
    • UV and corrosion resistant
    • Protected against moisture, dust and insects
    • Suitable for a variety of applications

    Specifications

    • Voltage: 120V
    • Lamp Type: Halogen
    • Height: 7.38 Inch
    • Width: 5.31 Inch
    • Max Weight (Text Format): 3 lb.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature teflon coated wire leads. Fixture is 12 volt. Internal electronic transformer has 120 volt input. Pre-wired with high temperature 18 AWG wire
    • Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
    • Optical Assembly: Ribbed clear acrylic
    • Warranty: Ten-year limited warranty
    Product Files

    Click for product spec sheet

    ...Read More


    Lamp Included

    The DWC series is a low voltage beacon constructed of a single-piece compression molded fiberglass reinforced polyester composite, factory pressure tested to ensure water will not wick or leak through. It is available in two distinctive heights. Composite is pressure formed, molded-in color. Gasketing is silicone.Fasteners are 300 series stainless steel. Two (2) 1/2" conduit inlets at bottom.

    Note: Watertight connectors and potting compound (by others) must be used to maintain awatertight seal at conduit entry points.

    Features

    • Superior durability
    • UV and corrosion resistant
    • Protected against moisture, dust and insects
    • Suitable for a variety of applications

    Specifications

    • Voltage: 120V
    • Lamp Type: Halogen
    • Height: 7.38 Inch
    • Width: 5.31 Inch
    • Max Weight (Text Format): 3 lb.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature teflon coated wire leads. Fixture is 12 volt. Internal electronic transformer has 120 volt input. Pre-wired with high temperature 18 AWG wire
    • Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
    • Optical Assembly: Ribbed clear acrylic
    • Warranty: Ten-year limited warranty
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.

    Hadco Lighting Returns And Cancellations:

    There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Please contact Seginus Lighting to check if your item is made to order prior to placing an order on our online store.

    Please click here to go to the Returns & Cancellations page for the complete terms.
