Hadco DWCL2 12V 20W T3 Composite Semi-Recessed Mini Beacon

Hadco DWCL2 12V 20W T3 Composite Semi-Recessed Mini Beacon

Hadco Lighting

Mfg ID #: DWCL2-A

  • $147.96
  • Save $155

Normally ships within 2-10 business days

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • Lamp Included

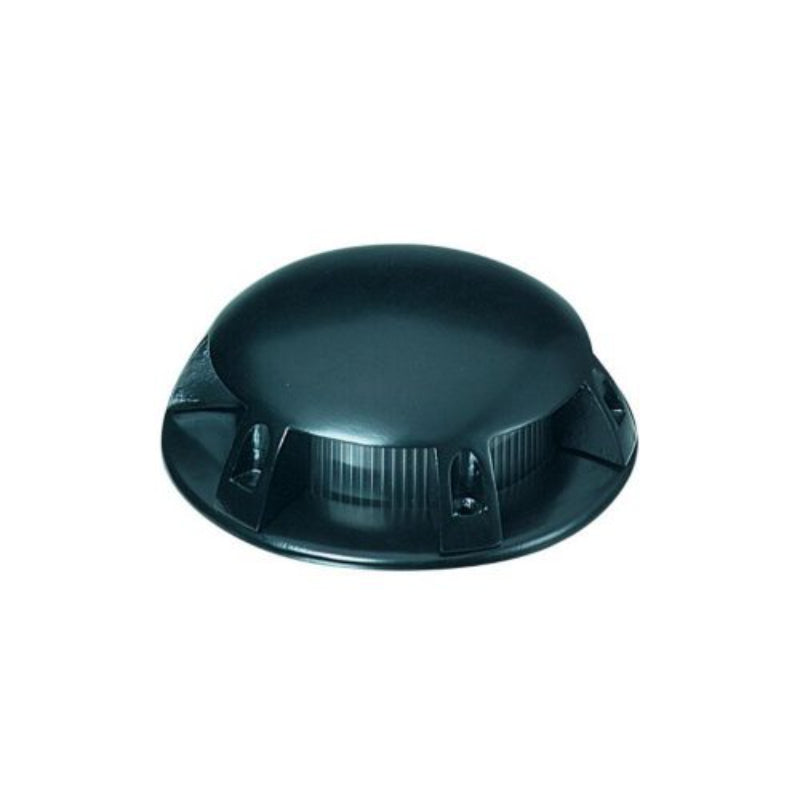

    The DWCL series is a low voltage beacon constructed of a single-piece compression molded fiberglass reinforced polyester composite lower housing and die cast brass upper housing. It is available in two distinctive heights. The natural brass is as-cast and tumble polished. Composite is pressure formed, molded-in color.

    Features

    • Superior durability
    • UV and corrosion resistant
    • Protected against moisture, dust and insects
    • Suitable for a variety of applications

    Details

    Lamping 20W maximum T3 bi-pin lamp.Lamp is included with fixture.Lower wattage lamps are acceptable.
    Electrical Assembly Bi-pin socket type (G4) with 250a°C high temperature teflon coated wire leads.12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included.12 Volt system requires remote transformer, not included.

    Specifications

    • Voltage: 12V
    • Lamp Type: Halogen
    • Housing: Fasteners are 300 series stainless steel. Gasketing is silicone. Single-piece compression molded fiberglass reinforced polyester composite, factory pressure tested to ensurewater will not wick or leak through. Two (2) 1/2" conduit inlets at bottom. Note: Watertight connectors and potting compound (by others) must be used to maintain a watertightseal at conduit entry points.
    • Height: 7.38 Inch
    • Width: 5.31 Inch
    • Max Weight (Text Format): 2.5 lb.
    • Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
    • Optical Assembly: Ribbed clear acrylic
    • Warranty: Ten-year limited warranty
    Product Files

    Click for product spec sheet

    ...Read More


    Lamp Included

    The DWCL series is a low voltage beacon constructed of a single-piece compression molded fiberglass reinforced polyester composite lower housing and die cast brass upper housing. It is available in two distinctive heights. The natural brass is as-cast and tumble polished. Composite is pressure formed, molded-in color.

    Features

    • Superior durability
    • UV and corrosion resistant
    • Protected against moisture, dust and insects
    • Suitable for a variety of applications

    Details

    Lamping 20W maximum T3 bi-pin lamp.Lamp is included with fixture.Lower wattage lamps are acceptable.
    Electrical Assembly Bi-pin socket type (G4) with 250a°C high temperature teflon coated wire leads.12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included.12 Volt system requires remote transformer, not included.

    Specifications

    • Voltage: 12V
    • Lamp Type: Halogen
    • Housing: Fasteners are 300 series stainless steel. Gasketing is silicone. Single-piece compression molded fiberglass reinforced polyester composite, factory pressure tested to ensurewater will not wick or leak through. Two (2) 1/2" conduit inlets at bottom. Note: Watertight connectors and potting compound (by others) must be used to maintain a watertightseal at conduit entry points.
    • Height: 7.38 Inch
    • Width: 5.31 Inch
    • Max Weight (Text Format): 2.5 lb.
    • Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
    • Optical Assembly: Ribbed clear acrylic
    • Warranty: Ten-year limited warranty
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
