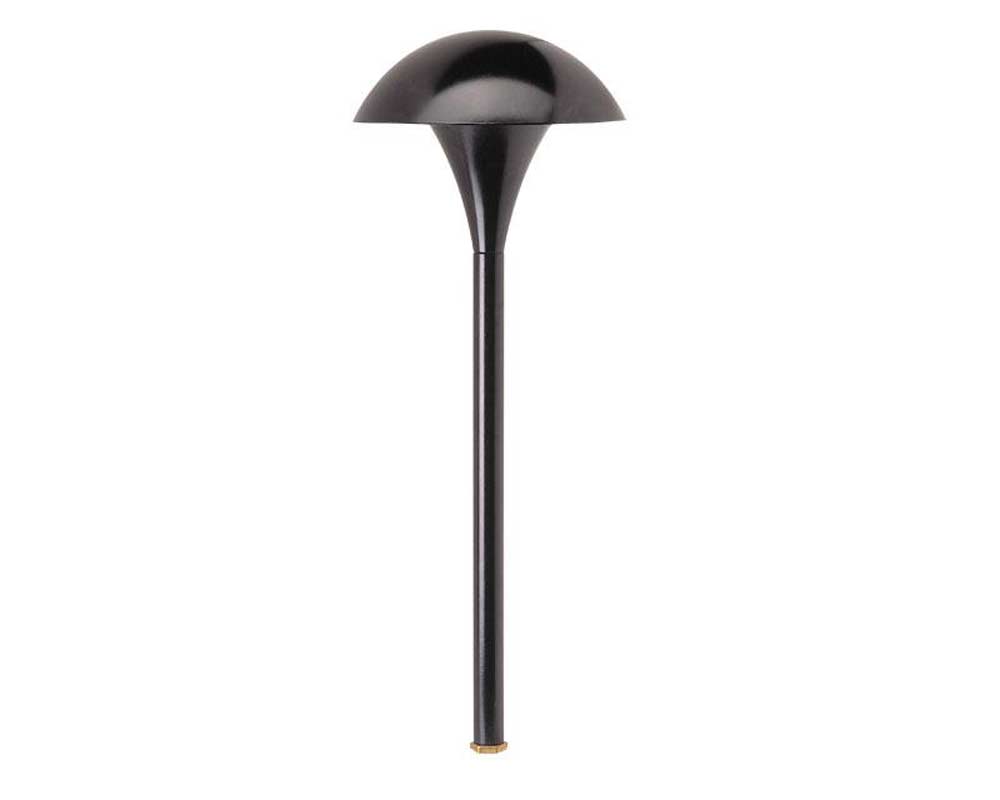

Hadco MUL5 Medium 12V Aluminum Path Light

Hadco MUL5 Medium 12V Aluminum Path Light

Hadco Lighting

Mfg ID #: MUL5-AS7

  • $216.77
  • Save $240

Ships within 4-6 weeks

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • Lamp & Stake Included

    The MU5 path light luminaires feature classic mushroom styling and a graceful appearance making them suitable for most applications. Designed as a spread light, these luminaires produce a uniform light pattern with no objectionable glare. Construction choices include aluminum or Solid brass stem die-cast brass. Available with both conventional and LED technologies.

    Features

    • Low Voltage 12V (transformer not included)
    • 12V/35W maximum T3 halogen. Lamp is included with fixture. Lower wattage lamps are acceptable
    • Die-cast aluminum housing
    • Tool-less entry and relamping
    • Polyester powder coat finish
    • Silicone gasketing
    • Pre-wired
    • Ensures long-lasting durability
    • Easy maintenance
    • Fade and abrasion resistant
    • Prevents water leaks
    • Quick and easy installation

    Specifications

    • Height: 25 Inch
    • Width: 9 Inch
    • Max Weight (Text Format): 5.55 lbs
    • Optical Assembly: Spun aluminum reflector with white thermoset powder coat. Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. 12 Volt system requires remote transformer, not included.
    • Warranty: Three-year limited warranty
    • Certifications:ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
    Product Files

    Click for product spec sheet

    ...Read More


    Lamp & Stake Included

    The MU5 path light luminaires feature classic mushroom styling and a graceful appearance making them suitable for most applications. Designed as a spread light, these luminaires produce a uniform light pattern with no objectionable glare. Construction choices include aluminum or Solid brass stem die-cast brass. Available with both conventional and LED technologies.

    Features

    • Low Voltage 12V (transformer not included)
    • 12V/35W maximum T3 halogen. Lamp is included with fixture. Lower wattage lamps are acceptable
    • Die-cast aluminum housing
    • Tool-less entry and relamping
    • Polyester powder coat finish
    • Silicone gasketing
    • Pre-wired
    • Ensures long-lasting durability
    • Easy maintenance
    • Fade and abrasion resistant
    • Prevents water leaks
    • Quick and easy installation

    Specifications

    • Height: 25 Inch
    • Width: 9 Inch
    • Max Weight (Text Format): 5.55 lbs
    • Optical Assembly: Spun aluminum reflector with white thermoset powder coat. Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. 12 Volt system requires remote transformer, not included.
    • Warranty: Three-year limited warranty
    • Certifications:ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
