Description
Lamp & Stake Included

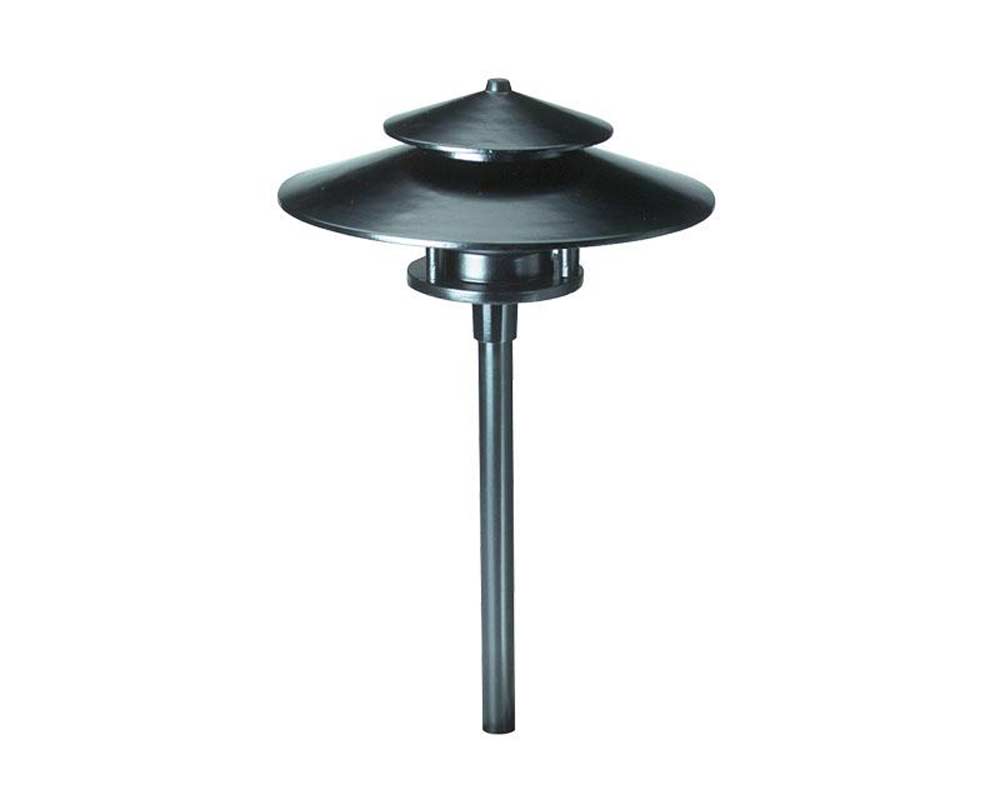

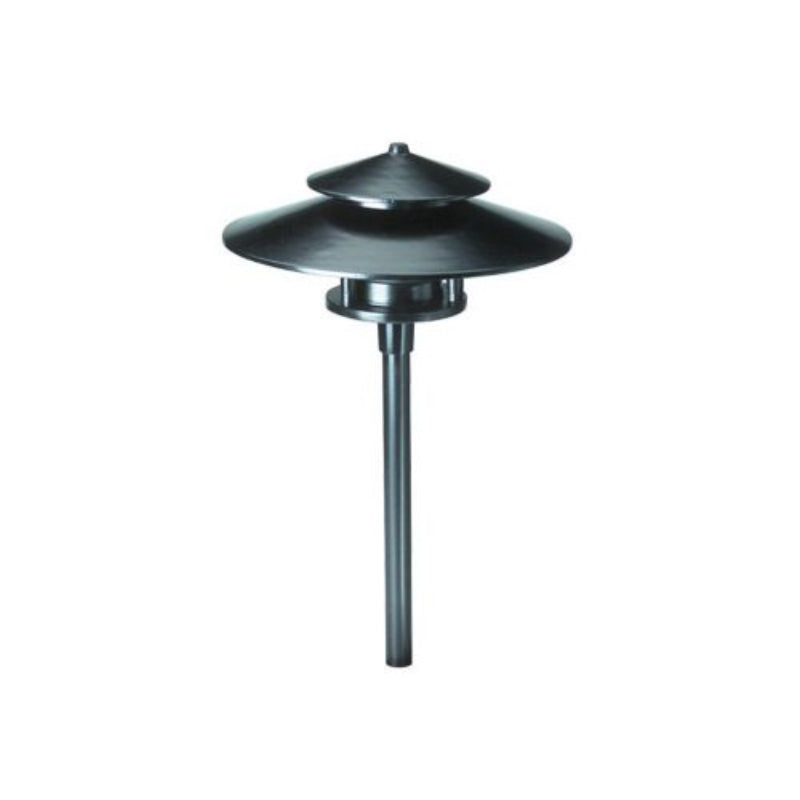

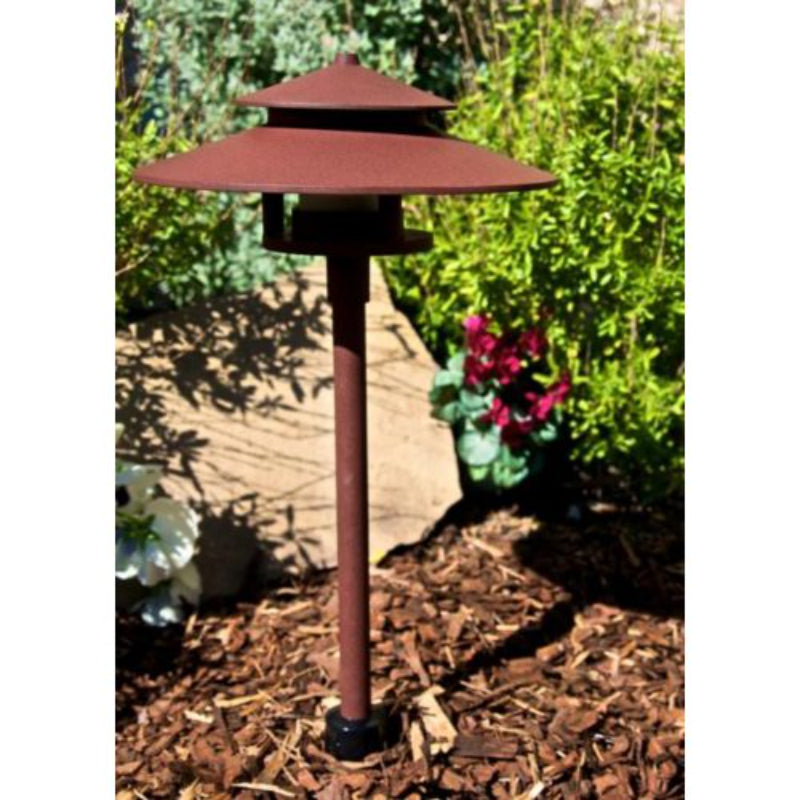

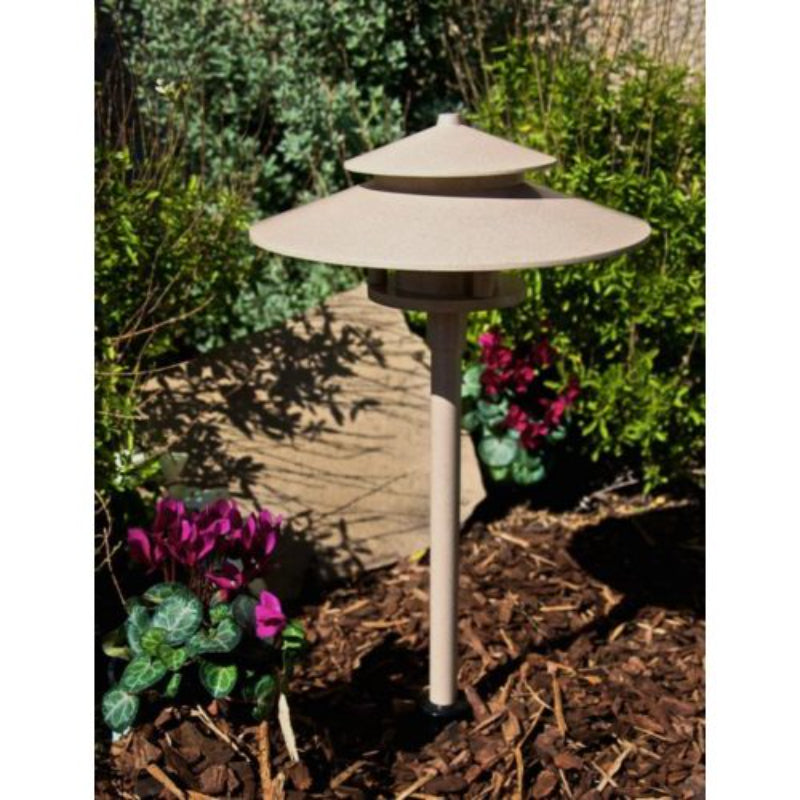

The RL series of low voltage path lights have the charm and unique character of Tudor and Horizons reflected in their individual styling. Both create a soft luminescent ambience, free of glare, because of their hidden light source. Energy saving LED is available to ensure even light distribution and long life.
Features
- Ensures lasting beauty and durability
- Easy hookup to the low voltage supply cable
- Easy installation and maintenance
- Dust tight and sealed against direct jets of water
- Offers 50,000 hour life with LED
- Cast aluminum construction
- Ships with S7 mounting stake
- Available with conventional and LED technology
- Pre-wired
- IP66 rated
Specifications
- Housing: Die-cast aluminum. Stem is extruded aluminum. Fasteners are 300 series stainless steel. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately
- Optical Assembly: Frosted tempered glass lens. Spun aluminum reflector with white thermoset powdercoat.
- Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lamp is included with fixture. Lower wattage lamps are acceptable.
- Lamping for Non LED: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
- Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
- Warranty for LED: Five-year limited warranty.
- Warranty for Non LED: Three-year limited warranty
- Certifications:ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
- Height: 17.25 Inch
- Width: 10 Inch
- Max. Weight: 3.18 lb.
