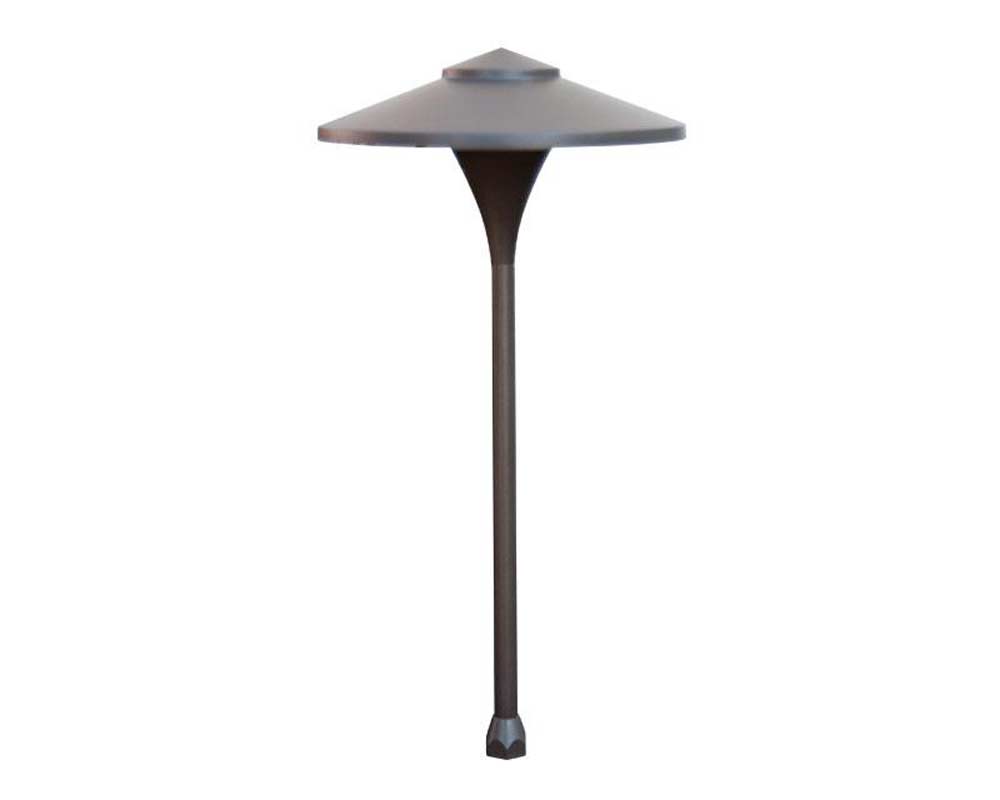

Hadco RL9 12V Horizon Aluminum Path Light

Hadco RL9 12V Horizon Aluminum Path Light

Hadco Lighting

Mfg ID #: RL9-AS7LED2W

  • $158.22
  • Save $178

The 12V, 20W T3 Normally ships within 2-7 business days. The LED version is currently on back order

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • Lamp & Stake Included

    Mushrooms offer classic styling and a graceful appearance making them suitable for most applications. Designed as a spread light, these luminaires produce a uniform light pattern with no objectional glare. Finishes are available in antiqued verde, bronze, sienna, speckled stone, black and natural cast bronze. Energy saving LED is available to ensure even distribution and long life.

    Features

    • Ensures lasting beauty and durability
    • Easy hookup to the low voltage supply cable
    • Easy installation and maintenance
    • Dust tight and sealed against direct jets of water
    • Offers 50,000 hour life with LED
    • Cast aluminum construction
    • Ships with S7 mounting stake
    • Available with conventional and LED technology
    • Pre-wired
    • IP67 rated

    Specifications

    • Housing: Die-cast aluminum. Stem is extruded aluminum. Roof has dual stainless steel hinge with stainless steel spring-lock for tool-less entry and relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Fasteners are 300 series stainless steel.
    • Optical Assembly: :Spun aluminum reflector with white thermoset powdercoat. Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal
    • Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lamp is included with fixture. Lower wattage lamps are acceptable.
    • Lamping for Non LED: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included
    • Warranty for LED: Five-year limited warranty.
    • Warranty for Non LED: Three-year limited warranty
    • Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
    • Height : 16.37 Inch
    • Width:8 Inch
    Product Files

    Click for LED spec sheet

    Click for Non LED spec sheet

    ...Read More


    Lamp & Stake Included

    Mushrooms offer classic styling and a graceful appearance making them suitable for most applications. Designed as a spread light, these luminaires produce a uniform light pattern with no objectional glare. Finishes are available in antiqued verde, bronze, sienna, speckled stone, black and natural cast bronze. Energy saving LED is available to ensure even distribution and long life.

    Features

    • Ensures lasting beauty and durability
    • Easy hookup to the low voltage supply cable
    • Easy installation and maintenance
    • Dust tight and sealed against direct jets of water
    • Offers 50,000 hour life with LED
    • Cast aluminum construction
    • Ships with S7 mounting stake
    • Available with conventional and LED technology
    • Pre-wired
    • IP67 rated

    Specifications

    • Housing: Die-cast aluminum. Stem is extruded aluminum. Roof has dual stainless steel hinge with stainless steel spring-lock for tool-less entry and relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately. Fasteners are 300 series stainless steel.
    • Optical Assembly: :Spun aluminum reflector with white thermoset powdercoat. Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal
    • Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lamp is included with fixture. Lower wattage lamps are acceptable.
    • Lamping for Non LED: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
    • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included
    • Warranty for LED: Five-year limited warranty.
    • Warranty for Non LED: Three-year limited warranty
    • Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
    • Height : 16.37 Inch
    • Width:8 Inch
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
