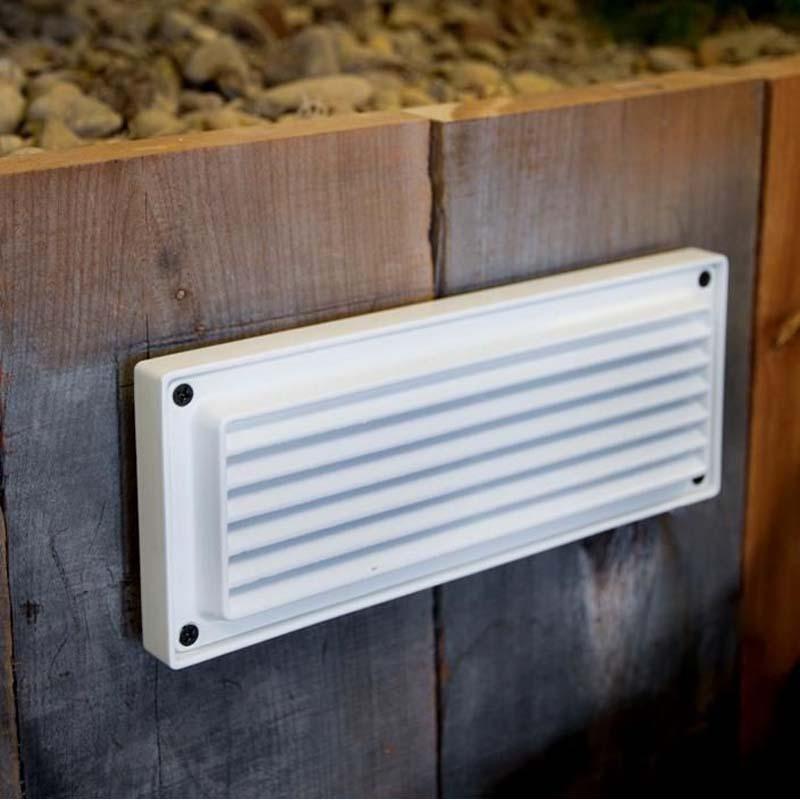

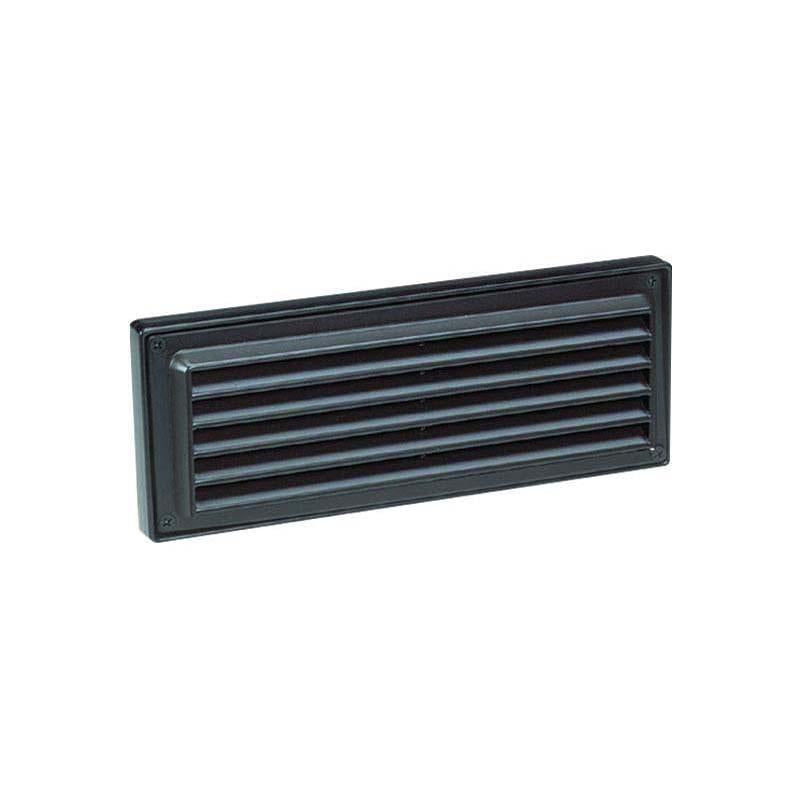

Hadco RSC2 LED Generation 2 Aluminum Step Light
Mfg ID #: RSC2-A-K5-D-G2
The RSC2 is a line voltage step light perfect for high pedestrian traffic and plant life applications. It is available in standard sources including CFL along with high brightness LED sources. It is available with a die-cast aluminum and bronze construction with low copper to resist corrosion. The cast bronze louver is natural cast bronze with frosted tempered glass. The die-cast copper-free aluminum louver has a 45a° cutoff with frosted tempered glass with silicone gasketing. Available in three colors plus natural bronze. Symmetric Reflector is precision formed with a white reflective coating. The cast louver offers lower light levels with cut-off for lighting stairways or general lighting where shielding of the light source is more important than high light levels.
Features
- Corrosion-resistant
- Cool external temperatures
- Ability to shield the light source
- Available with conventional and LED technology
- Cast aluminum and bronze construction
- Symmetric reflector
- Silicone gasketing
Specifications
- Housing: Die-cast aluminum back box contains less than 0.3%copper to prevent corrosion in concrete or masonryapplications.
- Trim Ring: Die-cast aluminum trim contains less than 0.3%copper to resist corrosion
- Reflector: Specular aluminum formed reflector
- Faceplates: Cast louver- Die-cast copper-free aluminum with 45a° cutoff, with frosted tempered glass
- Opal lens: Opal UV stabilized injection molded polycarbonatewith frosted glass siliconed on inside for durability
- Louvers: Clear UV stabilized injection molded polycarbonatewith 45a° louvered screen insert.
- Finish: Aluminum parts have zinc-rich primer and for durability a thermoset powder coat in; black or bronze
- LED: Delivers 70% lumen maintenance at 50,000 hours. Color temp (CCT): Warm white (3000K) is standard. Cool white (4000K) is optional and is switchable at the fixture
- Controls: Class 2 driver with AOC and 0-10V dimming. Designallows easy-access to integral switch with 5 preset light outputs, see lumen matrix. Remove lens cap with [2] screws and simply adjust the slider switch by hand.
- ADA compliant: Compliant when used in indoor and outdoor wall applications
- Electrical: 9.2W (on high setting). Input voltage range (VAC): 120-277V.Pre-wired with #18 AWG black, white and ground wire for ease of connection. Also has #18 AWG grey and violet for 0-10V Analog Class 2 dimming, capped off to help prevent cross wiring with line- voltage wires.
- Labels: ETL and cETL listed
- Warranty: 5 year limited warranty.
Product Files
Click for RSF Step Light LED Installation Sheet
Click for RS/RR Step Light Installation Sheet
The RSC2 is a line voltage step light perfect for high pedestrian traffic and plant life applications. It is available in standard sources including CFL along with high brightness LED sources. It is available with a die-cast aluminum and bronze construction with low copper to resist corrosion. The cast bronze louver is natural cast bronze with frosted tempered glass. The die-cast copper-free aluminum louver has a 45a° cutoff with frosted tempered glass with silicone gasketing. Available in three colors plus natural bronze. Symmetric Reflector is precision formed with a white reflective coating. The cast louver offers lower light levels with cut-off for lighting stairways or general lighting where shielding of the light source is more important than high light levels.
Features
- Corrosion-resistant
- Cool external temperatures
- Ability to shield the light source
- Available with conventional and LED technology
- Cast aluminum and bronze construction
- Symmetric reflector
- Silicone gasketing
Specifications
- Housing: Die-cast aluminum back box contains less than 0.3%copper to prevent corrosion in concrete or masonryapplications.
- Trim Ring: Die-cast aluminum trim contains less than 0.3%copper to resist corrosion
- Reflector: Specular aluminum formed reflector
- Faceplates: Cast louver- Die-cast copper-free aluminum with 45a° cutoff, with frosted tempered glass
- Opal lens: Opal UV stabilized injection molded polycarbonatewith frosted glass siliconed on inside for durability
- Louvers: Clear UV stabilized injection molded polycarbonatewith 45a° louvered screen insert.
- Finish: Aluminum parts have zinc-rich primer and for durability a thermoset powder coat in; black or bronze
- LED: Delivers 70% lumen maintenance at 50,000 hours. Color temp (CCT): Warm white (3000K) is standard. Cool white (4000K) is optional and is switchable at the fixture
- Controls: Class 2 driver with AOC and 0-10V dimming. Designallows easy-access to integral switch with 5 preset light outputs, see lumen matrix. Remove lens cap with [2] screws and simply adjust the slider switch by hand.
- ADA compliant: Compliant when used in indoor and outdoor wall applications
- Electrical: 9.2W (on high setting). Input voltage range (VAC): 120-277V.Pre-wired with #18 AWG black, white and ground wire for ease of connection. Also has #18 AWG grey and violet for 0-10V Analog Class 2 dimming, capped off to help prevent cross wiring with line- voltage wires.
- Labels: ETL and cETL listed
- Warranty: 5 year limited warranty.
| Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”). | |||
| Product Line | |||
| Product Line | LED | Non-LED | Special Conditions |
| Hadco Landscape and Residentia | 5 Years | 3 Years | Landscape Products: Warranty Period for all grade mounted composite luminaires, copper luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast bronze and stainless steel housing. Residential Products: Lifetime warranty offered on the finish to all original Purchasers on residential lighting fixtures and posts. |
QUESTIONS & ANSWERS
Ask a Question-
I'm trying to determine the correct replacement for the following HADCO step lights (model # RSC2AK5 IE, AND RSCL2HK5 812), however I'm having problem to decode the last part of these model number (i.e. "IE" and "812"). Also, what is the difference between RSCL2 and RSC2 ? I found series RSC2 in your catalog but not the series RSCL2.
Hadco has discontinued many of their products and upgraded others to LED. The RSCL2 was a low voltage version which is no longer made. You can see the one type that is still available here: https://www.seginuslighting.com/ collections/hadco-step-deck- lights/products/hadco-rsc2- led-generation-2-aluminum- step-light There is a tab for product files on the page where you can see the specification file with more details.
