Hadco RSV2 LED Generation 2 Vertical Aluminum Step Light

Hadco RSV2 LED Generation 2 Vertical Aluminum Step Light

Hadco Lighting

Mfg ID #: RSV2-A-K5-D-G2

  • $548.99
  • Save $577

Ships within 4-6 weeks

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • PLEASE CLICK HERE FOR THE INCANDESCENT VERSION

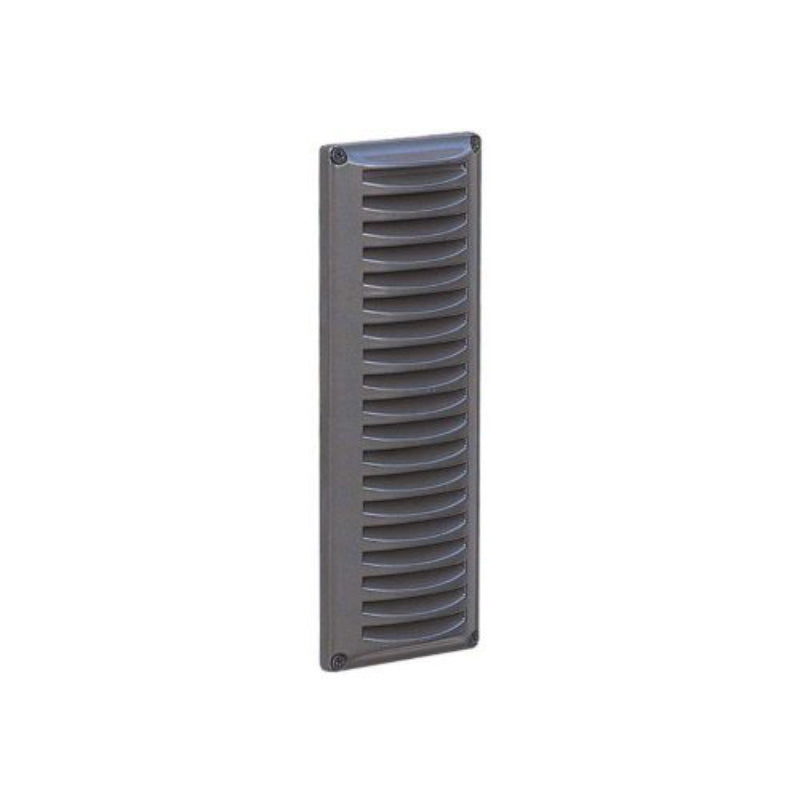

    The RSV2 is a line voltage step light in a vertical Configuration perfect for high pedestrian traffic and plant life applications. Construction includes a die-cast aluminum back box with die-cast copper-free aluminum with 45a° cutoff, with frosted tempered glass. The cast louver offers lower light levels with cut-off for lighting stairways or general lighting where shielding of the light source is more important than high light levels.

    Features

    • Corrosion-resistant
    • Cool external temperatures
    • Ability to shield the light source
    • Cast aluminum and bronze construction
    • Symmetric reflector
    • Silicone gasketing

    Specifications

    • Housing: Die-cast aluminum back box contains less than 0.3% copper to prevent corrosion in concrete or masonry applications.
    • Electrical Assembly: 9.2W (on high setting) Input voltage range (VAC): 120-277V. Pre-wired with #18 AWG black, white and ground wire for ease of connection. Also has #18 AWG grey and violet for 0-10V Analog Class 2 dimming, capped off to help prevent cross wiring with line- voltage wires.
    • Certifications: ETL and cETL listed.
    • Optical Assembly: Opal UV stabilized injection molded polycarbonate with frosted glass siliconed on inside for durability.
    • Warranty: 5 year limited warranty
    Product Files

    Click for product spec sheet

    ...Read More


    PLEASE CLICK HERE FOR THE INCANDESCENT VERSION

    The RSV2 is a line voltage step light in a vertical Configuration perfect for high pedestrian traffic and plant life applications. Construction includes a die-cast aluminum back box with die-cast copper-free aluminum with 45a° cutoff, with frosted tempered glass. The cast louver offers lower light levels with cut-off for lighting stairways or general lighting where shielding of the light source is more important than high light levels.

    Features

    • Corrosion-resistant
    • Cool external temperatures
    • Ability to shield the light source
    • Cast aluminum and bronze construction
    • Symmetric reflector
    • Silicone gasketing

    Specifications

    • Housing: Die-cast aluminum back box contains less than 0.3% copper to prevent corrosion in concrete or masonry applications.
    • Electrical Assembly: 9.2W (on high setting) Input voltage range (VAC): 120-277V. Pre-wired with #18 AWG black, white and ground wire for ease of connection. Also has #18 AWG grey and violet for 0-10V Analog Class 2 dimming, capped off to help prevent cross wiring with line- voltage wires.
    • Certifications: ETL and cETL listed.
    • Optical Assembly: Opal UV stabilized injection molded polycarbonate with frosted glass siliconed on inside for durability.
    • Warranty: 5 year limited warranty
    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
