Description

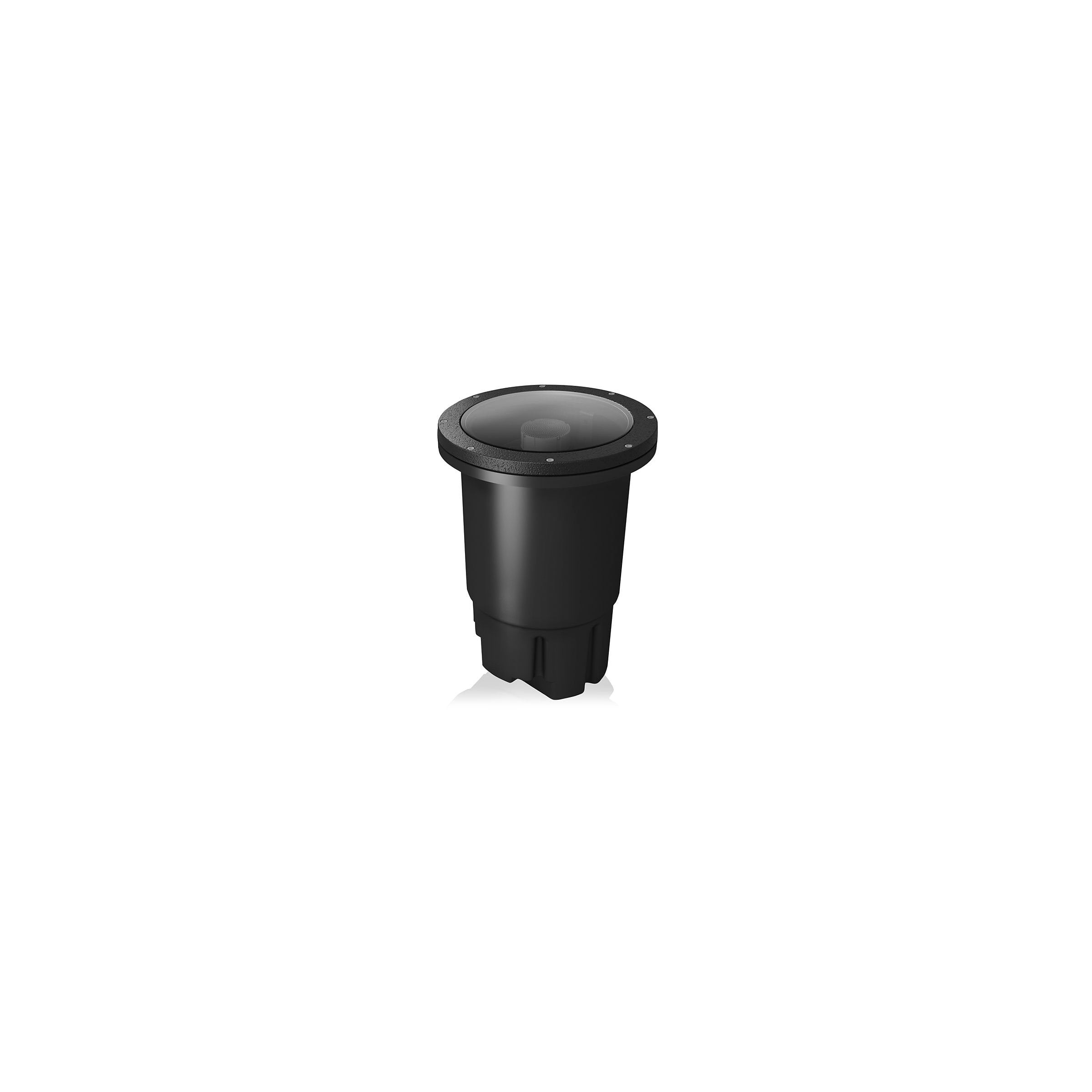

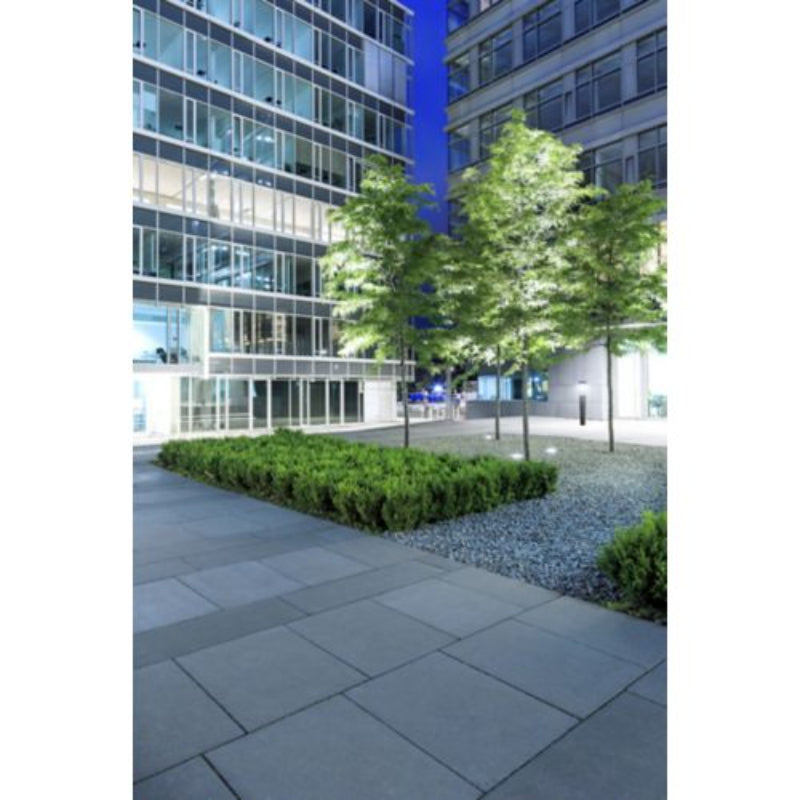

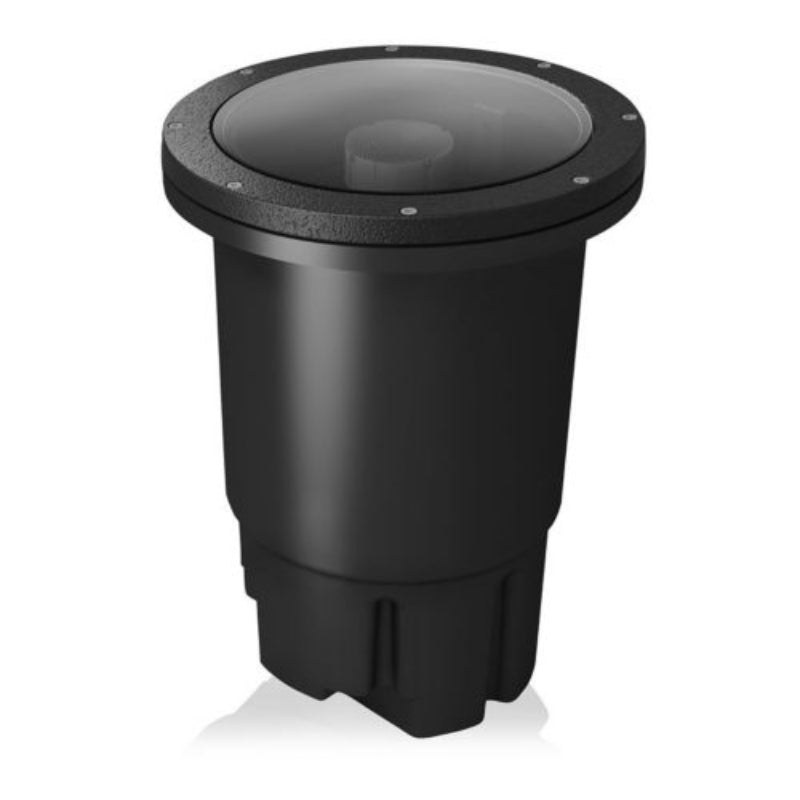

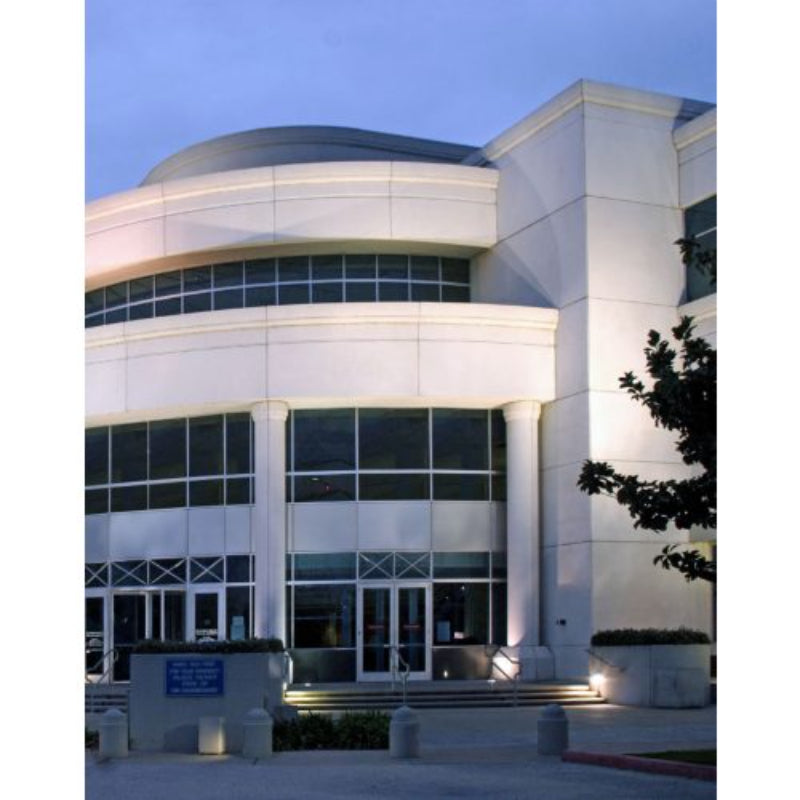

The SL-43 inground luminaire is manufactured with a compression molded Rhinolite Composite housing that is corrosion resistant in harsh landscape lighting environments. It is supplied with two 3/4" NPT conduit entrances and separated from the ballast compartment by the anti-wicking chamber that is hermetically sealed. The ballast compartment is sealed and also separated from the lamp compartment by another anti-wicking chamber. Applications include landscape lighting, trees, flagpoles, columns, building accents and wall washing.
Features
- Superior durability
- UV and corrosion resistant
- Protected against moisture, dust and insects
- Suitable for a variety of applications
- Structurally reinforced with glass fibers
- Trim ring and debris cover included
- Silicone gasketing
- Available in a variety of optical distributions
Details
| Housing (Lamp/Ballast) | Single piece compression molded fiberglass reinforced polyester composite, factory tested to ensure water will not wick or leak through cavity. Separated sealed compartments provide isolation between field wiring, optics and driver. Superior resistance to ultraviolet degradation and corrosion resistant in harsh environments. Trim Ring and Debris Cover supplied standard. |

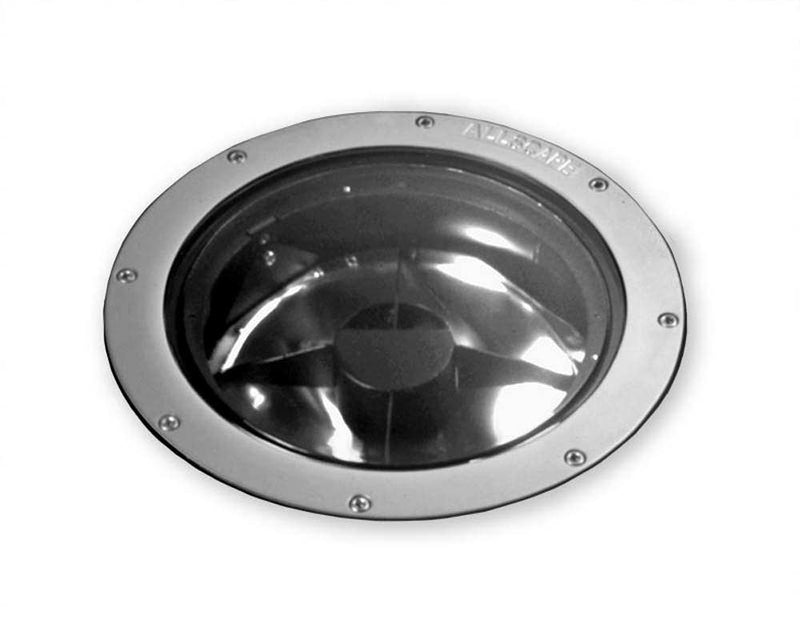

| Optical Systems | Fixture pre-installed with medium flood (36a°) optical lens. Interchangeable optical lenses clip onto main reflector. Both narrow flood (20a°) and wide flood (65a°) optical lenses are shipped with each fixture. Components are made of injection molded polycarbonate (PC). Heat sink doubles as an aiming apparatus, providing a range of 30a° (15a° from center both ways). Aiming can be adjusted after easy removal screws on lens frame. |
| Splice Compartment | Supplied with two 3/4" NPT conduit entrances. Connection to driver compartment by way of anti-wicking device. Sealed with gasketed die cast aluminum cover plate. Suitable for through wiring. |

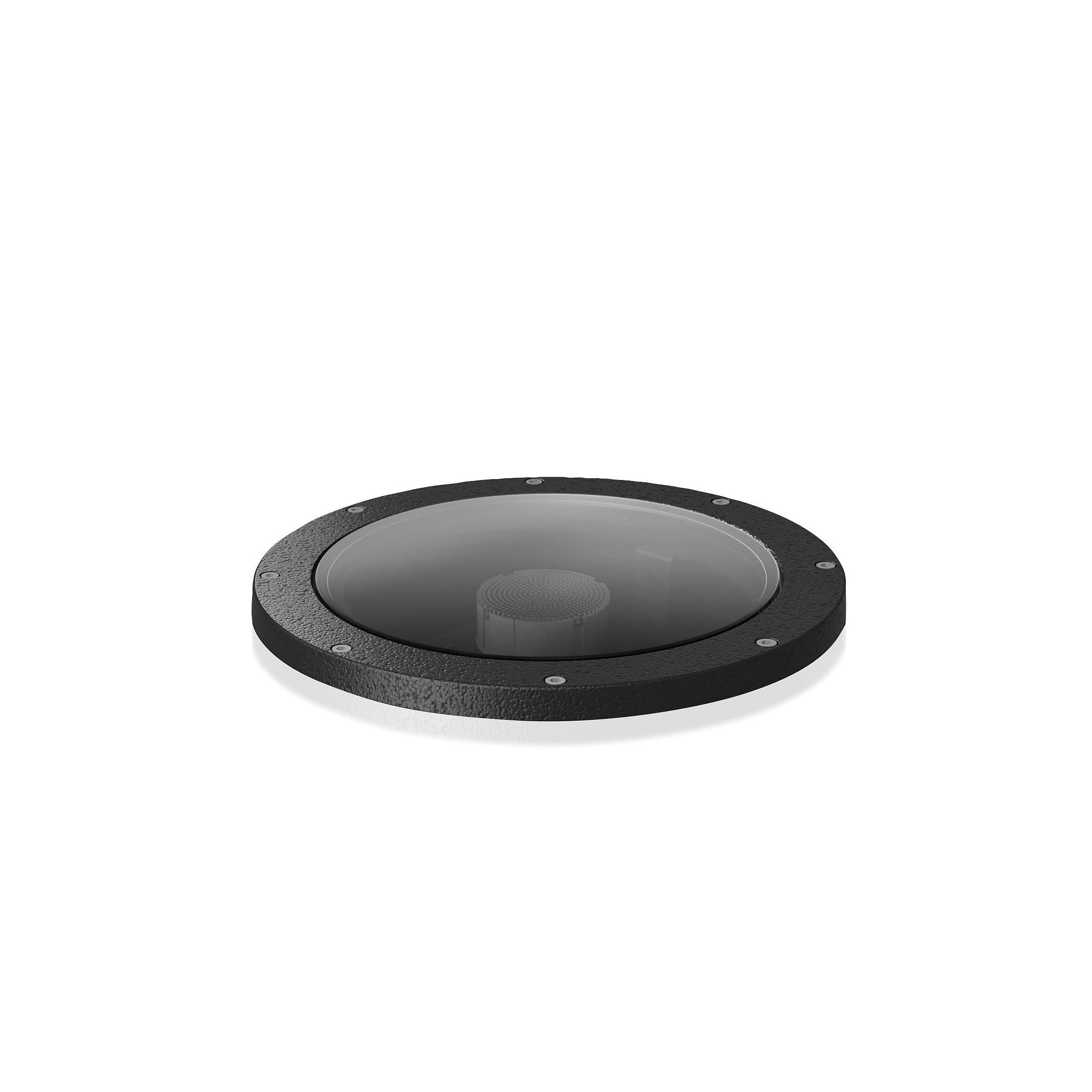

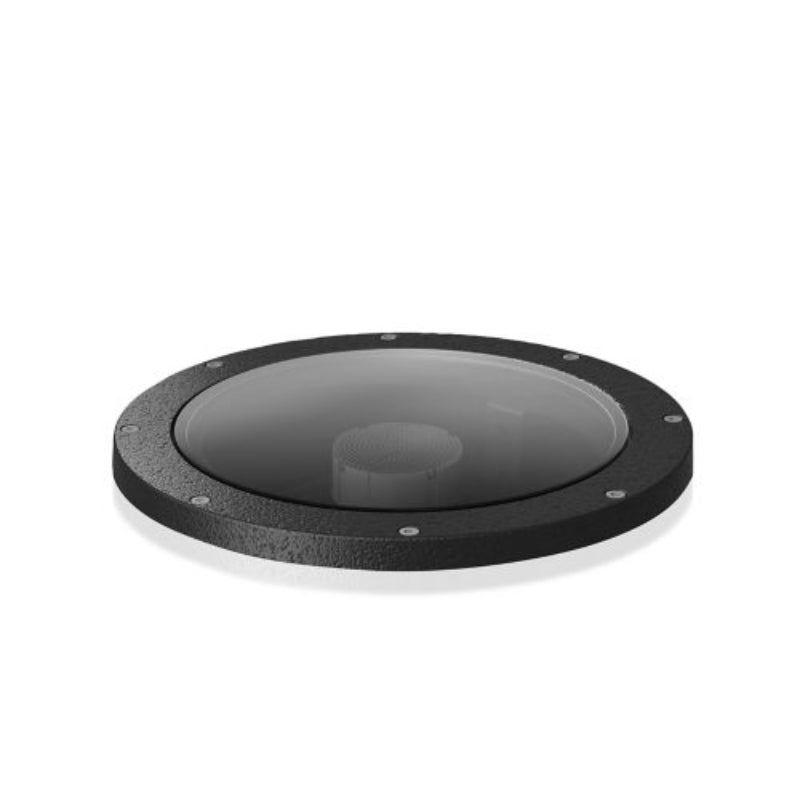

| Lens Frame | Heavy duty die cast bronze lens frame is supplied as standard. Fastened to housing with eight captive 1/4-20 stainless steel Allen cap screws. |
| Lens | Standard 3/8" tempered flat borosilicate glass. Flat lens will withstand loads up to 200 PSI. Sealed to housing with high temperature injection molded silicone gasket. |
| Options | Optional integral surge protection device provides single phase protection for line/neutral, line/ground, and neutral /ground in accordance with IEEE C62.41 2002C High. |
| Lamping | Integral LED module |
Specifications
- LED Boards: Single COB LED Array
- Electrical Assembly: 34W (on high setting) Input voltage range (VAC): 120- 277V. Includes 0-10V Analog Class 2 wiring for dimming, capped off to help prevent cross wiring with line voltage wires
- Certifications: ETL and CETL listed for wet location, direct burial, and concrete pour
- Warranty: Five-year limited warranty.
