Description
- Description
- Product Files
- Hadco Warranty
- Hadco Return Terms

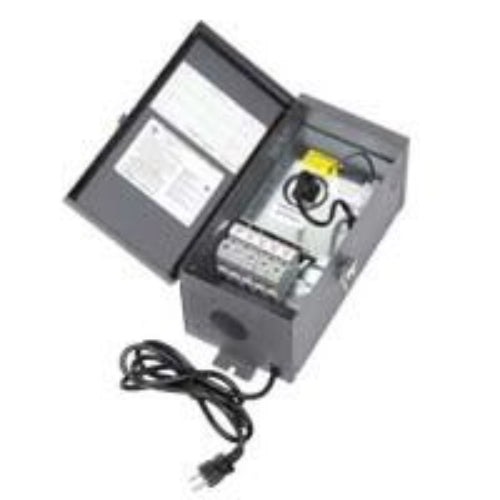

Various transformers available
Features
- Exterior mounting
Specifications

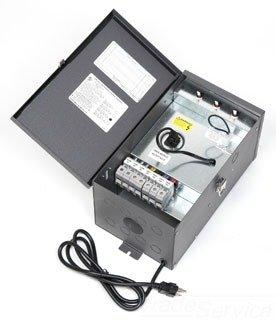

Housing: Housing is dark gray polyester powder-coat formed steel case with stainless steel screws and lockable captive door, hinged on side. Weather-proof compartment for plug-in time clock and photo cell. 1/2" Knockout on one side for hardwiring or accessory mounting. Internal transformer is epoxy encapsulated. Exterior Mounting - Transformer should be mounted on the wall, structure, or post in the vertical position. Cable entries should be positioned downward.
Electrical Assembly: 6-ft heavy-duty 18-3 AWG, 105a° C, SJT power cord with 3 prong grounded wall plug. The transformer is thermally protected on primary, and secondary side is protected by circuit breaker. Shielded between primary and secondary. Insulation type transformers for safe operation. Euro-Board terminal block for easy low voltage cable attachment. One (1) 1-1/2" conduit inlet. Four (4) 1/2" knockouts for low-voltage exit, on bottom of housing. Line voltage amperage draw: 300VA = 2.7 amps. 12, 13, 14, and 15 volt output taps for design flexibility and longer cable run capability. 50/60Hz input. Consult factory for details.
Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards. NEMA 3R Rated
Warranty: Ten-year limited warranty.
Height: 11 3/8"
Width: 6 3/8"
Depth: 5 5/8"
Max. Weight: 13.16 lb
| Signify North America Corporation (“Signify”) warrants to the original purchaser (“Purchaser”) that the Signify branded outdoor professional luminaires identified on Schedule 1 (“Products”) will be free from defects in material and workmanship which cause the Product to fail to operate in accordance with the performance specifications set forth in documentation published for or provided with the Product (“Specifications”) for the applicable period and subject to the additional terms and conditions set forth on Schedule 1 from the date of purchase (as set forth in the applicable invoice) (“Warranty Period”). | |||
| Product Line | |||
| Product Line | LED | Non-LED | Special Conditions |
| Hadco Landscape and Residentia | 5 Years | 3 Years | Landscape Products: Warranty Period for all grade mounted composite luminaires, copper luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast bronze and stainless steel housing. Residential Products: Lifetime warranty offered on the finish to all original Purchasers on residential lighting fixtures and posts. |
Hadco Lighting Returns And Cancellations:
There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.
| Returnable Hadco Items |
| BL5016-HS7 |
| B9DW-H |
| BL9DW-HS7 |
| IL9DW-A |
TSS354-15 |
Please click here to go to the Returns & Cancellations page for the complete terms.
