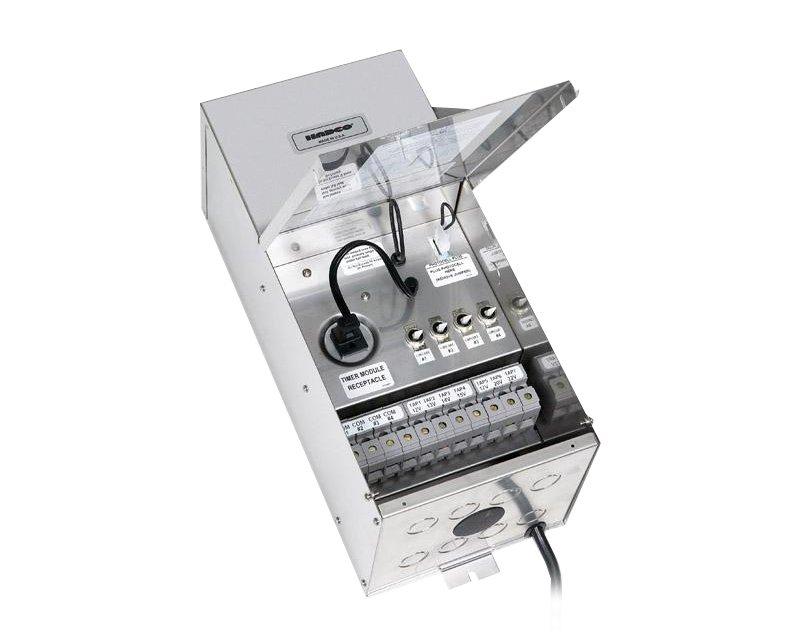

Hadco TSS654-15 600VA Multi-Tap Transformer, Hinged Door, Stainless Matte

Hadco TSS654-15 600VA Multi-Tap Transformer, Hinged Door, Stainless Matte

Hadco Lighting

Mfg ID #: TSS654-15

  • $629.74
  • Save $699

Normally ships within 2-10 business days

Expert Support & Project Quotes

  • To view the fixture dimensions and details, click on the PDF link under "Product Files" below.
  • Various transformers available

    Features

    • Superior durability

    Specifications

    Housing: Housing is 304 brushed stainless steel case with stainless steel screws and lockable captive door, hinged on side. Weather-proof compartment for plug-in time clock and photo cell. 1/2" Knockout on one side for hardwiring or accessory mounting. In the enclosed bottom there are four double knockouts for 1/2" or 3/4" conduit. Internal transformer is epoxy encapsulated. Exterior Mounting - Transformer should be mounted on the wall, structure, or post in the vertical position. Cable entries should be positioned downward.

    Electrical Assembly: 6-ft heavy-duty 18-3 AWG, 105a° C, SJT power cord with 3 prong grounded wall plug. The transformer is thermally protected on primary, and secondary side is protected by circuit breaker. Shielded between primary and secondary. Insulation type transformers for safe operation. Euro-Board terminal block for easy low voltage cable attachment. Line voltage amperage draw: 600VA = 5.5 amps. 12, 13, 14, and 15 volt output taps for design flexibility and longer cable run capability. 2 sets of taps. One (1) 1-1/2" conduit inlet. 50/60Hz input. Consult factory for details.

    Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards. NEMA 3R Rated

    Warranty: Lifetime limited warranty.

    Height: 12 1/2"

    Width: 6 3/4"

    Depth: 6 1/4"

    Max. Weight: 21.08 lb

    Product Files

    Click for product spec sheet

    ...Read More


    Various transformers available

    Features

    • Superior durability

    Specifications

    Housing: Housing is 304 brushed stainless steel case with stainless steel screws and lockable captive door, hinged on side. Weather-proof compartment for plug-in time clock and photo cell. 1/2" Knockout on one side for hardwiring or accessory mounting. In the enclosed bottom there are four double knockouts for 1/2" or 3/4" conduit. Internal transformer is epoxy encapsulated. Exterior Mounting - Transformer should be mounted on the wall, structure, or post in the vertical position. Cable entries should be positioned downward.

    Electrical Assembly: 6-ft heavy-duty 18-3 AWG, 105a° C, SJT power cord with 3 prong grounded wall plug. The transformer is thermally protected on primary, and secondary side is protected by circuit breaker. Shielded between primary and secondary. Insulation type transformers for safe operation. Euro-Board terminal block for easy low voltage cable attachment. Line voltage amperage draw: 600VA = 5.5 amps. 12, 13, 14, and 15 volt output taps for design flexibility and longer cable run capability. 2 sets of taps. One (1) 1-1/2" conduit inlet. 50/60Hz input. Consult factory for details.

    Certifications: ETL Listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards. NEMA 3R Rated

    Warranty: Lifetime limited warranty.

    Height: 12 1/2"

    Width: 6 3/4"

    Depth: 6 1/4"

    Max. Weight: 21.08 lb

    Signify North America Corporation (“Signify”) warrants to the original
    purchaser (“Purchaser”) that the Signify branded outdoor professional
    luminaires identified on Schedule 1 (“Products”) will be free from
    defects in material and workmanship which cause the Product to fail
    to operate in accordance with the performance specifications set
    forth in documentation published for or provided with the Product
    (“Specifications”) for the applicable period and subject to the additional
    terms and conditions set forth on Schedule 1 from the date of purchase
    (as set forth in the applicable invoice) (“Warranty Period”).
    Product Line
    Product LineLEDNon-LEDSpecial Conditions
    Hadco Landscape and
    Residentia
    5 Years3 YearsLandscape Products: Warranty Period for all grade mounted composite luminaires, copper
    luminaires and transformers is 10 years. Lifetime warranty offered on the finish for all cast
    bronze and stainless steel housing.
    Residential Products: Lifetime warranty offered on the finish to all original Purchasers on
    residential lighting fixtures and posts.
