Description

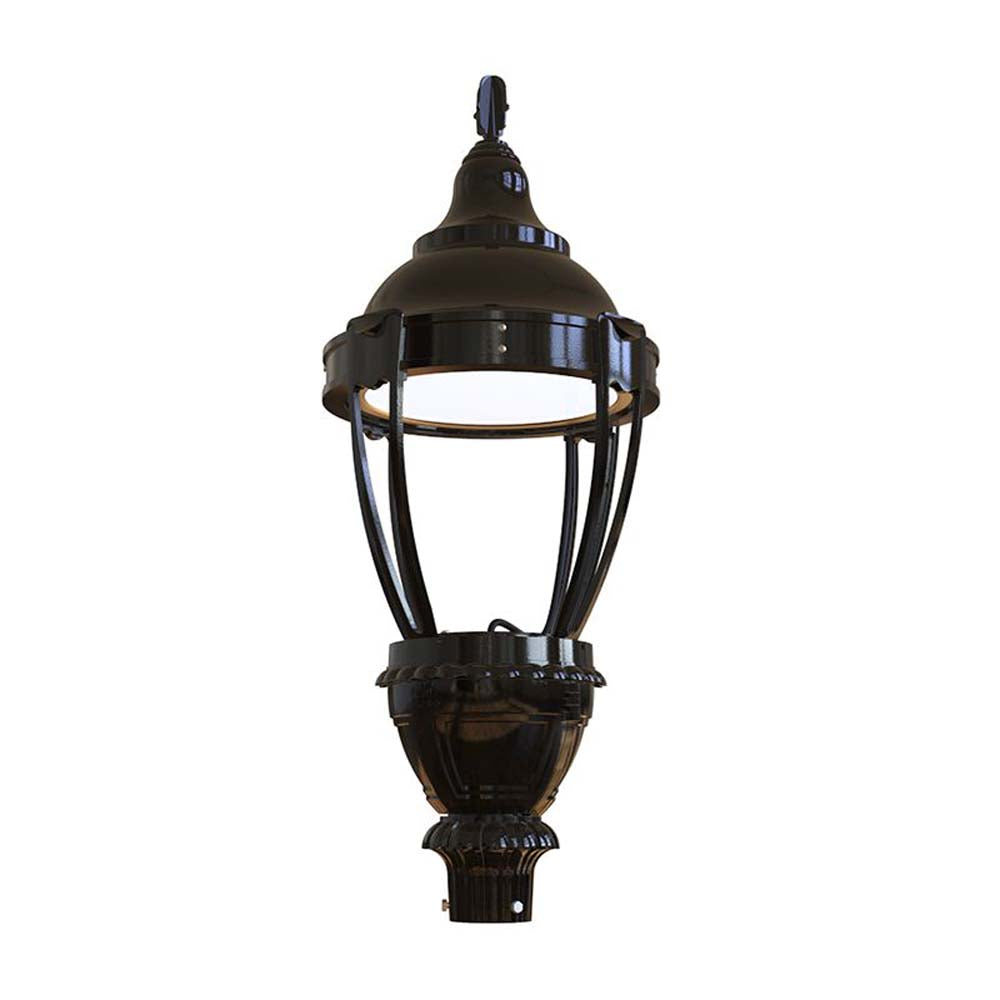

Hadco Urban Hagerstown LED Post Top Comfort (TX03C)
Product Family Details
Hadco's Hagerstown LED post top gives you the ability to create a unique style through our modular post top concepts to blend into any residential and historic urban settings. With the latest LED technology you can seamlessly replace traditional HID technology to maximize energy savings and significantly reduce total cost of ownership. The Hagerstown luminaire provides excellent uniformity, traditional customizable look, with the benefits of modern technology. Hagerstown is now available with comfort optics, providing a low glare solution for pedestrian applications.
Benefits
- Comfort optics provide low glare solution to improve visual comfort
- Offers design flexibility with a variety of pods, finials and finishes
- Multiple distribution options and lumen packages suitable for several applications
- IP66 rated optical chamber and LED driver ensure lasting durability and reliability
- Dimming controls available for additional energy savings during off-peak hours
Features
- Comfort optics reduce glare
- Multiple lumen packages
- Type 1, 2, 3, 4, and 5 optics available
- 4000K and 3000K color temperatures available
- Multiple driver options and programmed dimming options available
Applications
- Road and Street
- Parks and Plaza
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 3000K - 86 lm/W | TX03-C-140-G1-1-730-4 | 21 | 1800 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 1, 3000K - 84 lm/W | TX03-C-140-G1-1-730-6 | 30 | 2518 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 3000K - 82 lm/W | TX03-C-140-G1-1-730-11 | 52 | 4286 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 3000K - 78 lm/W | TX03-C-140-G1-1-730-16 | 75 | 5886 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 3000K - 76 lm/W | TX03-C-140-G1-1-730-21 | 94 | 7141 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 3000K - 87 lm/W | TX03-C-140-G1-2-730-4 | 21 | 1821 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 2, 3000K - 79 lm/W | TX03-C-140-G1-2-730-6 | 30 | 2377 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 3000K - 78 lm/W | TX03-C-140-G1-2-730-11 | 52 | 4046 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 3000K - 74 lm/W | TX03-C-140-G1-2-730-16 | 75 | 5556 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 3000K - 72 lm/W | TX03-C-140-G1-2-730-21 | 94 | 6742 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 3000K - 94 lm/W | TX03-C-140-G1-3-730-4 | 21 | 1976 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 3, 3000K - 86 lm/W | TX03-C-140-G1-3-730-6 | 30 | 2580 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 3000K - 84 lm/W | TX03-C-140-G1-3-730-11 | 52 | 4390 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 3000K - 80 lm/W | TX03-C-140-G1-3-730-16 | 75 | 6029 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 3000K - 78 lm/W | TX03-C-140-G1-3-730-21 | 94 | 7316 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 3000K - 95 lm/W | TX03-C-140-G1-4-730-4 | 21 | 1999 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 4, 3000K - 87 lm/W | TX03-C-140-G1-4-730-6 | 30 | 2610 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 3000K - 85 lm/W | TX03-C-140-G1-4-730-11 | 52 | 4442 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 3000K - 81 lm/W | TX03-C-140-G1-4-730-16 | 75 | 6100 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 3000K - 79 lm/W | TX03-C-140-G1-4-730-21 | 94 | 7401 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 3000K - 102 lm/W | TX03-C-140-G1-5-730-4 | 21 | 2134 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 5, 3000K - 100 lm/W | TX03-C-140-G1-5-730-6 | 30 | 2985 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 3000K - 98 lm/W | TX03-C-140-G1-5-730-11 | 52 | 5081 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 3000K - 93 lm/W | TX03-C-140-G1-5-730-16 | 75 | 6978 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 3000K - 90 lm/W | TX03-C-140-G1-5-730-21 | 94 | 8467 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 4000K - 86 lm/W | TX03-C-140-G1-1-740-4 | 21 | 1800 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 1, 4000K - 84 lm/W | TX03-C-140-G1-1-740-6 | 30 | 2518 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 4000K - 82 lm/W | TX03-C-140-G1-1-740-11 | 52 | 4286 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 4000K - 78 lm/W | TX03-C-140-G1-1-740-16 | 75 | 5886 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 1, 4000K - 76 lm/W | TX03-C-140-G1-1-740-21 | 94 | 7141 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 4000K - 87 lm/W | TX03-C-140-G1-2-740-4 | 21 | 1821 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 2, 4000K - 79 lm/W | TX03-C-140-G1-2-740-6 | 30 | 2377 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 4000K - 78 lm/W | TX03-C-140-G1-2-740-11 | 52 | 4046 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 4000K - 74 lm/W | TX03-C-140-G1-2-740-16 | 75 | 5556 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 2, 4000K - 72 lm/W | TX03-C-140-G1-2-740-21 | 94 | 6742 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 4000K - 94 lm/W | TX03-C-140-G1-3-740-4 | 21 | 1976 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 3, 4000K - 86 lm/W | TX03-C-140-G1-3-740-6 | 30 | 2580 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 4000K - 84 lm/W | TX03-C-140-G1-3-740-11 | 52 | 4390 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 4000K - 80 lm/W | TX03-C-140-G1-3-740-16 | 75 | 6029 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 3, 4000K - 78 lm/W | TX03-C-140-G1-3-740-21 | 94 | 7316 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 4000K - 95 lm/W | TX03-C-140-G1-4-740-4 | 21 | 1999 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 4, 4000K - 87 lm/W | TX03-C-140-G1-4-740-6 | 30 | 2610 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 4000K - 85 lm/W | TX03-C-140-G1-4-740-11 | 52 | 4442 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 4000K - 81 lm/W | TX03-C-140-G1-4-740-16 | 75 | 6100 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 4, 4000K - 79 lm/W | TX03-C-140-G1-4-740-21 | 94 | 7401 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 4000K - 102 lm/W | TX03-C-140-G1-5-740-4 | 21 | 2134 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 650mA, 21W, Type 5, 4000K - 100 lm/W | TX03-C-140-G1-5-740-6 | 30 | 2985 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 4000K - 98 lm/W | TX03-C-140-G1-5-740-11 | 52 | 5081 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 4000K - 93 lm/W | TX03-C-140-G1-5-740-16 | 75 | 6978 | |
| Hagerstown LED Post Top, Comfort Optics, 140LED, 450mA, 21W, Type 5, 4000K - 90 lm/W | TX03-C-140-G1-5-740-21 | 94 | 8467 |
Hadco Urban Optic Types
Hadco Urban Optic Types
Hadco Return Terms
Hadco Lighting Returns And Cancellations:
There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.
| Returnable Hadco Items |
| BL5016-HS7 |
| B9DW-H |
| BL9DW-HS7 |
| IL9DW-A |
TSS354-15 |
Please click here to go to the Returns & Cancellations page for the complete terms.
Hadco Urban Updates
- March 2024 - Most of Hadco HID items have been delisted or upgraded to LED.
