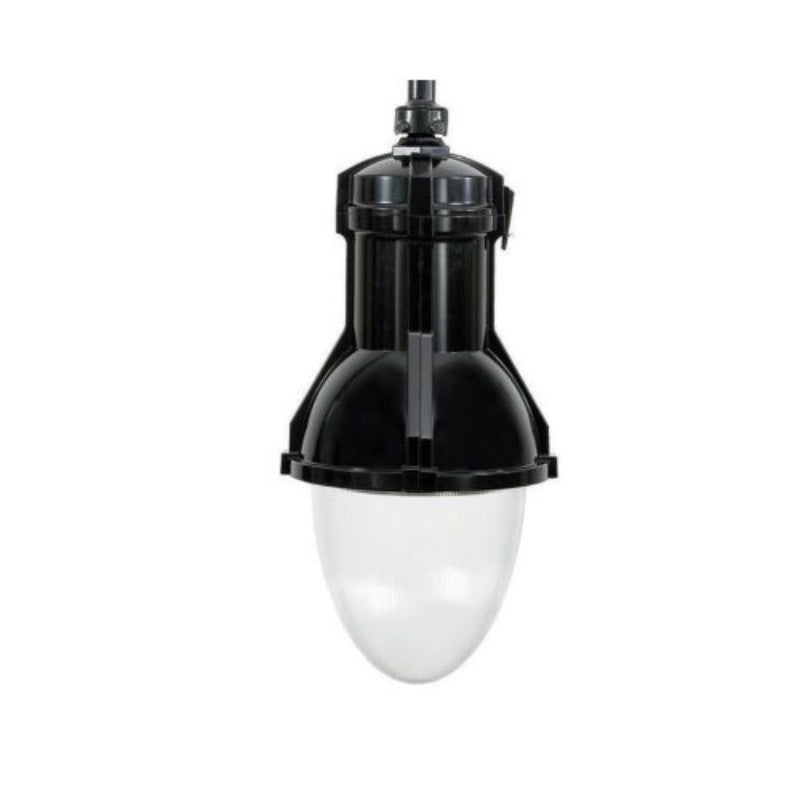

Hadco Urban Teardrop LED Pendant Large (TXF9) - Generation 3
Product Family Details

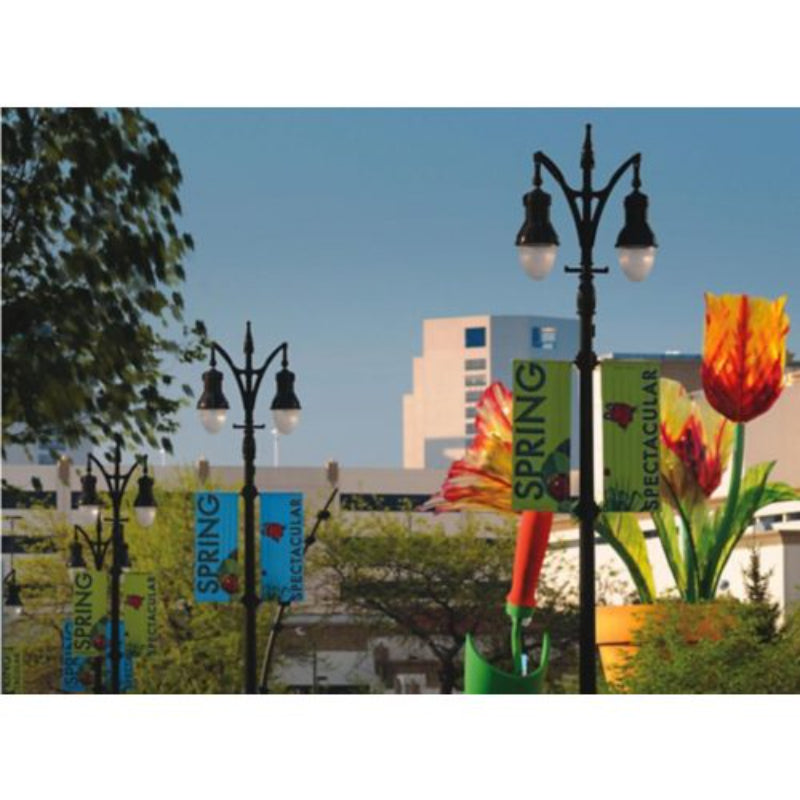

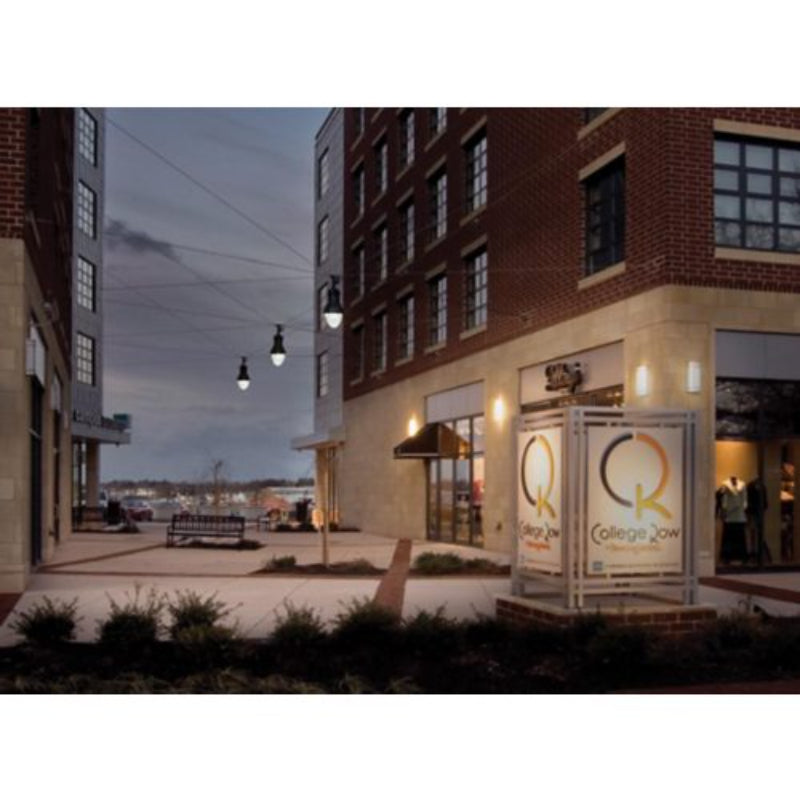

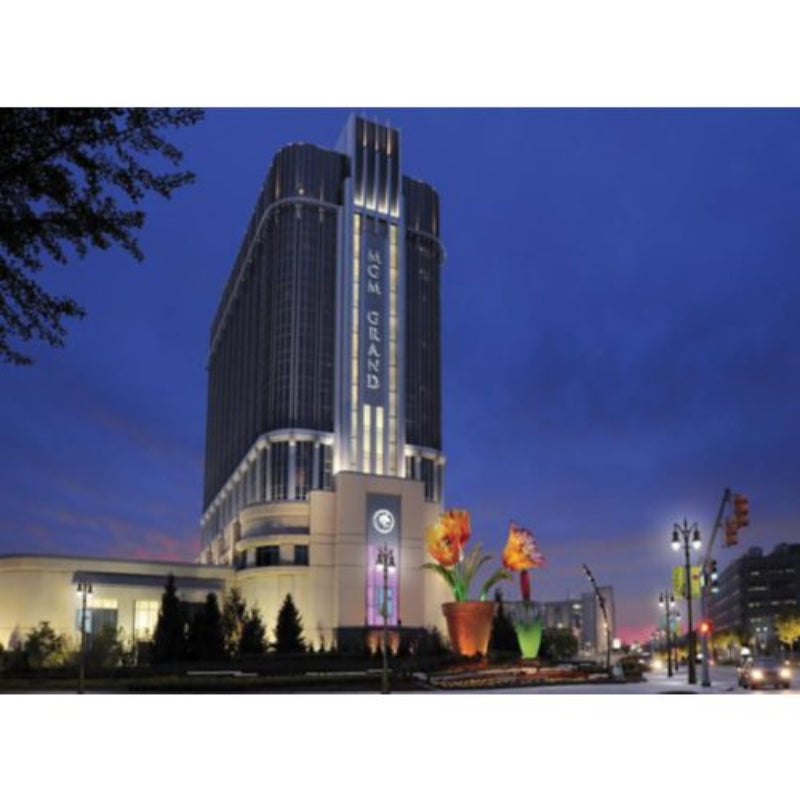

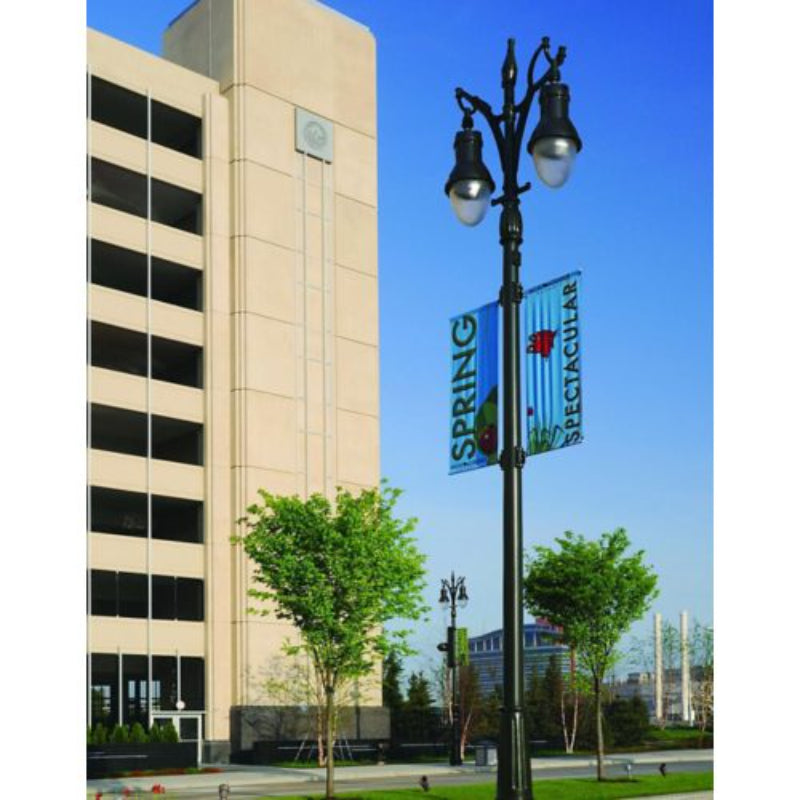

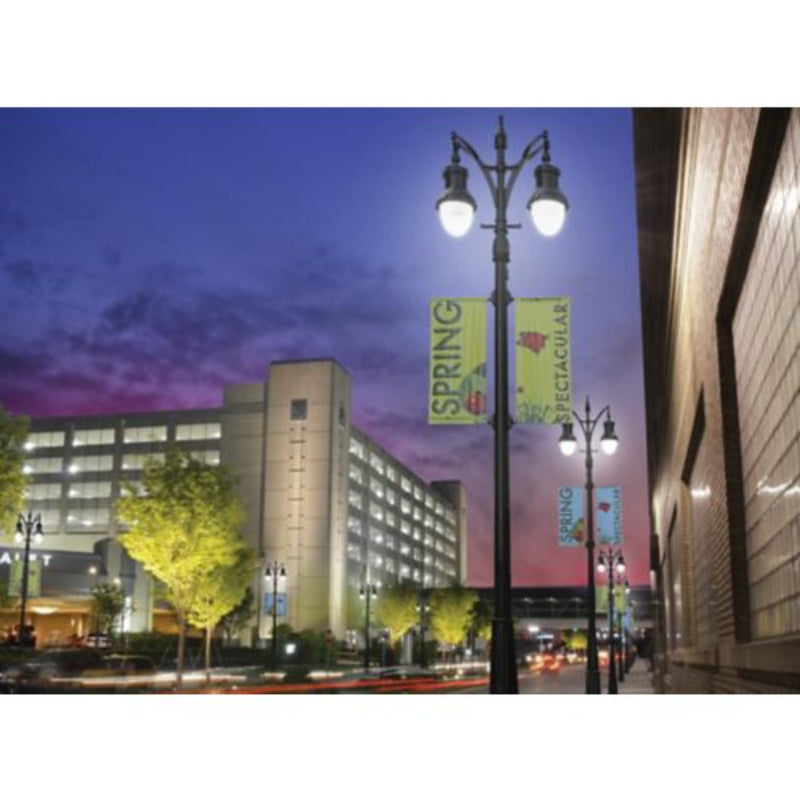

Hadco's new TXF9 LED teardrop seamlessly replaces HID technology while maintaining that traditional "teardrop" look. The Teardrop uses latest LED technology which maximizes energy savings and lowered maintenance cost to reduce your total cost of ownership. By combining modern LED technology and traditional design, the Teardrop LED luminaires are perfectly suited for several applications including residential streets, city streets, campuses, parking lots and retail centers.
Benefits
- Multiple distribution options and lumen packages suitable for several applications
- Great solution for new installations or replacing a variety of HID sources
- Significantly reduces maintenance and relamping costs
- IP66 rated optical chamber and LED driver ensure lasting durability and reliability
- Dimming controls available for additional energy savings during off-peak hours
Features
- Mounting options: Cast Neck or Threaded Pipe
- Low-copper cast aluminum housing
- Two globe options: Flat Glass or Long Acrylic
- ORT technology globe (optical rib technology)
Applications
- Road and Street
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| Teadrop LED Pendant (TXF9) 32 LED, 350mA, 3000K, Flat Glass, Type II | TXF932-G3-GF-2-730-3 | 36 | 4604 | 3000 K |
| Teadrop LED Pendant (TXF9) 32 LED, 530mA, 3000K, Flat Glass, Type II | TXF932-G3-GF-2-730-5 | 53 | 6687 | 3000 K |
| Teadrop LED Pendant (TXF9) 32 LED, 700mA, 3000K, Flat Glass, Type II | TXF932-G3-GF-2-730-7 | 71 | 8528 | 3000 K |
| Teadrop LED Pendant (TXF9) 32 LED, 1050mA, 3000K, Flat Glass, Type II | TXF932-G3-GF-2-730-1 | 107 | 11620 | 3000 K |
| Teadrop LED Pendant (TXF9) 48 LED, 350mA, 3000K, Flat Glass, Type II | TXF948-G3-GF-2-730-3 | 53 | 7089 | 3000 K |
| Teadrop LED Pendant (TXF9) 48 LED, 530mA, 3000K, Flat Glass, Type II | TXF948-G3-GF-2-730-5 | 79 | 10035 | 3000 K |
| Teadrop LED Pendant (TXF9) 48 LED, 700mA, 3000K, Flat Glass, Type II | TXF948-G3-GF-2-730-7 | 106 | 12681 | 3000 K |
| Teadrop LED Pendant (TXF9) 64 LED, 350mA, 3000K, Flat Glass, Type II | TXF964-G3-GF-2-730-3 | 70 | 9317 | 3000 K |
| Teadrop LED Pendant (TXF9) 64 LED, 530mA, 3000K, Flat Glass, Type II | TXF964-G3-GF-2-730-5 | 104 | 13193 | 3000 K |
| Teadrop LED Pendant (TXF9) 64 LED, 700mA, 3000K, Flat Glass, Type II | TXF964-G3-GF-2-730-7 | 140 | 16704 | 3000 K |
Hadco Urban Optic Types
Hadco Lighting Returns And Cancellations:
There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.
| Returnable Hadco Items |
| BL5016-HS7 |
| B9DW-H |
| BL9DW-HS7 |
| IL9DW-A |
TSS354-15 |
Please click here to go to the Returns & Cancellations page for the complete terms.
- March 2024 - Most of Hadco HID items have been delisted or upgraded to LED.
