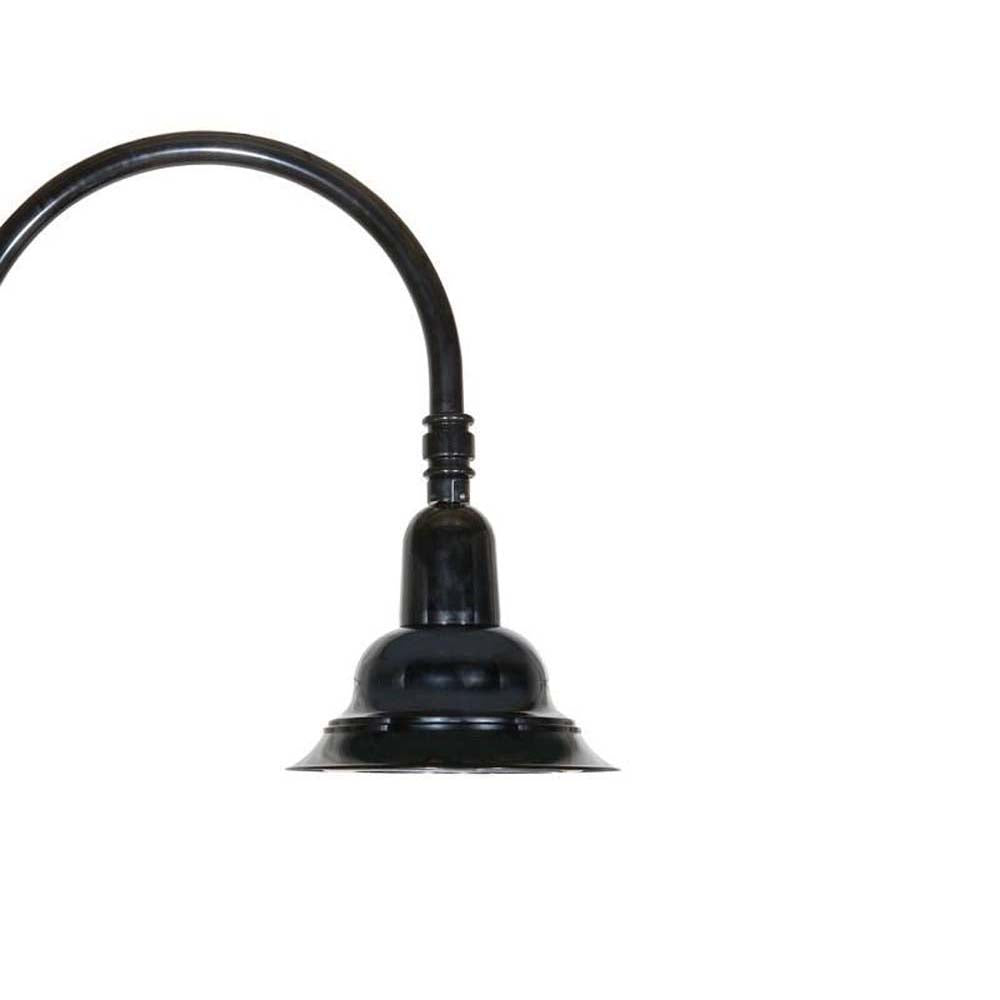

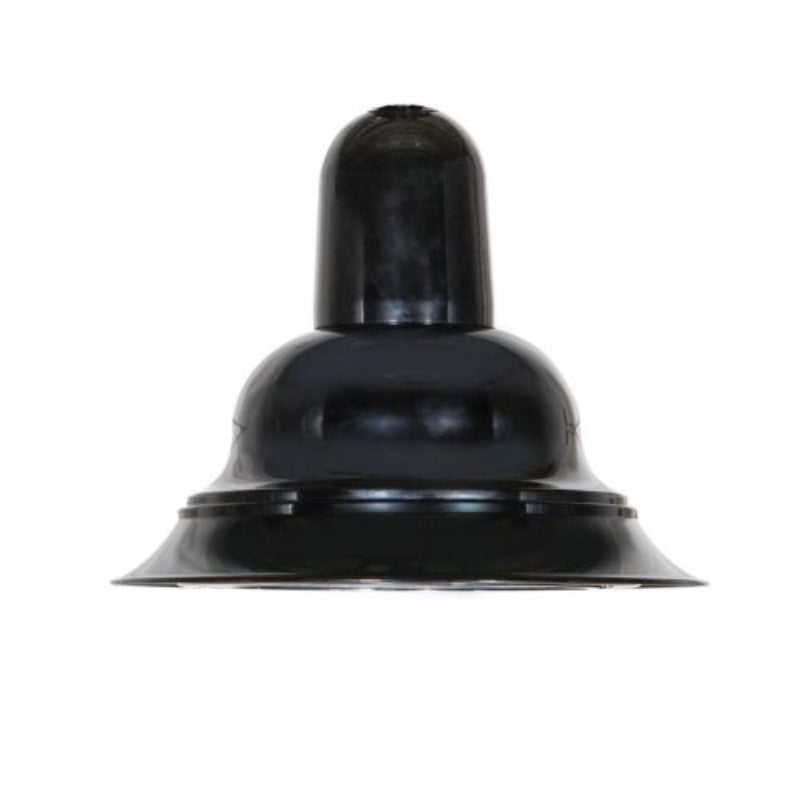

Hadco Urban Westbrooke LED Pendant Comfort (CXF15C)
Product Family Details
Hadco Westbrooke pendant luminaires offer a simple and modern look but still traditional, providing style and performance to work in several urban applications including residential streets, city streets, campuses, parking lots and retail centers. These pendants are now available with comfort optics, providing a low glare solution for pedestrian applications.
Benefits
- Comfort optics provide low glare solution to improve visual comfort
- Offers a variety of optical distributions suitable for several applications
- Ensures lasting durability and reliability
- Significant energy savings over HID
- Dimming controls available for additional energy savings during off-peak hours
Features
- Comfort optics reduce glare
- Multiple lumen packages
- Side arm, top arm and wall mounting options available
- Cast aluminum housing
- IP66 rated optical chamber and LED driver
Applications
- Road and Street
- Bridges, Monuments, Facades
Product Name | SKU | Watts | Lumens | Kelvin |
---|---|---|---|---|
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 1, 3000K - 106.19 lm/W | CXF15C-140-G1-1-730-4 | 21.2 | 2230 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 1, 3000K - 104 lm/W | CXF15C-140-G1-1-730-6 | 30.4 | 3120 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 1, 3000K - 102.1 lm/W | CXF15C-140-G1-1-730-11 | 52.2 | 5309 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 1, 3000K - 97.23 lm/W | CXF15C-140-G1-1-730-16 | 75 | 7292 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 1, 3000K - 94.12 lm/W | CXF15C-140-G1-1-730-21 | 94 | 8847 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 2, 3000K - 106 lm/W | CXF15C-140-G1-2-730-4 | 21.2 | 2226 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 2, 3000K - 96.87 lm/W | CXF15C-140-G1-2-730-6 | 30.4 | 2906 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 2, 3000K - 95.12 lm/W | CXF15C-140-G1-2-730-11 | 52.2 | 4946 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 2, 3000K - 90.56 lm/W | CXF15C-140-G1-2-730-16 | 75 | 6792 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 2, 3000K - 87.68 lm/W | CXF15C-140-G1-2-730-21 | 94 | 8242 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 3, 3000K - 108.81 lm/W | CXF15C-140-G1-3-730-4 | 21.2 | 2285 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 3, 3000K - 99.43 lm/W | CXF15C-140-G1-3-730-6 | 30.4 | 2983 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 3, 3000K - 97.63 lm/W | CXF15C-140-G1-3-730-11 | 52.2 | 5077 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 3, 3000K - 92.96 lm/W | CXF15C-140-G1-3-730-16 | 75 | 6972 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 3, 3000K - 90 lm/W | CXF15C-140-G1-3-730-21 | 94 | 8460 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 4, 3000K - 117.48 lm/W | CXF15C-140-G1-4-730-4 | 21.2 | 2467 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 4, 3000K - 107.37 lm/W | CXF15C-140-G1-4-730-6 | 30.4 | 3221 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 4, 3000K - 105.4 lm/W | CXF15C-140-G1-4-730-11 | 52.2 | 5481 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 4, 3000K - 100.37 lm/W | CXF15C-140-G1-4-730-16 | 75 | 7528 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 4, 3000K - 97.17 lm/W | CXF15C-140-G1-4-730-21 | 94 | 9134 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 5, 3000K - 106.81 lm/W | CXF15C-140-G1-5-730-4 | 21.2 | 2243 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 5, 3000K - 104.6 lm/W | CXF15C-140-G1-5-730-6 | 30.4 | 3138 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 5, 3000K - 102.69 lm/W | CXF15C-140-G1-5-730-11 | 52.2 | 5340 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 5, 3000K - 97.79 lm/W | CXF15C-140-G1-5-730-16 | 75 | 7334 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 5, 3000K - 94.67 lm/W | CXF15C-140-G1-5-730-21 | 94 | 8899 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 1, 4000K - 106.19 lm/W | CXF15C-140-G1-1-740-4 | 21.2 | 2230 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 1, 4000K - 104 lm/W | CXF15C-140-G1-1-740-6 | 30.4 | 3120 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 1, 4000K - 102.1 lm/W | CXF15C-140-G1-1-740-11 | 52.2 | 5309 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 1, 4000K - 97.23 lm/W | CXF15C-140-G1-1-740-16 | 75 | 7292 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 1, 4000K - 94.12 lm/W | CXF15C-140-G1-1-740-21 | 94 | 8847 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 2, 4000K - 106 lm/W | CXF15C-140-G1-2-740-4 | 21.2 | 2226 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 2, 4000K - 96.87 lm/W | CXF15C-140-G1-2-740-6 | 30.4 | 2906 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 2, 4000K - 95.12 lm/W | CXF15C-140-G1-2-740-11 | 52.2 | 4946 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 2, 4000K - 90.56 lm/W | CXF15C-140-G1-2-740-16 | 75 | 6792 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 2, 4000K - 87.68 lm/W | CXF15C-140-G1-2-740-21 | 94 | 8242 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 3, 4000K - 108.81 lm/W | CXF15C-140-G1-3-740-4 | 21.2 | 2285 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 3, 4000K - 99.43 lm/W | CXF15C-140-G1-3-740-6 | 30.4 | 2983 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 3, 4000K - 97.63 lm/W | CXF15C-140-G1-3-740-11 | 52.2 | 5077 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 3, 4000K - 92.96 lm/W | CXF15C-140-G1-3-740-16 | 75 | 6972 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 3, 4000K - 90 lm/W | CXF15C-140-G1-3-740-21 | 94 | 8460 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 4, 4000K - 117.48 lm/W | CXF15C-140-G1-4-740-4 | 21.2 | 2467 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 4, 4000K - 107.37 lm/W | CXF15C-140-G1-4-740-6 | 30.4 | 3221 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 4, 4000K - 105.4 lm/W | CXF15C-140-G1-4-740-11 | 52.2 | 5481 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 4, 4000K - 100.37 lm/W | CXF15C-140-G1-4-740-16 | 75 | 7528 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 4, 4000K - 97.17 lm/W | CXF15C-140-G1-4-740-21 | 94 | 9134 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 450mA, 21W, Type 5, 4000K - 106.81 lm/W | CXF15C-140-G1-5-740-4 | 21.2 | 2243 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 650mA, 30W, Type 5, 4000K - 104.6 lm/W | CXF15C-140-G1-5-740-6 | 30.4 | 3138 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1150mA, 52W, Type 5, 4000K - 102.69 lm/W | CXF15C-140-G1-5-740-11 | 52.2 | 5340 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 1675mA, 75W, Type 5, 4000K - 97.79 lm/W | CXF15C-140-G1-5-740-16 | 75 | 7334 | |
Westbrooke LED Pendant, Comfort Optics, 140LED, 2100mA, 94W, Type 5, 4000K - 94.67 lm/W | CXF15C-140-G1-5-740-21 | 94 | 8899 |
Product Files
Hadco Urban Optic Types
Hadco Urban Optic Types
Hadco Return Terms
Hadco Lighting Returns And Cancellations:
There is a minimum of 25% restocking fee on any Hadco returns. Made to order items are not returnable. Only the Hadco items below are returnable, all the rest are non-returnable.
Returnable Hadco Items |
BL5016-HS7 |
B9DW-H |
BL9DW-HS7 |
IL9DW-A |
TSS354-15 |
Please click here to go to the Returns & Cancellations page for the complete terms.
Hadco Urban Updates
- March 2024 - Most of Hadco HID items have been delisted or upgraded to LED.
