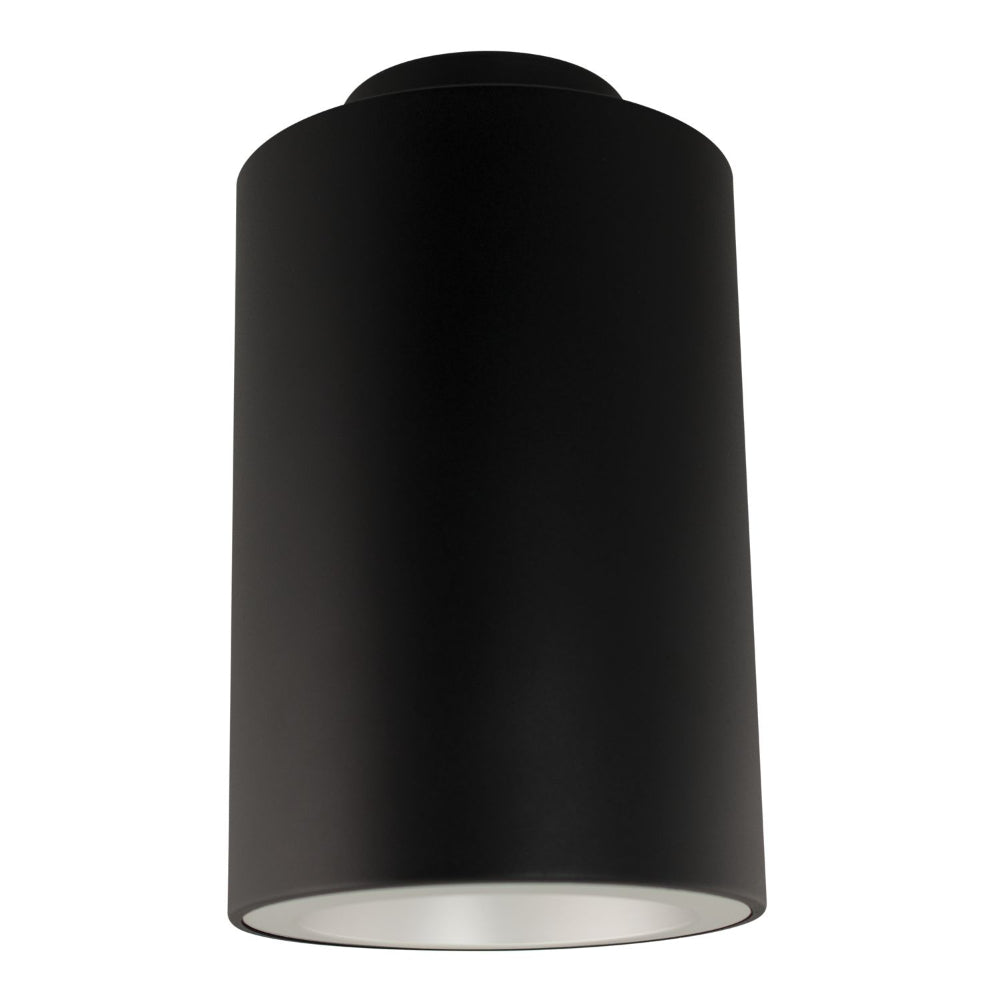

Halo Commercial HCC6 LED 6" Cylinder Downlight Series
The 6" downlight cylinder offers narrow, medium and wide beam distributions that matches the HC6 LED downlights for a cohesive look. The cylinder is available in multiple color temperatures; lumen packages; and a choice of the trim and cylinder colors for general lighting applications. Multiple mounting options include wall, surface, pendant and aircraft cable.
Features
- Lumens: 1,000, 1,500, 2,000, 3,000 and 4,000
- 4 color temperatures: 2700K, 3000K, 3500K, 4000K CCT, CRI: 80 or 90
- Distributions: Precision-formed reflectors in Narrow, Medium and Wide
- Wall wash distribution with exclusive rotatable linear spread lens
- Specular, Semi-Specular and White reflectors, Black or White baffles
- Cylinder colors: Matte White, Matte Black, Bronze and Silver
- Universal Voltage 120V - 277V, 0-10V analog dimming down to 1%

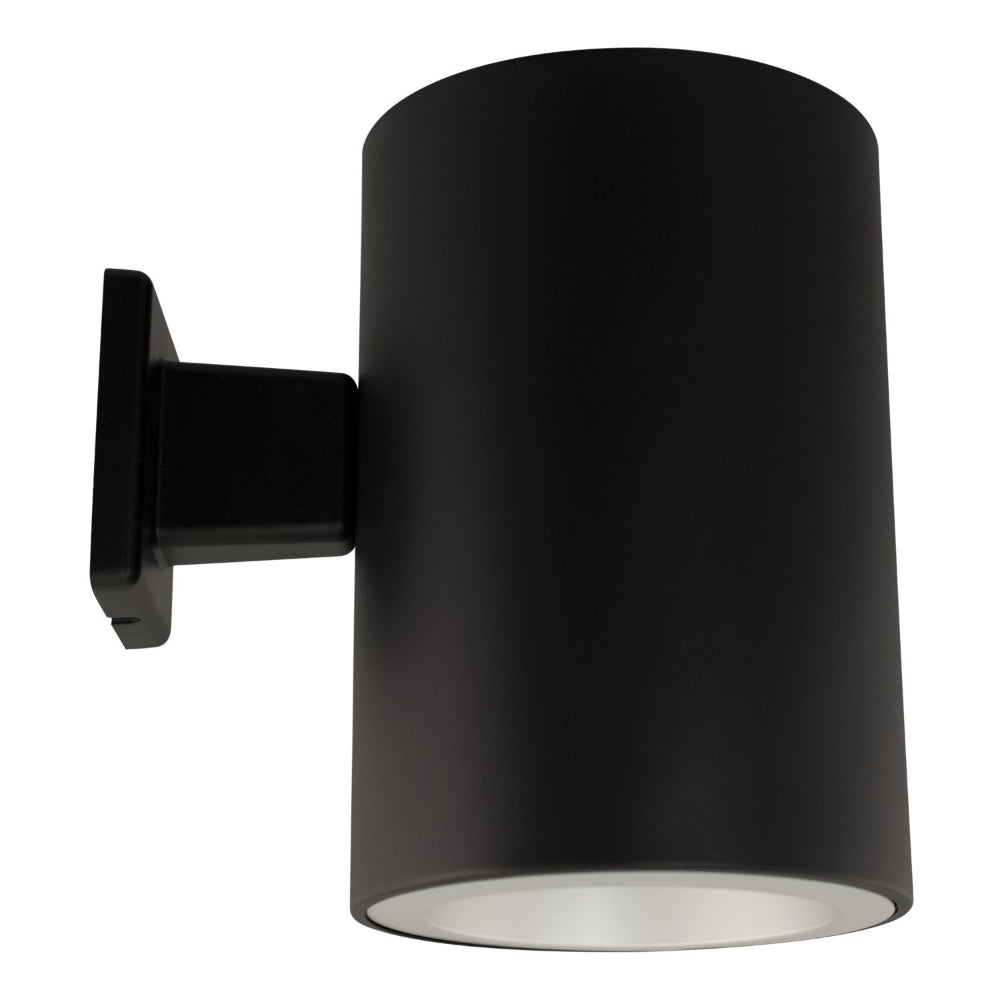

- Mounting: wall, surface, pendant and aircraft cable
- L70 at 50,000 hours (70% lumen maintenance at 50,000 hours)
Product Files
Click for HALO Commercial HCC6 Spec Sheet
Click for Halo Commercial HCC Brochure
Click for Halo Commercial Product Guide Brochure
Click for HALO Commercial HCC Series - Pendant installation instructions Installation Instructions
Click for HALO Commercial HCC Series installation instructions Installation Instructions
Click for HALO Commercial HCC6 Dimming Guide Technical Information
