Halo H2750ICAT 6 Inch LED Housings

Halo H2750ICAT 6 Inch LED Housings

Halo Recessed Lights

Mfg ID #: HALO-H2750ICAT

  • $0.00

Click Below To Request a Quote After Checking The Product Specification Files For Accurate Part Number

Expert Support & Project Quotes

Quantity DISCOUNTS

Product description for Recessed Halo H2750ICAT

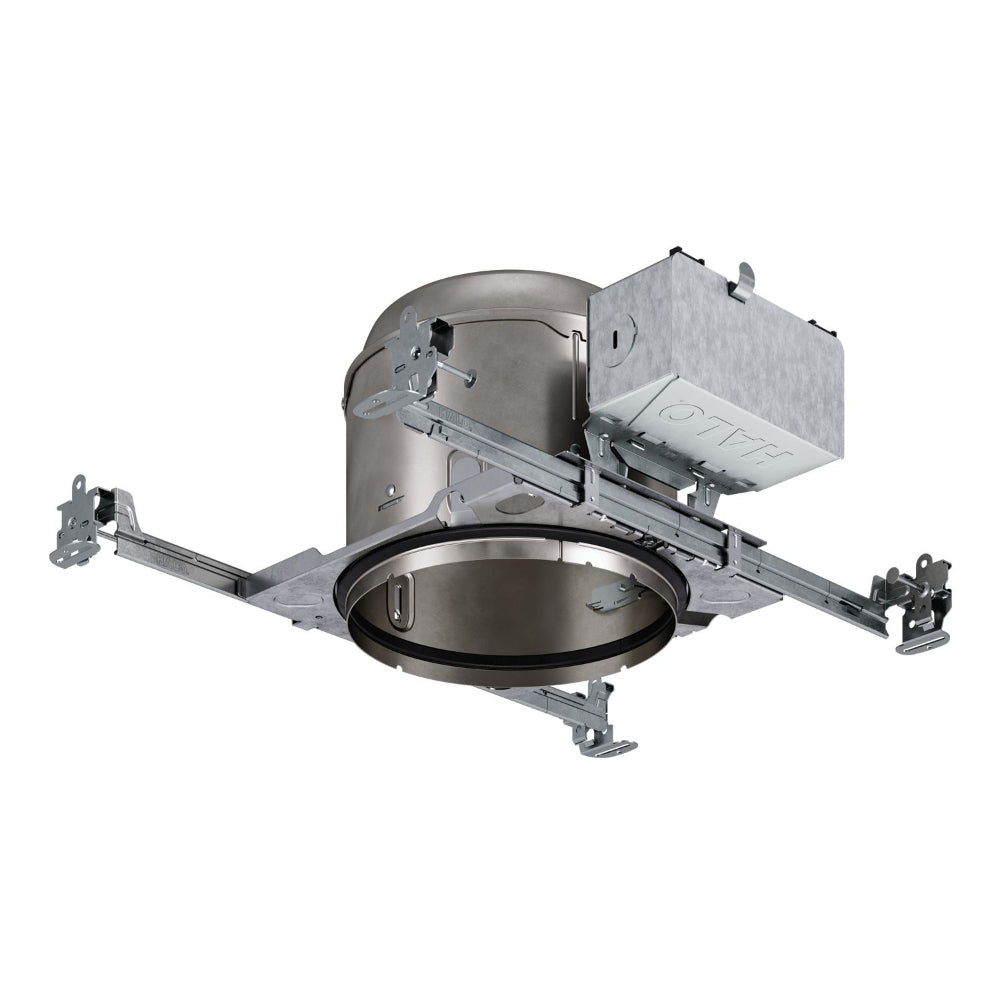

The Halo H2750ICAT is a dedicated 6-inch aperture LED new construction shallow IC AIR-TITE housing for use with Halo RL7 and RL56 Series LED modules, and ML56 Series LED modules when used with ML56 shallow trims. H2750ICAT is designed for use in insulated ceilings where it will be in direct contact with insulation. It is an AIR-TITE, ASTM E283 tested housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the compatible Halo or All-Pro LED modules.

Features of Recessed Halo H2750ICAT
  • Got Nail! bar hangers
  • Pass-N-Thru tool-less shortening of bar hangers
  • Slide-N-Side wire traps
  • Quick Connect wiring connectors included in junction box
  • AIR-TITE per ASTM E283
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access
  • Compatible with Halo RL560, LED modules and ML56 Shallow LED trims
Product Specification Files

Click for H2750ICAT 6" IC Airtight Shallow New Construction Spec Sheet

...Read More


Product description for Recessed Halo H2750ICAT

The Halo H2750ICAT is a dedicated 6-inch aperture LED new construction shallow IC AIR-TITE housing for use with Halo RL7 and RL56 Series LED modules, and ML56 Series LED modules when used with ML56 shallow trims. H2750ICAT is designed for use in insulated ceilings where it will be in direct contact with insulation. It is an AIR-TITE, ASTM E283 tested housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the compatible Halo or All-Pro LED modules.

Features of Recessed Halo H2750ICAT
  • Got Nail! bar hangers
  • Pass-N-Thru tool-less shortening of bar hangers
  • Slide-N-Side wire traps
  • Quick Connect wiring connectors included in junction box
  • AIR-TITE per ASTM E283
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access
  • Compatible with Halo RL560, LED modules and ML56 Shallow LED trims
