Hunza Flush Washer

Hunza LightingSKU: WASHF/L-D3-SS-ASY-2

Select Power Options: 12V 3.2W
Select Material: 316 Marine Grade Stainless Steel
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

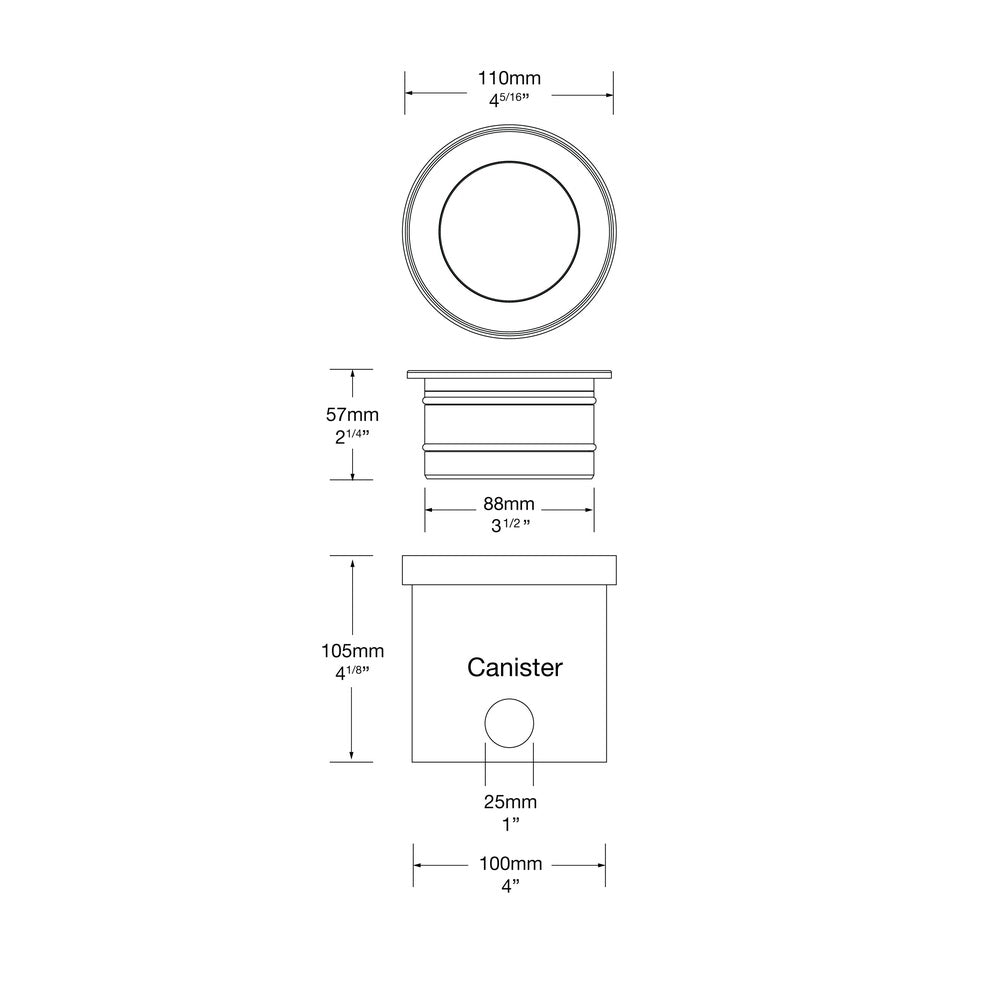

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Hunza Lighting Finishes

Description

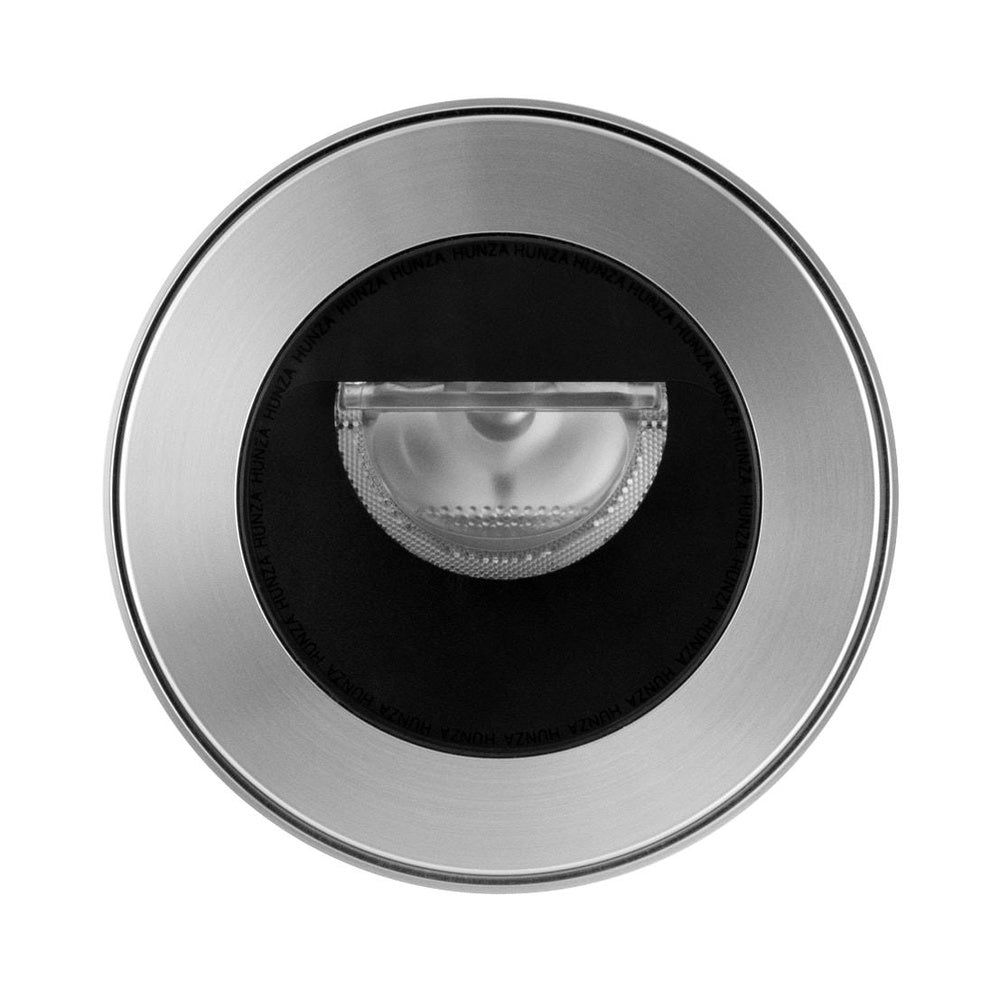

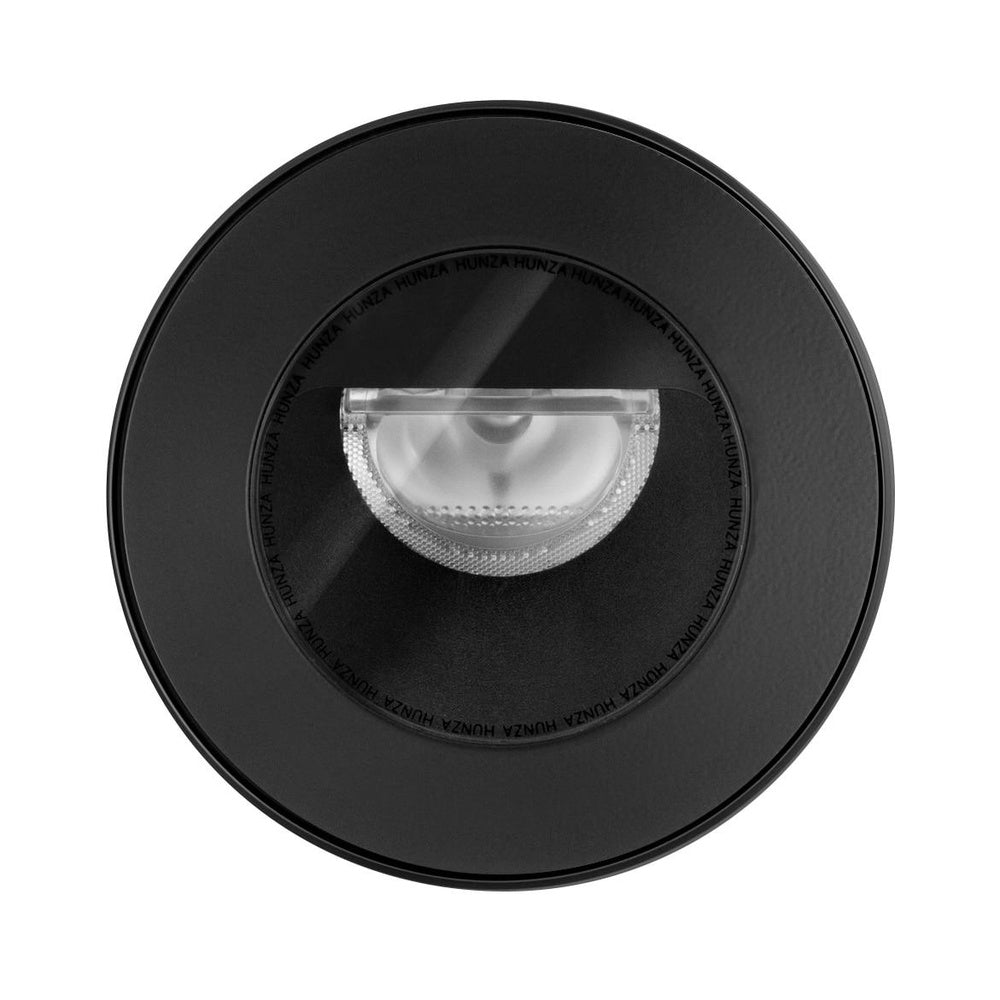

Hunza Flush Washer


The Flush Washer has a flush profile, perfect for pedestrian areas. It can be walked on without damaging the luminaire. Utilising an asymmetric optic, it directs the light towards the desired surface with little to no glare. Supplied with a mounting canister.

Product Specifications

Lumen Output*
  • 400 lumens @ 700mA (6 Watts)
  • 200 lumens @ 350mA (3 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 66 lm/W
LED
  • Cree® CXB 1304 field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 80 Optional
  • 90+ Standard
Ingress Protection
  • IP67
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Dimensions
  • 10 x 10 x 10.5 cm ( 3.94" x 3.94" x 4.13" )
Weight
  • 1.9 kg ( 4.19 lb )
Product Files

Click for Flush Washer - WASHF-L - Specification Sheet

Click for Flush Washer - WASHF-L - Product Diagram

Click for Washer - WASH-L - Installation Instructions USA

Click for Washer - WASH-L - Installation Instructions International

Click for Washer - WASH-L - Product Flyer

Diagram Image
