Hunza Direct Burial Cast Solid Bronze SafeTouch 150

Hunza LightingSKU: ST150CSB/DB-R-SS-22-2

Select Material: 316 Marine Grade Stainless Steel Flange
Select Beam Angle: 22 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

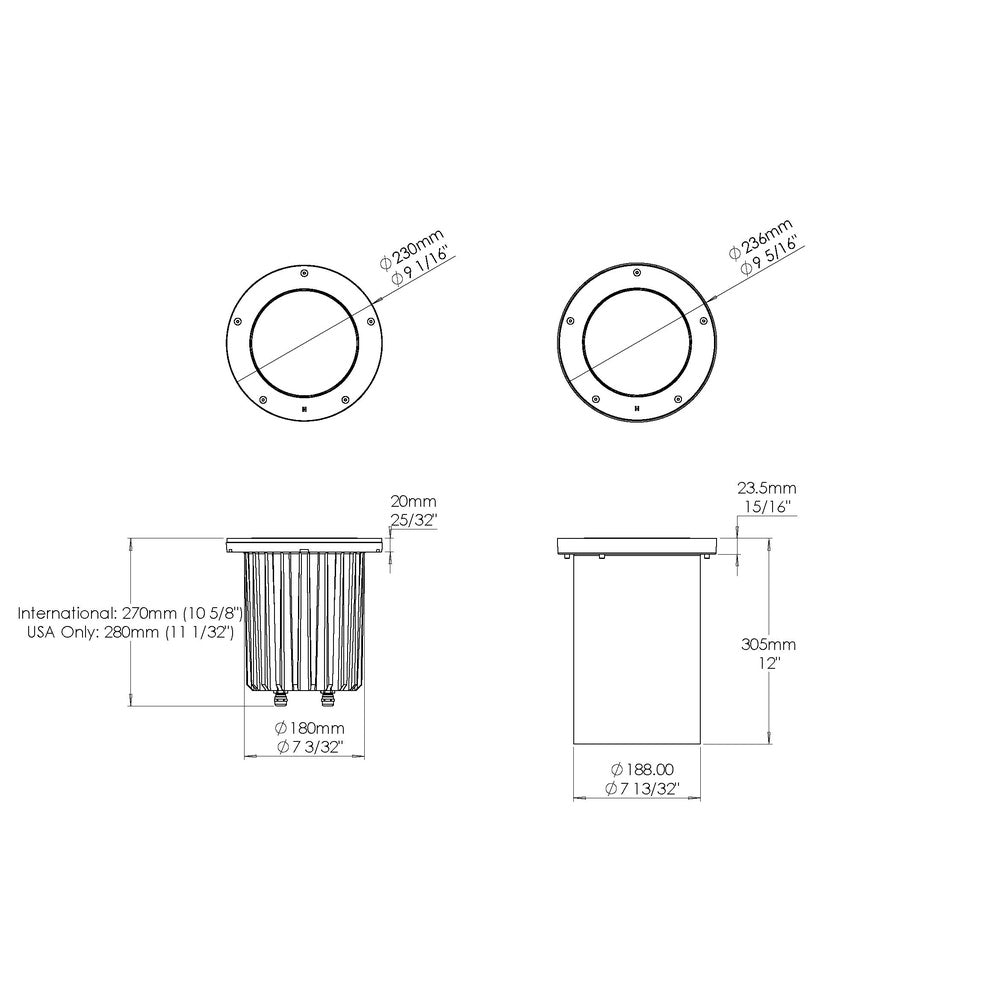

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

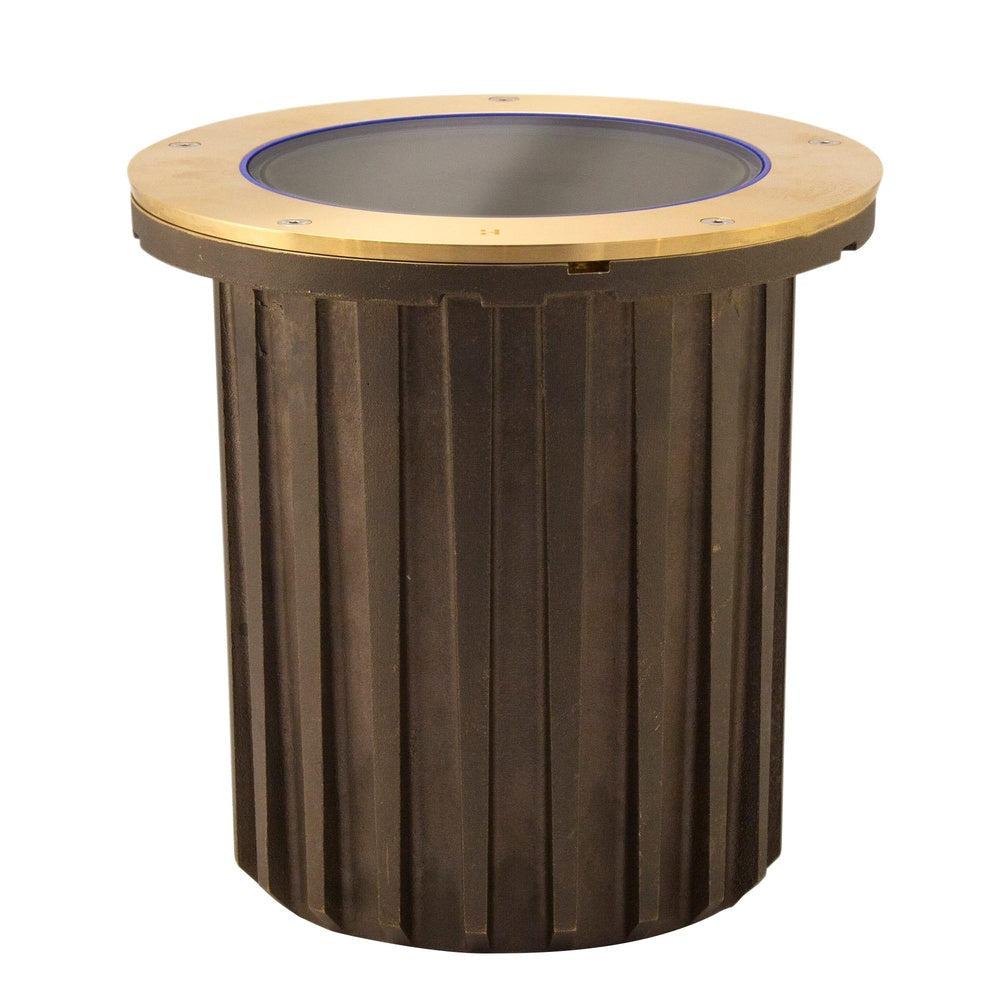

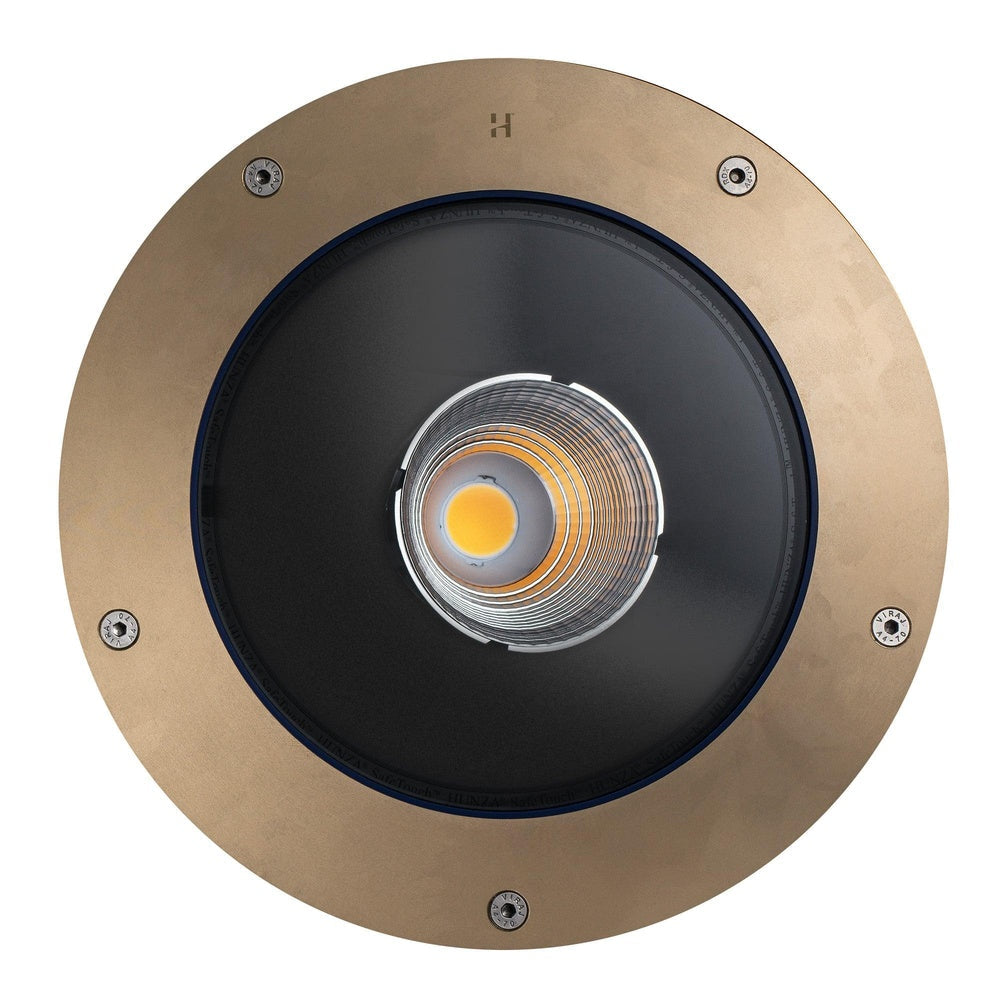

Hunza Direct Burial Cast Solid Bronze SafeTouch 150

The Cast Solid Bronze SafeTouch150 inground uplighter has been specifically designed with public safety as its primary objective. It produces high-output optically pure light, but operates with cool lens temperatures, low energy consumption and minimal maintenance. It has a fully adjustable gimbal allowing 360 rotation and 0-20 elevation. This luminaire is extremely tough, durable and waterproof, making it ideal for installation in public spaces, large-scale projects and residential areas.

Product Specifications

Lumen Output*
  • 5000 lumens @ 1400mA (52 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 90 lm/W
Luminaire Options
  • Cast Solid Bronze SafeTouch 150 - Direct Burial
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Cast Bronze Components - 25 Years
  • Electronics - 5 Years
  • Solid Bronze Components - 10 Years
Power Options
  • 1400mA CC Input - Series Wired - Remote Driver 37Vf 51.8W
  • 110-277 VAC - Integral Retro Driver 51.8W
Lens Options
  • with Clear Lens
  • with SafeTouch 150 Anti Slip Lens
  • with SafeTouch 150 Frosted Lens

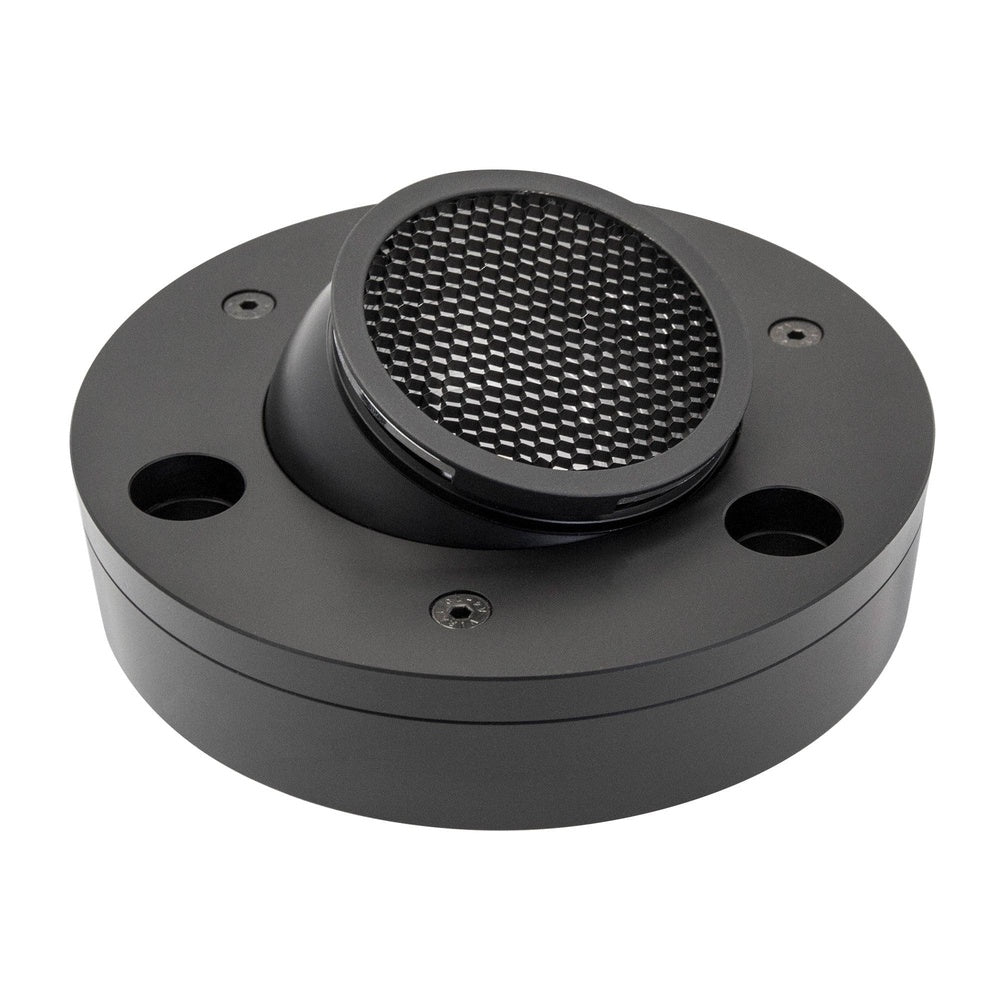

  • with SafeTouch 150 Hex Cell Louvre
Accessories
  • SafeTouch 150 Glare Shield
LED
  • Cree® CXB 2540 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 80 Optional
  • 90+ Standard
Ingress Protection
  • IP68 *not for use in pool or ponds
Impact Protection
  • IK10
Materials
  • 316 Marine Grade Stainless Steel Flange
  • Cast Solid Bronze Body
  • Solid Bronze Flange
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • No Driver Required for Retro™ R ( 120/240V Input )
Product Files

Click for Cast Solid Bronze Safetouch 150 - ST150CSB - Specification Sheet

Click for SafeTouch 150 - ST150 - Product Diagram

Click for SafeTouch 150 - ST150 - Installation Instructions USA

Click for SafeTouch 150 - ST150 - Installation Instructions International

Diagram Image
