Hunza Direct Burial Ultra 50 Flood Light

Hunza LightingSKU: PFL/U50-R-EBK-13-2

Select Material: Black
Select Beam Angle: 13 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

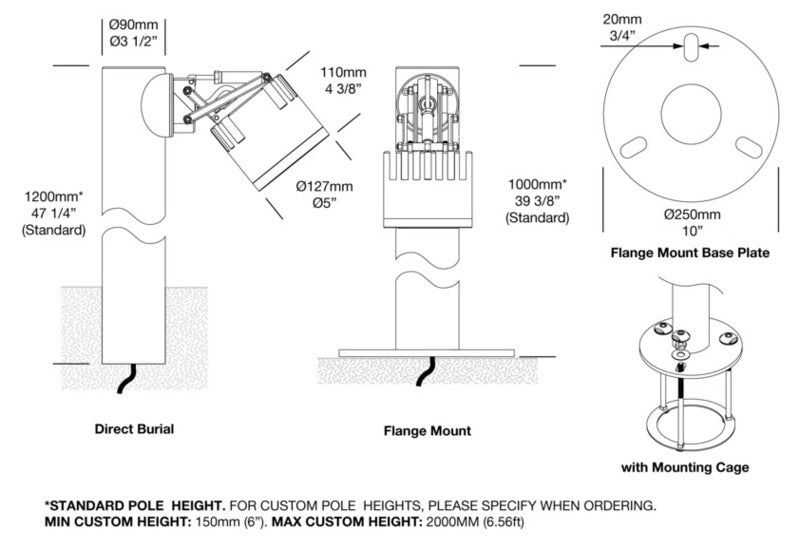

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

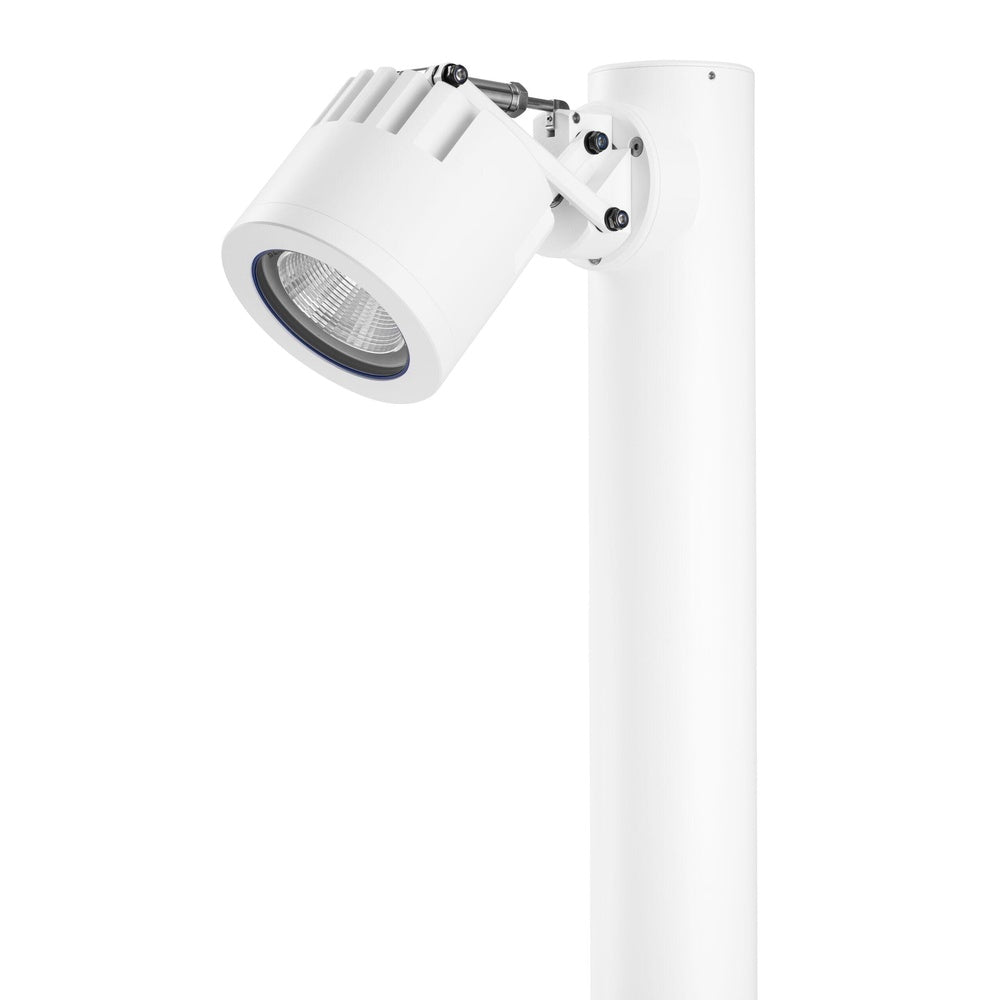

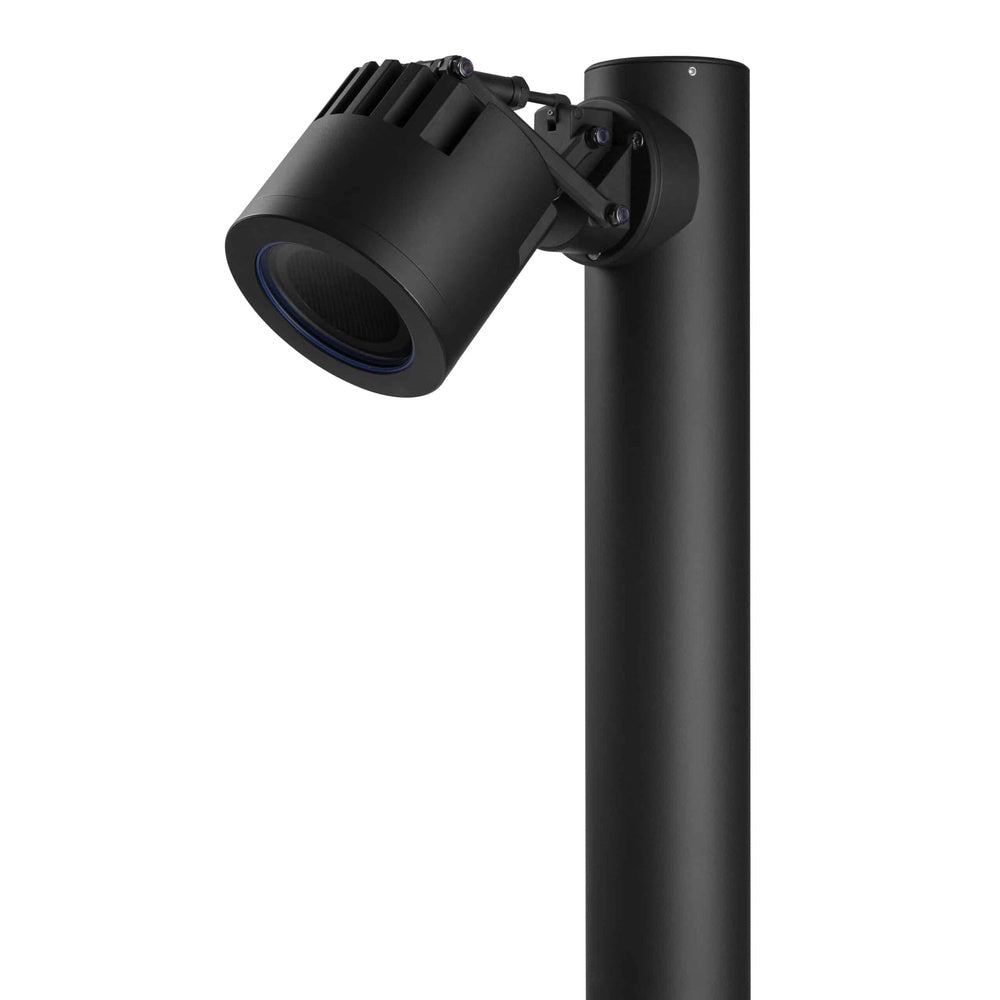

Hunza Direct Burial Ultra 50 Flood Light

The Ultra 50 Flood Lite has been designed to be mounted on horizontal surfaces. It can be used for wall washing, to provide directional light, and to highlight architectural features and structural elements. It has a fully adjustable head allowing 360 degrees rotation and 0-80 degrees elevation and can then be fixed in place using the inbuilt locking mechanism. The pole height can be specified, as required, up to 2 meters 6ft 6".

Product Specifications

Lumen Output*
  • 5000 lumens @ 1400mA (52 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 96 lm/W
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 1400mA CC Input - Series Wired - Remote Driver 37Vf 51.8W
  • 110-277 VAC - Integral Retro Driver 51.8W
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Ultra 50 Hex Cell Louvre
Mounting Options
  • with Mounting Cage*
Accessories
  • Ultra 50 Glare Guard
  • Ultra 50 Glare Shield
  • Ultra 50 Snoot
LED
  • Cree® CXB 2540 Plug and Play field replaceable LED board
  • field replaceable LED
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 85+ Optional
  • 90+ Standard
Ingress Protection
  • IP66
Impact Protection
  • IK10
Materials
  • Solid Powder Coated Aluminium
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • No Driver Required for Retro™ 'R' ( 120/240V Input )
Product Files

Click for Ultra 50 Flood Light - PFL-U50 - Specification Sheet

Click for Ultra 50 Flood Light - PFL-U50 - Product Diagram

Click for Ultra 50 Pole Spot - PS-U50 - Installation Instructions International

Click for Ultra 50 Pole Spot - PS-U50 - Installation Instructions USA

Click for Ultra 50 Flood Light - PFL-U50 - Product Flyer

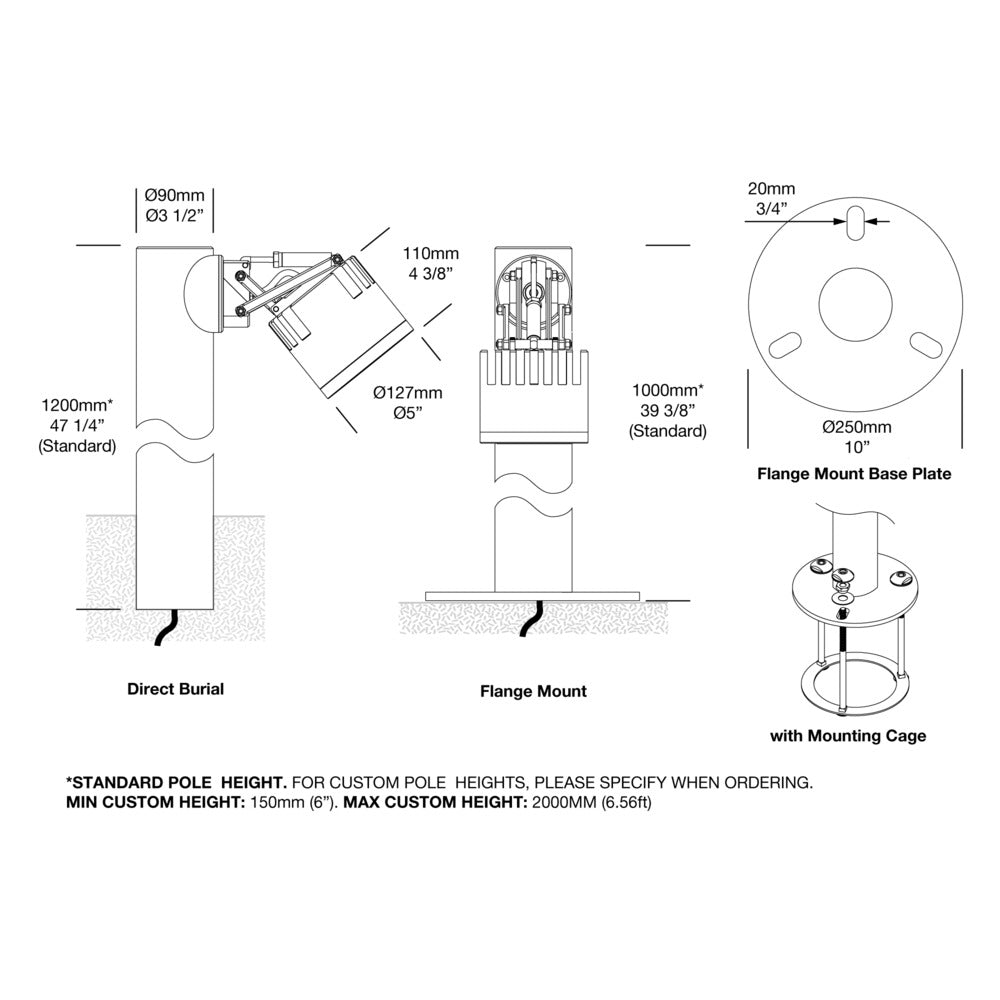

Diagram Image
