Hunza EPtronics 700mA 18-54V Constant Current Driver - Dim-to-off

Hunza LightingSKU: LD35W-54-C0700-RD

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

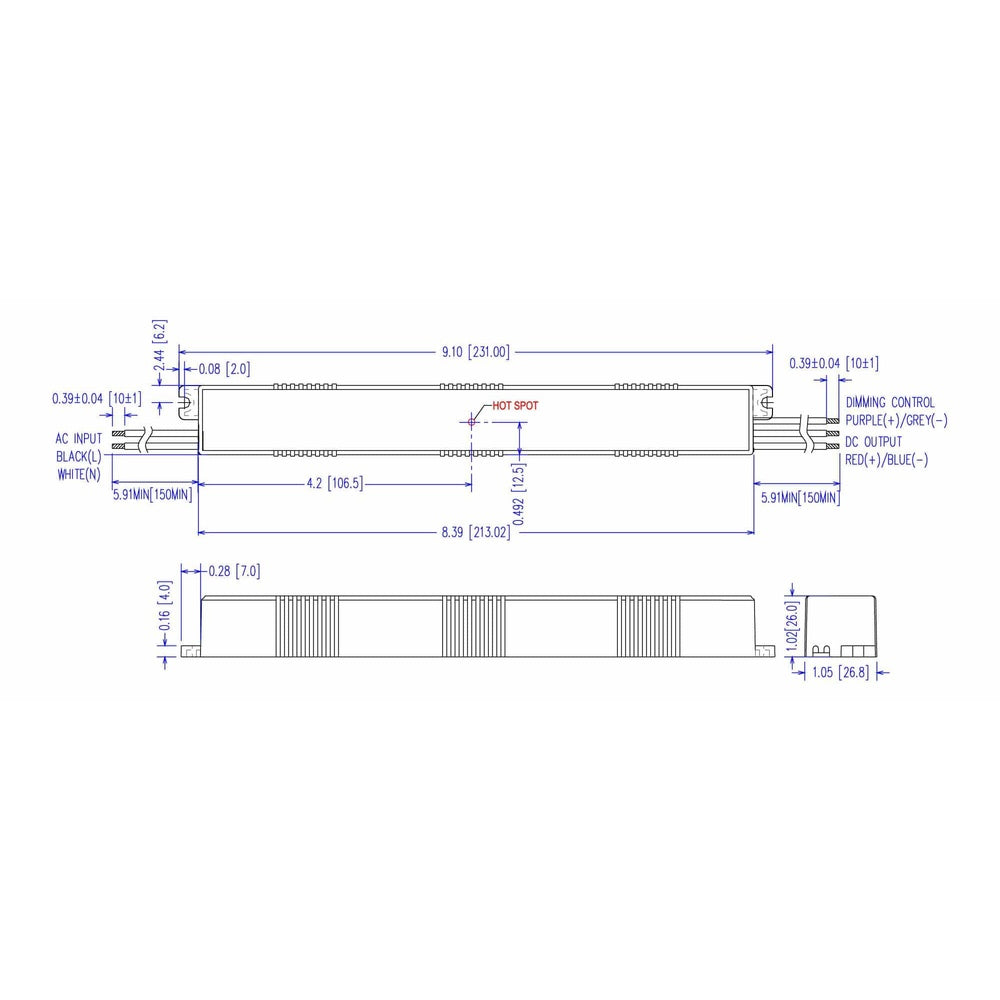

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

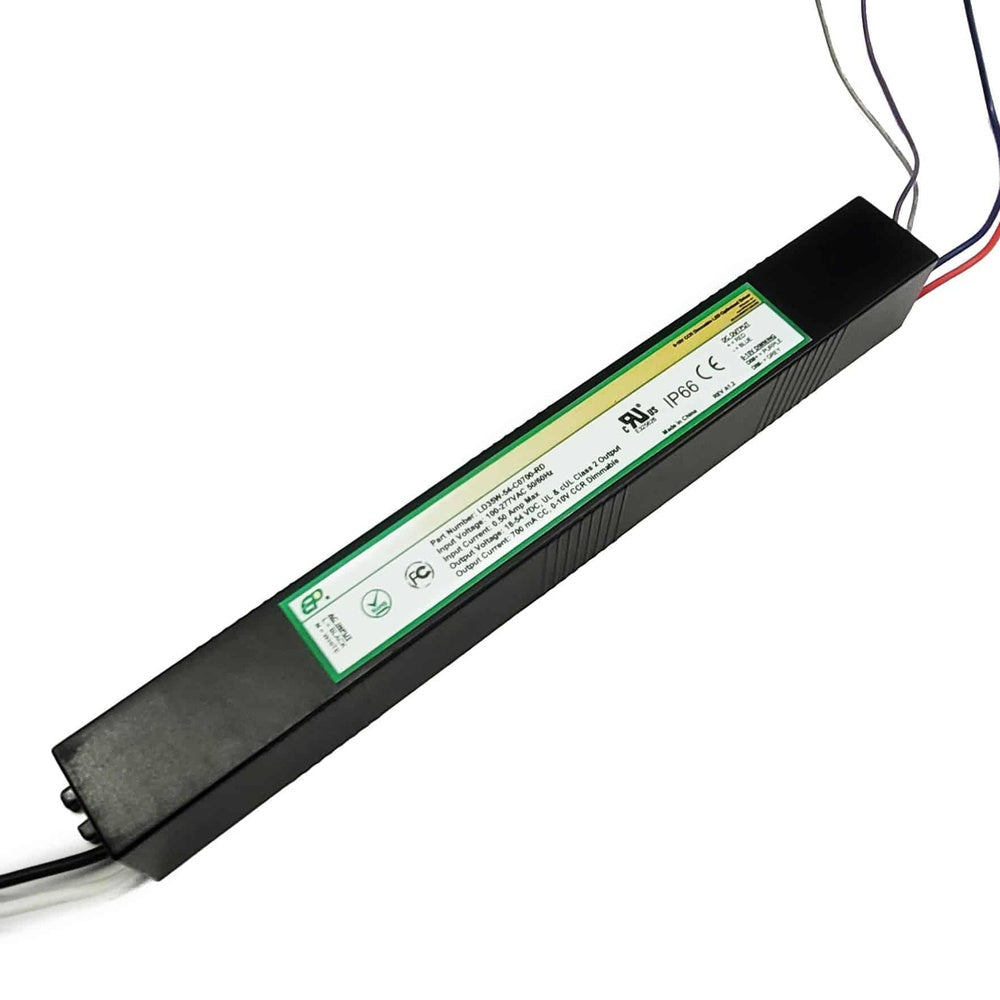

Hunza EPtronics 700mA 18-54V Constant Current Driver - Dim-to-off

Used in the Blade Product

Product Specifications

Driver Type
  • Constant Current
Dimming
  • 0-10V Dimming
Output Voltage
  • 18-54V
Output Current
  • 700mA
Output Power (W)
  • 35W
Input Voltage
  • 110-277VAC
Input Current
  • 0.5A Max
Frequency
  • 50/60Hz
Ingress Protection
  • IP66
Warranty
  • Third Party Warranty*
Dimensions
  • 23.1 x 2.68 x 2.6 cm ( 9.09" x 1.06" x 1.02" )
Weight
  • 0.25 kg ( 0.55 lb )
Product Files

Click for EPtronics 700mA 18-54V Constant Current Driver LD35W-54-C0700-RD - Specification Sheet

Click for EPtronics 700mA 18-54V Constant Current Driver LD35W-54-C0700-RD - Product Diagram

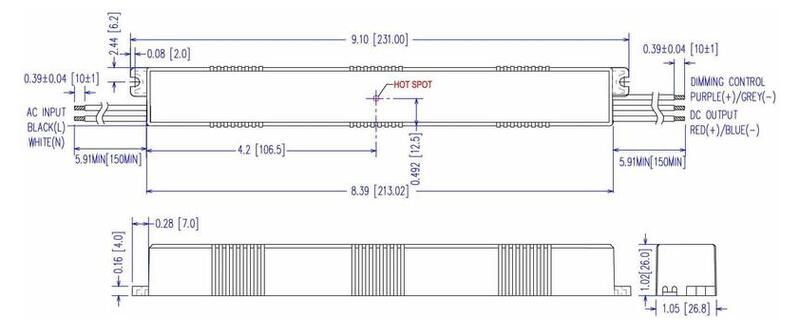

Diagram Image
