Hunza EPtronics 700mA 20W Constant Current Driver - 0-10V Dimming

Hunza LightingSKU: LD20W-28-C0700-RD

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

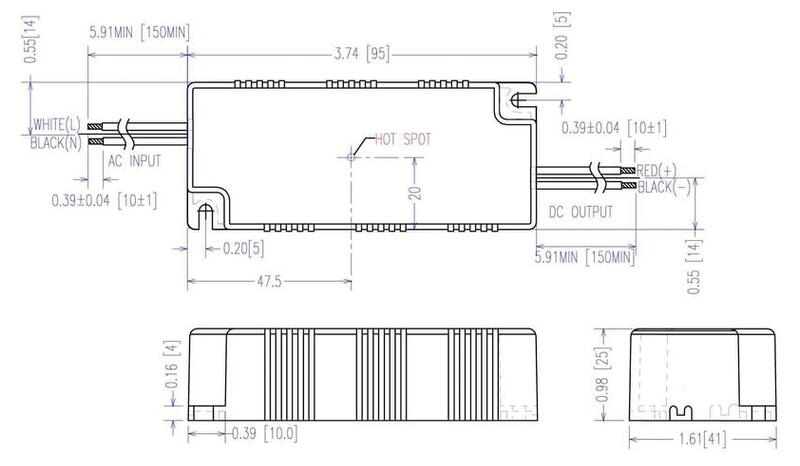

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

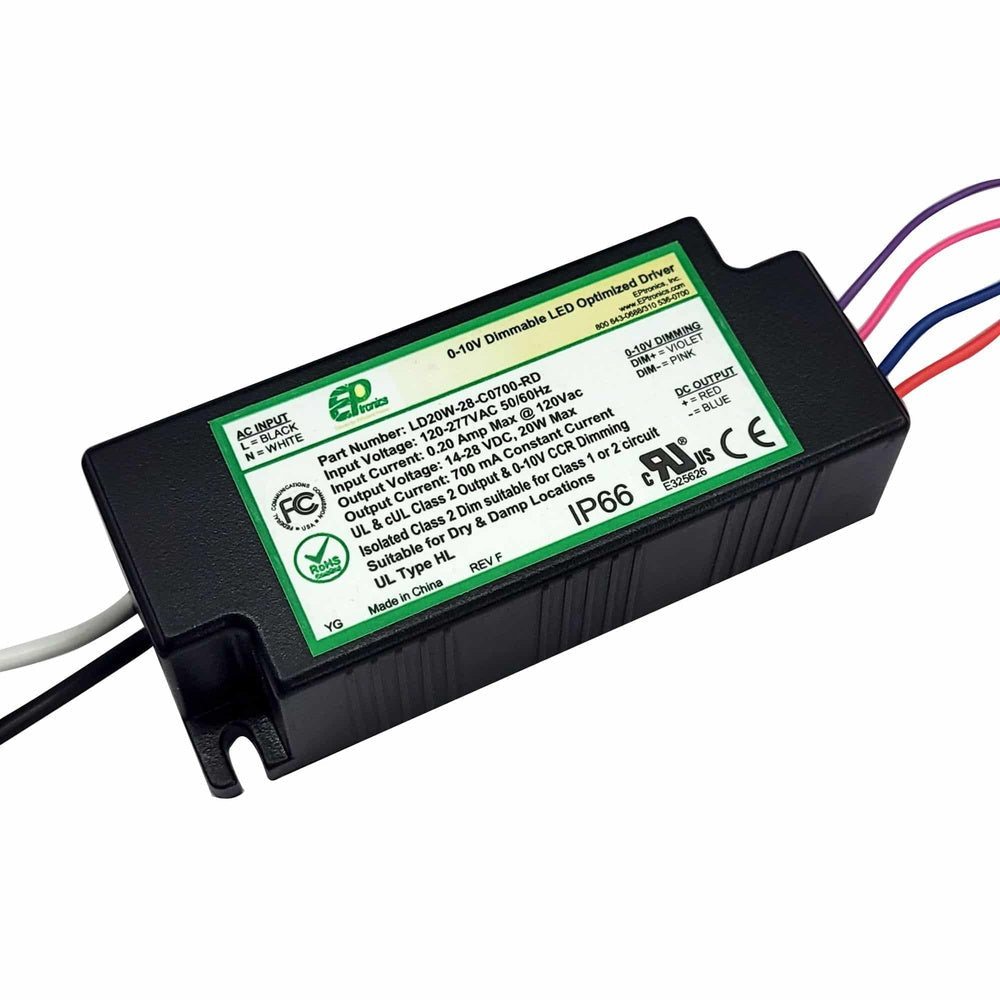

Hunza EPtronics 700mA 20W Constant Current Driver - 0-10V Dimming

The EPTronics LD20W-28-C0700 is a 20 Watt electronic, constant current, remote driver available to power Hunza series version PureLED fixtures in the USA market.  For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. The PC-17-02 weatherproof box is a requirement for UL compliance. When this driver is used as a remote power supply, series wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

Product Specifications

Driver Type
  • Constant Current
Dimming
  • 0-10V Dimming
Output Voltage
  • 10-28VDC
Output Current
  • 700mA
Output Power (W)
  • 20W
Input Voltage
  • 110-277VAC
Input Current
  • 0.2A MAX
Frequency
  • 50/60Hz
Ingress Protection
  • IP66
Standards
  • CE
  • UL Recognised
Product Files

Click for EPtronics 700mA 20W Constant Current Driver - 0-10V Dimming - LD20W-28-C0700-RD - Specification Sheet

Click for EPtronics 700mA 20W Constant Current Driver - 0-10V Dimming - LD20W-28-C0700-RD - Product Diagram

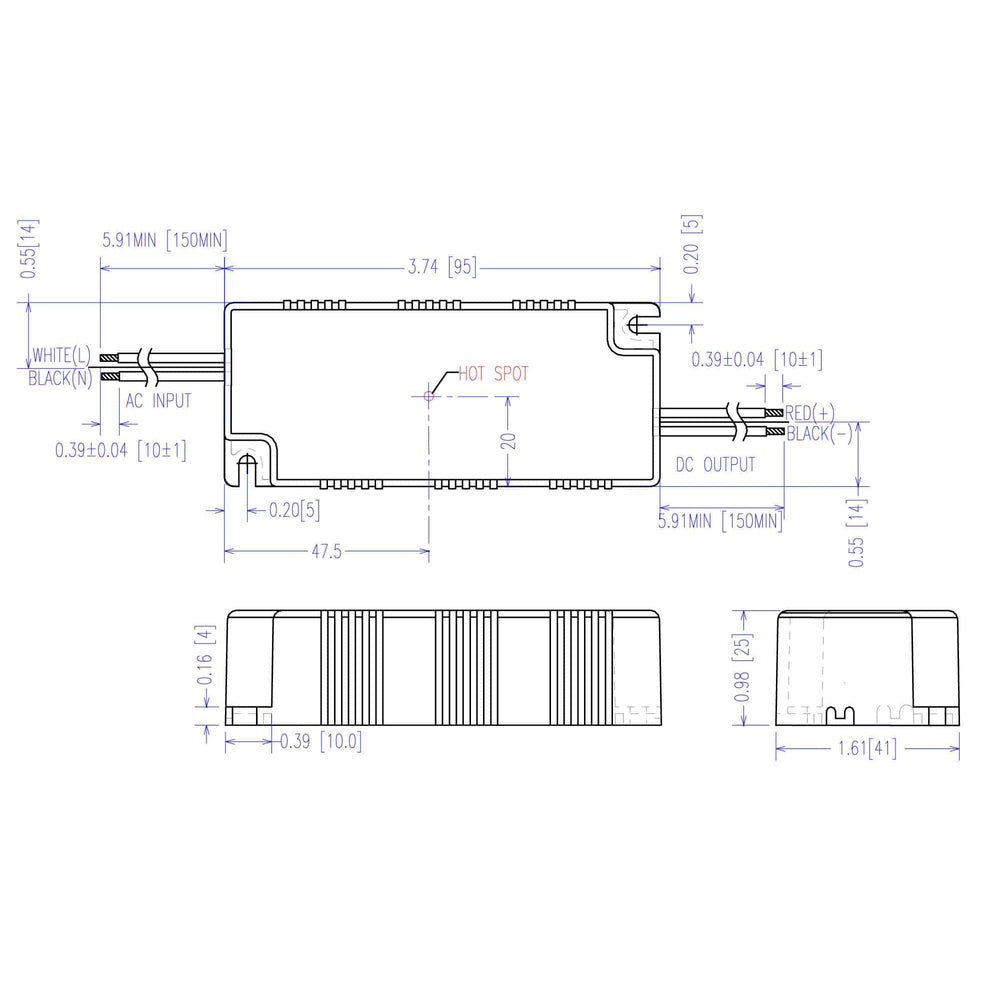

Diagram Image
