Hunza Euro Single Pole Light

Hunza LightingSKU: ESPL/L-D3-SS-15-2

Select Power Options: 12V 2.1W
Select Material: 316 Marine Grade Stainless Steel
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

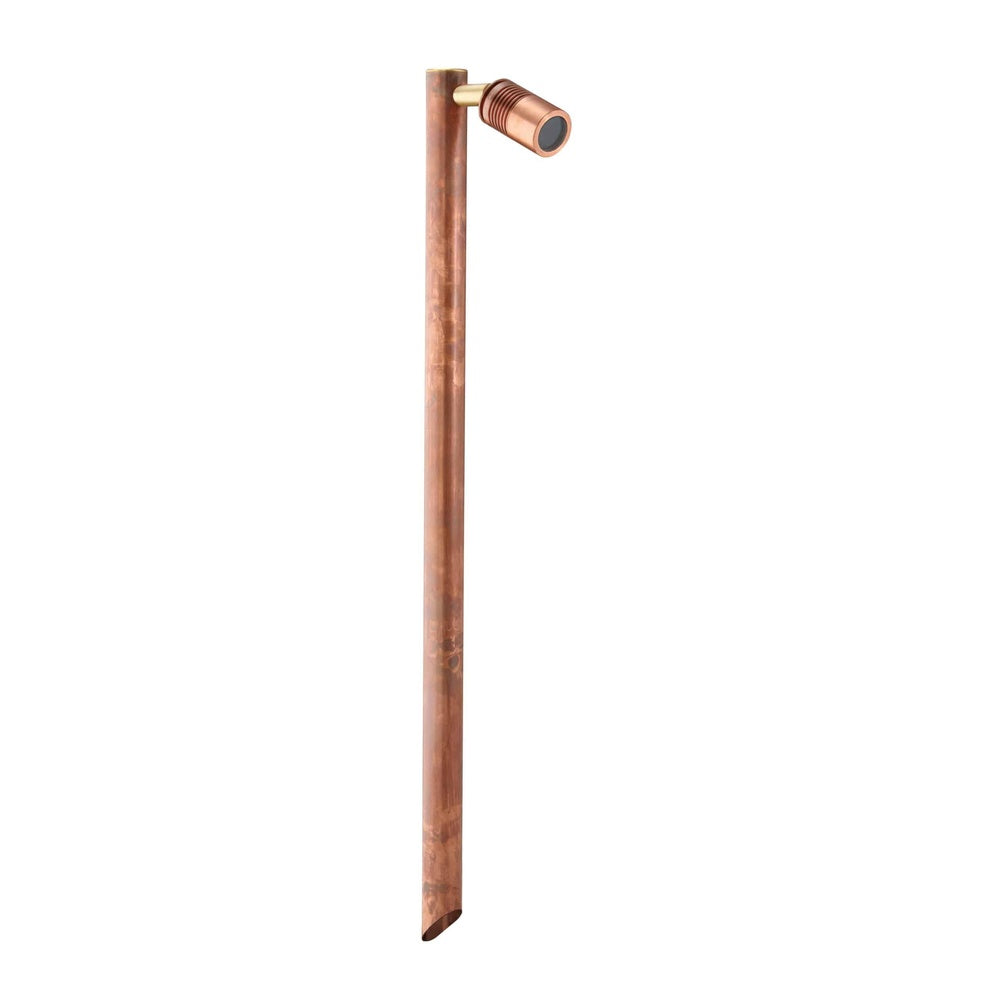

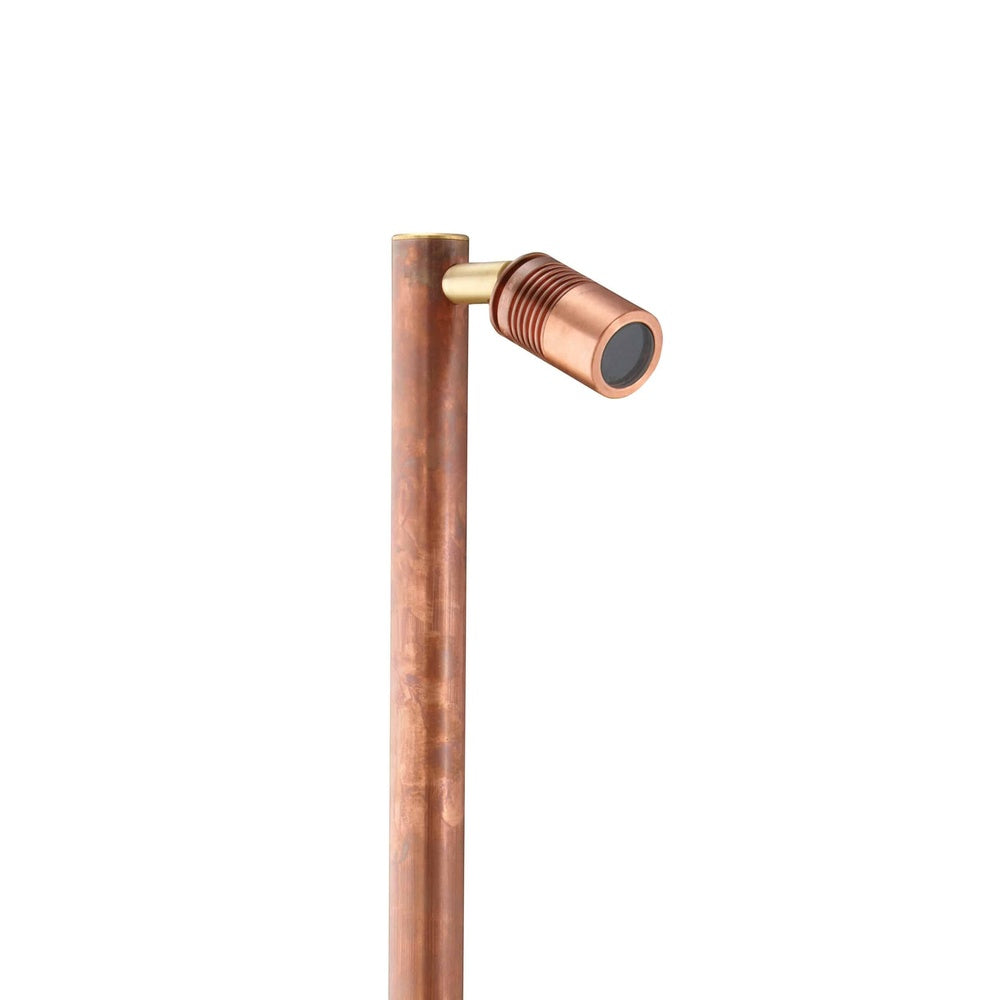

Hunza Euro Single Pole Light

The Euro Single Pole Light is an extra compact luminaire, designed for situations where the fixture needs to be unobtrusive or concealed. This luminiare is ideal for path lighting, tree lighting and the head may be aimed downward to eliminate vertical light. This luminaire has a fully adjustable arm allowing 360 degree rotation and 0 - 90 degree elevation with a built in glare guard.

Product Specifications

Lumen Output*
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 105 lm/W
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Lens Options
  • with Clear Lens and Hex Cell Louvre (Standard)
  • with Frosted Lens
Mounting Options
  • Flange Mount
Knuckle Option
  • with Adjustable Knuckle (Standard)
  • with Locking Knuckle
LED
  • Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP56
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • No Driver Required for Retro™ ‘R’ ( 120/240V Input )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Euro Single Pole Light - ESPL-L - Specification Sheet

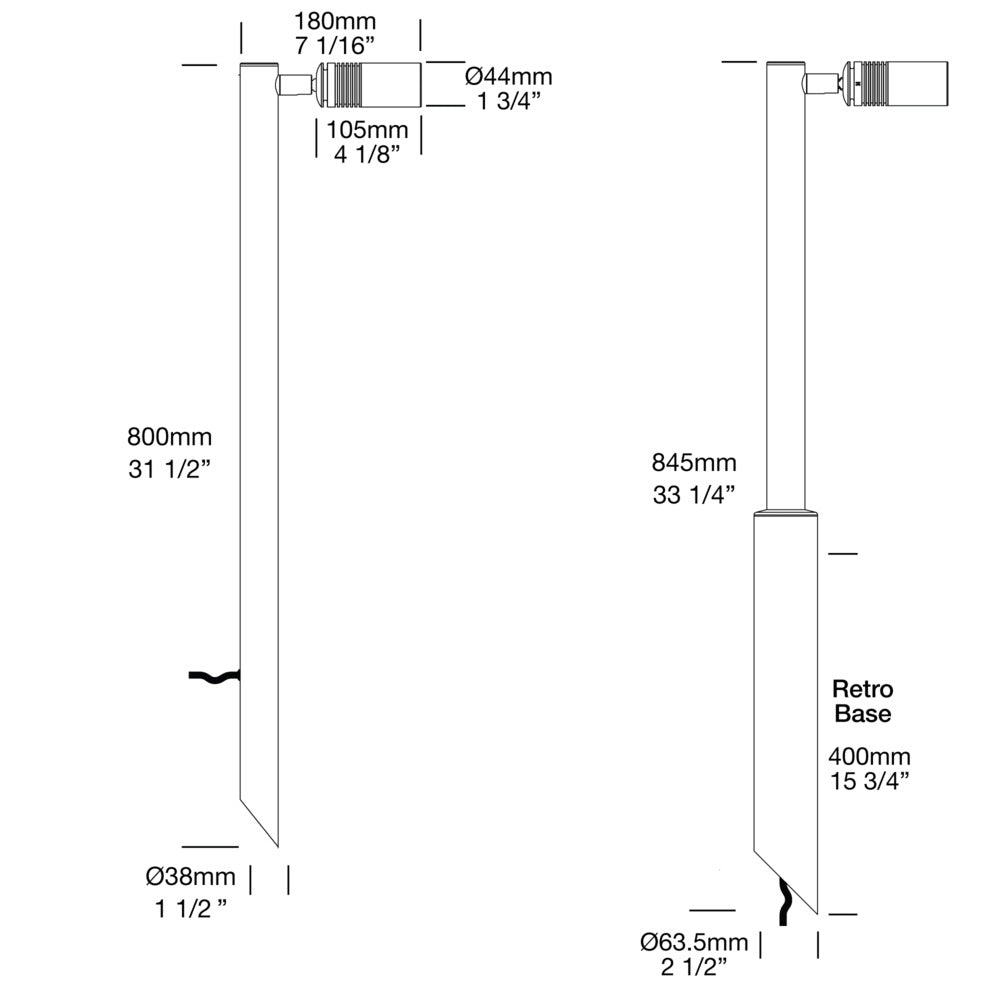

Click for Euro Single Pole Light - ESPL-L - Product Diagram

Click for Euro Single Pole Light - ESPL-L - Installation Instructions International

Click for Euro Single Pole Light - ESPL-L - Installation Instructions USA
