Hunza Euro Spike Spot Light

Hunza LightingSKU: ESS/L-D3-SS-15-2

Select Power Options: 12V 2.1W
Select Material: 316 Marine Grade Stainless Steel
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

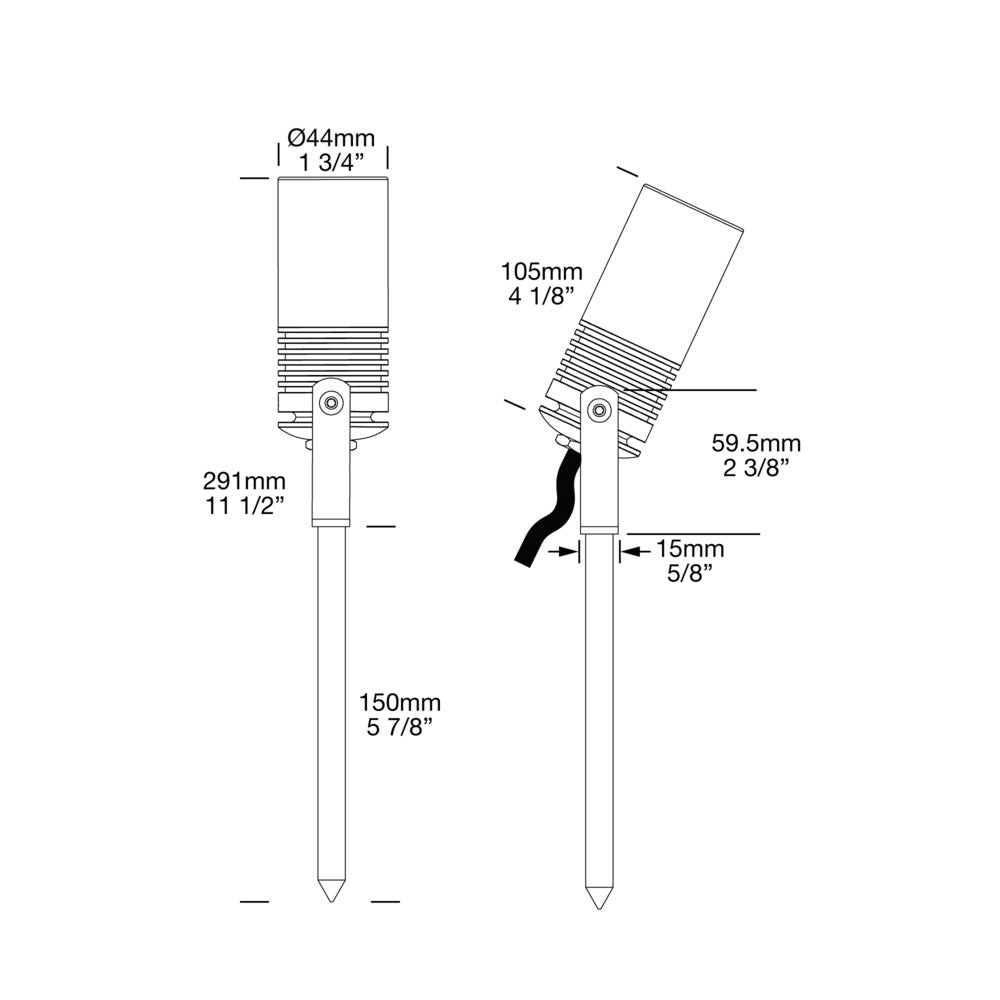

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

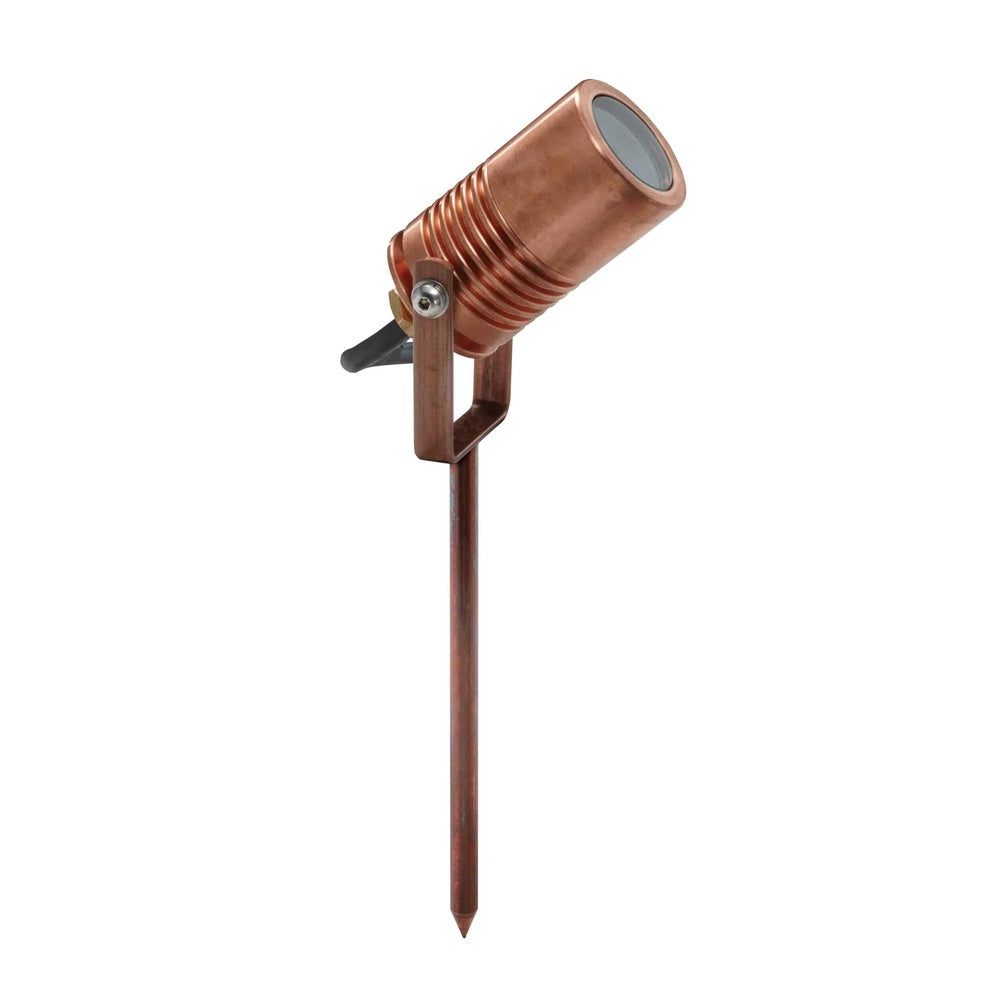

Hunza Euro Spike Spot Light

The Euro Spike Spot is an extra compact luminaire, designed for situations where the fixture needs to be very unobtrusive or concealed. The fixture is inserted into the ground and can be easily aimed by angling the head of the luminaire in the desired direction.

Product Specifications

Lumen Output*
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 105 lm/W
Lens Options
  • with Clear Lens and Hex Cell Louvre (Standard)
  • with Frosted Lens
Mounting Options
  • Euro Spike (Standard)
  • Euro Spike 300mm
LED
  • Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Euro Spike Spot - ESS-L - Specification Sheet

Click for Euro Spike Spot - ESS-L - Product Diagram

Click for Euro Spot - ES-L - Installation Instructions International

Click for Euro Spot - ES-L - Installation Instructions USA
