Hunza Floor Light Square

Hunza LightingSKU: FLSQ/L-D3-SS-15-2

Select Power Options: 12V 2.1W
Select Material: 316 Marine Grade Stainless Steel
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

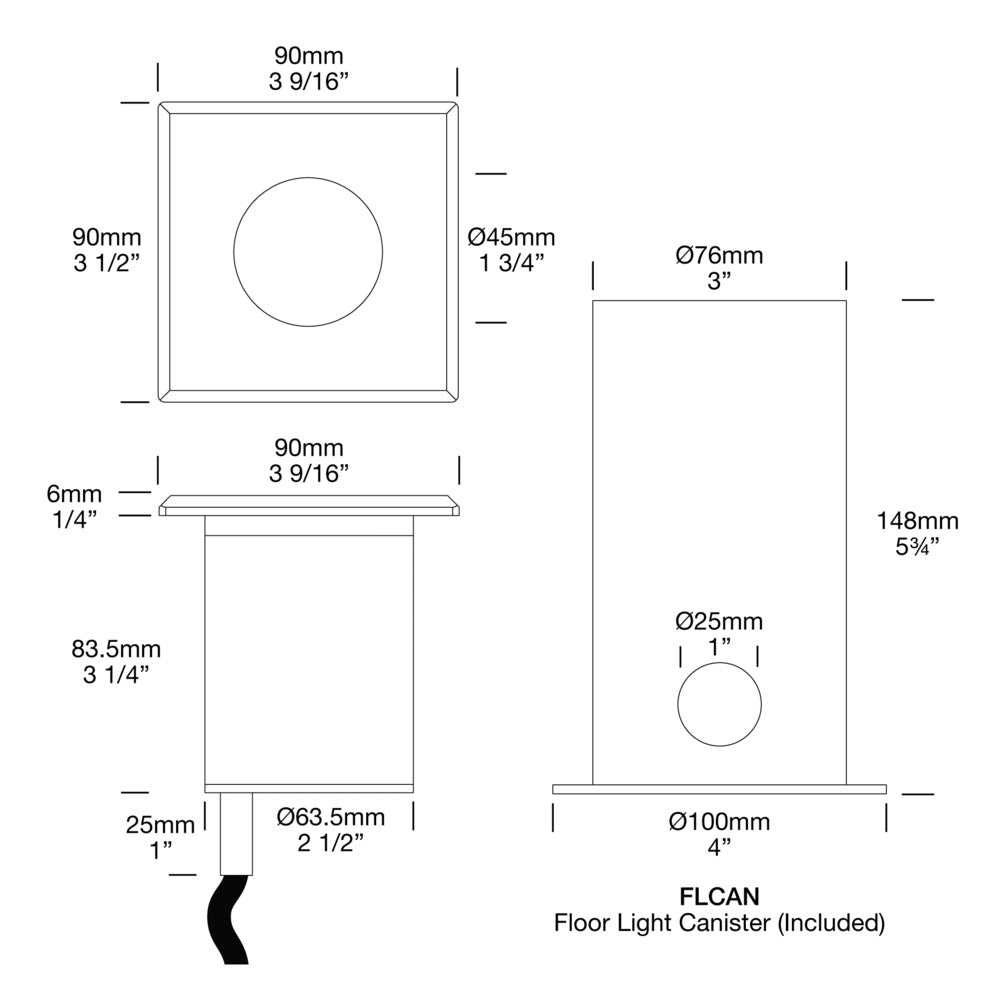

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

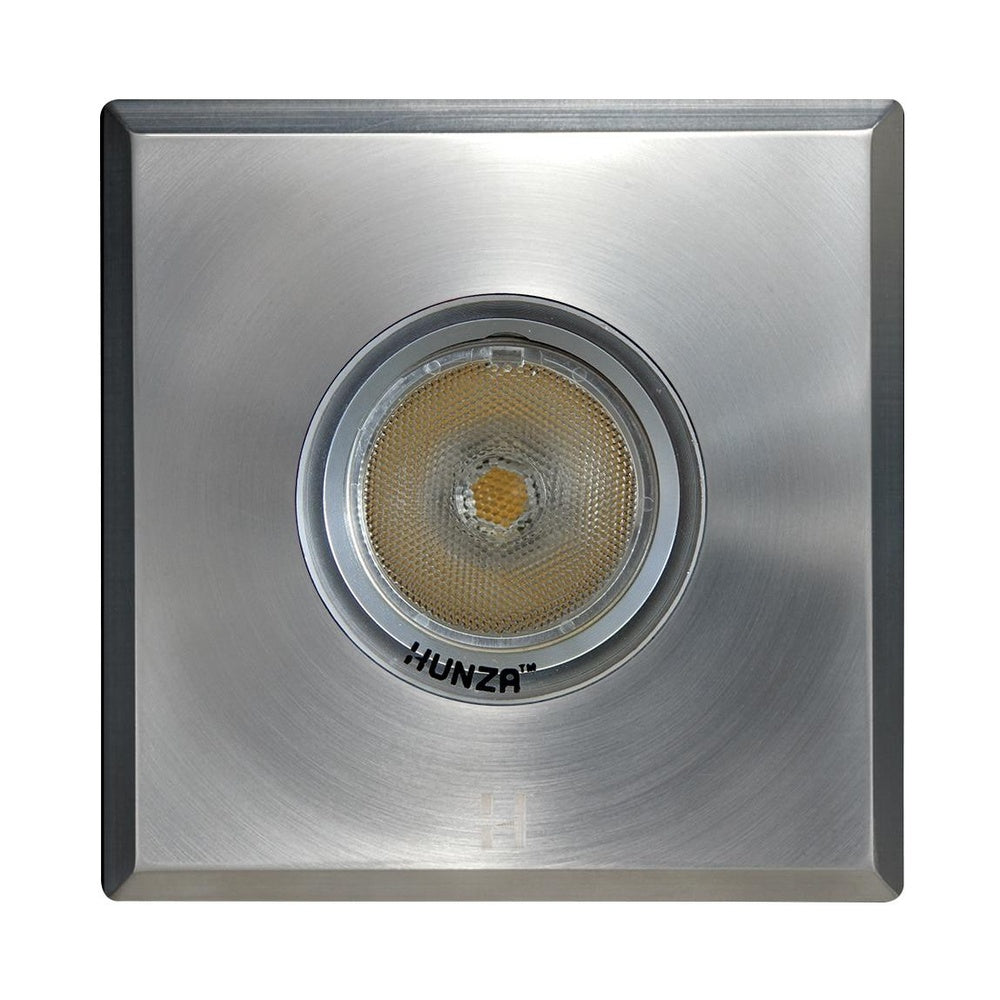

Hunza Floor Light Square

The Floor Light Square is an uplighter luminaire which has a low profile of 7mm. The square shape makes it ideal for mounting in tiled areas and it can be walked upon without being damaged.  All Floor Lights are supplied with a mounting canister.

Product Specifications

Lumen Output*
  • 1050 lumens @ 600mA (6 Watts)
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Clear Lens and Hex Cell Louvre
Mounting Options
  • Deck Mount Canister - Aluminium
  • Floor Light Canister
  • Floor Light Canister 200mm
  • Stainless Steel Canister
LED
  • Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP67
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Floor Light Square - FLSQ-L - Specification Sheet

Click for Floor Light Square - FLSQ-L - Product Diagram

Click for Path Light - Step Light - Floor Light - Installation Instructions USA

Click for Path Light - Step Light - Floor Light - Installation Instructions International

Diagram Image
