Hunza Hunza 220-240V Constant Current Driver 12W

Hunza LightingSKU: DR-LDRTL700-12W-18V

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

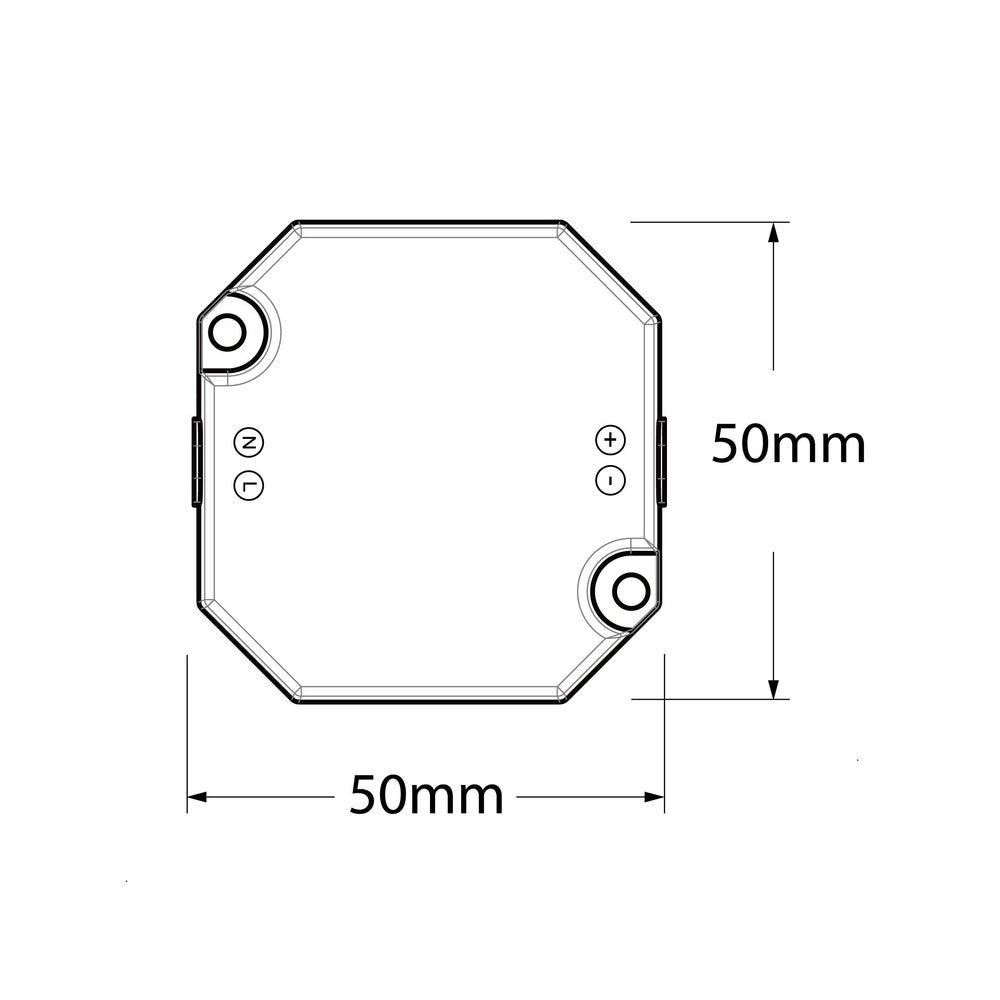

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

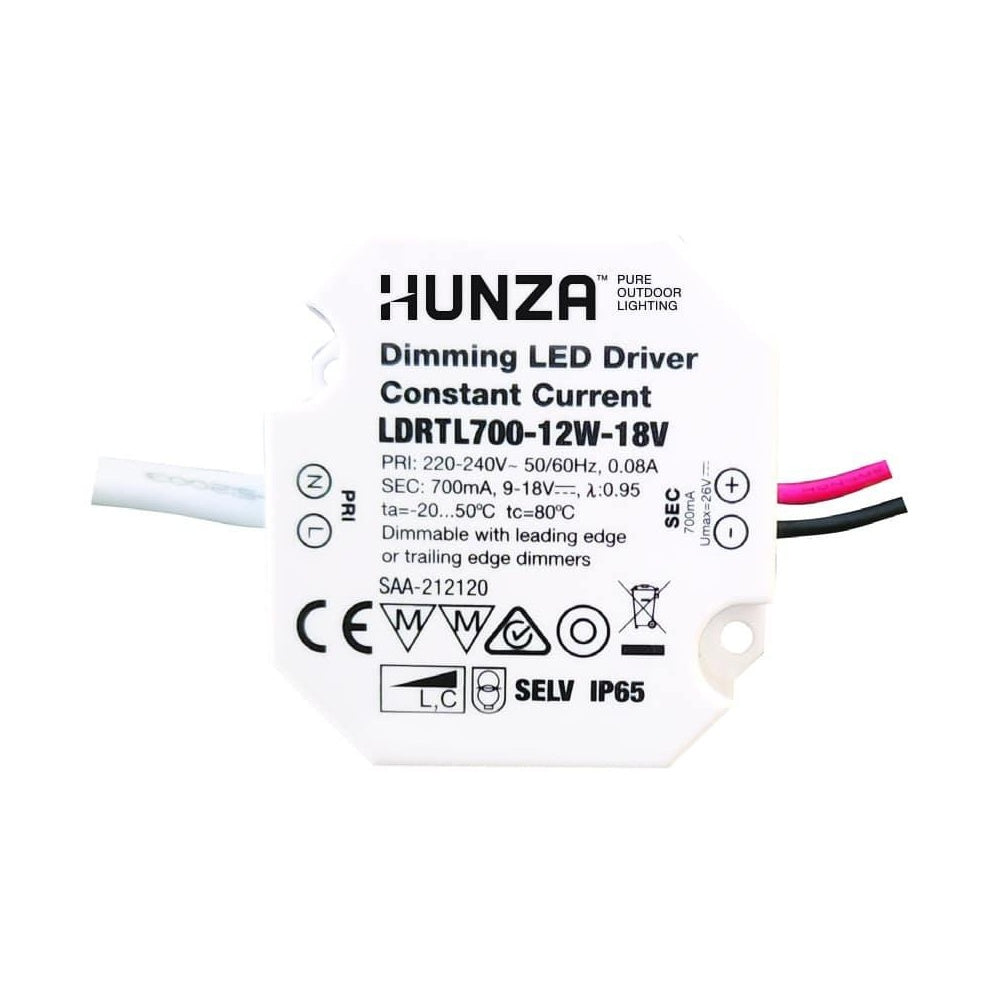

Hunza Hunza 220-240V Constant Current Driver 12W

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 12-18VDC
Output Power (W)
  • 12W
Output Current
  • 700mA
Input Voltage
  • 220-240VAC
Input Current
  • 0.08A
Frequency
  • 50/60Hz
Input Power (MAX)
  • 15W
Inrush current
  • ?5.0A
Power Factor
  • ?0.95C
Operating Frequency (Full load)
  • 60KHz
Ambient/Operating Temperature (ta)
  • -20 …+ 50°C
Case Temperature (tc)
  • 80°C
Dimming
  • Trailing Edge or Phase Dimmable
Ingress Protection
  • IP65
Protection
  • Auto-recovery if fault is removed (No Load - Over load - Short circuit)
Warranty
  • 2 year *third party warranty
Dimensions
  • 5 x 5 x 2.4 cm ( 1.97" x 1.97" x 0.94" )
Product Files

Click for Hunza 220-240V Constant Current Driver - LDRTL700-12W-18V - Specification Sheet

Click for Hunza 220-240V Constant Current Driver - LDRTL700-12W-18V - Product Diagram

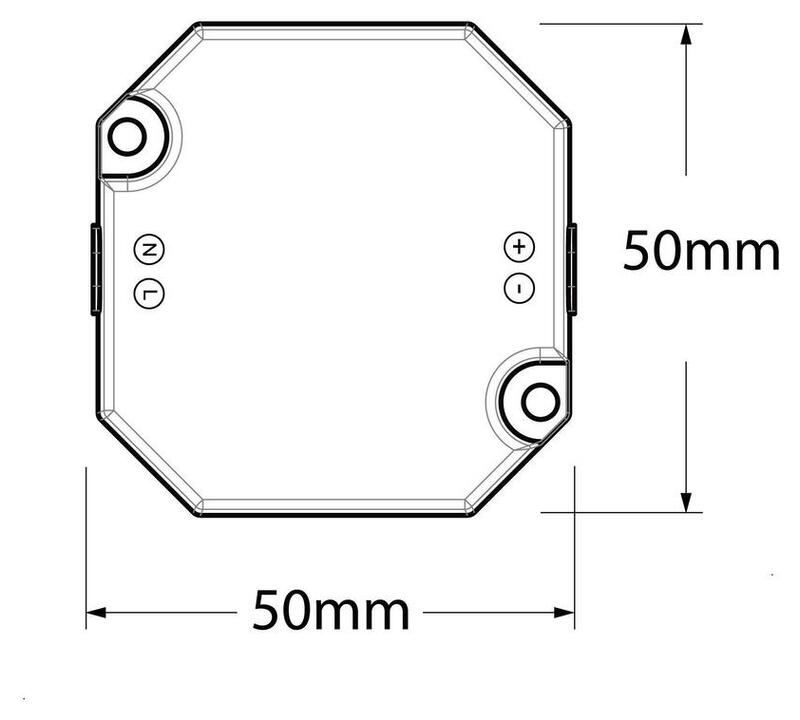

Diagram Image
