Hunza MAGTECH Constant Current Driver 3-12V, 12W

Hunza LightingSKU: DR-CC-LA1012-12-1000

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

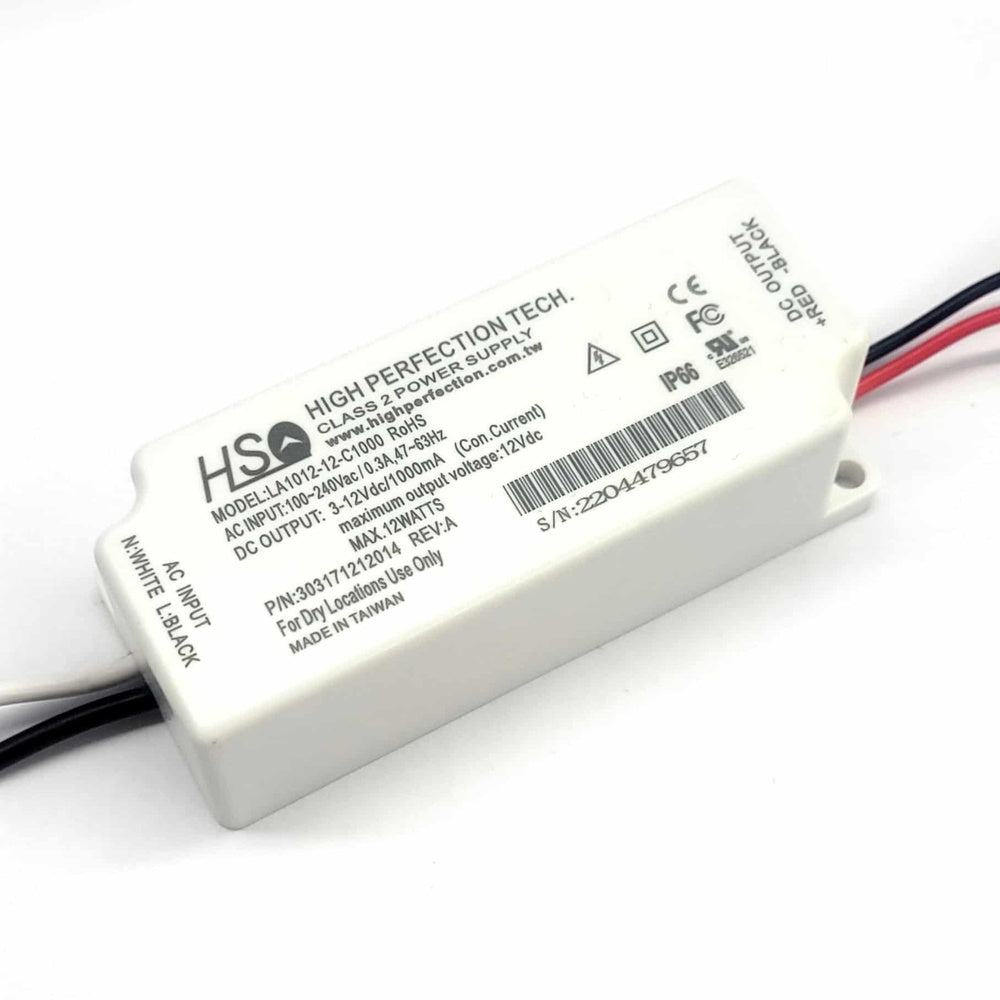

Hunza MAGTECH Constant Current Driver 3-12V, 12W

The Magtech LA1012-12-1000 is a12 Watt, 1000mA constant current driver. It includes overload protection and short-circuit protection.

  • Suitable for Dry Locations
  • Convection Cooled in plastic housing.

Product Specifications

Driver Type
  • Constant Current
Output Voltage
  • 3-12V
Output Current
  • 1000mA
Output Power (W)
  • 12W
Input Voltage
  • 100-240VAC
Input Current
  • 0.3A (MAX)
Frequency
  • 47/63Hz
Ingress Protection
  • IP66
Standards
  • CE
  • Class 2 .cUL (TypeHL)
  • Class A
  • EN61000
  • EN55015
  • EN61347
  • EN61547
  • FCCB
  • PSE
  • UL 1310
  • UL 8750
Warranty
  • 5 Year Third Party Warranty

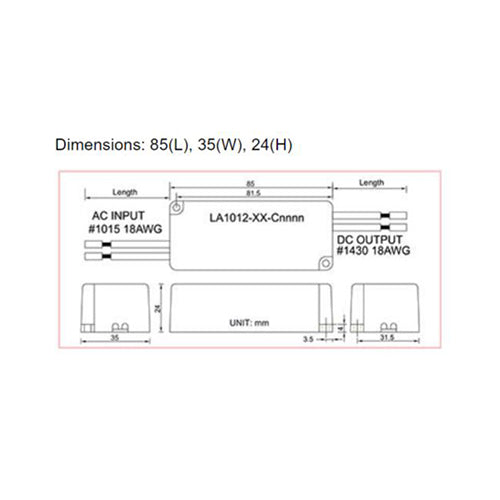

Dimensions
  • 8.5 x 3.5 x 2.4 cm ( 3.35" x 1.38" x 0.94" )
Weight
  • 0.12 kg ( 0.26 lb )
Product Files

Click for MAGTECH Constant Current Driver | 3-12V | 12W - DR CC LA1012-12-1000 - Specification Sheet

Diagram Image
