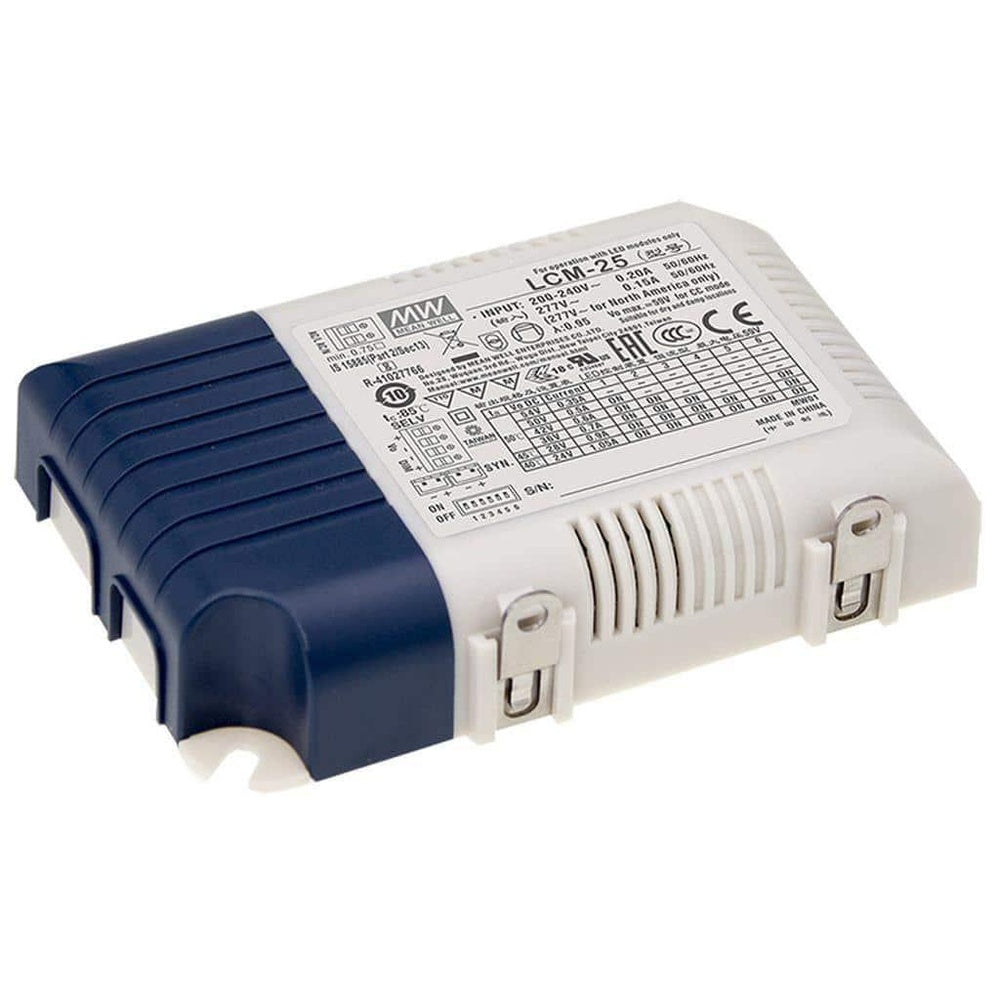

Hunza Meanwell LCM25BLE 25W 500-1050mA LED Driver - Casambi and Push

Hunza Meanwell LCM25BLE 25W 500-1050mA LED Driver - Casambi and Push

Not available for USA or Australian market.

LCM-25BLE series is a 25W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and integration of Casambi Bluetooth control so that the installation is greatly simplified.LCM-25BLE operates from 180~277VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -30°C~+85°C case temperature under free air convection. In addition, LCM-25BLE is equipped with freely assignable input and synchronization so as to provide the optimal design flexibility for LED lighting system. For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver

• Constant Current mode output with multiple levels selectable by dip switch
• Flicker free design
• Plastic housing with class II design
• Built-in active PFC function
• Functions: Casambi Bluetooth low energy protocol, freely assignable input, synchronization up to 10units
• 3 years warranty

Product Specifications

Driver Type	Constant Current
Dimming	Casambi and Push Dimming
Output Voltage	41V
Output Current	500-1050mA
Frequency	50/60Hz
Input Voltage	180-295VAC 254-417VDC
Input Current	0.07A
Output Power (W)	25W
Ambient/Operating Temperature (ta)	-30°C~85°C
Ingress Protection	IP20
Standards	CE UL
Warranty	3 Year Third Party Warranty
Dimensions	10.5 x 6.8 x 2.3 cm ( 4.13" x 2.68" x 0.91" )
Weight	0.17 kg ( 0.37 lb )

Product Files

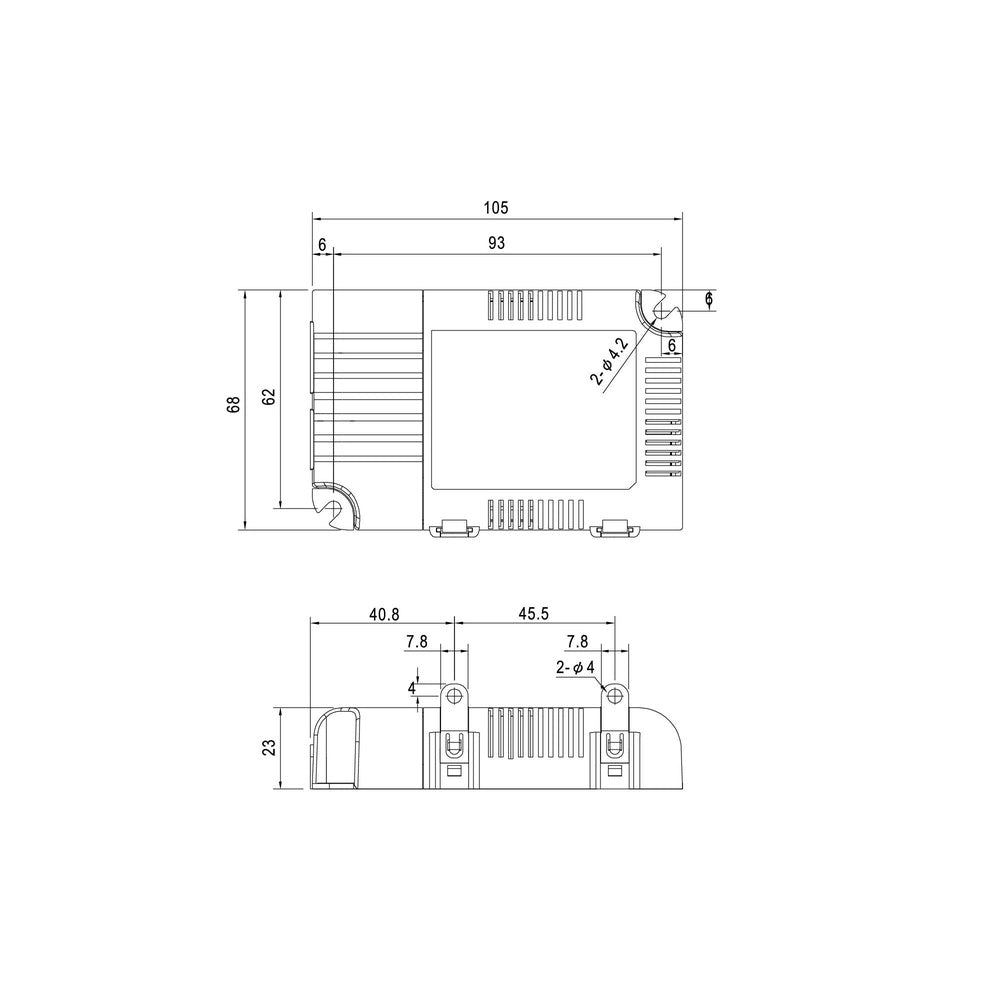

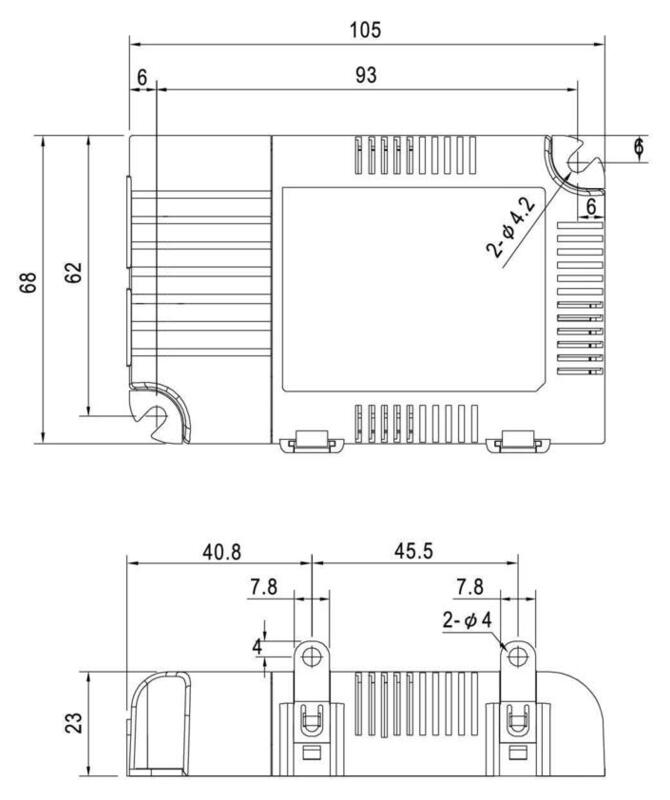

Click for Meanwell LCM25 - Product Diagram

Diagram Image
