Hunza Meanwell LCM40 42W 500-1050mA LED Driver - Dimmable

Hunza LightingSKU: LCM40

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

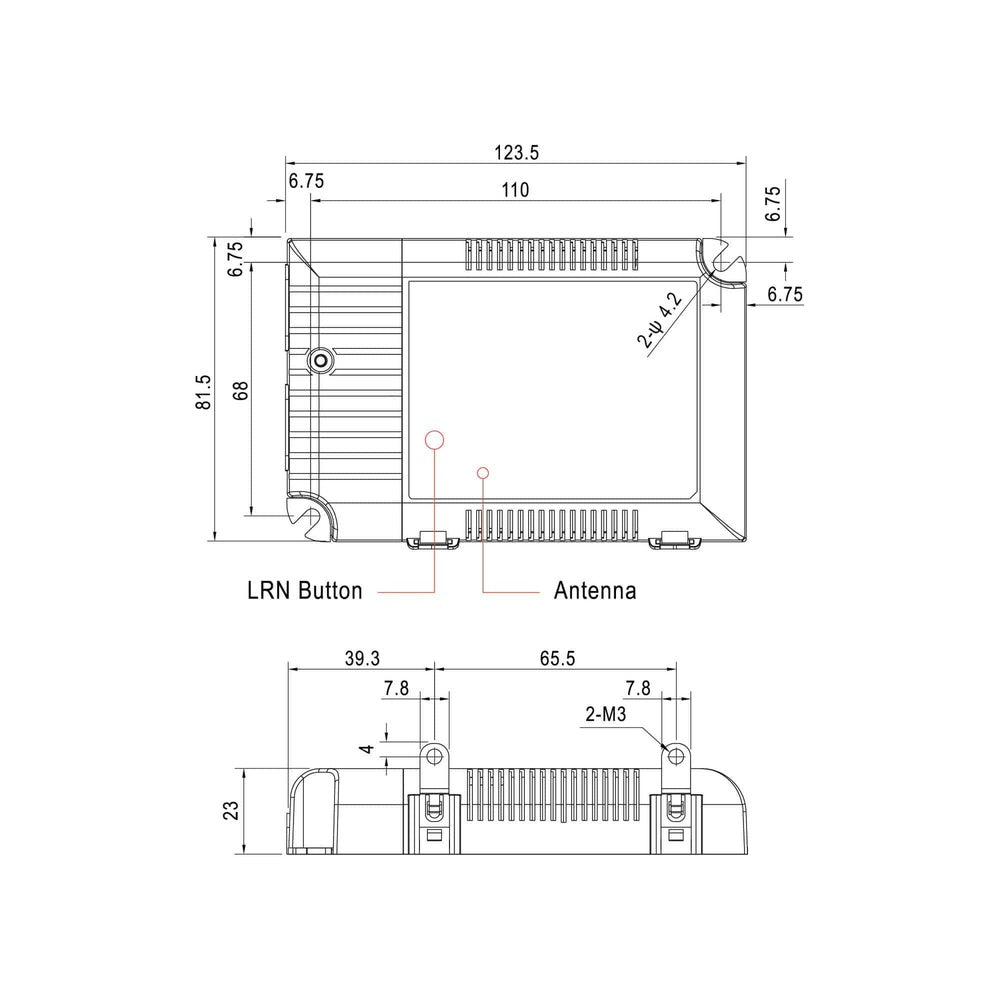

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

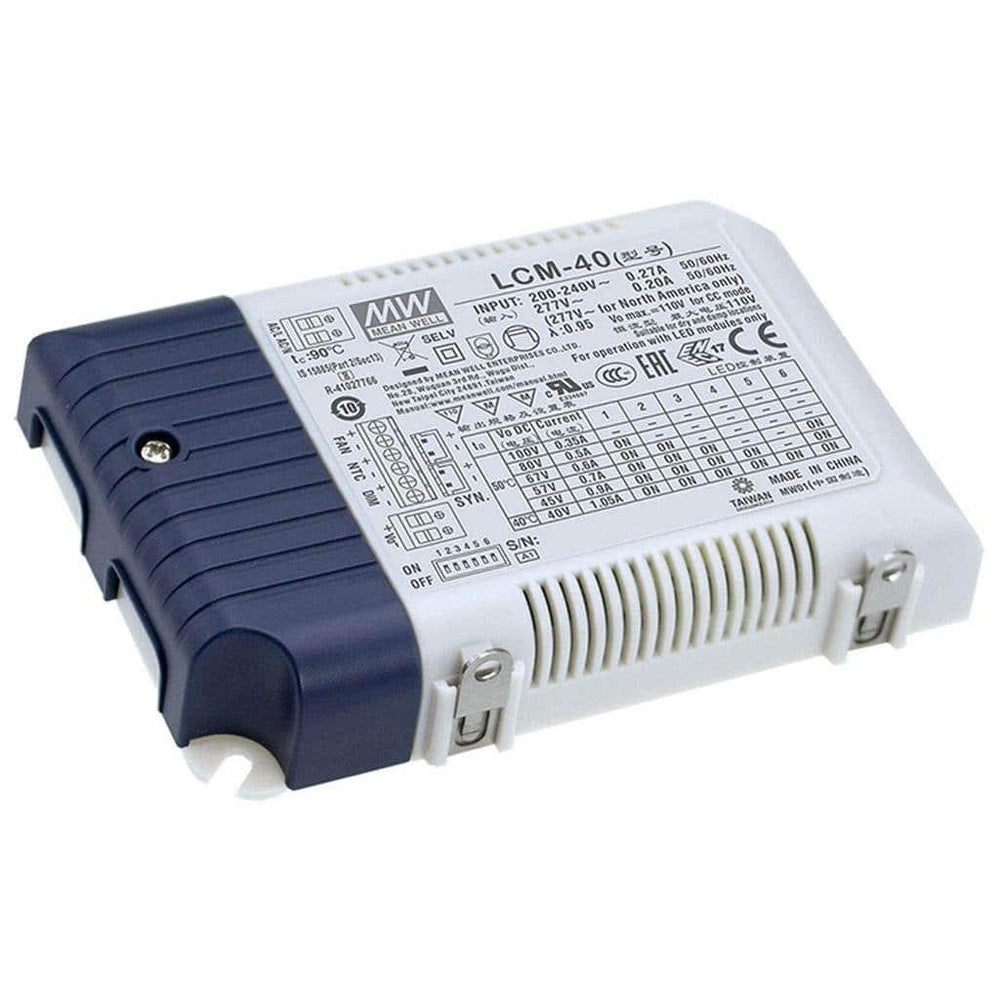

Hunza Meanwell LCM40 42W 500-1050mA LED Driver - Dimmable

Not available for USA or Australian market.

LCM-40 series is a 40W LED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch. LCM-40 operates from 180-295VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 92%, with the fanless design, the entire series is able to operate for -30°C~+90°C case temperature under free air convection. LCM-40 is equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.

For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

  • Constant Current mode output with multiple levels selectable by dip switch
  • Plastic housing with class II design
  • Built-in active PFC function
  • Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
  • Optional: Wireless LED driver with integrated EnOcean module
  • 3 years warranty

Product Specifications

Driver Type
  • Constant Current
Dimming
  • Dim-to-off (0-10V or 10V PWN Signal or Resistive)
Output Voltage
  • 95V
Output Current
  • 500-1400mA
Frequency
  • 50/60Hz
Input Voltage
  • 180-295VAC
  • 254-417VDC
Input Current
  • 0.07A
Output Power (W)
  • 42W
Ambient/Operating Temperature (ta)
  • -30°C~90°C
Ingress Protection
  • IP20
Standards
  • CE
  • BSI
  • CB
  • EAC
  • EN
  • ENEC Approved
  • RCM (C-Tick)
  • UL
Warranty
  • 3 Year Third Party Warranty
Dimensions
  • 12.35 x 8.15 x 2.3 cm ( 4.86" x 3.21" x 0.91" )
Weight
  • 0.2 kg ( 0.44 lb )
Product Files

Click for Meanwell LCM40 42W 500-1050mA LED Driver - Dimmable - Specfication Sheet

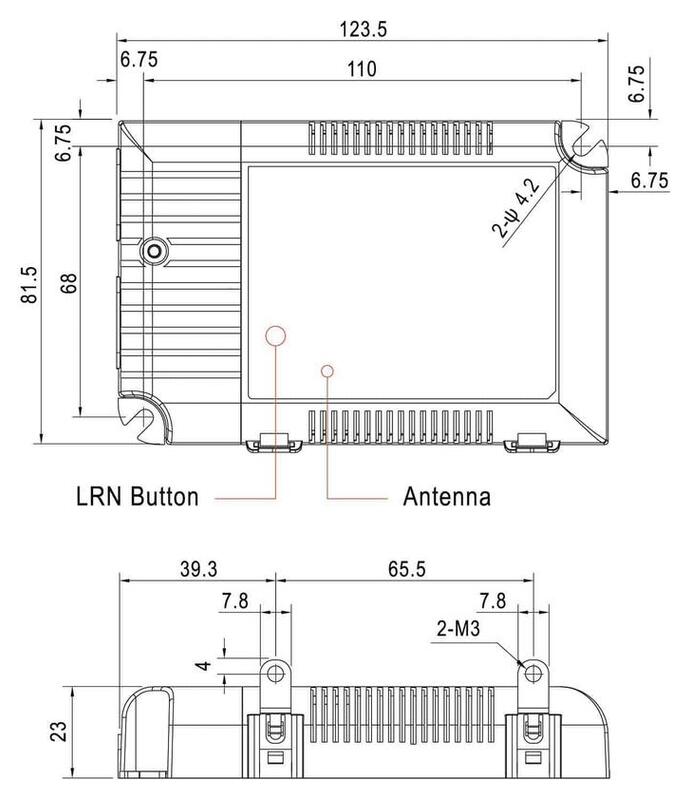

Click for Mean Well LCM-40 Series - Product Diagram

Diagram Image
