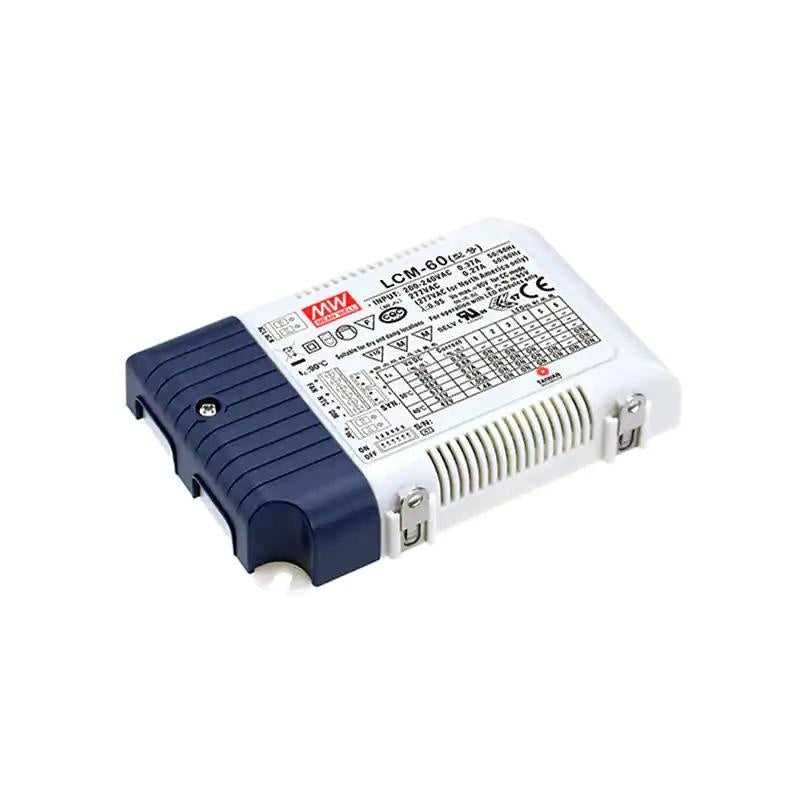

Hunza Meanwell LCM60 60W 500-1400mA LED Driver - Dimmable

Hunza LightingSKU: LCM60
Price:
$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

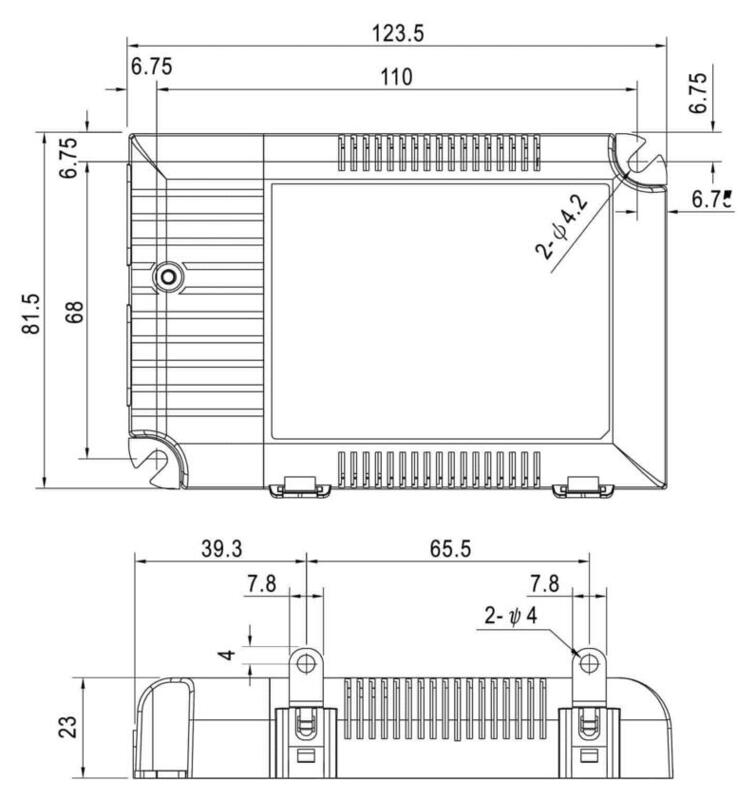

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Hunza Meanwell LCM60 60W 500-1400mA LED Driver - Dimmable

Not available for USA or Australian market.

The Meanwell LCM60 is a 60 Watt electronic, constant current, remote driver available to power Hunza series version PureLED fixtures. It includes a DIP-SWITCH control system that enables the unit to be set at a range of current outputs from 500mA to 1050mA. 1-10v and Dali dimmable. For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

  • Constant current mode output with multiple levels selectable by dip switch
  • Plastic housing with class II design
  • Built-in active PFC function
  • Standby power consumption <1W
  • Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
  • Optional: Wireless LED driver with integrated EnOcean module
  • 3 years warranty

Product Specifications

Warranty
  • *Excludes third party lamps and power supplies*
  • 3 Year Third Party Warranty
Driver Type
  • Constant Current
Dimming
  • Dim-to-off (0-10V or 10V PWN Signal or Resistive)
Output Voltage
  • 2-86V (700mA)
  • 2-42V (1400mA)
  • 2-57V (1050mA)
  • 2-90V (500mA)
  • 2-90V (600mA)
Output Current
  • 500-1400mA
Frequency
  • 50/60Hz
Input Voltage
  • 180-295VAC
  • 254-417VDC
Input Current
  • 0.07A
Output Power (W)
  • 60.3W
Ambient/Operating Temperature (ta)
  • -30°C~90°C
Ingress Protection
  • IP20
Standards
  • CE
  • BSI
  • CB
  • EAC
  • EN
  • ENEC Approved
  • RCM (C-Tick)
  • UL
Dimensions
  • 12.35 x 8.15 x 2.3 cm ( 4.86" x 3.21" x 0.91" )
Weight
  • 0.2 kg ( 0.44 lb )
Product Files

Click for Meanwell LCM60 60W 500-1400mA LED Driver - Dimmable - Specification Sheet

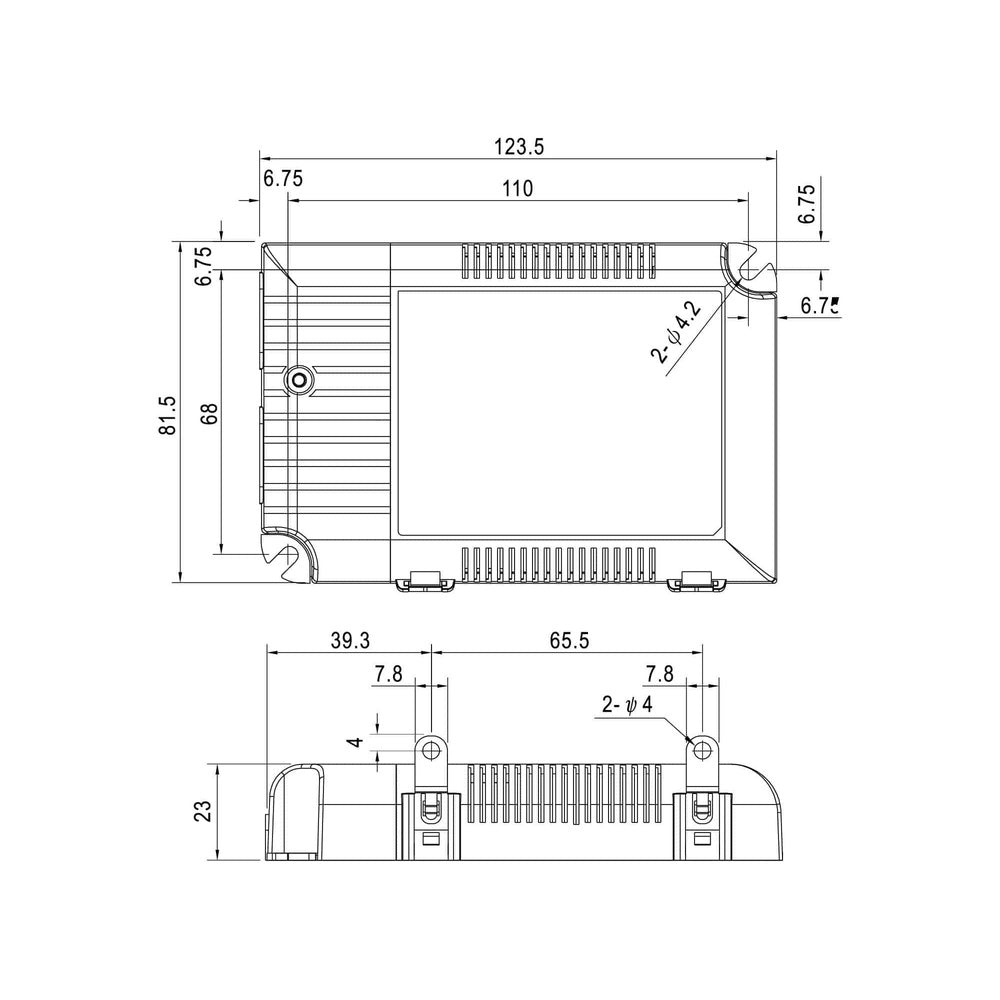

Click for Mean Well LCM-60 Series - Product Diagram

Diagram Image
