Description

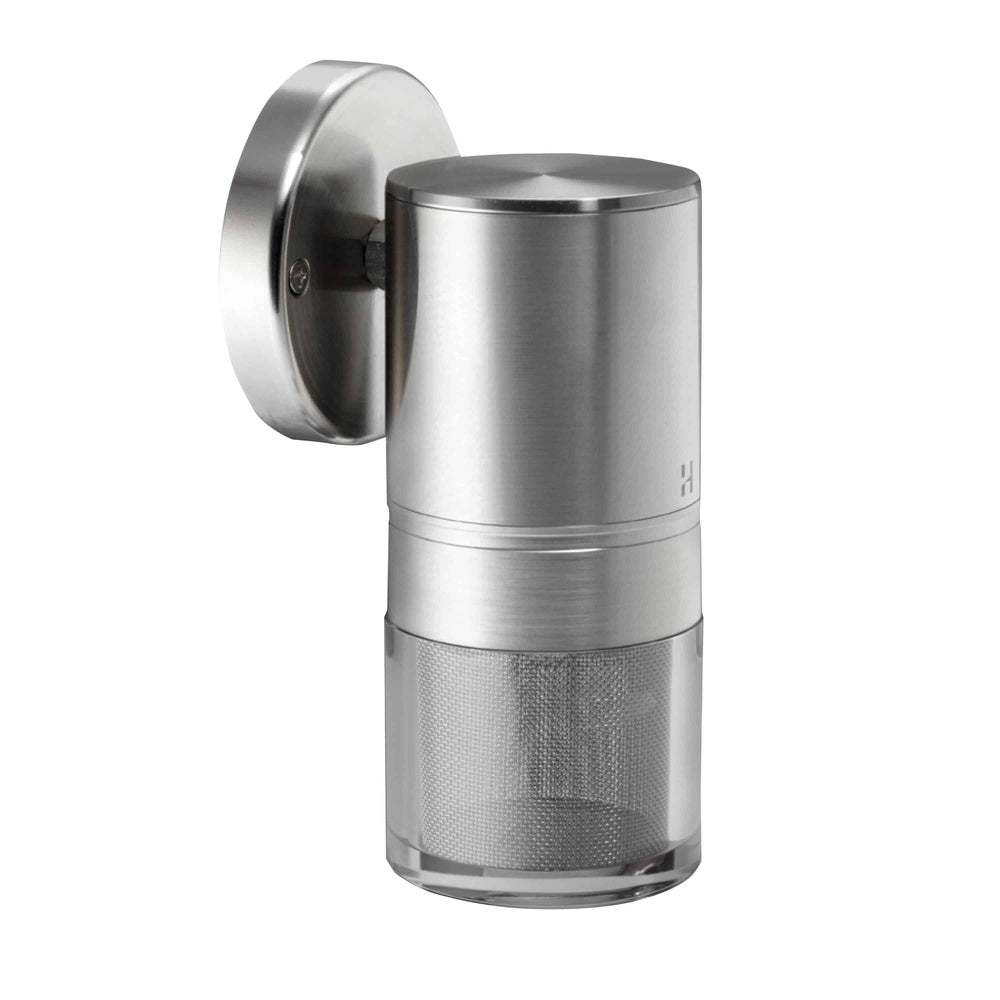

Hunza Pagoda Light
The Pagoda Light provides non-directional lighting, ideal for the illumination of areas such as porches and entrance ways. The lens reflects light at two angles, horizontally and upwards, to illuminate the surrounding landscape.
Product Specifications
Lumen Output*
510 lumens @ 1050mA (6 Watts)
340 lumens @ 700mA (4 Watts)
160 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.
85 lm/W
Beam Angle Options
360 Degree
Lens Options
with Clear Lens
with Opaque Lens
LED
Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
50,000 Hrs @ L70
CRI
90+ Standard
Ingress Protection
IP66
Materials
316 Marine Grade Stainless Steel
Solid Copper
Solid Powder Coated Aluminium
Warranty
*Excludes third party lamps and power supplies*
316 Stainless Steel Components - 10 years
Aluminium Components - 5 years
Electronics - 5 Years
Solid Copper Components - 10 Years
Standards
IEC/BS/AS/NZ 60598
UL 1598
UL 2108
UL 1838
CE
Recommended Power Supplies
Driver Required for Series Wired (CC format)
No Driver Required for Retro™ 'R' ( 120/240V Input )
Transformer Required for 12VAC Parallel Wired ( CV format )
The Pagoda Light provides non-directional lighting, ideal for the illumination of areas such as porches and entrance ways. The lens reflects light at two angles, horizontally and upwards, to illuminate the surrounding landscape.
Product Specifications
Lumen Output*
510 lumens @ 1050mA (6 Watts)
340 lumens @ 700mA (4 Watts)
160 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.
85 lm/W
Beam Angle Options
360 Degree
Lens Options
with Clear Lens
with Opaque Lens
LED
Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
50,000 Hrs @ L70
CRI
90+ Standard
Ingress Protection
IP66
Materials
316 Marine Grade Stainless Steel
Solid Copper
Solid Powder Coated Aluminium
Warranty
*Excludes third party lamps and power supplies*
316 Stainless Steel Components - 10 years
Aluminium Components - 5 years
Electronics - 5 Years
Solid Copper Components - 10 Years
Standards
IEC/BS/AS/NZ 60598
UL 1598
UL 2108
UL 1838
CE
Recommended Power Supplies
Driver Required for Series Wired (CC format)
No Driver Required for Retro™ 'R' ( 120/240V Input )
Transformer Required for 12VAC Parallel Wired ( CV format )
When you purchase or specify a Hunza luminaire, you get the benefit of the legendary Hunza reputation for high quality and long life. We back this up with extended warranty, offering up to 10 years on body components and 5 years on the integral PURE LEDTM system. Warranty on plug-in (drop-in) LED lamps is limited to 1 year. When installed and maintained properly Hunza luminaires will last a lifetime so we keep serviceability firmly in mind when designing the components and system construction.
Hunza Five Year Warranty* All Hunza aluminium luminaires with a UV stable powder-coat finish have a five-year replacement warranty, subject to standard conditions listed below. Integral PURE LEDTM components are limited to 5 year warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.
Hunza Ten Year Warranty* All Hunza stainless steel and copper luminaires have a ten-year replacement warranty, subject to standard conditions listed below. Integral PURE LEDTM components are limited to 5 year warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.
Hunza Lifetime Warranty* All glass lenses supplied with Hunza luminaires have a lifetime warranty.
Standard Conditions:
1. The environment in which the fixture is to be installed must be considered carefully when selecting the finish. Stainless steel luminaires are recommended for high-risk environments such as near salt water. Aluminium luminaires may not be covered by the full warranty in these situations. 2. Stainless Steel requires regular cleaning with fresh water when installed in salty environments. (Refer to instructions supplied with luminaire). 3. Hunza underwater fixtures are not be covered by warranty in situations where there are chemical imbalances in the water. 4. Warranty excludes impact damage (except for glass lenses), incorrect installation and incorrect re-assembly. 5. Fixtures must be kept properly maintained, including replacement of gaskets and lenses when necessary. 6. Hunza, at its discretion, may replace components or the complete fixture. 7. Hunza warranty is limited to the repair or replacement of products ONLY, labour charges will not be accepted. 8. Hunza will not be liable for any labour charges for any repair or replacement of defective drivers. Drivers have their own manufacturer warranty and any faults will be at the responsibility of the manufacturer. 9. Polycarbonate and acrylic lenses are limited to 5 year warranty. N.B. Acrylic lenses must NOT be cleaned with any petrochemical substance, warranty will be void. 10. Warranty excludes halogen lamps and lamp holders, which are consumable items.
