Description

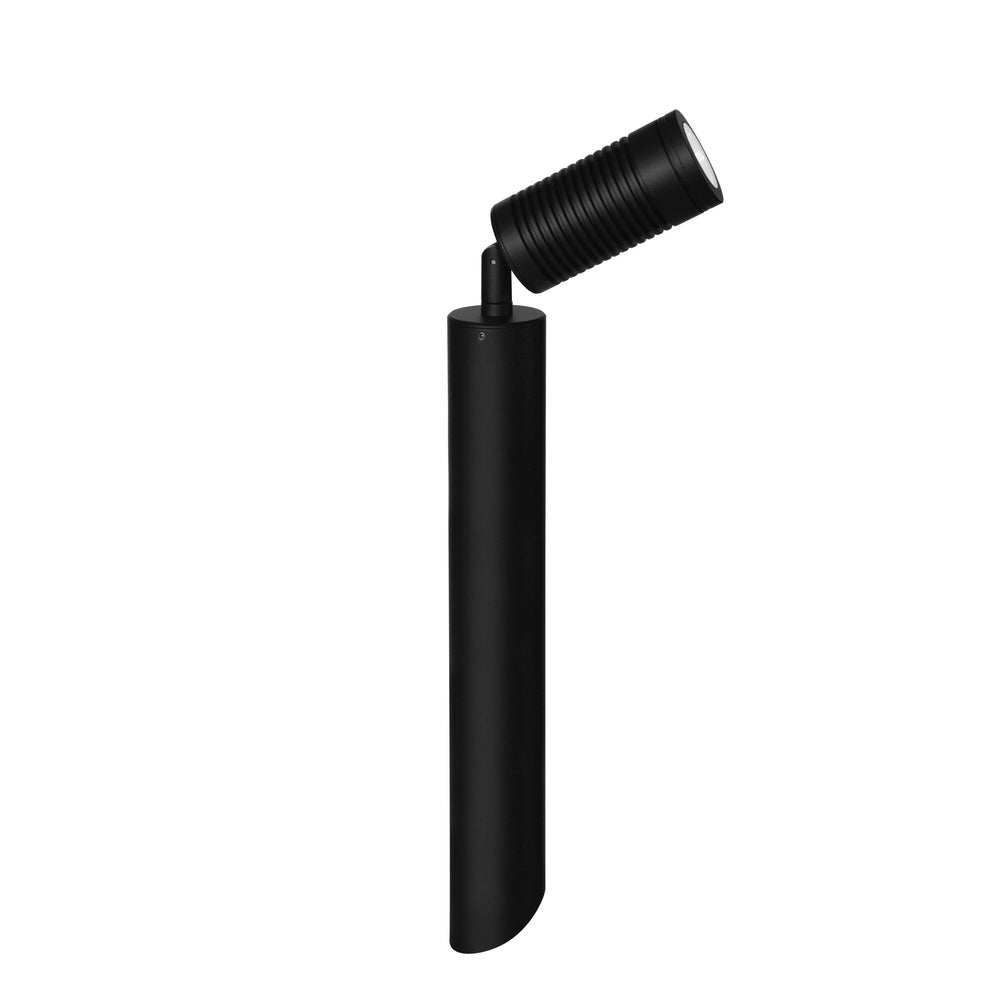

Hunza Pole Spot High Power

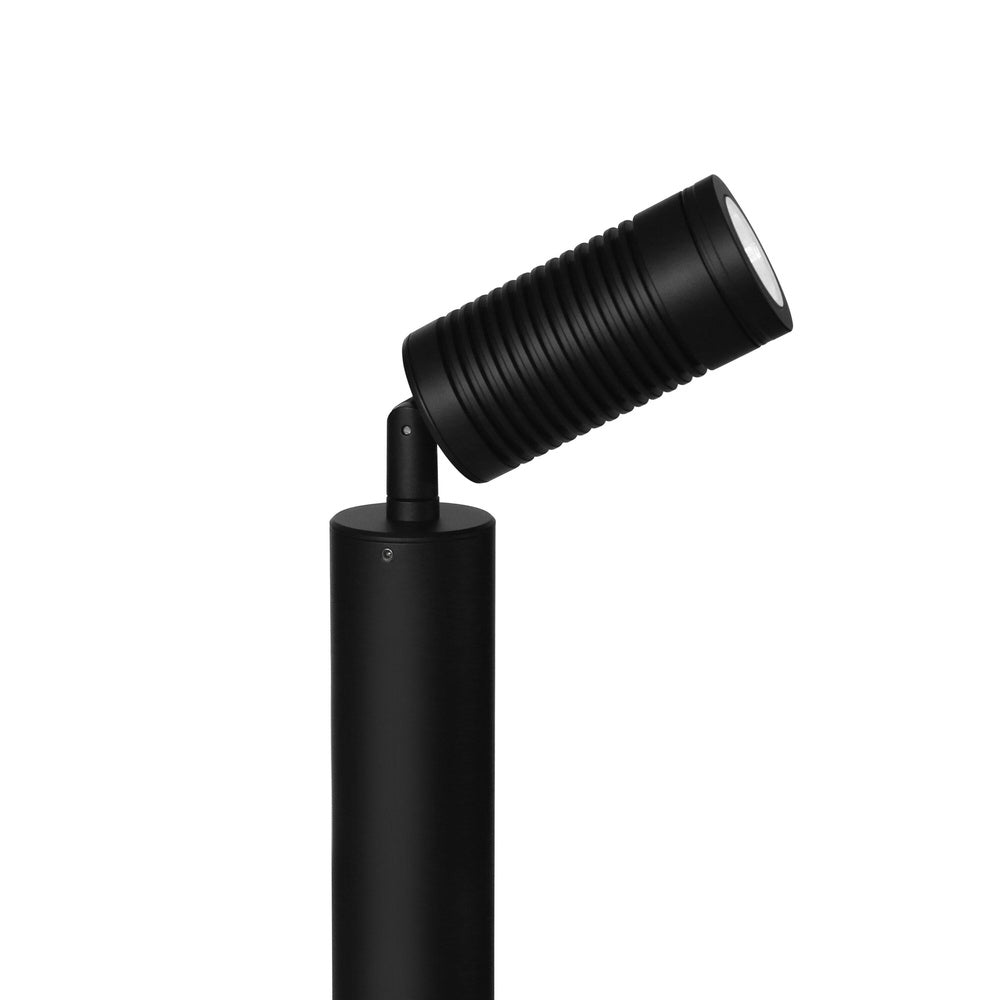

The Hunza Pole Spot High Power has a single spotlight which has been designed for uplighting and cross lighting. This luminaire is best suited to illuminate larger bushes and shrubs, as well as architectural features. The fitting has a fully adjustable head which allows for 360-degree rotation, as well as a high degree of elevation. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.
Product Specifications
Lumen Output*
1200 lumens @ 700mA (12 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.
100 lm/W
Warranty
*Excludes third party lamps and power supplies*
Aluminium Components - 5 years
Electronics - 5 Years
Power Options
700mA CC Input - Series Wired 18Vf 12.6W
700mA CC Input - Series Wired - Remote Driver 18Vf 12.6W
24VDC Input - Parallel Wired 12.6W
120-277 VAC - Integral Retro Driver 12.6W
Lens Options
with Clear Lens
with Frosted Lens
with Hex Cell Louvre Kit (MR16)
Mounting Options
External 90mm Flange Mount
Flange Mount
Accessories
Glare Guard
Snoot
LED
Cree® CXB 1512 field replaceable LED board
LED Life Expectancy
50,000 Hrs @ L70
CRI
85+ Optional
90+ Standard
Ingress Protection
IP66
Materials
Solid Powder Coated Aluminium
Standards
IEC/BS/AS/NZ 60598
UL 1598
Recommended Power Supplies
Driver Supplied for Series Remote Wired (CC format)
24VDC Power Supply Required for 24VDC Input ( CV format )
No Driver Required for Retro™ 'R' ( 120/240V Input )
The Hunza Pole Spot High Power has a single spotlight which has been designed for uplighting and cross lighting. This luminaire is best suited to illuminate larger bushes and shrubs, as well as architectural features. The fitting has a fully adjustable head which allows for 360-degree rotation, as well as a high degree of elevation. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.
Product Specifications
Lumen Output*
1200 lumens @ 700mA (12 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.
100 lm/W
Warranty
*Excludes third party lamps and power supplies*
Aluminium Components - 5 years
Electronics - 5 Years
Power Options
700mA CC Input - Series Wired 18Vf 12.6W
700mA CC Input - Series Wired - Remote Driver 18Vf 12.6W
24VDC Input - Parallel Wired 12.6W
120-277 VAC - Integral Retro Driver 12.6W
Lens Options
with Clear Lens
with Frosted Lens
with Hex Cell Louvre Kit (MR16)
Mounting Options
External 90mm Flange Mount
Flange Mount
Accessories
Glare Guard
Snoot
LED
Cree® CXB 1512 field replaceable LED board
LED Life Expectancy
50,000 Hrs @ L70
CRI
85+ Optional
90+ Standard
Ingress Protection
IP66
Materials
Solid Powder Coated Aluminium
Standards
IEC/BS/AS/NZ 60598
UL 1598
Recommended Power Supplies
Driver Supplied for Series Remote Wired (CC format)
24VDC Power Supply Required for 24VDC Input ( CV format )
No Driver Required for Retro™ 'R' ( 120/240V Input )
When you purchase or specify a Hunza luminaire, you get the benefit of the legendary Hunza reputation for high quality and long life. We back this up with extended warranty, offering up to 10 years on body components and 5 years on the integral PURE LEDTM system. Warranty on plug-in (drop-in) LED lamps is limited to 1 year. When installed and maintained properly Hunza luminaires will last a lifetime so we keep serviceability firmly in mind when designing the components and system construction.
Hunza Five Year Warranty* All Hunza aluminium luminaires with a UV stable powder-coat finish have a five-year replacement warranty, subject to standard conditions listed below. Integral PURE LEDTM components are limited to 5 year warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.
Hunza Ten Year Warranty* All Hunza stainless steel and copper luminaires have a ten-year replacement warranty, subject to standard conditions listed below. Integral PURE LEDTM components are limited to 5 year warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.
Hunza Lifetime Warranty* All glass lenses supplied with Hunza luminaires have a lifetime warranty.
Standard Conditions:
1. The environment in which the fixture is to be installed must be considered carefully when selecting the finish. Stainless steel luminaires are recommended for high-risk environments such as near salt water. Aluminium luminaires may not be covered by the full warranty in these situations. 2. Stainless Steel requires regular cleaning with fresh water when installed in salty environments. (Refer to instructions supplied with luminaire). 3. Hunza underwater fixtures are not be covered by warranty in situations where there are chemical imbalances in the water. 4. Warranty excludes impact damage (except for glass lenses), incorrect installation and incorrect re-assembly. 5. Fixtures must be kept properly maintained, including replacement of gaskets and lenses when necessary. 6. Hunza, at its discretion, may replace components or the complete fixture. 7. Hunza warranty is limited to the repair or replacement of products ONLY, labour charges will not be accepted. 8. Hunza will not be liable for any labour charges for any repair or replacement of defective drivers. Drivers have their own manufacturer warranty and any faults will be at the responsibility of the manufacturer. 9. Polycarbonate and acrylic lenses are limited to 5 year warranty. N.B. Acrylic lenses must NOT be cleaned with any petrochemical substance, warranty will be void. 10. Warranty excludes halogen lamps and lamp holders, which are consumable items.
