Hunza Slim Recessed Solid Eyelid Light

Hunza LightingSKU: SLIMSE/L-D7-SS-2

Select Material: 316 Marine Grade Stainless Steel
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

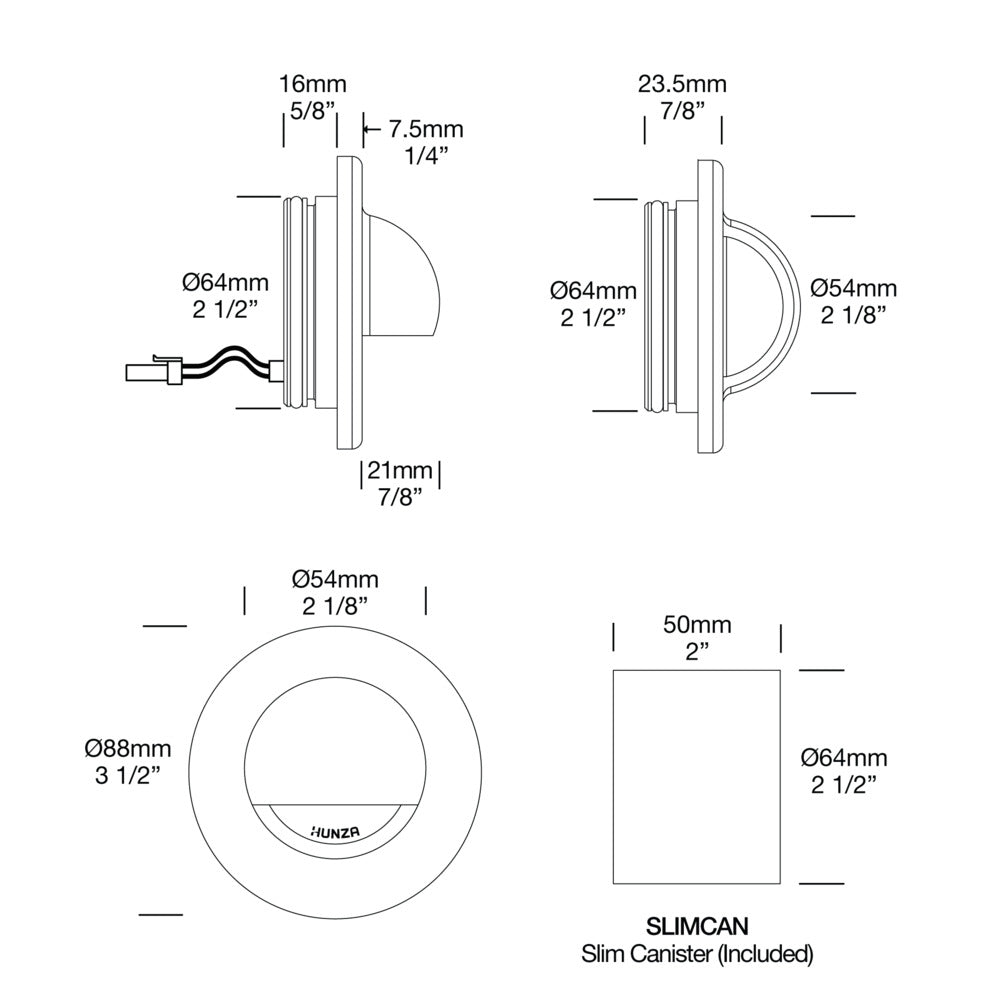

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

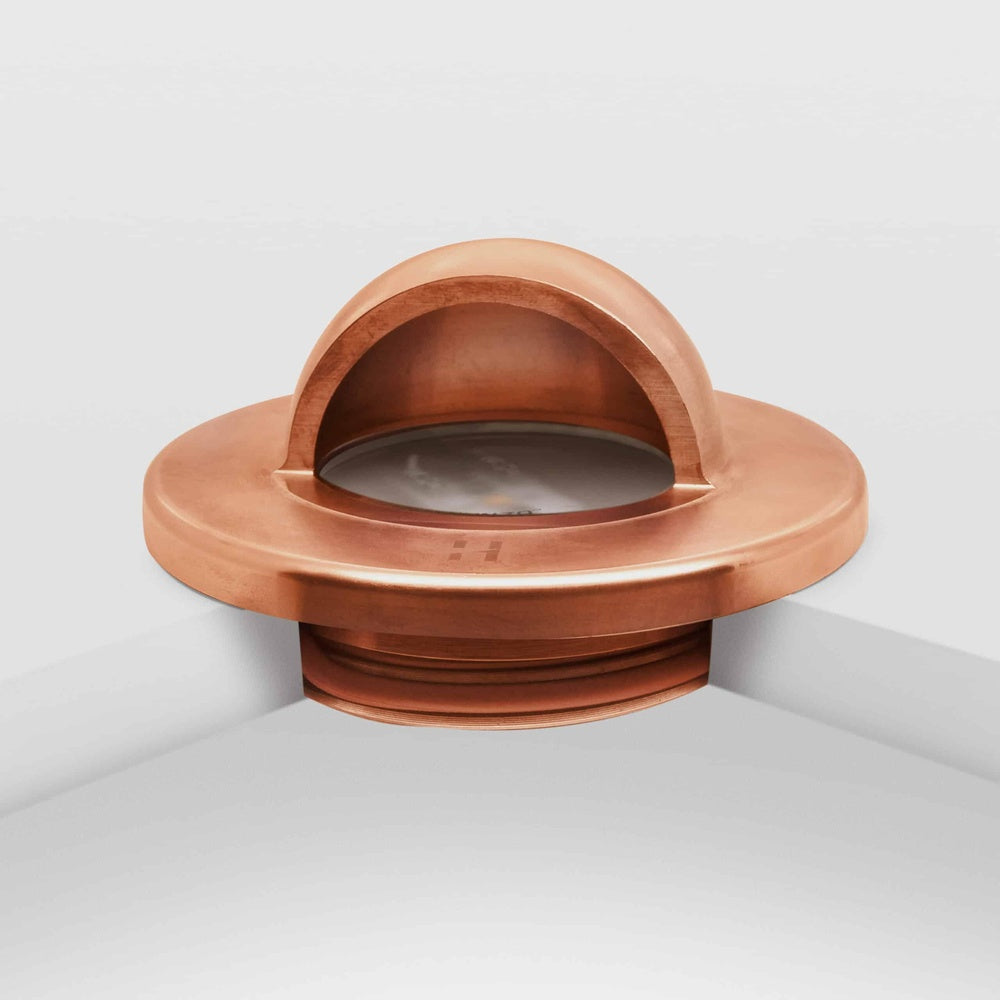

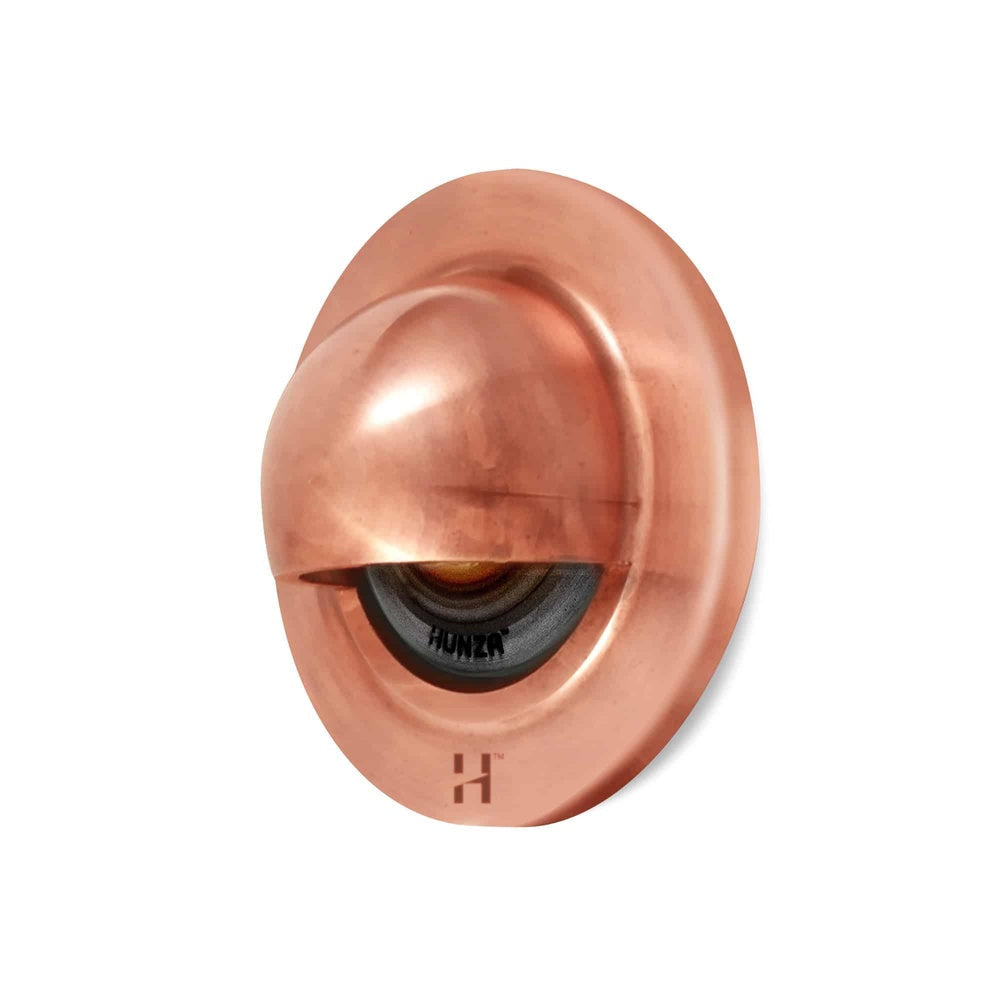

Hunza Slim Recessed Solid Eyelid Light

The SLIM Recessed Solid Eyelid Light is an ideal solution where mounting surfaces have a limited depth.

Product Specifications

Lumen Output*
  • 120 lumens @ 700mA (2 Watts)
  • 60 lumens @ 350mA (3 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 60 lm/W
Power Options
  • 700mA CC Input - Series Wired 3Vf 2.1W
  • 12VAC Input 350mA - Parallel Wired 1.05W
  • 12VAC Input 700mA - Parallel Wired 2.1W
  • 24VDC Input - Parallel Wired 2.1W
Lens Options
  • with Frosted Lens
LED
  • Cree® XPG-3 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Hunza Slim Recessed Solid Eyelid Light - SLIMSE-L - Specification Sheet

Click for Hunza Slim Recessed Solid Eyelid Light - SLIMSE-L - Product Diagram

Click for Hunza Slim Range - SLIM-L - Installation Instructions USA

Click for Hunza Slim Range - SLIM-L - Installation Instructions International

Click for Hunza Slim & Surface Mount - Product Flyer

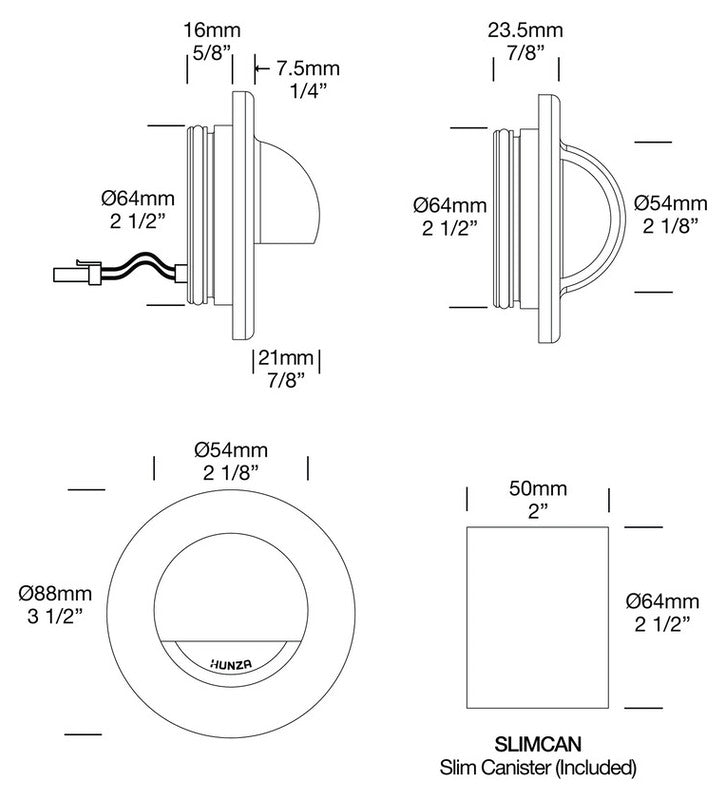

Diagram Image
