Hunza Step Light Louvre

Hunza LightingSKU: SLLU/L-D3-SS-2

Select Power Options: 12V 2.1W
Select Material: 316 Marine Grade Stainless Steel
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

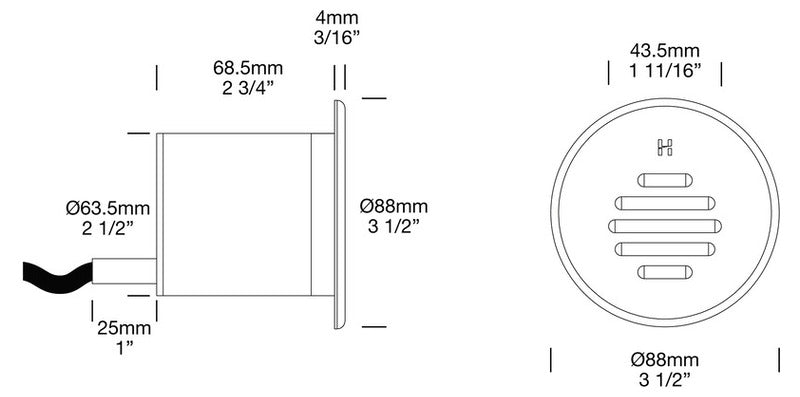

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Hunza Lighting Finishes

Description

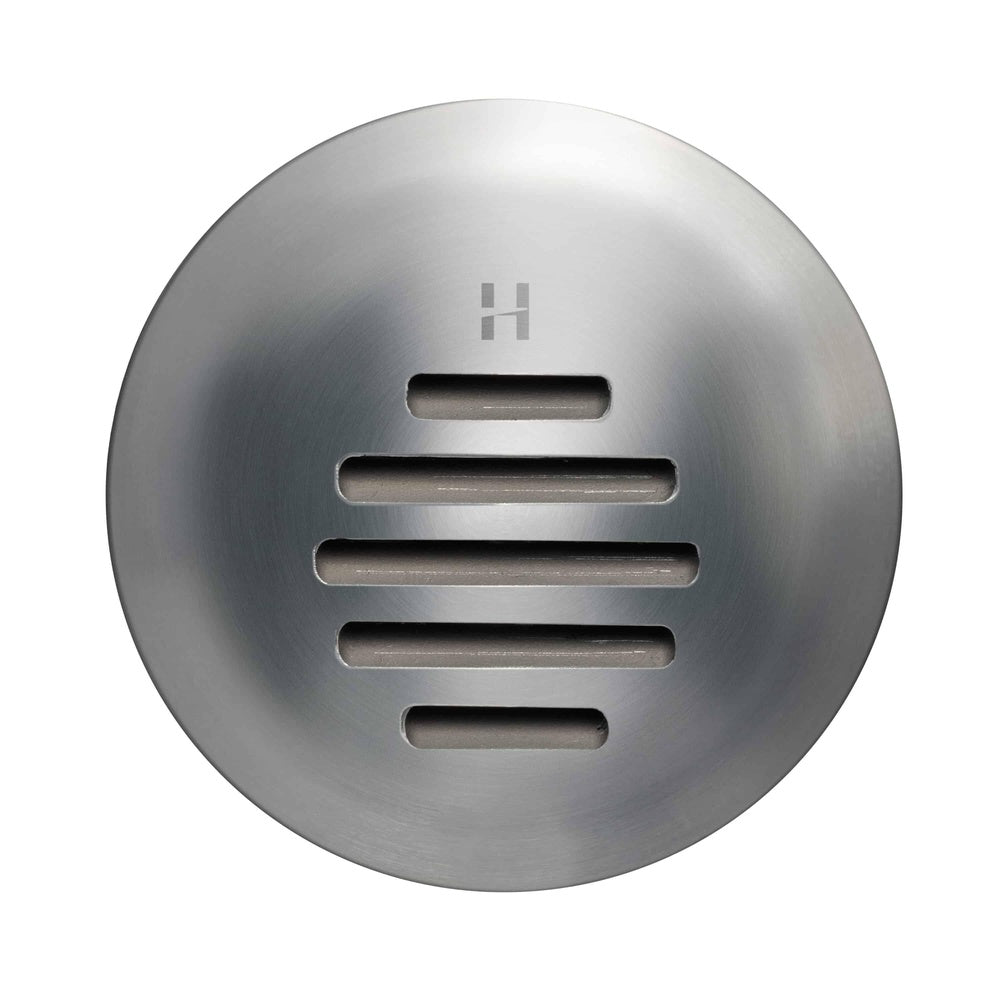

Hunza Step Light Louvre

The Step Light Louvre has a flush to the surface look with no protrusions. The 45 degree louvre eliminates all upward light, making this luminaire ideal for providing illumination of steps and low level features such as exterior paved areas.

Product Specifications

Lumen Output*
  • 600 lumens @ 1050mA (6 Watts)
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Luminaire Options
  • Step Light Louvre
Lens Options
  • with Clear Lens
  • with Frosted Lens
Mounting Options
  • Deck Mount Canister - Aluminium
  • Stainless Steel Canister
  • Step Light Canister
LED
  • Cree® XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Electronics - 5 Years
  • Solid Copper Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1838
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Step Light Louvre - SLLU-L - Specification Sheet

Click for Step Light - SL-L - Product Diagram

Click for Path Light - Step Light - Floor Light - Installation Instructions USA

Click for Path Light - Step Light - Floor Light - Installation Instructions International

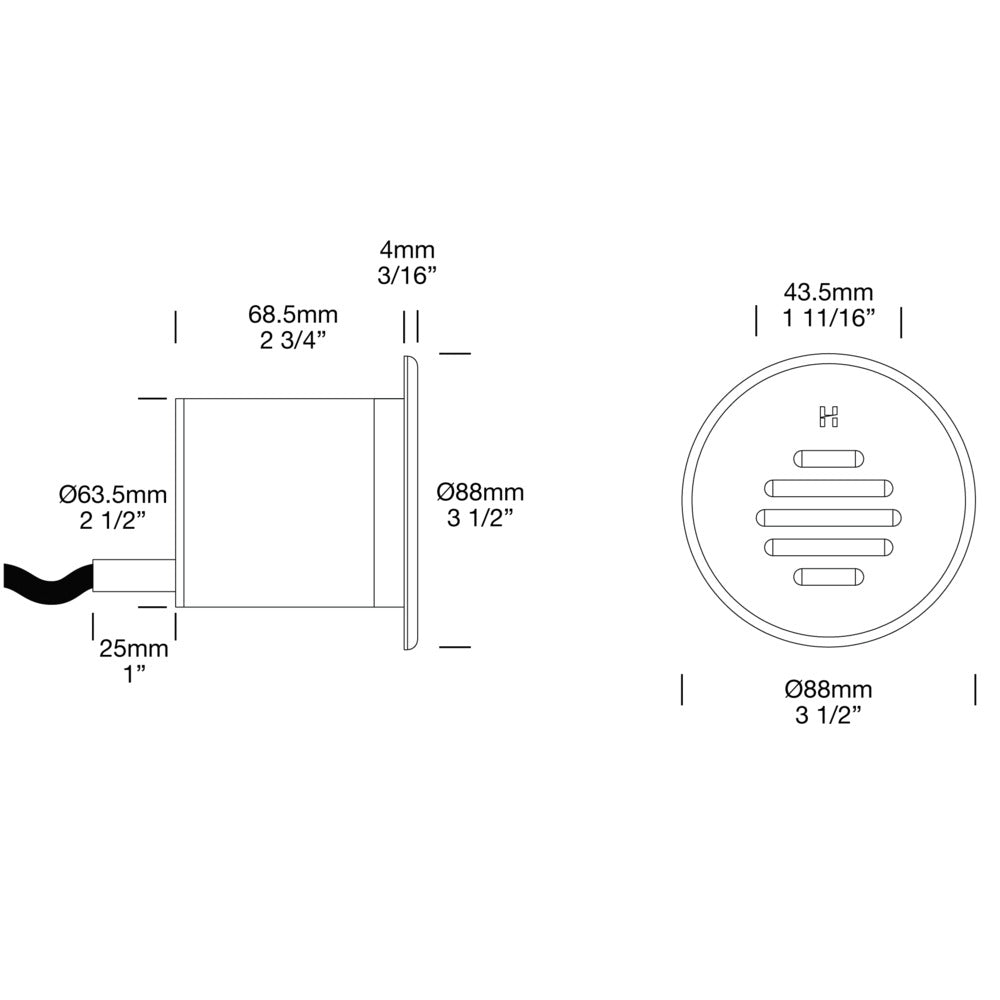

Diagram Image
