Hunza Spun Canister Cast Solid Bronze SafeTouch 50

Hunza LightingSKU: ST50CSB/SC-R-SS-15-2

Select Material: 316 Marine Grade Stainless Steel Flange
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

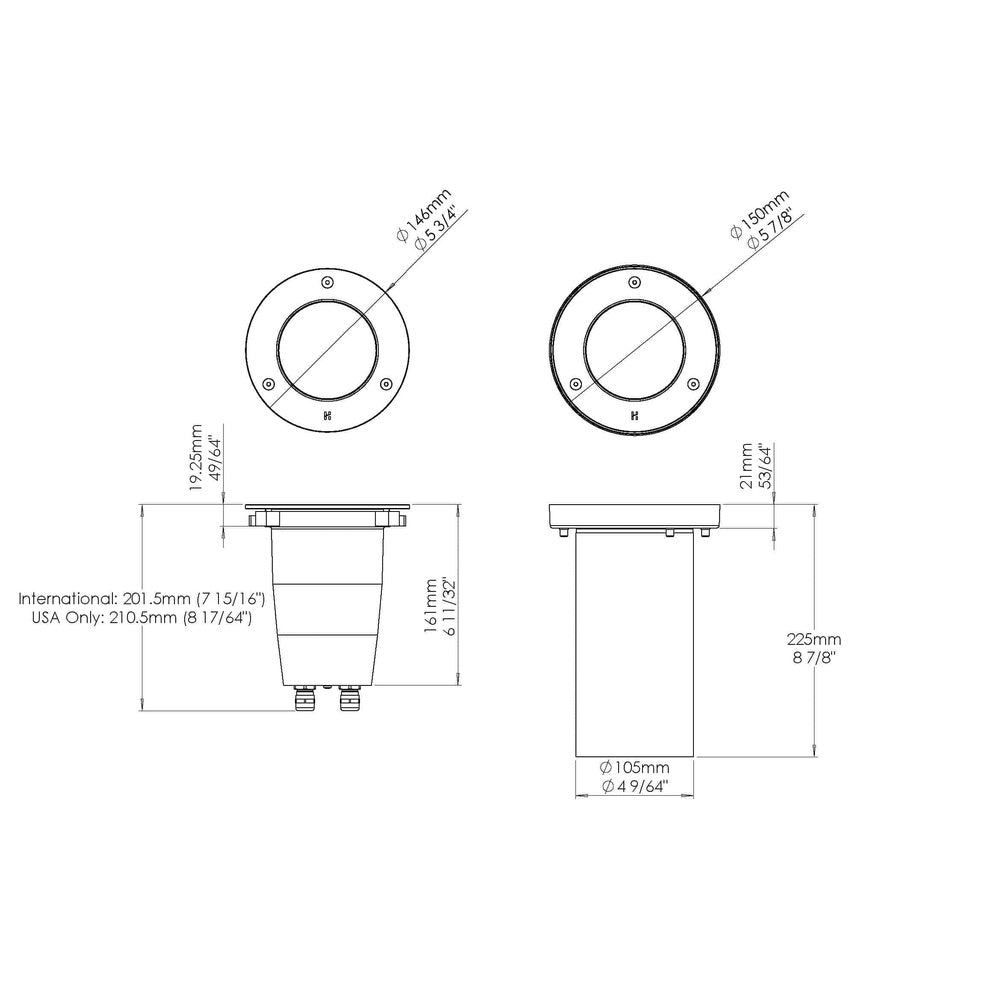

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

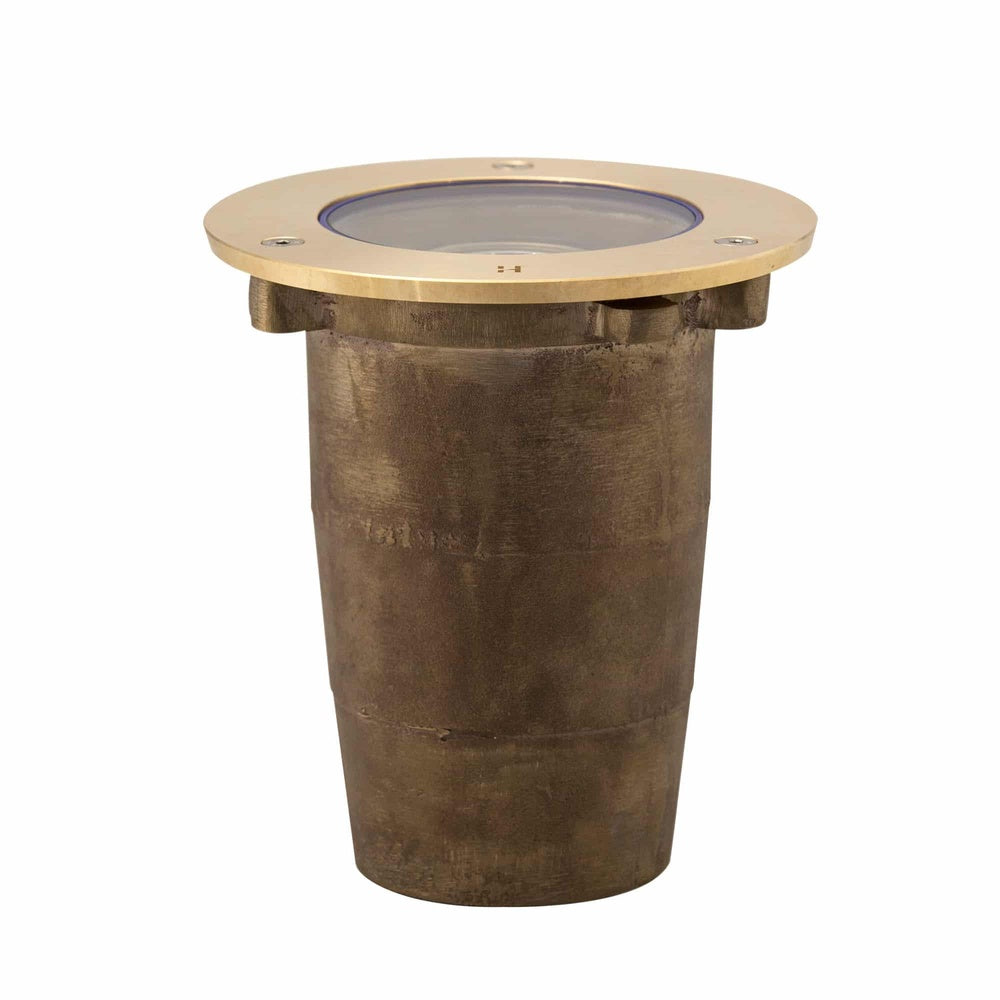

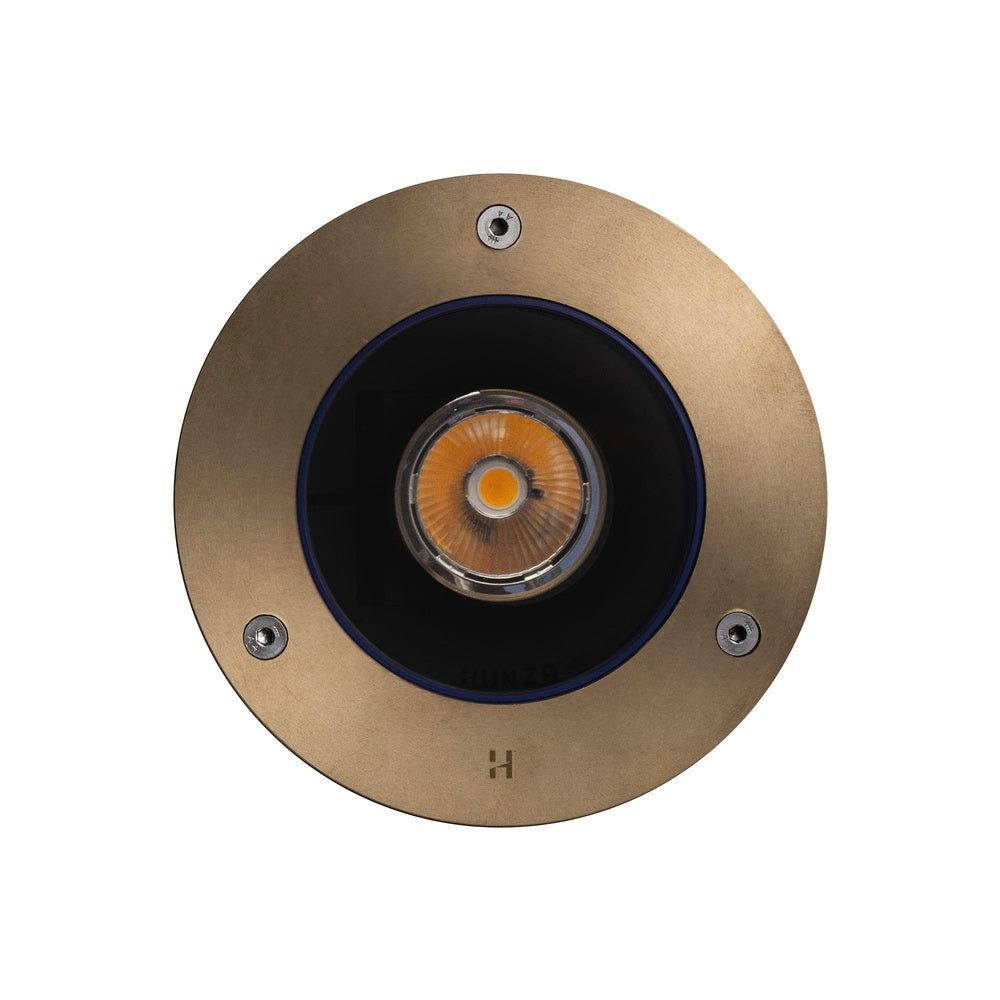

Hunza Spun Canister Cast Solid Bronze SafeTouch 50

The Cast Solid Bronze SafeTouch 50 in-ground luminaire has been specifically designed with ultimate public safety as its primary objective. It produces high-output optically pure light, but operates with cool lens temperatures, low energy consumption and minimal maintenance. It has a fully adjustable gimbal allowing 360 rotation and 0-20 elevation. This luminaire is extremely tough, durable and waterproof, making it ideal for installation in public spaces, large-scale projects and residential areas. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.

Product Specifications

Lumen Output*
  • 1200 lumens @ 700mA (12 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Luminaire Options
  • Cast Solid Bronze SafeTouch 50 - Spun Canister
Power Options
  • 700mA CC Input - Series Wired - Remote Driver 18Vf 12.6W
  • 24VDC Input - Parallel Wired 12.6W
  • 120-277 VAC - Integral Retro Driver 12.6W
Lens Options
  • with Clear Lens
  • with SafeTouch 50 Frosted Lens
  • with SafeTouch 50 Anti Slip Lens
  • with SafeTouch 50 Hex Cell Louvre
Accessories
  • SafeTouch 50 Glare Shield
LED
  • Cree® CXB 1512 field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 85+ Optional
  • 90+ Standard
Ingress Protection
  • IP68 *not for use in pool or ponds
Impact Protection
  • IK10
In-ground/Recessed Dimensions
  • Canister Shoulder: ø150mm (5 7/8")
  • Canister Tube: ø105mm (4 9/64")
  • Direct Burial Flange: ø146mm (5 3/4")
Materials
  • 316 Marine Grade Stainless Steel Flange
  • Cast Solid Bronze Body
  • Solid Bronze Flange
Warranty
  • 316 Stainless Steel Components - 10 years
  • Cast Bronze Components - 25 Years
  • Electronics - 5 Years
  • Solid Bronze Components - 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • 24VDC Power Supply Required for 24VDC Input ( CV format )
  • No Driver Required for Retro™ R ( 120/240V Input )
Product Files

Click for Cast Solid Bronze SafeTouch 50 - ST50CSB-L - Specification Sheet

Click for SafeTouch 50 - ST50- Product Diagram

Click for SafeTouch 50 - ST50-L - Installation Instructions International

Click for SafeTouch 50 - ST50-L - Installation Instructions USA

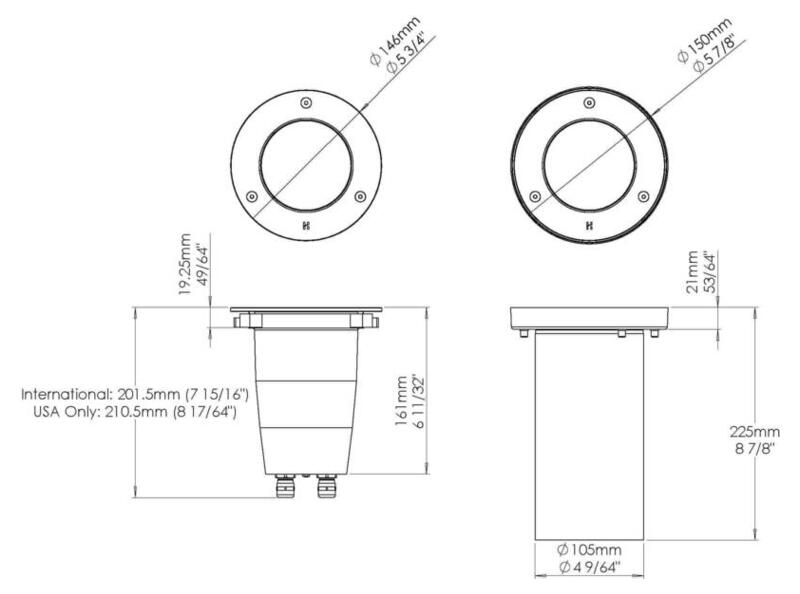

Diagram Image
