Hunza SUNRICHER DMX/RDM Full Colour (RGBW) 4 Channel - Constant Current Driver - 150W

Hunza LightingSKU: SRPC-2108-150CCF

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

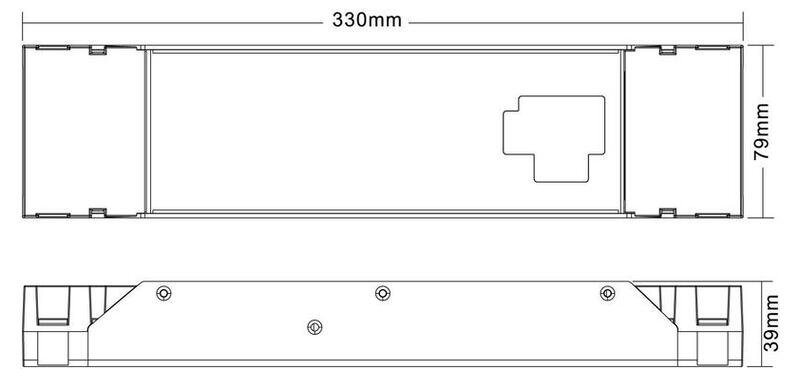

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

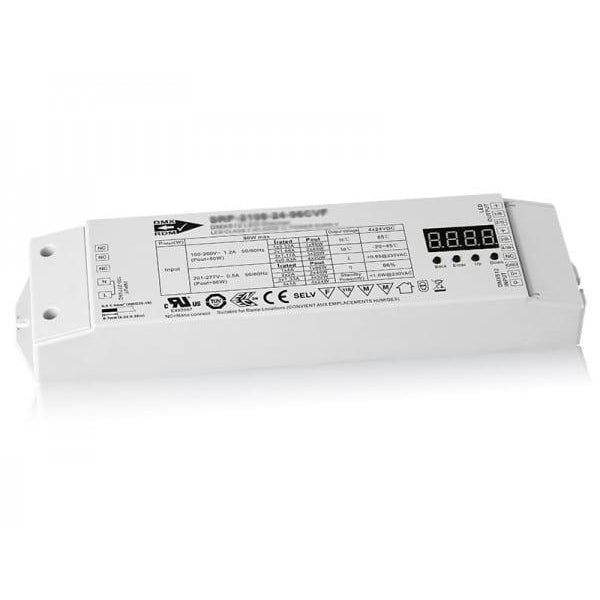

Hunza SUNRICHER DMX/RDM Full Colour (RGBW) 4 Channel - Constant Current Driver - 150W

The Hunza SRPC-2108-150CCF is a 150W DMX and RDM constant current LED Driver. It has four LED outputs, which can be used for a wide range of full-colour (RGBW), dynamic LED lighting applications.

Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

Output LED Channel 4
Selectable Current 250mA 300mA 350mA 400mA 450mA 500mA 600mA 700mA
DC Voltage Range 8-52V 8-52V 8-52V 8-52V 8-52V 8-52V 8-52V 8-52V
Selectable Current 800mA 900mA 1000mA 1100mA 1200mA 1300mA 1400mA 1500mA
DC Voltage Range 8-52V 8-52V 8-52V 8-52V 8-52V 8-52V 8-52V 8-52V

Product Specifications

Driver Type
  • Constant Current RGBW
Dimming
  • DMX/RDM
Output Voltage
  • 8-52V
Output Current
  • 250-1400mA
Output Power (W)
  • Max. 77W/CH
  • CH1+CH2+CH3+CH4 ? 150W
Input Voltage
  • 100-277VAC
Input Current
  • 1.82A
Frequency
  • 50/60Hz
Standards
  • CE
  • CSA
  • EN
  • ENEC Approved
  • RoHS
  • SELV
  • UL Recognised
Ambient/Operating Temperature (ta)
  • -25 …+45°C
Ingress Protection
  • IP20
Warranty
  • Third Party Warranty*
Dimensions
  • 33 x 7.9 x 2 cm ( 12.99" x 3.11" x 0.79" )
Product Files

Click for SUNRICHER DMX/RDM Full Colour (RGBW) Constant Current Driver | 150W - SRPC-2108-150CCF - Specification Sheet

Click for SUNRICHER DMX/RDM Full Colour (RGBW) Constant Current Driver | 150W - SRPC-2108-150CCF - Installation Instructions

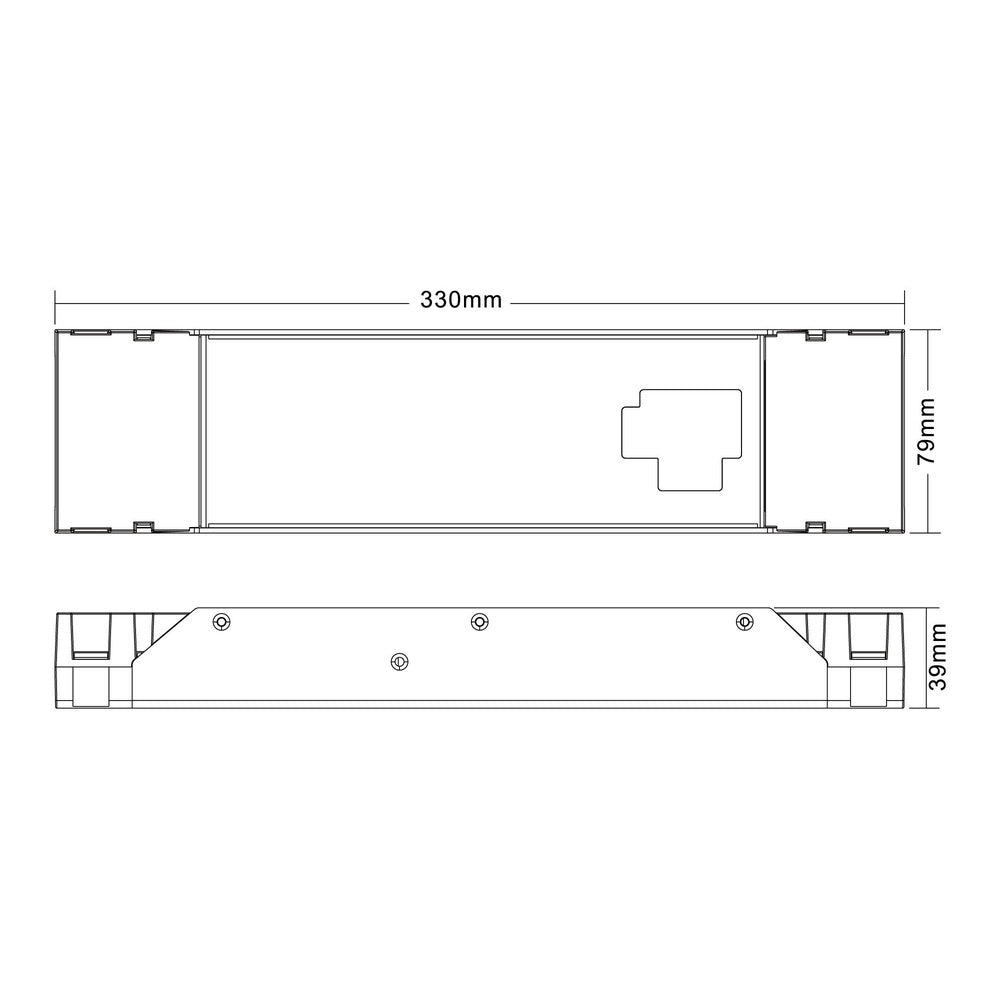

Diagram Image
